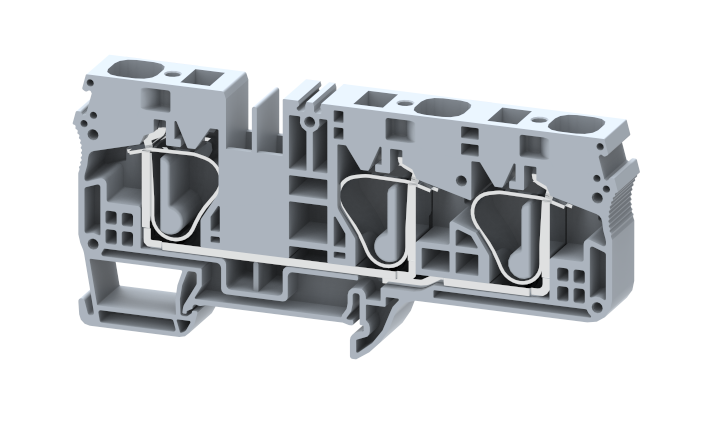

SQ16-1X2

Approvals

UL Recognition for USA CE Mark Conforming to IEC Specification c-UL Recognition for Canada

Line Diagram


General Data

Type SQ16-1X2
Wire termination Technology Spring Cage Connection
Rating 1000 V / 76 A / 16 sq.mm
GTIN / Harmonize Custom Code 85389000
Standard Packing Qty (in No) 25
Country of Origin India

Thickness (mm) 12
Thickness (inches) 0.47
Width (mm) 110.3
Width (inches) 4.34
Height (mm) 50.5
Height (inches) 1.99
Weight For Standard Packing Qty (KG) 1.4

Housing Polyamide 6,6
Clamping Material SS
Standard Colour Grey
Other Colour Variants Red, Yellow, Blue, Black, Green, Khakhi
Standard Colour Gray

Stranded Wire - Min (sq.mm) 0.2
Stranded Wire - Max (sq.mm) 16
Solid Wire - Max (sq.mm) 25

Standard IEC 60947-7-1
Rated Voltage (V) 1000
Rated Current (A) 76
Rated Cross Section (sq.mm) 16
Short Time Withstand Current (kA) 1.92
Rated Impulse Withstand Voltage (kV) 8
Pollution Degree 3

Rated Voltage (V) 600
Rated Current (A) 85
Wire Cross Section - min (AWG) 24
Wire Cross Section - max (AWG) 4

Rated Voltage (V) 600
Rated Current (A) 85
Conductor Size - min (AWG) 24
Conductor Size - max (AWG) 4

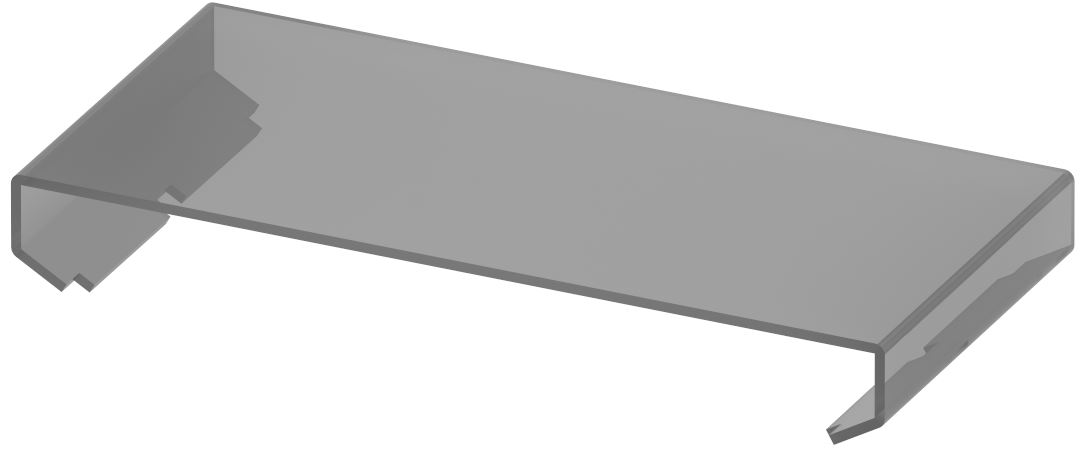

Cover Profile
PCP250
  • Cover profile for Terminal type - CBT250 , CBT250T , CBT300 , CBT300T(Covers one terminal block)
  • Width : 49 mm
  • Thickness : 1.5 mm
  • Length : 166 mm
DIN Rail Perforated
CHKDS
  • 35 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm - Perforated
  • Height : 15 mm
  • Width : 35 mm
  • Thickness : 1.5 mm
  • Length : 2000 mm
CHKS
  • 35 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm - Perforated
  • Height : 7.5 mm
  • Width : 35 mm
  • Thickness : 1 mm
DIN Rail, Unperforated
CHKD
  • 35 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm , Unperforated
  • Height : 15 mm
  • Width : 35 mm
  • Thickness : 1.5 mm
CHK
  • 35 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm , Unperforated
  • Height : 7.5 mm
  • Width : 35 mm
  • Thickness : 1 mm
End Cap
CHKENDCAP
  • END COVER/ CAP FOR CHK CHANNEL
  • Height : 14 mm
  • Width : 9 mm
  • Length : 41.5 mm
End Clamp
SCUP
  • TS32 , TS35 din rail mounted end clamp with fixing screws , Type - SCUP
  • Height : 34 mm
  • Length : 44.75 mm
SCEC35
  • TS35 DIN rail mounted End clamp with fixing nut and screw of size M3, Width - 8 mm, Color - Grey
  • Height : 31.5 mm
  • Width : 8 mm
  • Length : 45.8 mm
SCUSL
  • Universal rail mounted end clamp with fixing screws , Type - SCUSL
  • Height : 41.1 mm
  • Width : 8 mm
  • Length : 47.5 mm
SCUDD
  • TS35 , TS32 DIN rail mounted end clamp with fixing screws , Width - 10 mm , Type - SCUDD
  • Height : 50 mm
  • Width : 10 mm
  • Length : 55.6 mm
DCKN
  • TS35 din rail mounted end clamp without fixing screws , Width - 6 mm , Color - Grey
  • Height : 33 mm
  • Width : 6 mm
  • Length : 43.5 mm
DCKN10
  • TS35 DIN rail mounted end clamp without fixing screws , Width- 10 mm , Color - Grey
  • Height : 35 mm
  • Width : 10 mm
  • Length : 43.5 mm
SCKN
  • TS35 DIN rail mounted end clamp with fixing screws , Width - 8 mm , Color - Grey
  • Height : 34.5 mm
  • Width : 8 mm
  • Length : 44.9 mm
SCUN
  • TS35 , TS32 DIN rail mounted end clamp with fixing screws , Width- 9.5 mm , Color - Grey
  • Height : 35.5 mm
  • Width : 9.5 mm
  • Length : 50.6 mm
End Cover

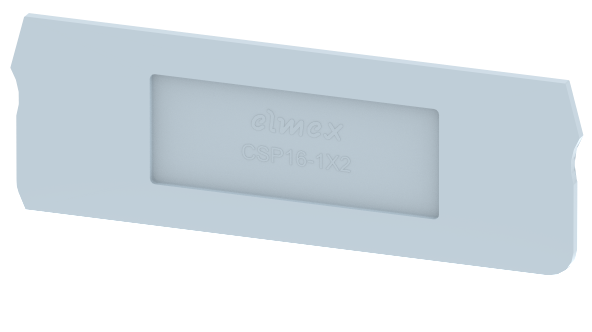

CSP16-1X2
  • End Cover for terminal type - SQ16-1X2 , SGQ16-1X2
  • Height : 37.2 mm
  • Thickness : 2 mm
  • Length : 110 mm
Marker For Terminal Blocks
LABEL KN12
  • Snap on type PVC marking Label , Type - KN 12
  • Width : 12 mm
Partition Plate
BPA 185/240
  • Barrier Plate with Foot , Type : BPA185/240 , colour : GREY
  • Height : 82.4 mm
  • Width : 3 mm
  • Length : 180 mm
Plug-in Bridge/Jumper
SLPU12-2W
  • Plug In Bridge, Type – SLPU12-2W
  • Height : 38.7 mm
  • Width : 23 mm
  • Pitch : 12 mm
Marker carriers
SCUDDMLH
  • Universal rail-mounted end clamp with fixing screws & marking label holder, Type - SCUDDMLH
  • Height : 71.5 mm
  • Width : 10 mm
  • Length : 55.6 mm
SCUNMLH
  • Universal rail mounted end clamp with fixing screws & marking lable holder , Type - SCUNMLH
  • Height : 53.5 mm
  • Width : 9.5 mm
  • Length : 50.6 mm
SCKNMLH
  • 35 mm rail mounted end clamp with marking lable holder
  • Height : 45.5 mm
  • Width : 8 mm
  • Length : 44.9 mm

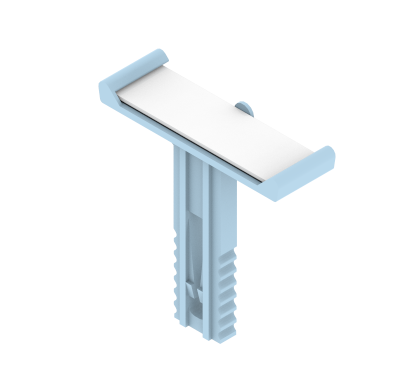

DCKNGML
  • Group Marking Label Carrier - Compatible with DCKN 10-End Clamp
  • Height : 31.1 mm
  • Width : 8.45 mm
  • Thickness : 29.35 mm
