High-Current Terminal Blocks

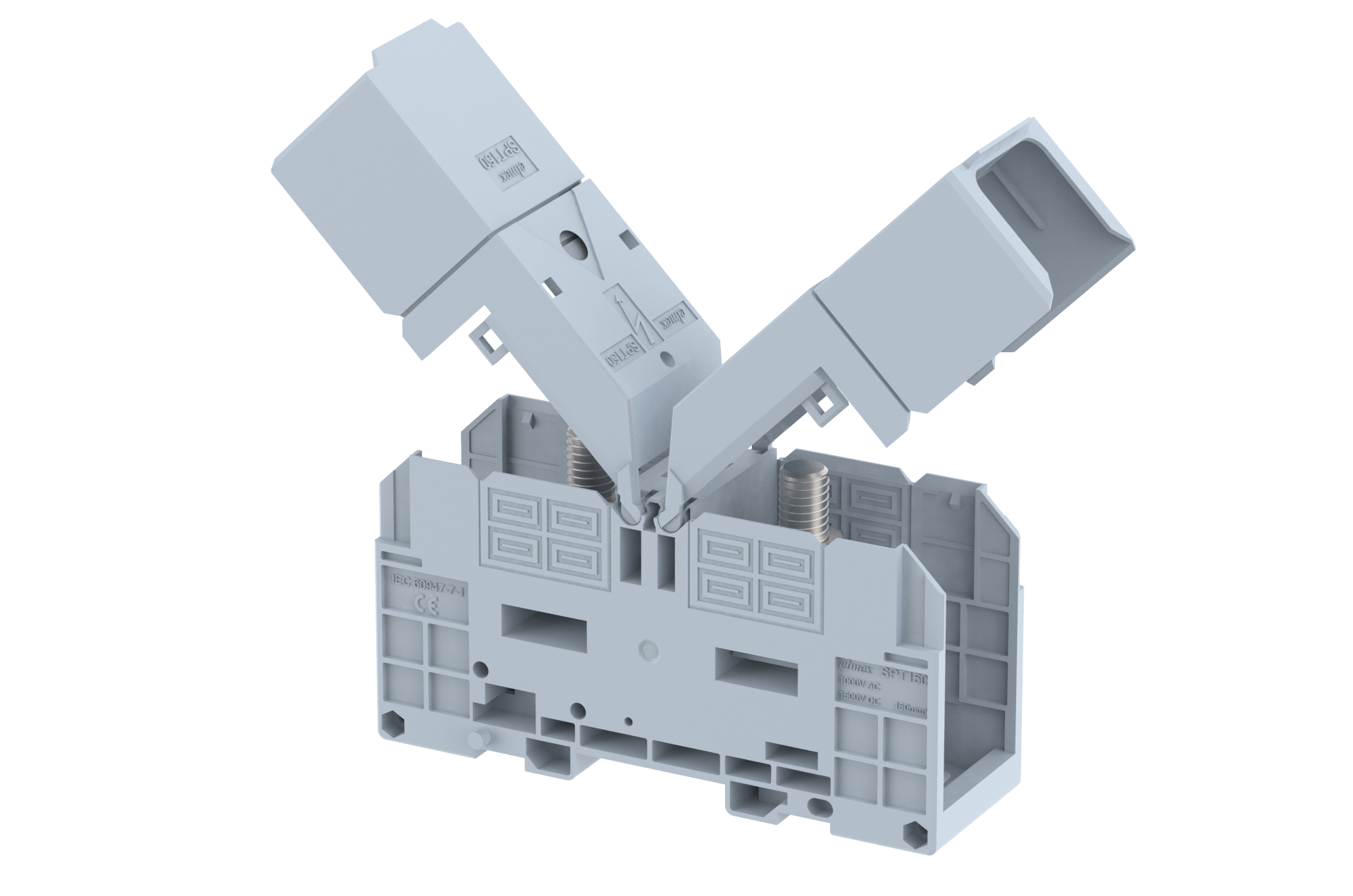

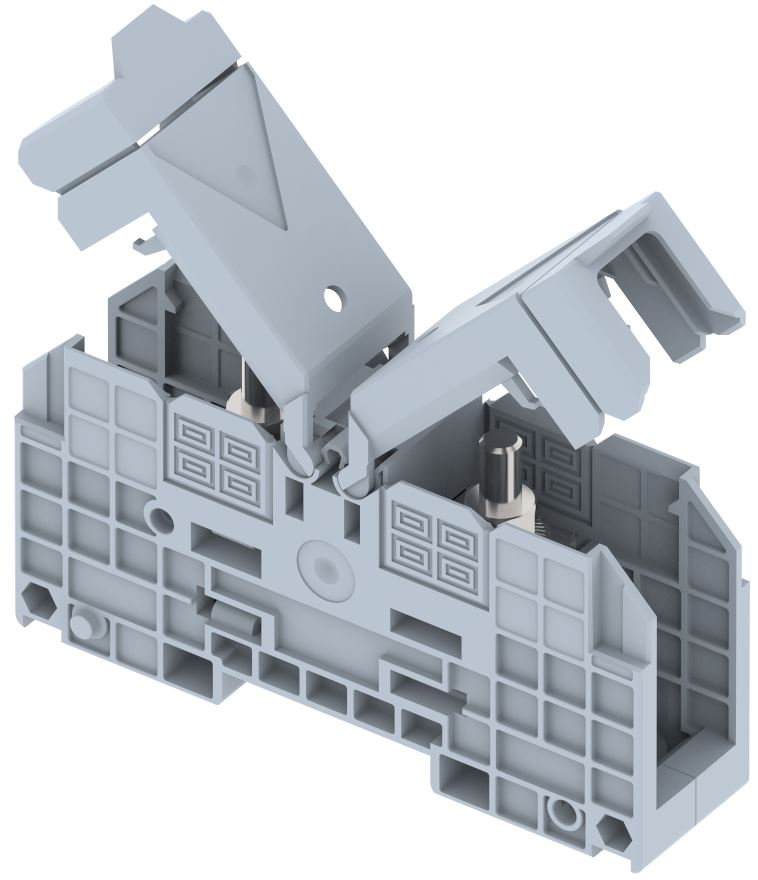

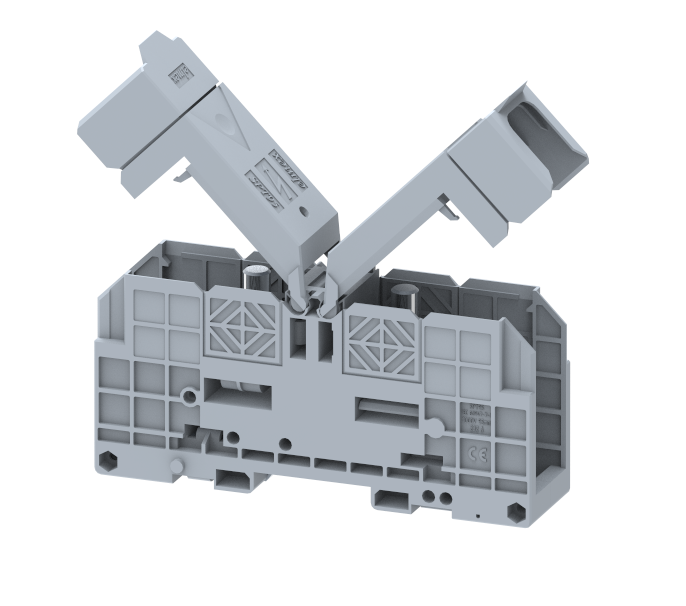

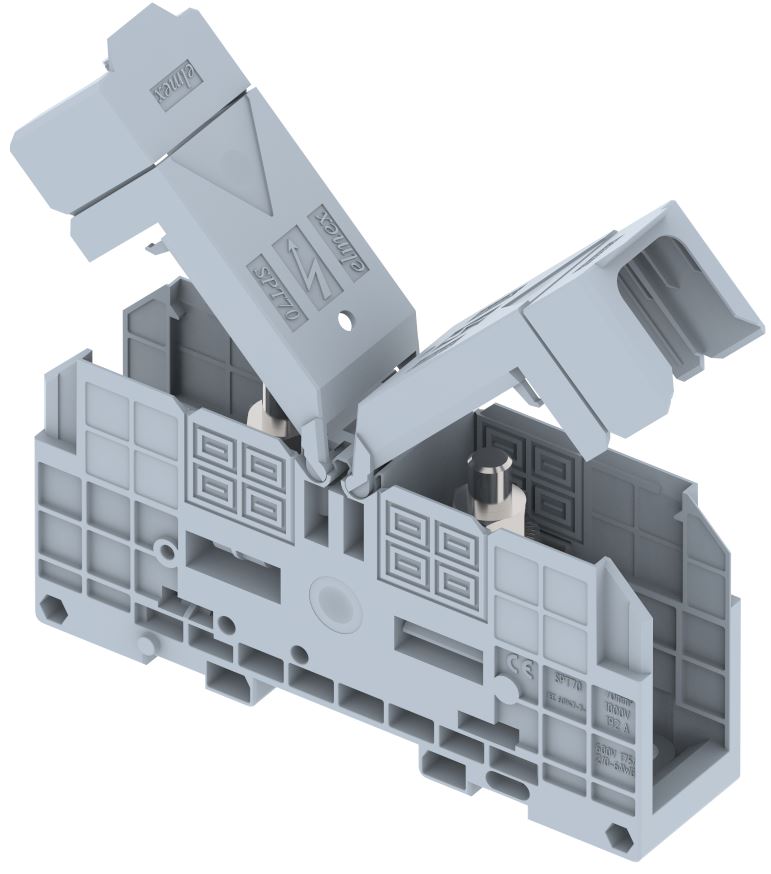

'elmex' offers a range of Power/Bus-Bar/High Current Terminals for solid and stranded cables with fork or ring lugs. These terminals include models like DPBB50, 70, and 120, rated up to 269 Amps. Safety features include partition plates, barrier plates, and transparent covers for added protection. Elmex also offers a SPT design with hinged covers, making it finger-safe without requiring additional covers. These terminals support 35 sq. mm and 70 sq. mm cables, with current ratings of 140 Amps and 192 Amps, and Hinged covers are available in various colors as required optionally.

High-Current Terminal Blocks Manufacturer and Supplier in India – Elmex

Products

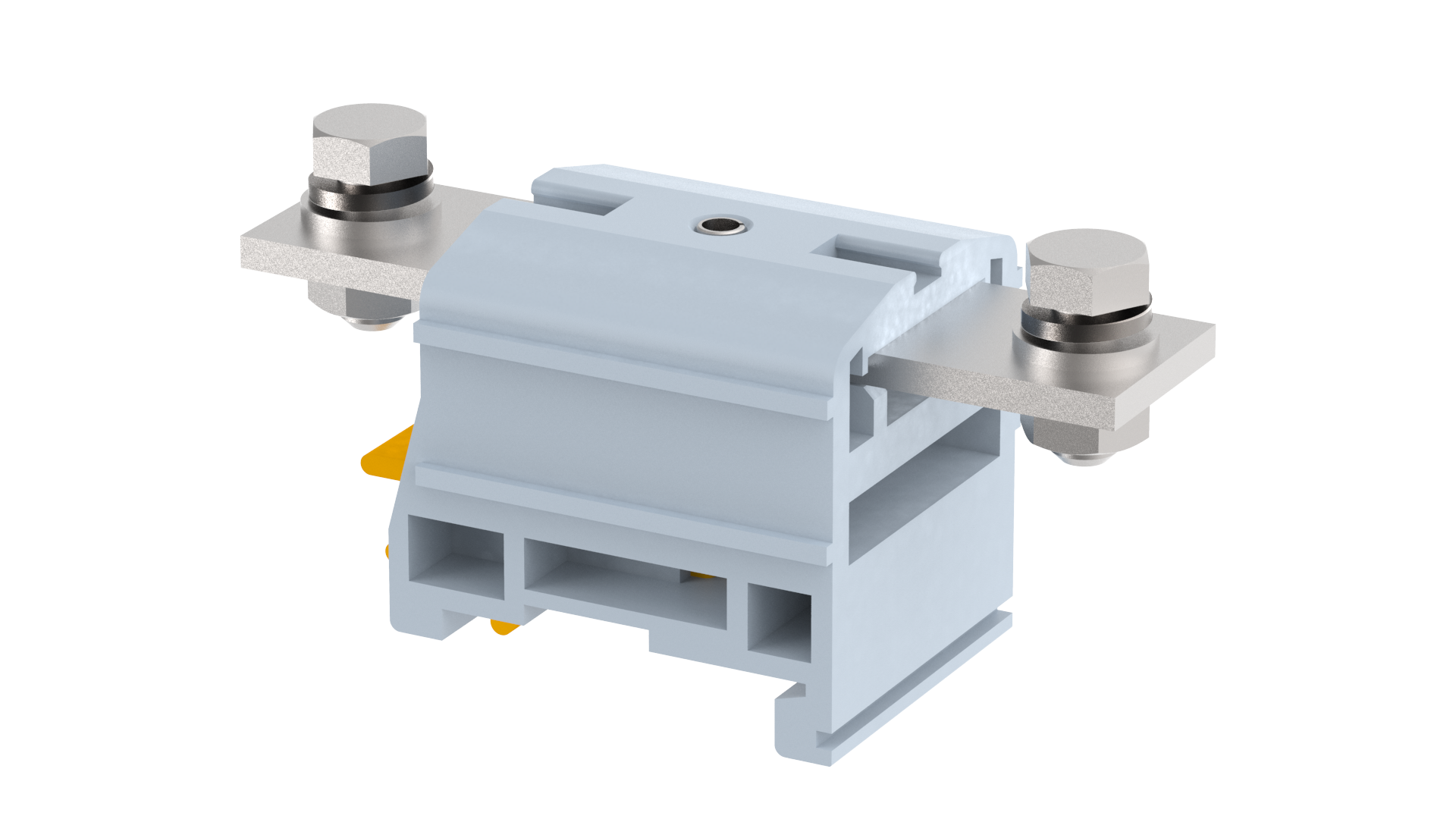

DPBB50

CE mark for explosion-proof Approval as per ATEX directive

UL Recognition for USA

CE Mark Conforming to IEC Specification

CSA Recognition for Canada & USA

c-UL Recognition for Canada

DPBB50 Terminal Blocks Bolt Connection Manufacturer and Supplier in India – Elmex

IEC : 1000 V / 150 A / 50 sq.mm / 3 Nm
CSA : 1000 V / 130 A / 1 - 6 AWG
Thickness : 37.2 mm / 1.46 inches
Width : 85 mm / 3.35 inches
Height : 42.9 mm / 1.69 inches

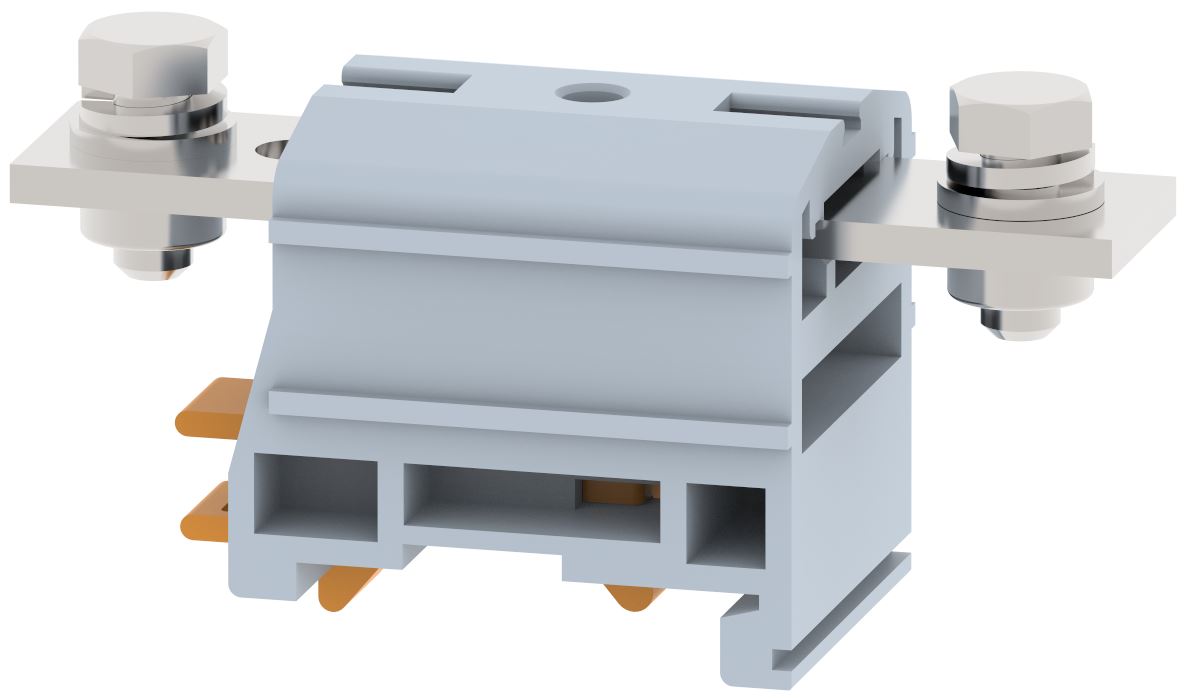

DPBB50CN

CE Mark Conforming to IEC Specification

DPBB50CN Terminal Blocks Bolt Connection Manufacturer and Supplier in India – Elmex

IEC : 1000 V / 150 A / 50 sq.mm / 3 Nm
Thickness : 37.2 mm / 1.46 inches
Width : 85 mm / 3.35 inches
Height : 42.8 mm / 1.69 inches

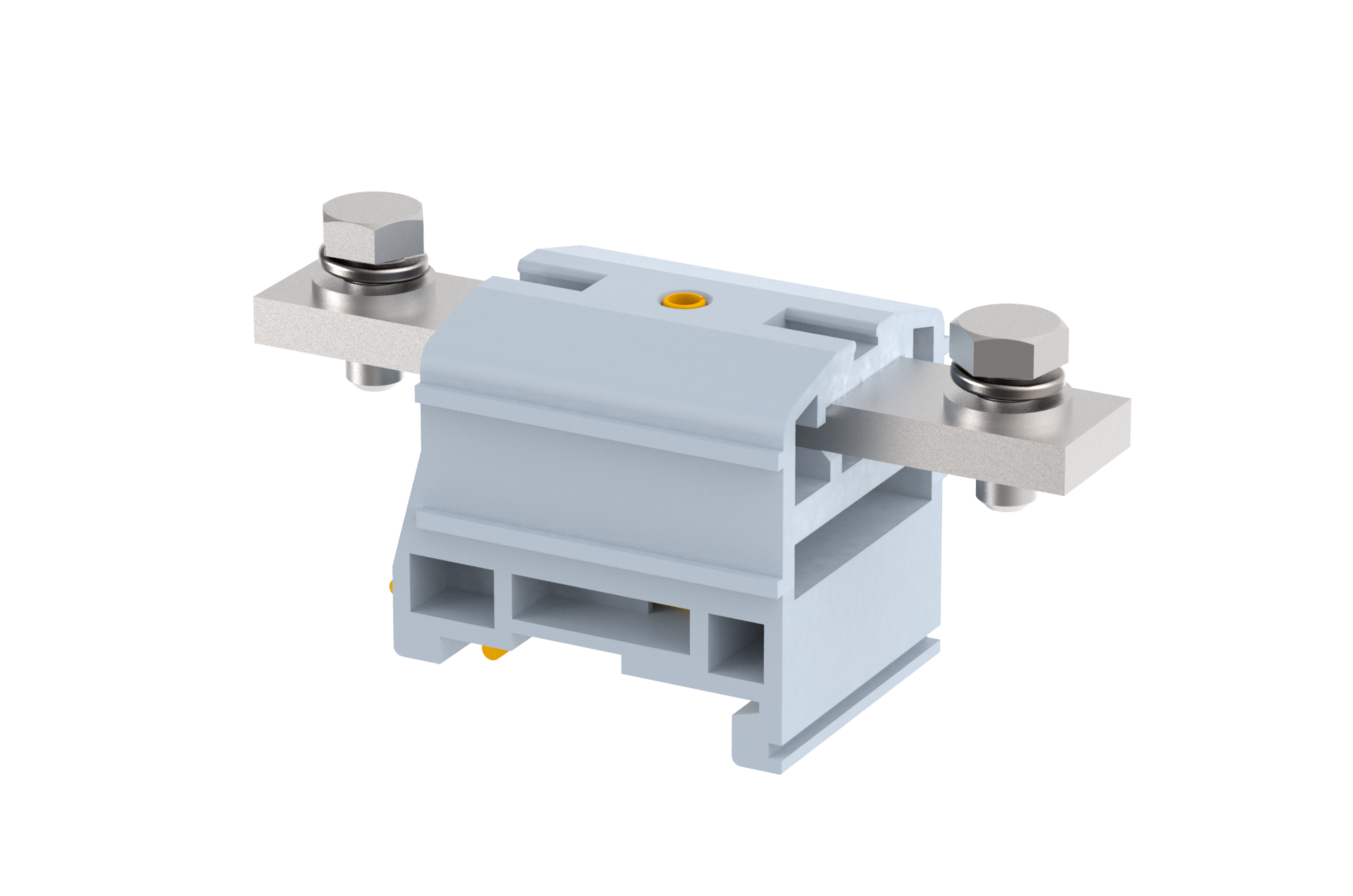

DPBB70

CE mark for explosion-proof Approval as per ATEX directive

UL Recognition for USA

CE Mark Conforming to IEC Specification

CSA Recognition for Canada & USA

D mark Certification for Denmark

c-UL Recognition for Canada

S Mark Certification for Sweden

FI Mark Certification for Finland

N Mark Certification for Norway

DPBB70 Terminal Blocks Bolt Connection Manufacturer and Supplier in India – Elmex

IEC : 1000 V / 192 A / 70 sq.mm / 3 Nm
CSA : 1000 V / 175 A / 6 - 20 AWG
Thickness : 37.2 mm / 1.46 inches
Width : 90 mm / 3.54 inches
Height : 44 mm / 1.73 inches

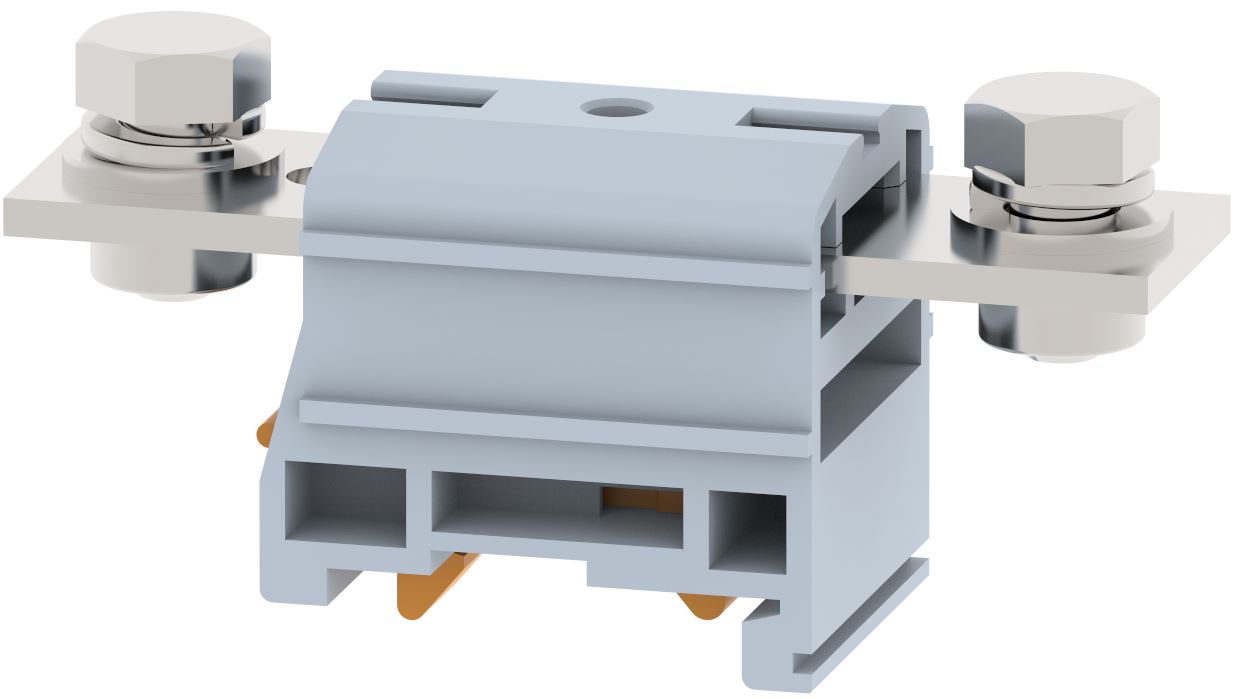

DPBB70CN

CE Mark Conforming to IEC Specification

DPBB70CN Terminal Blocks Bolt Connection Manufacturer and Supplier in India – Elmex

IEC : 1000 V / 192 A / 70 sq.mm / 3 Nm
Thickness : 37 mm / 1.46 inches
Width : 90 mm / 3.54 inches
Height : 44 mm / 1.73 inches

DPBB120

CE mark for explosion-proof Approval as per ATEX directive

UL Recognition for USA

CE Mark Conforming to IEC Specification

CSA Recognition for Canada & USA

D mark Certification for Denmark

c-UL Recognition for Canada

S Mark Certification for Sweden

FI Mark Certification for Finland

N Mark Certification for Norway

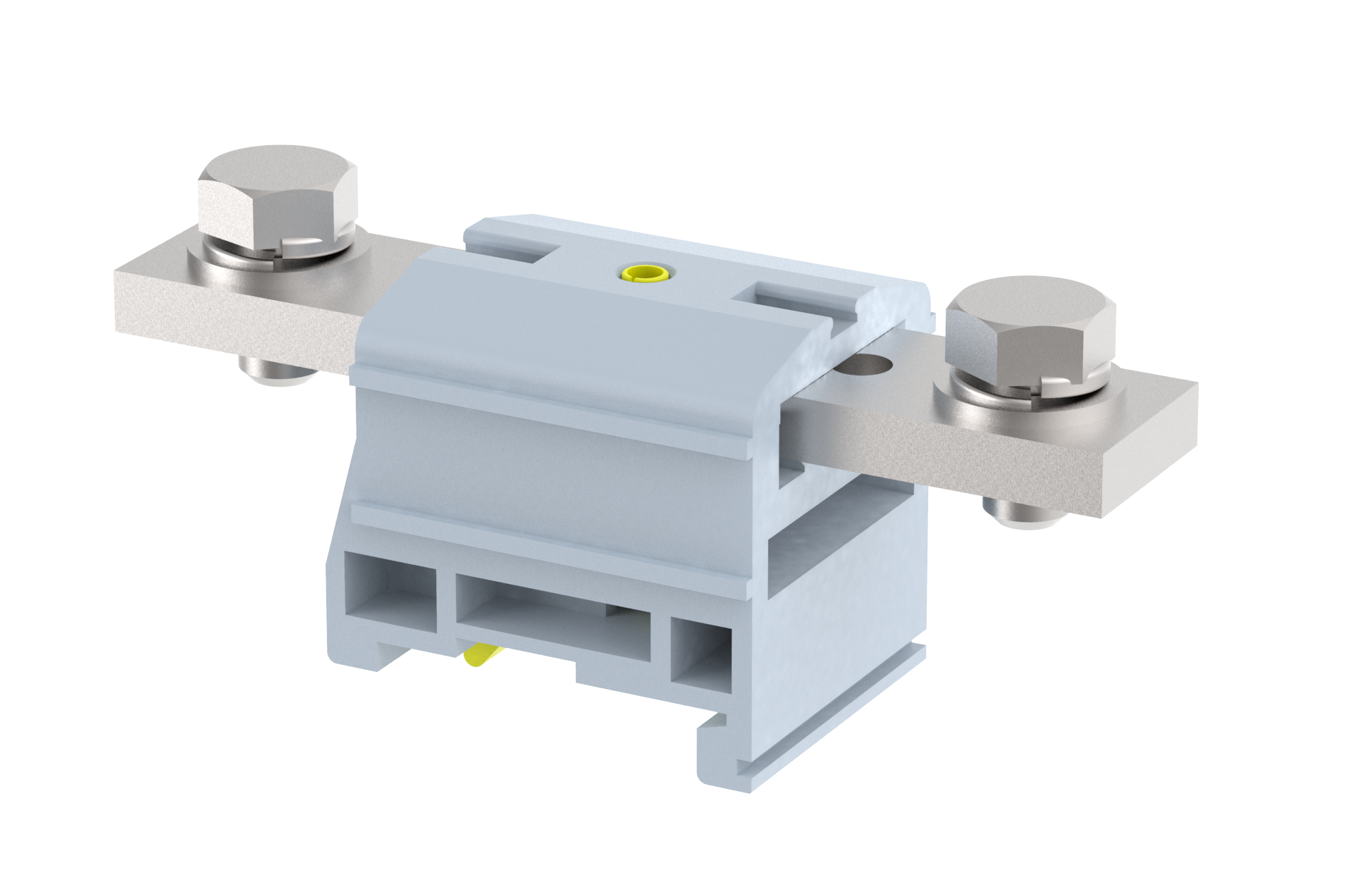

DPBB120 Terminal Blocks Bolt Connection Manufacturer and Supplier in India – Elmex

IEC : 1000 V / 269 A / 120 sq.mm / 6 Nm
CSA : 600 V / 230 A / 3 - 40 AWG
Thickness : 37 mm / 1.46 inches
Width : 100 mm / 3.94 inches
Height : 44 mm / 1.73 inches

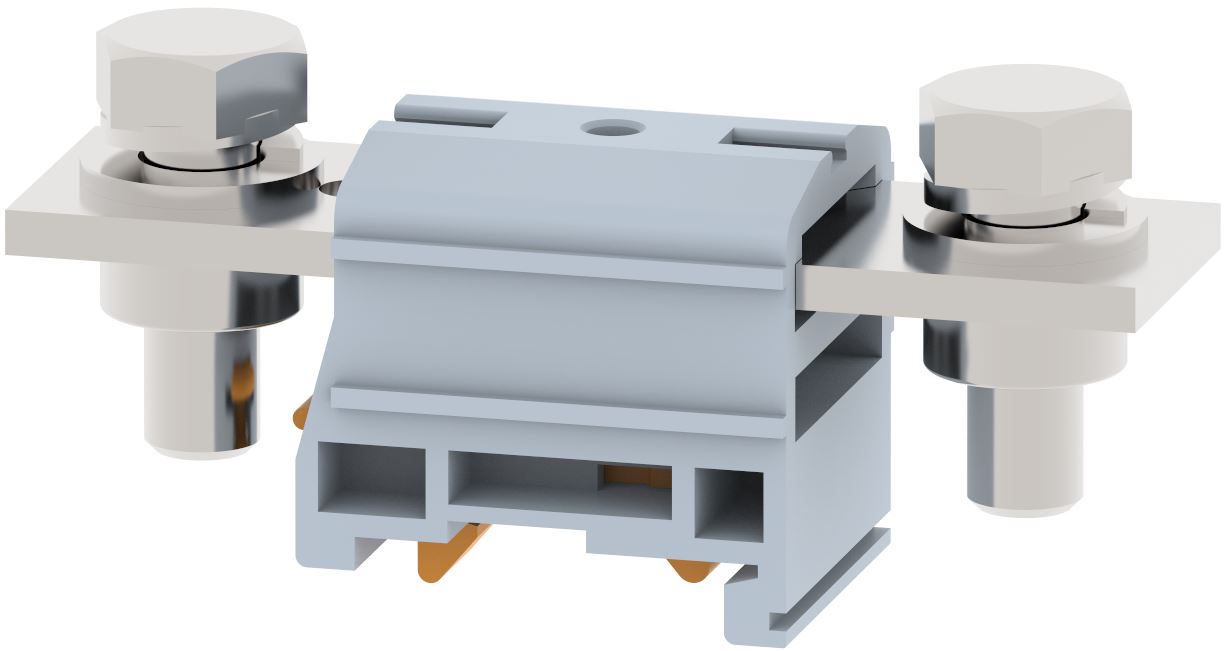

DPBB120CN

CE Mark Conforming to IEC Specification

DPBB120CN Terminal Blocks Bolt Connection Manufacturer and Supplier in India – Elmex

IEC : 1000 V / 269 A / 120 sq.mm / 6 Nm
Thickness : 37 mm / 1.46 inches
Width : 100 mm / 3.94 inches
Height : 44 mm / 1.73 inches

DPBB185N

CE Mark Conforming to IEC Specification

DPBB185N Terminal Blocks Bolt Connection Manufacturer and Supplier in India – Elmex

IEC : 1000 V / 353 A / 185 sq.mm / 14 Nm
Thickness : 53 mm / 2.09 inches
Width : 115 mm / 4.53 inches
Height : 53.3 mm / 2.1 inches

DPBB240

CE Mark Conforming to IEC Specification

DPBB240 Terminal Blocks Bolt Connection Manufacturer and Supplier in India – Elmex

IEC : 1000 V / 415 A / 240 sq.mm / 25 Nm
Thickness : 53 mm / 2.09 inches
Width : 125 mm / 4.92 inches
Height : 60.1 mm / 2.37 inches
