Screw Connection with spring support

Screw Connection with spring support


Screw Connection with spring support Manufacturer and Supplier in India – Elmex

Products

KULTD4WS

CE Mark Conforming to IEC Specification
KULTD4WS Terminal Blocks Manufacturer and Supplier in India – Elmex
  • IEC : 800 V / 20 A / 4 sq.mm / 0.6 Nm
  • Thickness : 6 mm / 0.24 inches
  • Width : 53 mm / 2.09 inches
  • Height : 56 mm / 2.2 inches

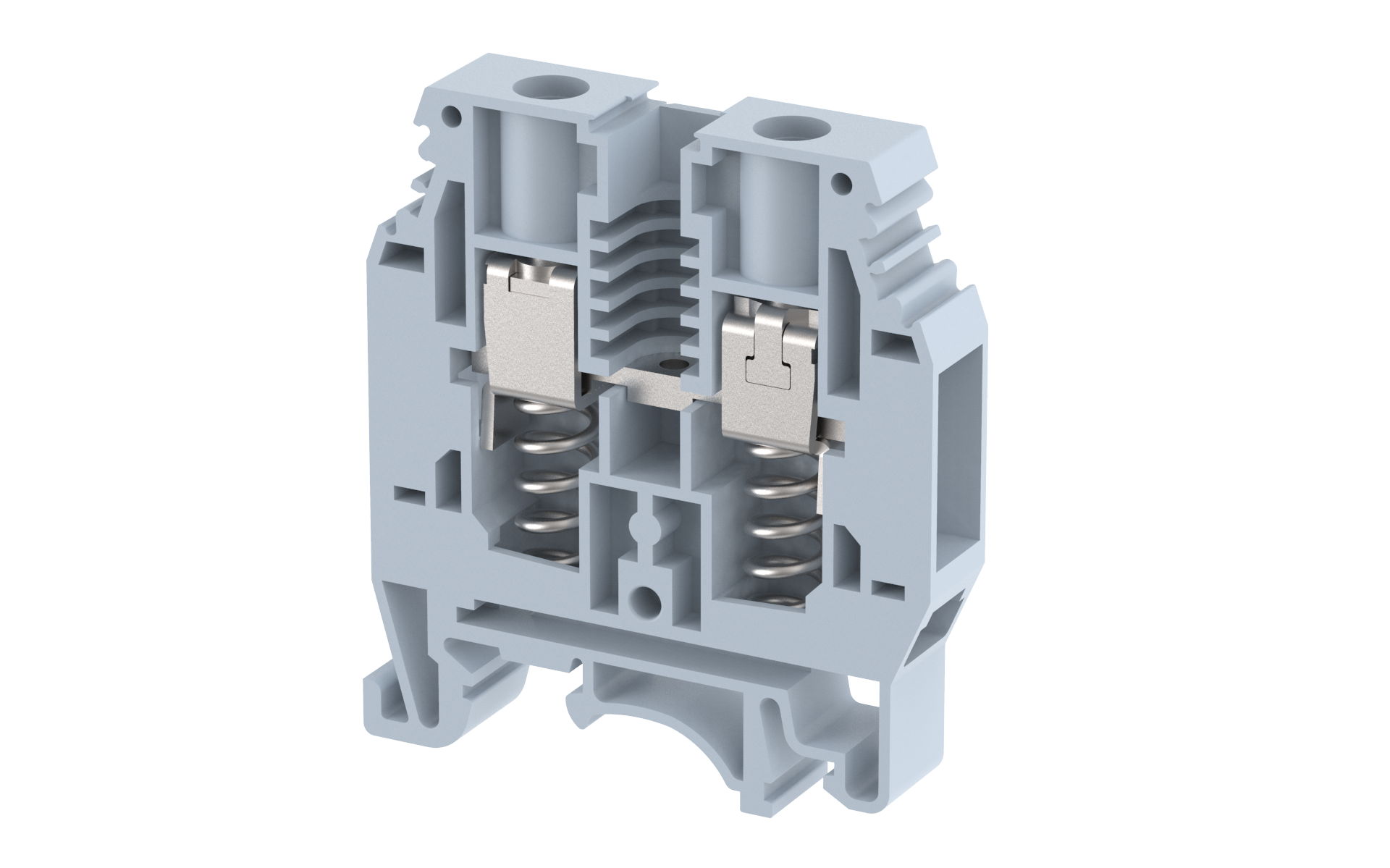

KULT1

CE mark for explosion-proof Approval as per ATEX directive UL Recognition for USA CE Mark Conforming to IEC Specification CSA Recognition for Canada & USA D mark Certification for Denmark c-UL Recognition for Canada S Mark Certification for Sweden FI Mark Certification for Finland N Mark Certification for Norway
KULT1 Terminal Blocks Manufacturer and Supplier in India – Elmex
  • IEC : 1000 V / 57 A / 10 sq.mm / 1.2 Nm
  • CSA : 600 V / 65 A / 6 - 16 AWG
  • Thickness : 10 mm / 0.39 inches
  • Width : 53 mm / 2.09 inches
  • Height : 58.5 mm / 2.3 inches

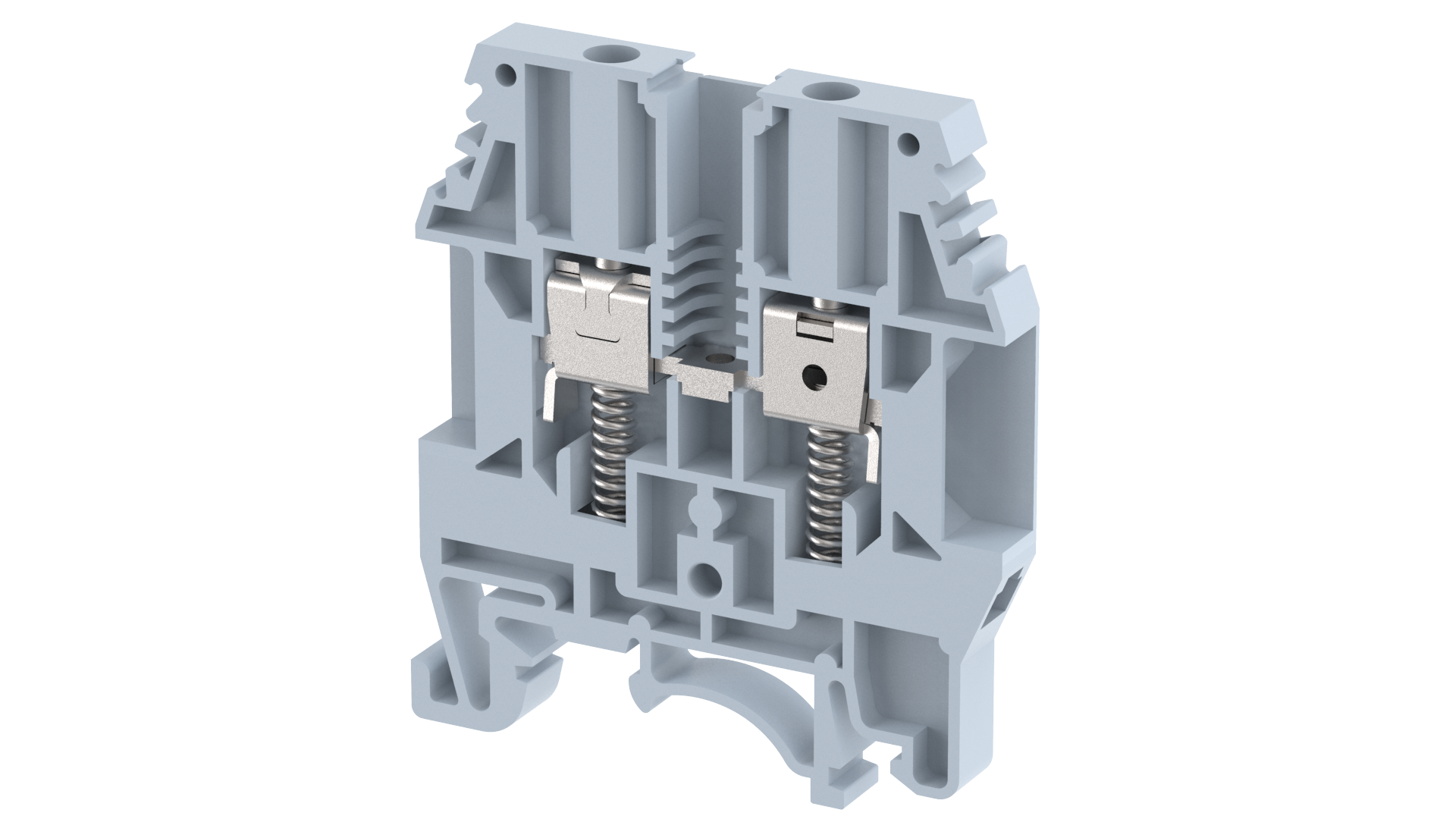

KULT4

CE mark for explosion-proof Approval as per ATEX directive UL Recognition for USA CE Mark Conforming to IEC Specification CSA Recognition for Canada & USA D mark Certification for Denmark c-UL Recognition for Canada S Mark Certification for Sweden FI Mark Certification for Finland N Mark Certification for Norway
KULT4 Terminal Blocks Manufacturer and Supplier in India – Elmex
  • IEC : 1000 V / 32 A / 4 sq.mm / 0.5 Nm
  • CSA : 600 V / 35 A / 10 - 24 AWG
  • Thickness : 6 mm / 0.24 inches
  • Width : 53 mm / 2.09 inches
  • Height : 58.5 mm / 2.3 inches

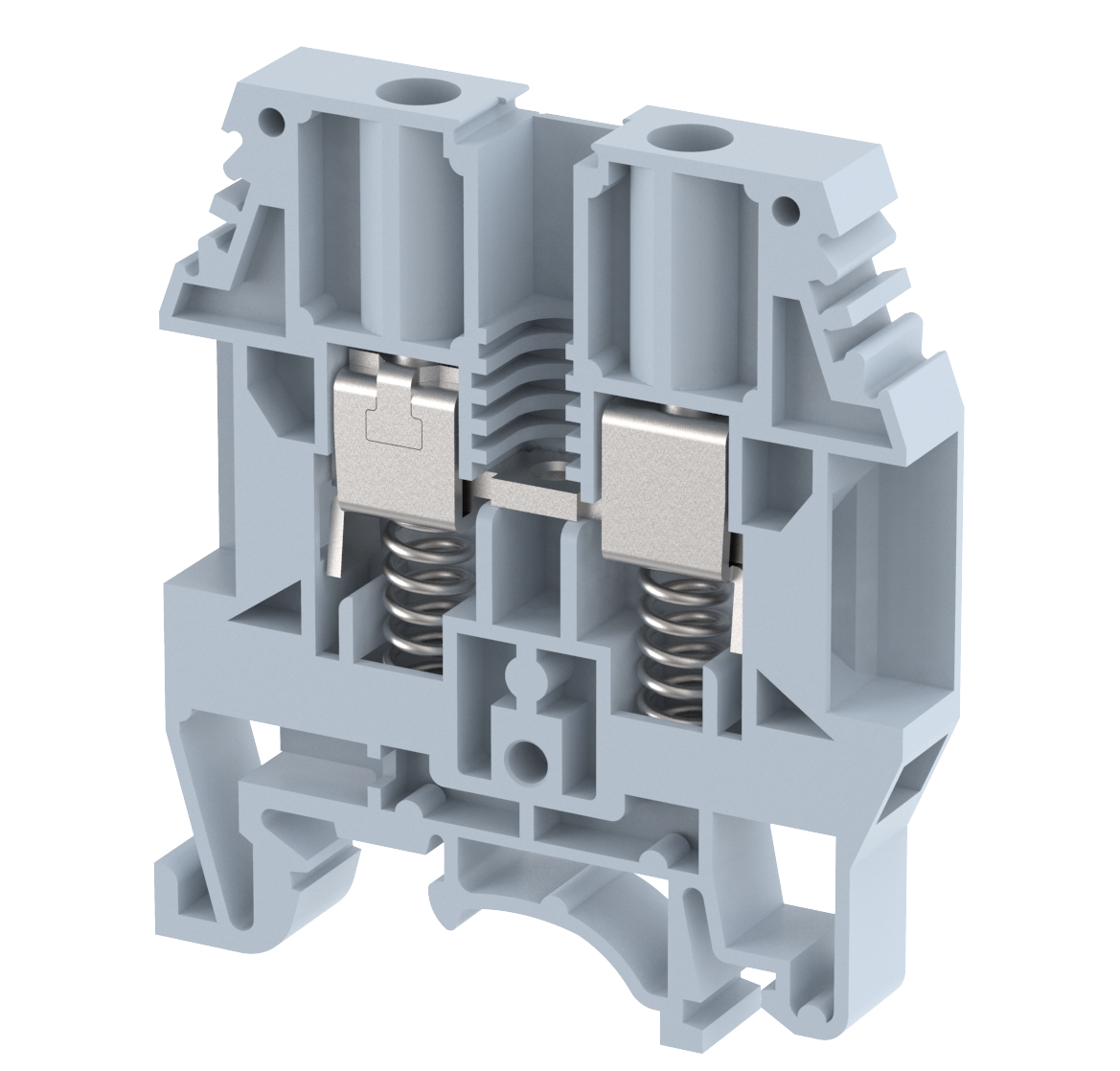

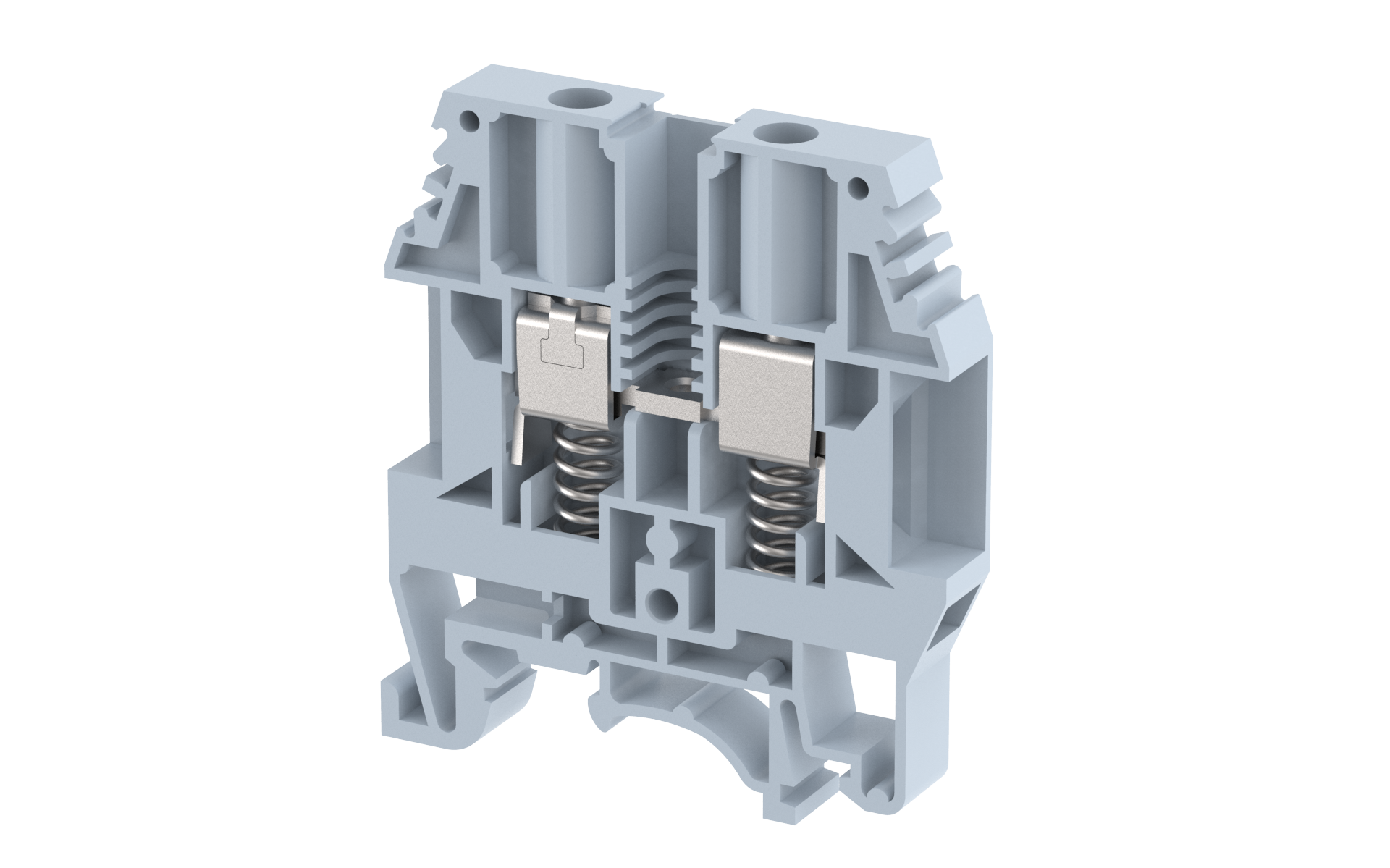

KULT6

CE mark for explosion-proof Approval as per ATEX directive UL Recognition for USA CE Mark Conforming to IEC Specification CSA Recognition for Canada & USA D mark Certification for Denmark c-UL Recognition for Canada S Mark Certification for Sweden FI Mark Certification for Finland N Mark Certification for Norway
KULT6 Terminal Blocks Manufacturer and Supplier in India – Elmex
  • IEC : 1000 V / 41 A / 6 sq.mm / 1.4 Nm
  • CSA : 600 V / 45 A / 8 - 24 AWG
  • Thickness : 8 mm / 0.31 inches
  • Width : 53 mm / 2.09 inches
  • Height : 58.6 mm / 2.31 inches

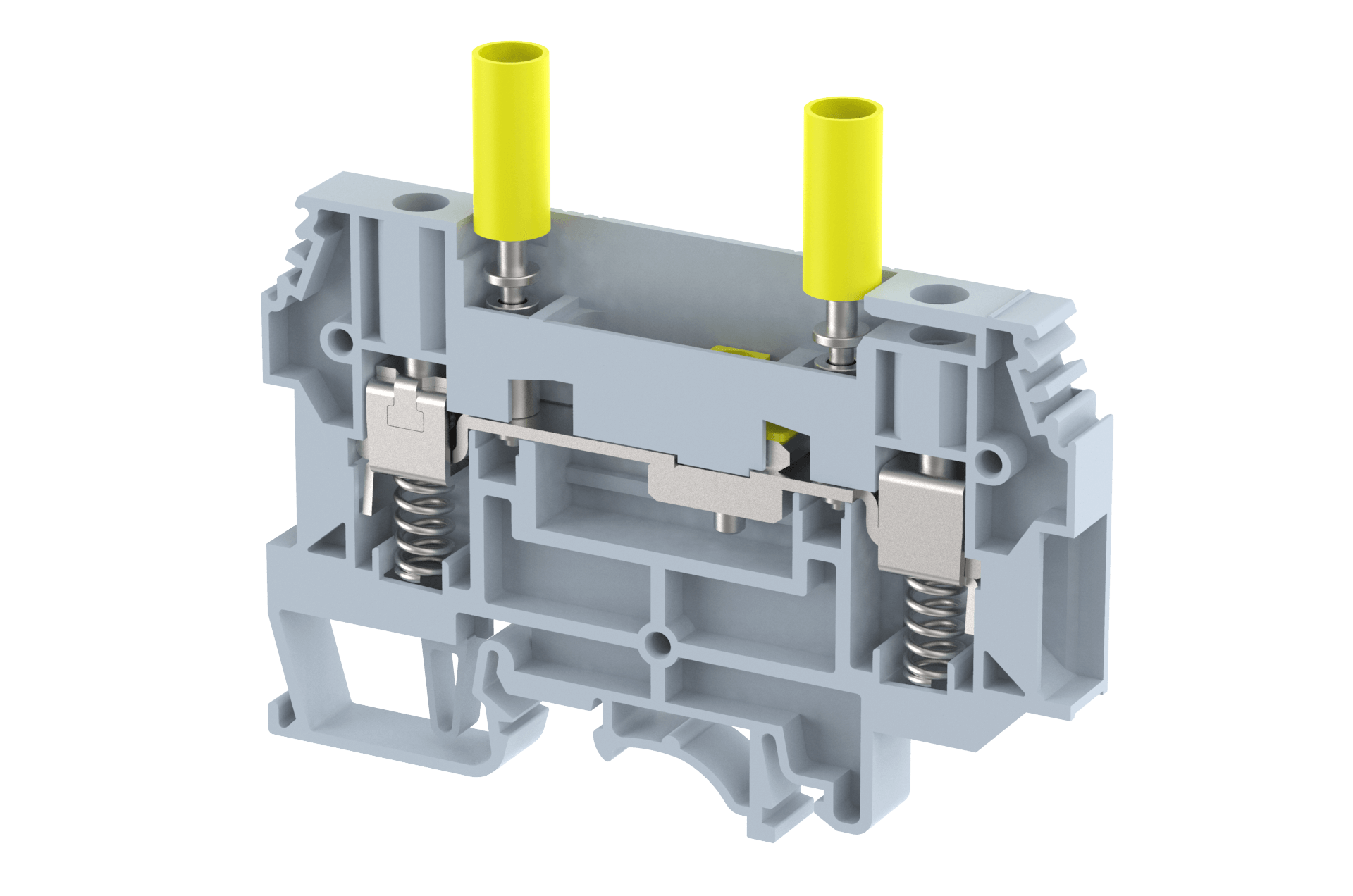

KULTD6FT

CE Mark Conforming to IEC Specification
KULTD6FT Terminal Blocks Manufacturer and Supplier in India – Elmex
  • IEC : 1000 V / 41 A / 6 sq.mm / 1 Nm
  • Thickness : 8 mm / 0.31 inches
  • Width : 85.2 mm / 3.35 inches
  • Height : 71.5 mm / 2.81 inches

KUPTD6S

CE Mark Conforming to IEC Specification
KUPTD6S Terminal Blocks Manufacturer and Supplier in India – Elmex
  • IEC : 630 V / 24 A / 6 sq.mm / 1.5 Nm
  • Thickness : 8 mm / 0.31 inches
  • Width : 72.5 mm / 2.85 inches
  • Height : 72.39 mm / 2.85 inches

DUTKD2.5WS

CE Mark Conforming to IEC Specification
DUTKD2.5WS Terminal Blocks Manufacturer and Supplier in India – Elmex
  • IEC : 1000 V / 24 A / 2.5 sq.mm / 0.4 Nm
  • Thickness : 5 mm / 0.2 inches
  • Width : 62 mm / 2.44 inches
  • Height : 53.5 mm / 2.11 inches

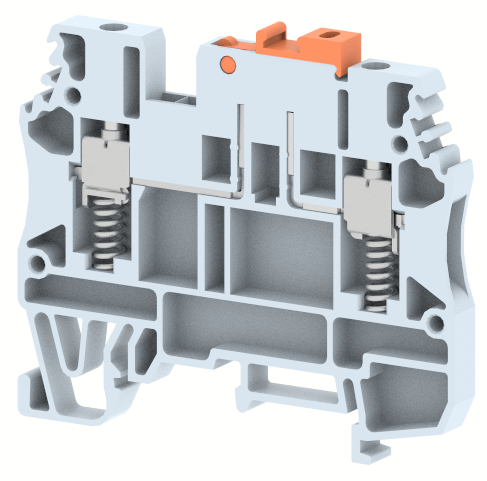

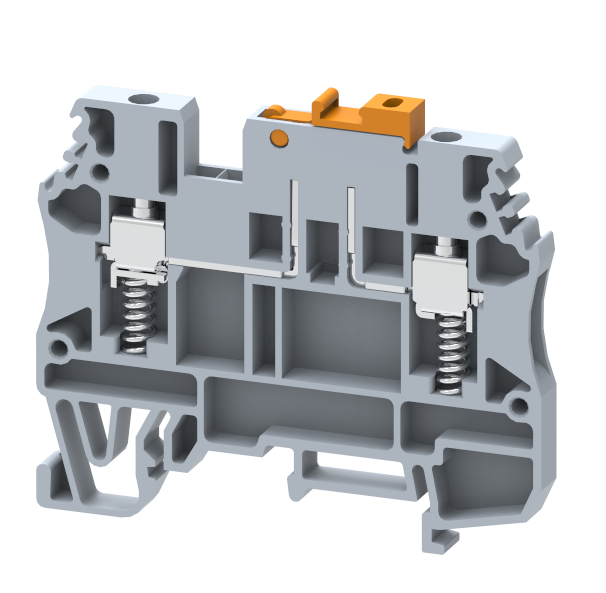

DUTKD2.5TSWS

CE Mark Conforming to IEC Specification
DUTKD2.5TSWS Terminal Blocks Manufacturer and Supplier in India – Elmex
  • IEC : 1000 V / 24 A / 2.5 sq.mm / 0.4 Nm
  • Thickness : 0 mm / 0 inches
  • Width : 0 mm / 0 inches
  • Height : 0 mm / 0 inches
