End Plates And Barrier Plates

End Plates:-

End plates are used to insulate a stack of terminal blocks. they have same profile as that of the terminal block and are available in different colours to match the colour of the terminal block. For terminal blocks made using Polyamide 6,6 housing, the end plates are "snap-on" type i.e. they get press fitted on the terminal block side whereas in case of Melamine terminal blocks, the end plate require support by end clamps.

Certain terminal blocks are so designed that they have both the sides closed and hence it is not required to mount on end plate at the end of the stack.  However for the other terminal blocks with their one side open, it is normal practice to mount the end plate at the end of the stack to insulate the live parts as a safety measure against an electric shock hazard.

Barrier Plates/ Partition Plates:-


Barrier plates/ Partition plates are used to serve one or more processes:-

1. To increase clearance and creepage distances in certain applications
2. To provide separation between terminal blocks
3. To readily differentiate stacks of terminal groups

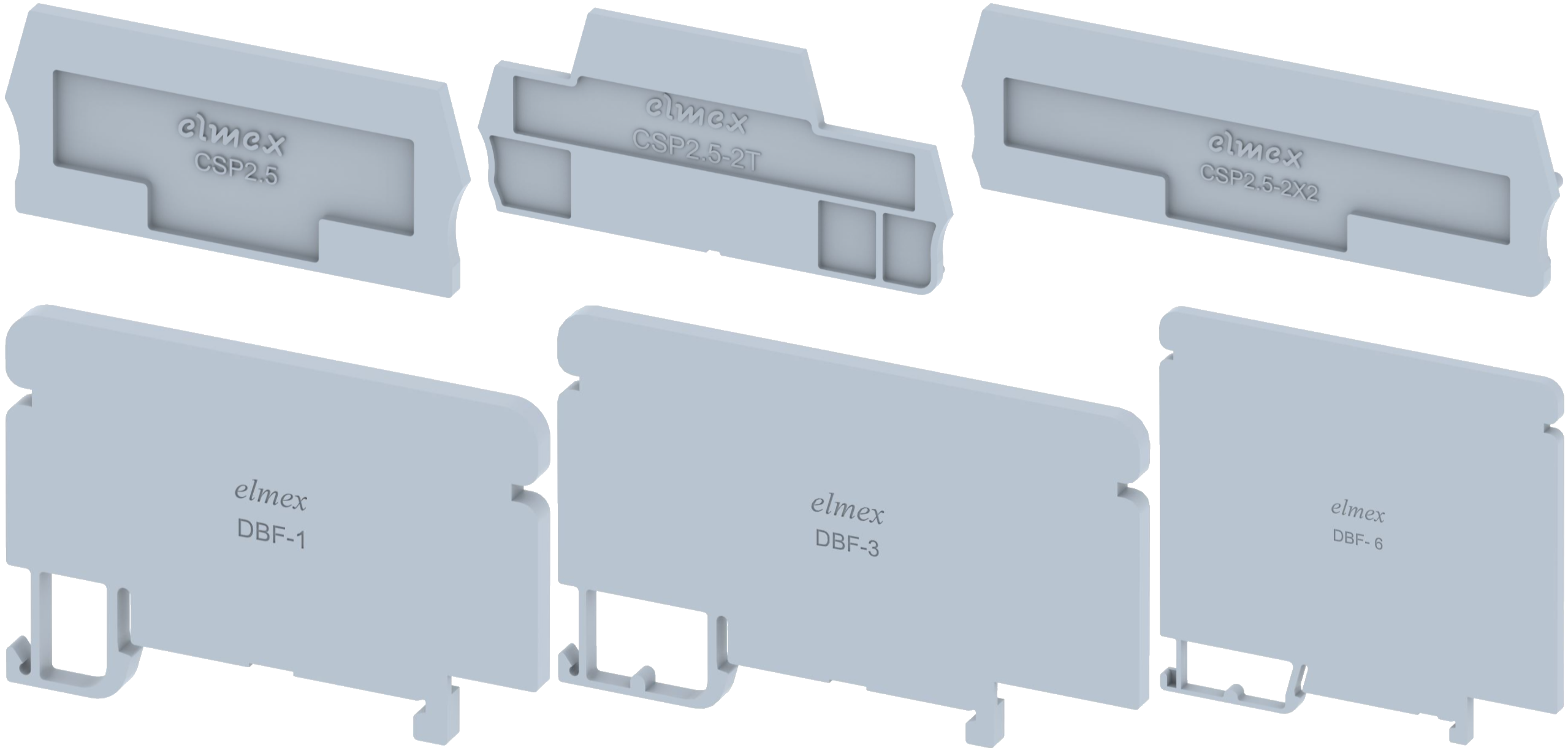

   End Plate Type Suitable for Terminal Type CCTP2.5 TC2.5, TGC2.5 CCTP4-10 TC10, TC4, TC6, TGC10, TGC4, TGC6 CP10 PGQ10, PQ10 CP4-1X2 PGQ4-1X2, PQ4-1X2 CP4-2X2 PGQ4-2X2, PQ4-2X2 CP6-1X2 PGQ6-1X2, PQ6-1X2 CPFK4 PQF4, PQF4AD24V, PQF4AD48V, PQK4 CPP2.5 SQP2.5, SQP2.5P4 CSK2.5-2X2 SQK2.5-2X2 CSP1.5 PQ1.5 CSP10 SGQ10, SQ10 CSP10-1X2 SGQ10-1X2, SQ10-1X2 CSP16 SGQ16, SQ16 CSP16-1X2 SGQ16-1X2, SQ16-1X2 CSP2.5 PGQ2.5, PQ2.5, SGQ2.5, SQ2.5 CSP2.5-1X2 PGQ2.5-1X2, PQ2.5-1X2, PQK2.5, SGQ2.5-1X2, SQ2.5-1X2, SQK2.5 CSP2.5-2T PQ2.5-2T, SGQ2.5-2T, SQ2.5-2T, SQ2.5-2T+IS CSP2.5-2X2 PGQ2.5-2X2, PQ2.5-2X2, SGQ2.5-2X2, SQ2.5-2X2 CSP2.5-3T SGQ2.5-3T, SQ2.5-3T CSP4 PGQ4, PQ4, SGQ4, SQ4 CSP4-1X2 SGQ4-1X2, SQ4-1X2 CSP4-2T SGQ4-2T, SQ4-2T CSP4-2X2 SGQ4-2X2, SQ4-2X2 CSP6 PGQ6, PQ6, SGQ6, SQ6 CSP6-1X2 SGQ6-1X2, SQ6-1X2 CSPD6 PQD6 CSPM2.5 SQM2.5 CTP2.5-10 TGQ10, TGQ2.5, TGQ4, TGQ6, TQ10, TQ2.5, TQ4, TQ6, TQK2.5 CTP2.5-1X2 TGQ2.5-1X2, TQK2.5-1x2, TQK4-1X2, TQKFT2.5-1x2, TQKFT4-1X2 CTP2.5-2X2 TGQ2.5-2X2, TQK2.5-2X2, TQK4-2X2, TQKFT2.5-2x2, TQKFT4-2X2 CTP2.5-3T TGQ2.5-3T, TQ2.5-3T CTP2.5_4-2T TGQ2.5-2T, TGQ4-2T, TQ2.5-2T, TQ4-2T DFEP DCF4, DCF4A1, DCF4A2, DCF4D1 DMEP2.5P4 DMCT2.5P4 DP3D DU3D4 DPDD2.5 DSDD2.5 DPDT2.5 DSDT2.5 DPMDT2.5 DSDT2.5-2X2 DPSD DUSD4 DSEP10 DSET10, DST10 DSEP16 DST16 DSEP2.5 DSET2.5, DST2.5 DSEP3 DS3L2.5 DSEP4 DSET4, DST4 DSEP6 DSET6, DST6 DSMP10-1x2 DST10-1X2 DSMP16-1x2 DST16-1X2 DSMP2.5-1x2 DSET2.5-1x2, DST2.5-1X2 DSMP2.5-2C1P DST2.5-2C1P DSMP2.5-2C2P DST2.5-2C2P DSMP2.5-2x2 DSET2.5-2x2, DST2.5-2X2 DSMP4-1x2 DST4-1X2 DSMP4-2x2 DST4-2X2 DSMP6-1x2 DST6-1X2 DUTKD4EP DUTKD2.5, DUTKD4 EPA100 PAT100, PAT150, PAT250 EPA30 PAT30 EPBM4 PBTM3, PBTM4 EPDD4 KU2D4, KU2D4S EPF KUF10, KUF10A1, KUF10D1 EPFH KUFH4, KUFH4A1, KUFH4D1 EPP PET4 EPS4NV CABTM4, CATM3, CATM4, CATM5, CBTM4, CBTM5, CBTM6 EPS5/6 CBT100, CBTM6S1 EPSL CSLT1 EPT CST25 EPX CST10, CST2.5, CST6 EPY CST16 EPZ CST35 ES4 SUT4 KPDD KUDD4, KUDD4CA1, KUDD4CA2, KUDD4CC1, KUDD4CC2, KUDD4D1, KUDD4MOV, KUDD4R KPDDN ETDD4N, KUDD4N KPDS KUPDS6 KPLD4 KLTDM4 KPM4 KUT4-1X2 KPMD4 KUDT4-2X2, KUT4-2X2 KPNS KUT2.5 KPPDS KUPTD6, KUPTD6S KPS100 KBT100 KPS4 KABTM3L, KABTM4, KATM3, KATM4, KATM5, KBTM4, KBTM5-15, KBTM6 KPSD4 KUDT6, KULTD4, KULTD4TS, KULTD4TSWS, KULTD4WS KPSL KULT1, KULT4, KULT6 KPSLD KULTD6 KPTDNV KUTD10NV KPX KUT10, KUT4, KUT6 KPXN KUT10N, KUT2.5N, KUT4N, KUT4NTC-E, KUT4NTC-J, KUT4NTC-K, KUT4NTC-T, KUT6N KPY KUT16 MEP1.5 MCT1.5 MEP2.5 MCT2.5, MCT2.5P4 MEP2.5MC MCT2.5MC MEP4 MCT4, MCT4P4 OEP10DTS OAT10DTS OEP2.5 OAT2.5 OEP25 OAT25 OEP6 OAT6 OEP6DTS OAT6DTS OEP6T OAT6T ONTEP ONTM3-6C, ONTM4-10C, ONTM5-16C SEP10 SCT10 SEP2.5 SCT2.5, SCT2.5MC SEP4 SCT4 SEP6 SCT6 SFEP6 SCF6 TEP2.5-2T+E TQ2.5-2T+E, TQ2.5-2T+WOE TEP2.5-3T+E TQ2.5-3T+E, TQ2.5-3T+WOE KPT KUT25

   Partition Plate Without Foot Type Suitable for Terminal Type BPA110 CBT110, CBT110T BPA17/25 CBT170, CBT170T, CBT250, CBT250T, CBT300, CBT300T BPA185/240 DPBB185N, DPBB240, SGQ16-1X2, SQ16-1X2 BPAT-30-250 PAT100, PAT150, PAT250 BPN120 DPBB120, TGQ2.5-3T, TQ2.5-3T, TQ2.5-3T+E, TQ2.5-3T+WOE, TQF4-2T, TQF4-2T+E, TQK4-2T, TQK4-2T+E BPN70 DPBB50, DPBB70, PQD6, SGQ10-1X2, SGQ2.5-3T, SQ10-1X2, SQ2.5-3T, TQ2.5-2T, TQ4-2T BPSCA KULTD6, KUTD10NV BPX CST10, CST2.5, CST6 BPY CST16 BPZ CST35 DBF-1 PGQ2.5, PGQ4, PQ1.5, PQ2.5, PQ4, PQK4, SCT2.5, SCT4, SGQ2.5, SGQ4, SQ2.5, SQ4, SQK4 DBF-2 DSET2.5, DSET4, DST2.5, DST4 DBF-3 DBD16, DBD35, DSDT2.5, DSET2.5-1x2, DST2.5-1X2, DST4-1X2, KUDF4AD12V, KUDF4AD240V, KUDF4AD48V, KUDF4NV, PGQ10, PGQ2.5-1X2, PGQ2.5-2X2, PGQ6, PQ10, PQ2.5-1X2, PQ2.5-2T, PQ2.5-2X2, PQ4-2X2, PQ6, PQK2.5, SCT10, SCT6, SGQ10, SGQ2.5-1X2, SGQ2.5-2T, SGQ2.5-2X2, SGQ6, SQ10, SQ2.5-1X2, SQ2.5-2T, SQ2.5-2T+IS, SQ2.5-2X2, SQ6, SQK2.5, TGQ10, TGQ2.5, TGQ2.5-1X2, TGQ2.5-2X2, TGQ4, TGQ6, TQ10, TQ2.5, TQ4, TQ6, TQK2.5, TQK2.5-1x2, TQK4, TQK4-1X2, TQK4-2X2, TQK6, TQKFT2.5-1x2, TQKFT4-1X2, TQKFT4-2X2 DBF-4 DBK1X2, DBK1X4, DBK1X8, DSDD2.5, DSET10, DSET2.5-2x2, DSET6, DST10, DST16, DST2.5, DST2.5-2X2, DST4-2X2, DST6, FDBK1X2, FDBK1X4, FDBK1X8, KUT4-2X2 DBF-5 DSDT2.5-2X2, DST10-1X2, DST6-1X2, DTB35-10, DTB35-10X4, OAT10DTS, OAT6DTS, PGQ4-2X2, PGQ6-1X2, PQ4-2X2, PQ6-1X2, SGQ16, SGQ4-2T, SGQ4-2X2, SGQ6-1X2, SQ16, SQ4-2T, SQ4-2X2, SQ6-1X2, SQK2.5-2X2, TQK4-2X2, TQKFT4-2X2 DBF-6 PGQ4-1X2, PQ4-1X2, PQF4, PQF4AD24V, PQF4AD48V, SGQ4-1X2, SQ4-1X2, SQF4, TGQ2.5-2T, TGQ4-2T, TQ2.5-2T+E, TQ2.5-2T+WOE, TQ4-2T, TQF4, TQF6, TQK2.5-2X2, TQK4, TQK6, TQKFT2.5-2x2 KBFA KULTD6, KUTD10NV KBM DBK2.5-10WAY, KUT2.5 KBT DBK150/16-1X2, DBK150/25-1X2, DBK150/25-1X4, DBK150/25-1X6, DBK150/25-1X8, KUT25 KBX DBK1X2, DBK1X4, DBK1X8, DBK8, DFBK12, FDBK1X2, FDBK1X4, FDBK1X8, FDBK8, KUT10, KUT4, KUT6 KBXF CST10, CST2.5, CST6, DBD16, DBD35, DBK150/M6C-1X2, DBK150/M6C-1X4, DBK1X2, DBK1X4, DBK1X8, DBK2.5-10WAY, DBK8, DFBK12, ET10, ET4, ET6, FDBK1X2, FDBK1X4, FDBK1X8, FDBK8, KABTM3L, KABTM4, KATM3, KATM3C, KATM4, KATM4C, KATM5, KATM5C, KBT100, KBTM4, KBTM4C, KBTM5-15, KBTM5-15C, KBTM6, KBTM6C, KUT10, KUT2.5, KUT4, KUT6, ONTM3-6C, ONTM4-10C, ONTM5-16C, PAT30, SCT2.5 KBY DBK150/16-1X2, DBK150/16-1X4, DBK150/16-1X8, KUT16 KBZF CABTM4, CATM3, CATM4, CBTM4, CBTM5, CBTM6, CBTM6S1, CSLT1, CST16, CST25, DBK150/16-1X2, DBK150/16-1X4, DBK150/16-1X8, DBK150/25-1X2, DBK150/25-1X4, DBK150/25-1X6, DBK150/25-1X8, DUTKD2.5, DUTKD4, ET16, ET35, KUDDF4, KUDDF4AD24V, KUDDF4AD48V, KUDF4, KUDT6, KUF10, KUF10A1, KUF10D1, KUFH4, KUFH4A1, KULT1, KULT4, KULT6, KULTD4, KULTD4TS, KULTD4TSWS, KULTD4WS, KUPDS6, KUT16, KUT25, KUT35, OAT6T KNBF2.5/10 ETN10, ETN4, ETN6, KUDT4-2X2, KUT10N, KUT2.5N, KUT4-1X2, KUT4N, KUT4NTC-E, KUT4NTC-J, KUT4NTC-K, KUT4NTC-T, KUT6N, TC10, TC2.5, TC4, TC6, TGC10, TGC2.5, TGC4, TGC6 MBX MCT2.5MC, PBTM3, PBTM4, PET4, SCT2.5MC, SUT4
