Name: Multi Level Terminal Blocks
Brand: Elmex
Rating: 5 (5 reviews)

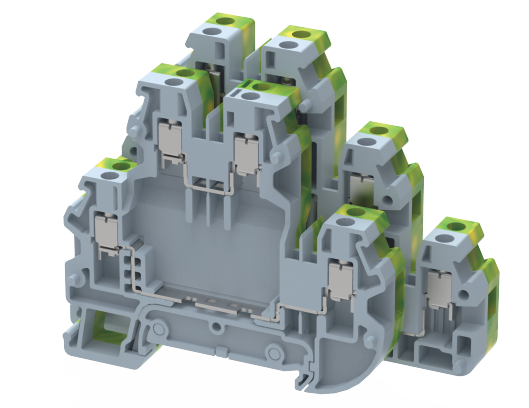

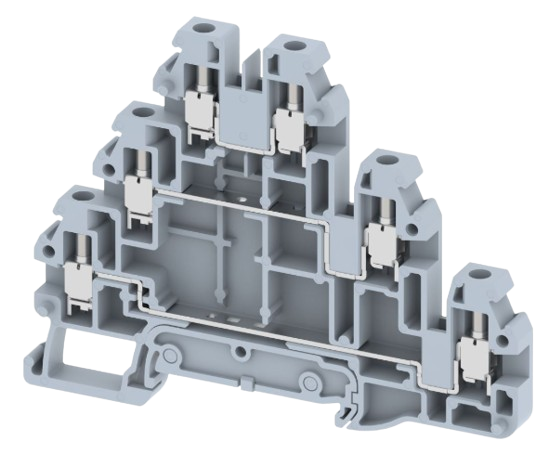

Multi Level Terminal Blocks

'elmex' multilevel terminal blocks offer multiple connection levels in one housing, saving space and organizing complex wiring. They are used in control panels and automation systems, and come with screw clamp connections technology.

Products

TQK4-2T

IEC : 1000 V / UT-20 A , LT-32 A / 4 sq.mm / 0.5 Nm
CSA : 300 V / UT-20 A , LT-30 A / 10 - 24 AWG
Thickness : 6 mm / 0.24 inches
Width : 91.9 mm / 3.62 inches
Height : 74.8 mm / 2.94 inches

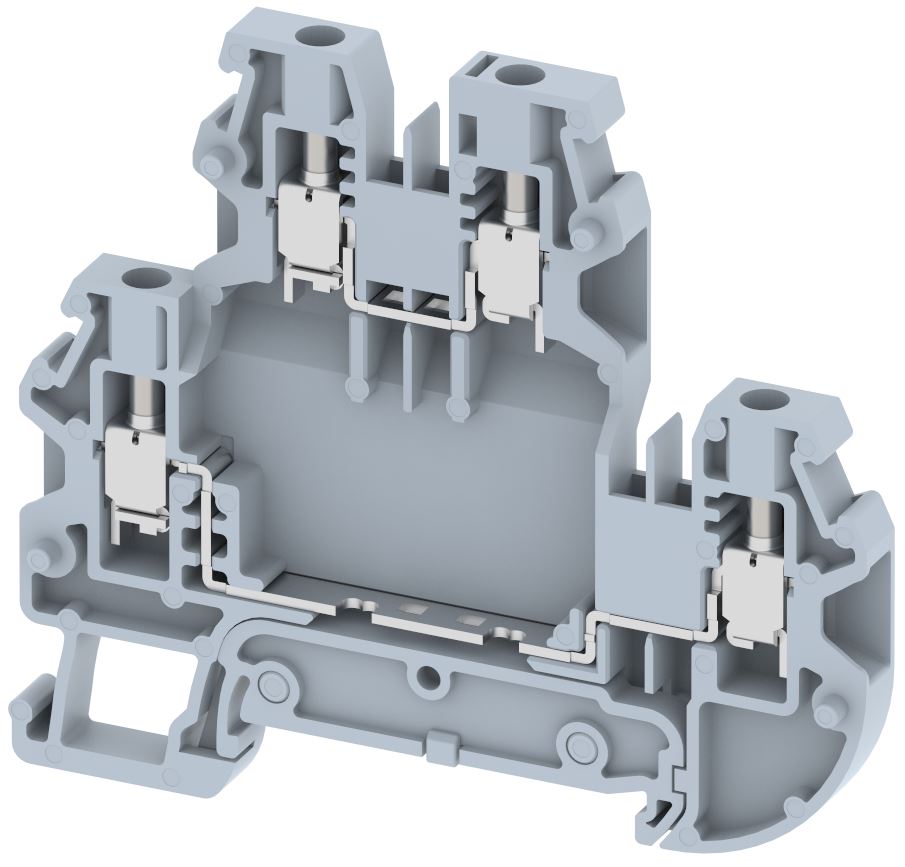

TQ2.5-2T

IEC : 1000 V / 24 A / 2.5 sq.mm / 0.4 Nm
CSA : 300 V / 20 A / 12 - 24 AWG
Thickness : 5 mm / 0.2 inches
Width : 70.6 mm / 2.78 inches
Height : 62.5 mm / 2.46 inches

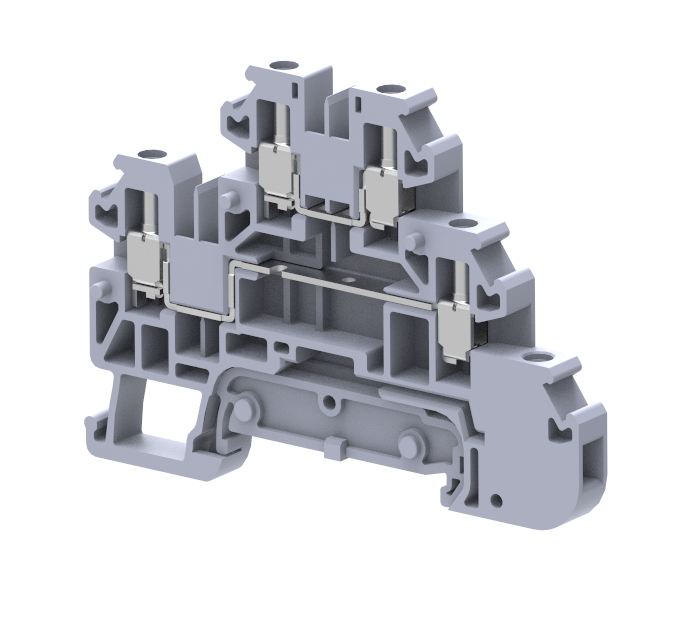

TQ2.5-2T+WOE

IEC : 400 V / 24 A / 2.5 sq.mm / 0.4 Nm
Thickness : 6 mm / 0.24 inches
Width : 76.1 mm / 3 inches
Height : 56 mm / 2.2 inches

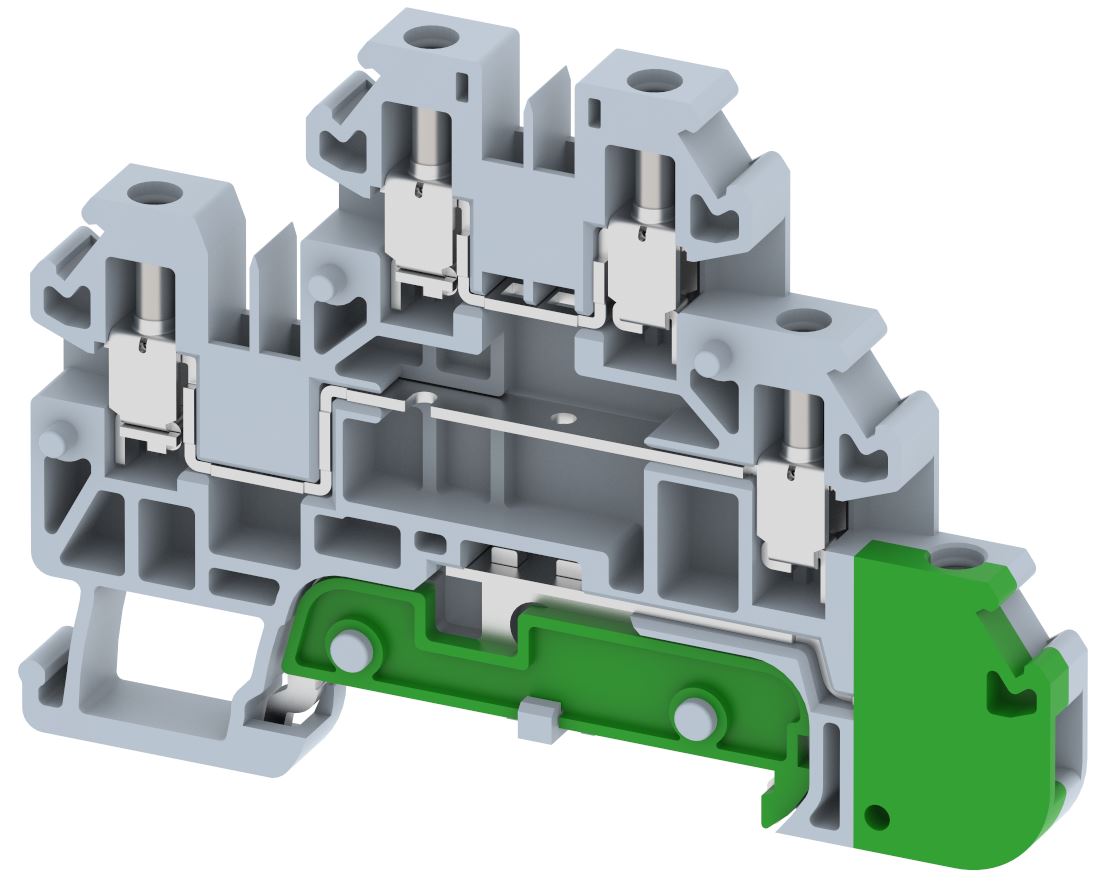

TQ2.5-2T+E

IEC : 400 V / 24 A / 2.5 sq.mm / 0.4 Nm
CSA : 600 V / 20 A / 12 - 24 AWG
Thickness : 6 mm / 0.24 inches
Width : 76.1 mm / 3 inches
Height : 56 mm / 2.2 inches

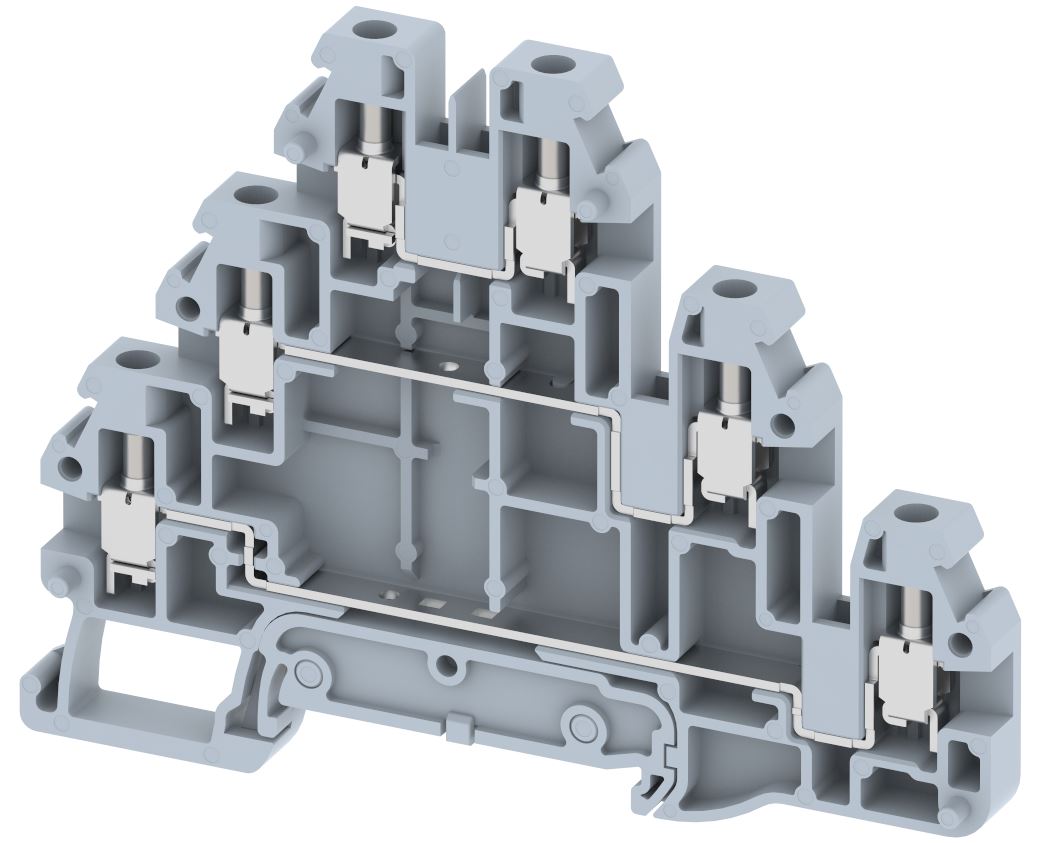

TQ2.5-3T

IEC : 1000 V / 24 A / 2.5 sq.mm / 0.4 Nm
CSA : 300 V / 20 A / 12 - 24 AWG
Thickness : 6 mm / 0.24 inches
Width : 90 mm / 3.54 inches
Height : 70 mm / 2.76 inches

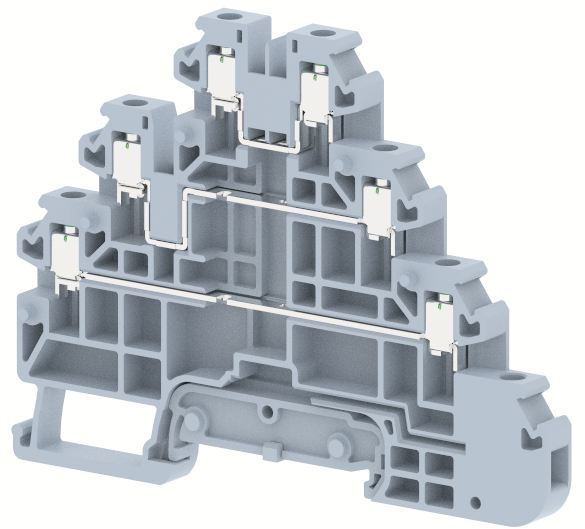

TQ2.5-3T+WOE

IEC : 400 V / 24 A / 2.5 sq.mm / 0.4 Nm
Thickness : 6 mm / 0.24 inches
Width : 94.6 mm / 3.72 inches
Height : 71.5 mm / 2.81 inches

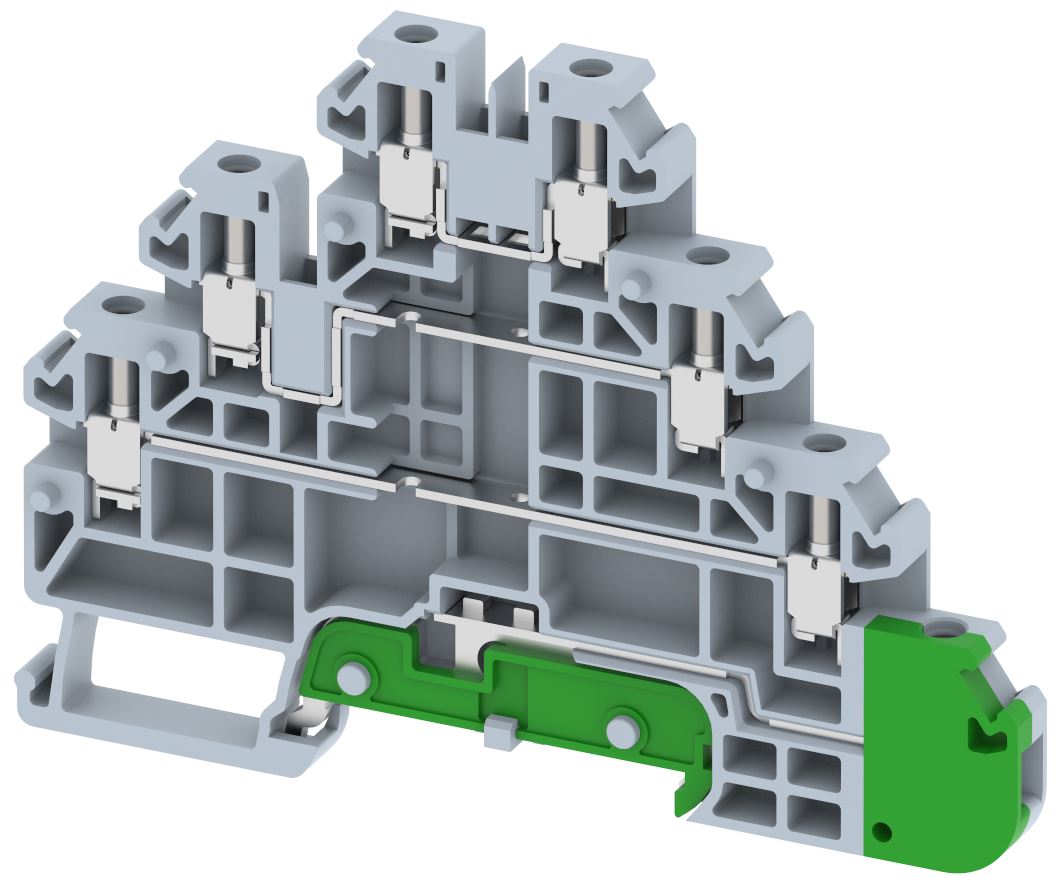

TQ2.5-3T+E

IEC : 400 V / 24 A / 2.5 sq.mm / 0.4 Nm
CSA : 600 V / 20 A / 12 - 24 AWG
Thickness : 6 mm / 0.24 inches
Width : 94.6 mm / 3.72 inches
Height : 71.5 mm / 2.81 inches

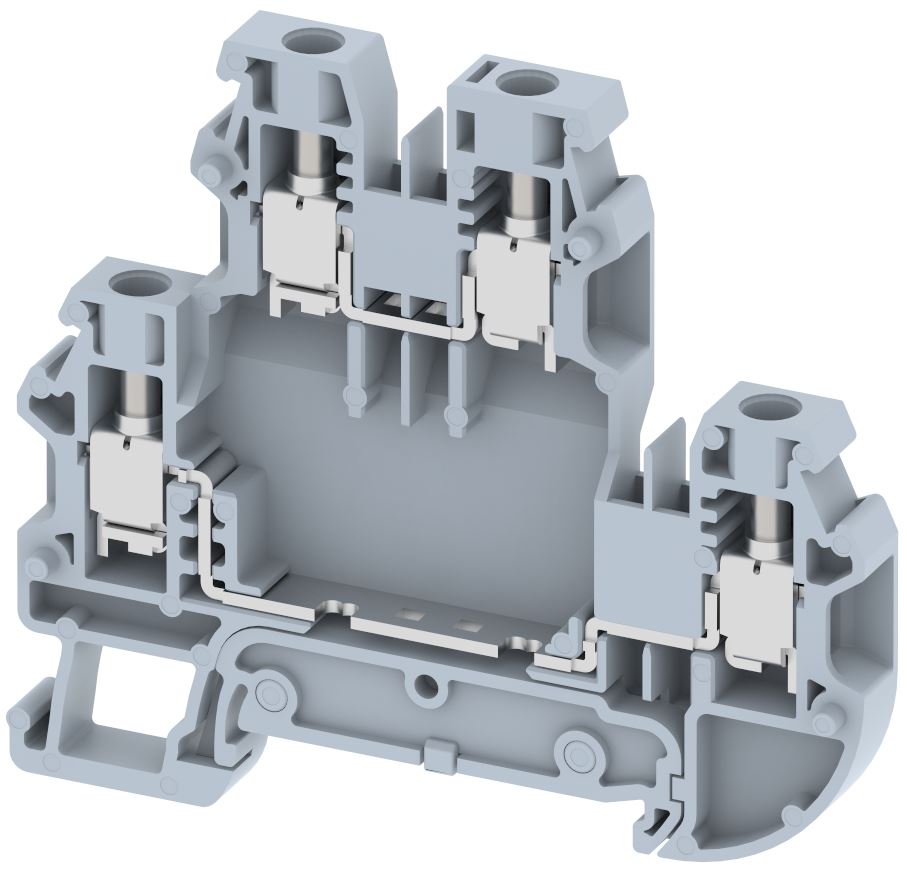

TQ4-2T

IEC : 1000 V / 32 A / 4 sq.mm / 0.5 Nm
CSA : 300 V / 30 A / 10 - 24 AWG
Thickness : 6 mm / 0.24 inches
Width : 70.6 mm / 2.78 inches
Height : 62.5 mm / 2.46 inches
