Distribution Block

Distribution blocks split a single electrical connection into multiple outputs, commonly used in power distribution and control panels. They simplify wiring by securely distributing power to several circuits. Installation involves connecting the main input and distributing to outputs.

Distribution Block Manufacturer and Supplier in India – Elmex

Products

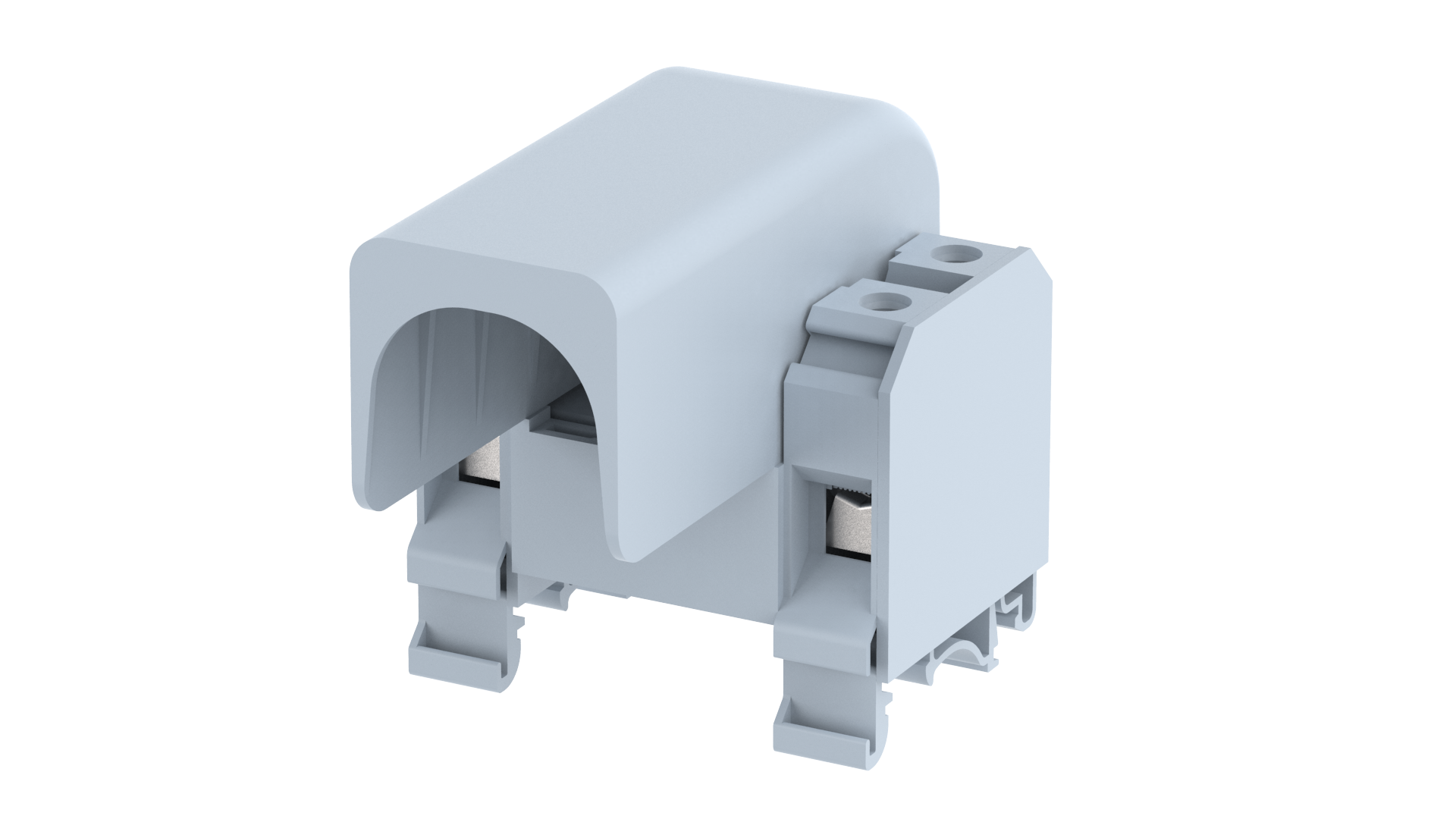

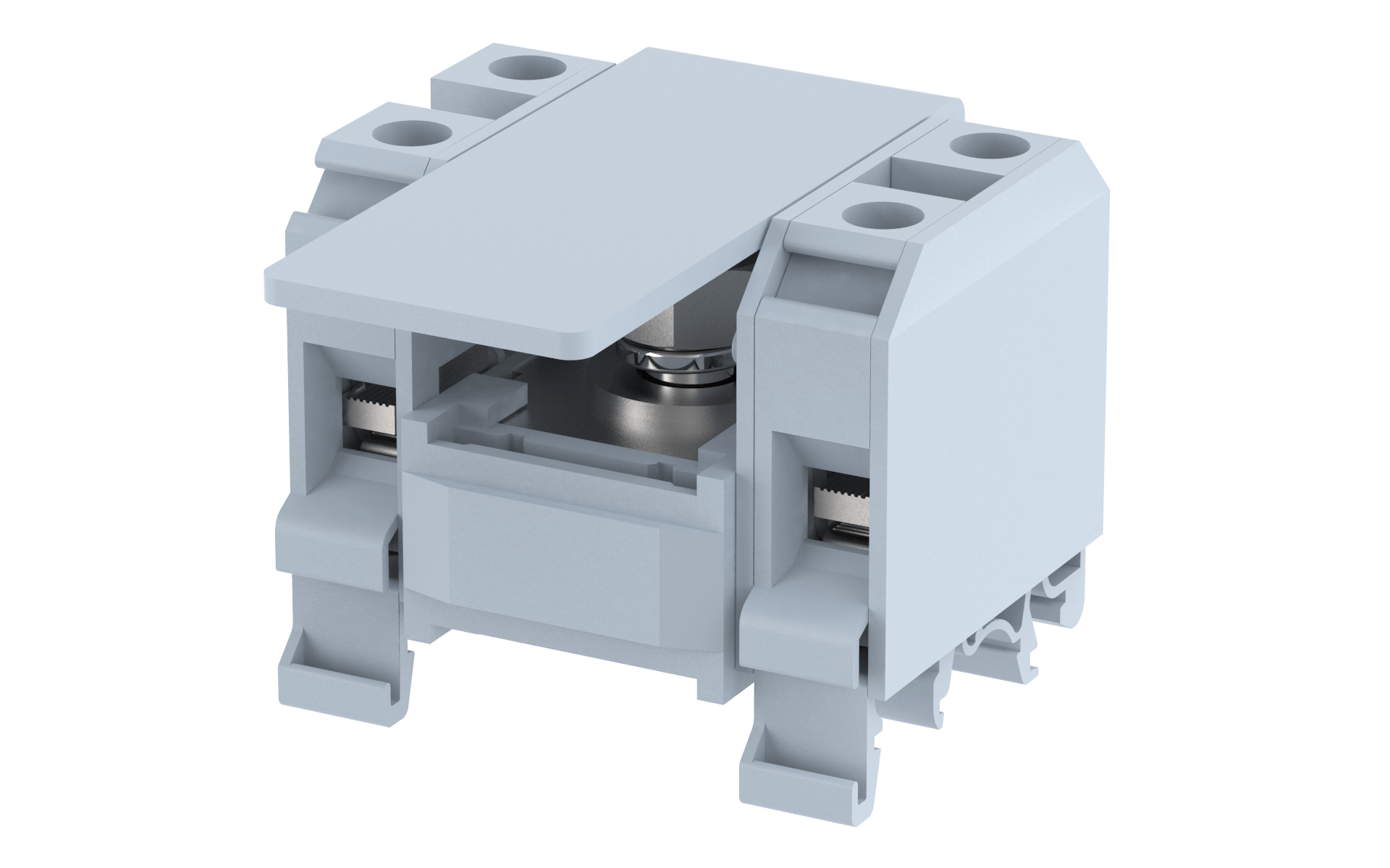

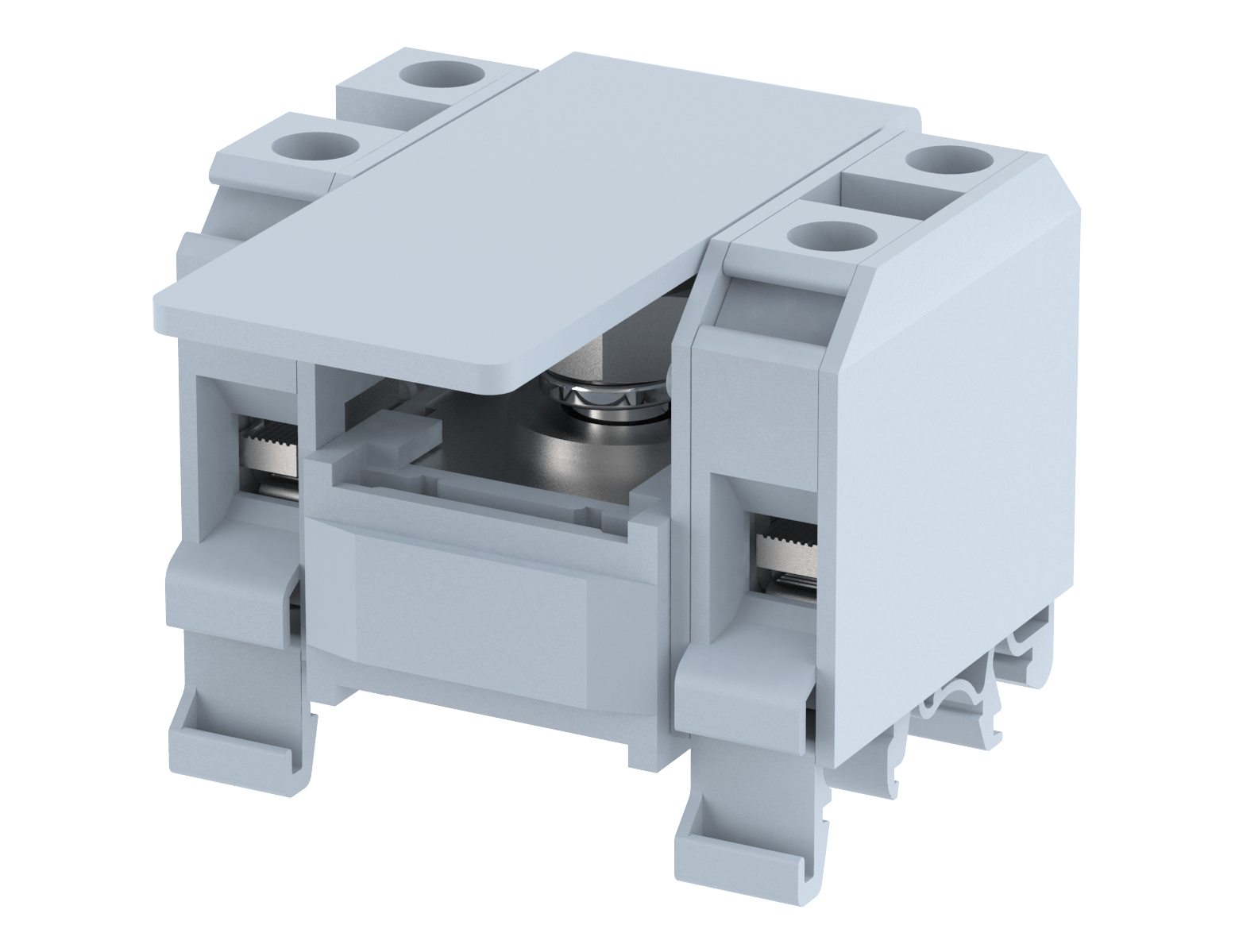

DBK1X2

UL Recognition for USA

CE Mark Conforming to IEC Specification

c-UL Recognition for Canada

DBK1X2 Terminal Blocks 1 nut connection for IC & Screw clamp connection for OG Manufacturer and Supplier in India – Elmex

IEC : 800 V / IC-114 A, OG-57 A / IC-35 mm², OG-10 sq.mm / IC-6 Nm , OG-1.2 Nm
Thickness : 53.8 mm / 2.12 inches
Width : 68 mm / 2.68 inches
Height : 46.4 mm / 1.83 inches

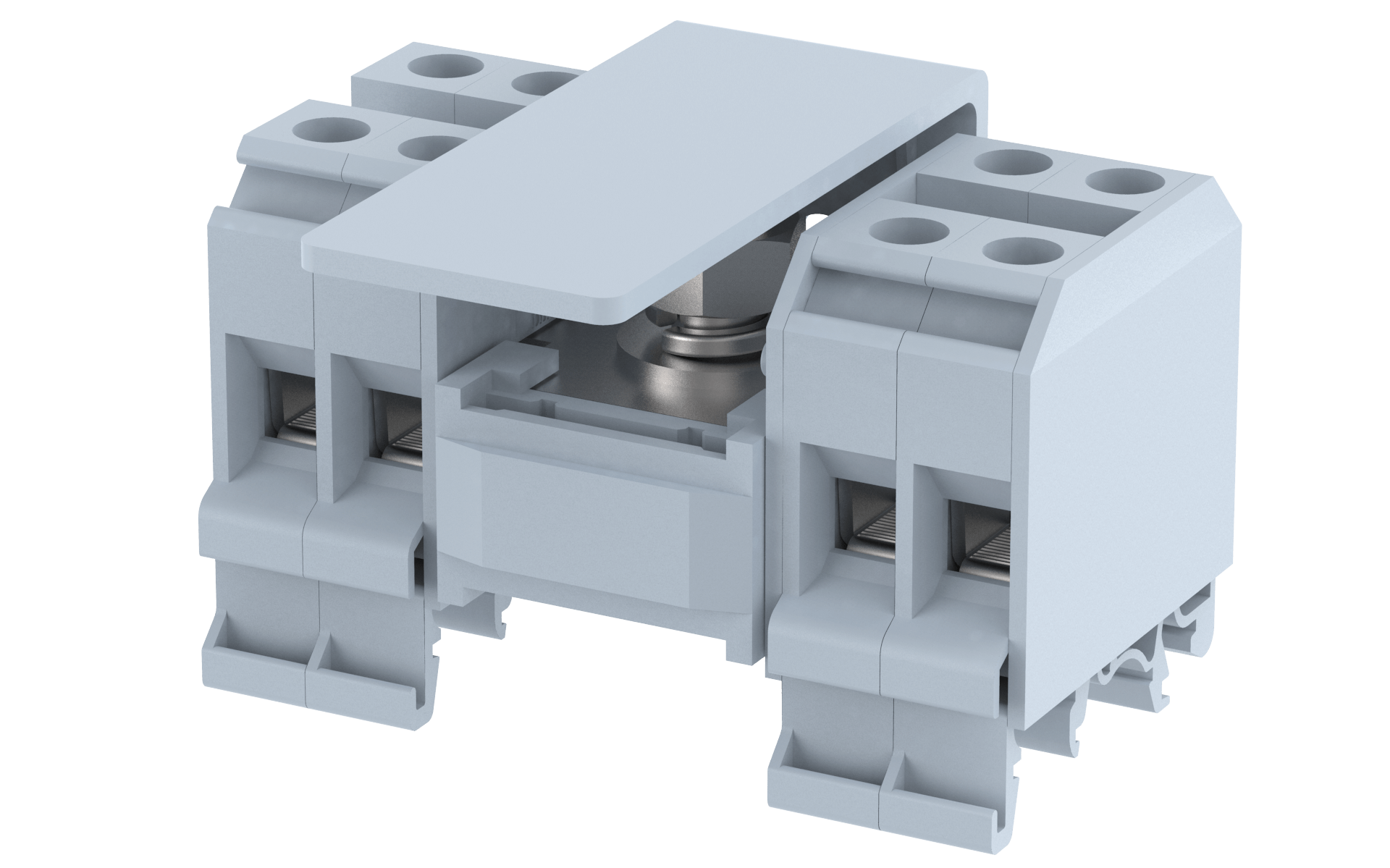

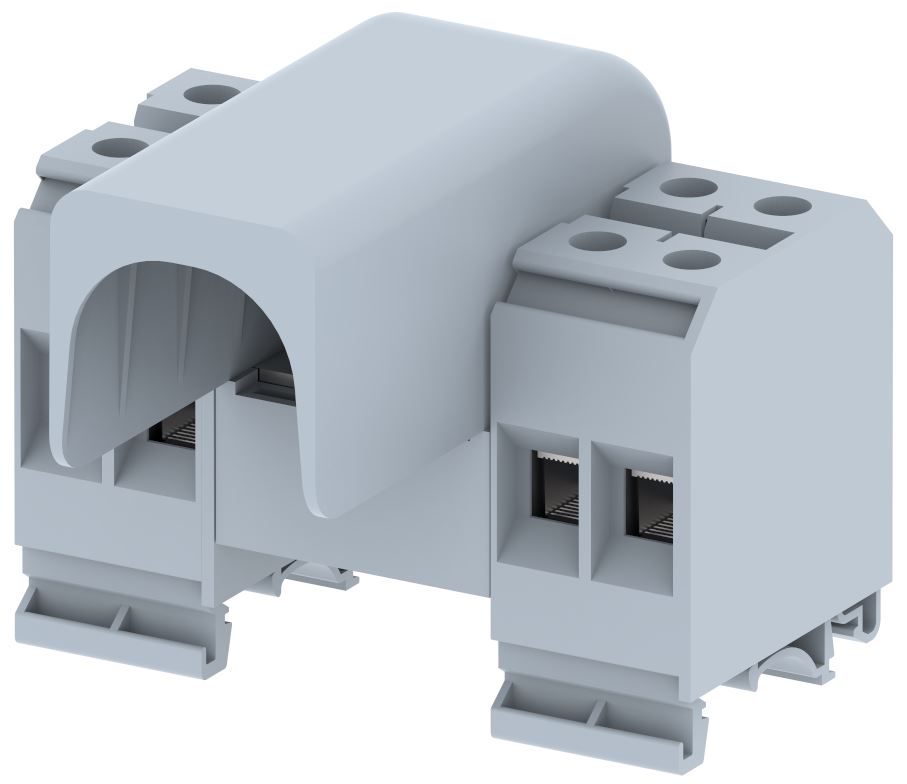

DBK1X4

UL Recognition for USA

CE Mark Conforming to IEC Specification

c-UL Recognition for Canada

DBK1X4 Terminal Blocks 1 nut connection for IC & Screw clamp connection for OG Manufacturer and Supplier in India – Elmex

IEC : 800 V / IC-114 A, OG-57 A / IC-35 mm² , OG-10 sq.mm / IC-6 Nm , OG-1.2 Nm
Thickness : 68 mm / 2.68 inches
Width : 74.79 mm / 2.94 inches
Height : 50.33 mm / 1.98 inches

DBK1X6

CE Mark Conforming to IEC Specification

DBK1X6 Terminal Blocks 1 nut connection for IC & Screw clamp connection for OG Manufacturer and Supplier in India – Elmex

IEC : 800 V / IC-114 A, OG-57 A / IC-35 mm² , OG-10 sq.mm / IC-6 Nm , OG-1.2 Nm
Thickness : 68 mm / 2.68 inches
Width : 94.05 mm / 3.7 inches
Height : 49.7 mm / 1.96 inches

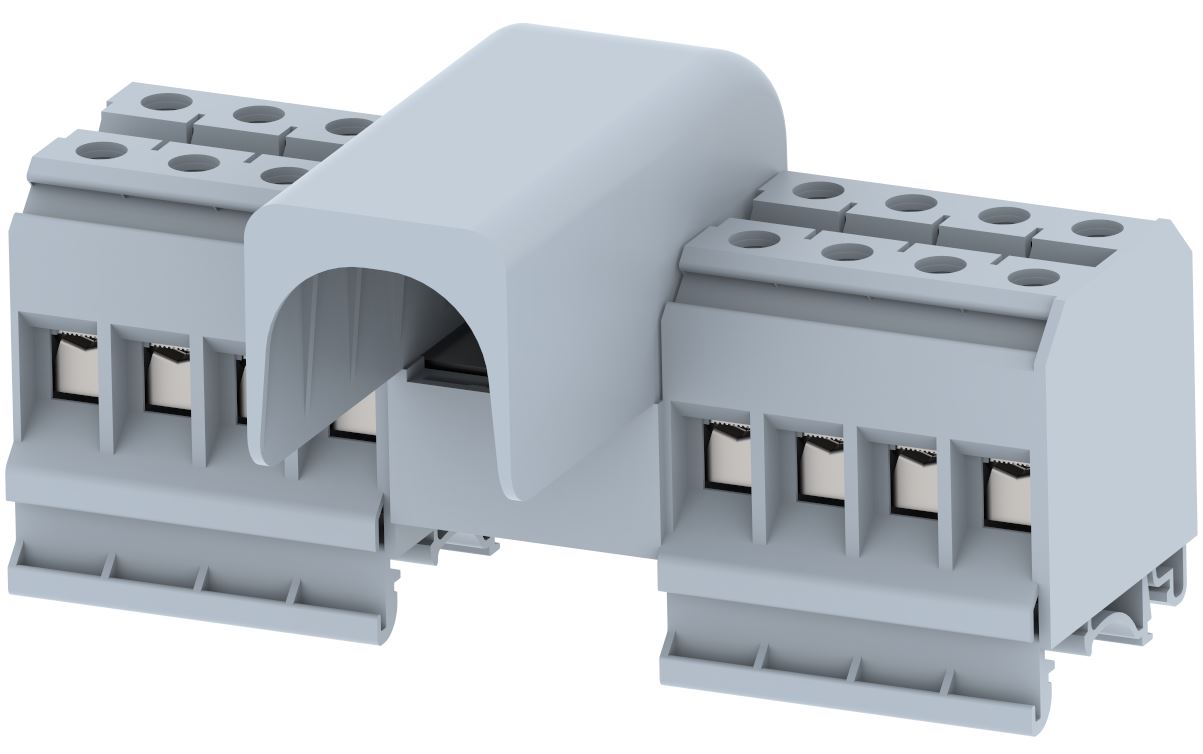

DBK1X8

UL Recognition for USA

CE Mark Conforming to IEC Specification

c-UL Recognition for Canada

DBK1X8 Terminal Blocks 1 nut connection for IC & Screw clamp connection for OG Manufacturer and Supplier in India – Elmex

IEC : 800 V / IC-114 A, OG-57 A / IC-35 mm² , OG-10 sq.mm / IC-6 Nm , OG-1.2 Nm
UL/CSA : IC -130 A , OG-130 A / 600 V / -8 - -1 AWG
Thickness : 68 mm / 2.68 inches
Width : 114.5 mm / 4.51 inches
Height : 50.3 mm / 1.98 inches

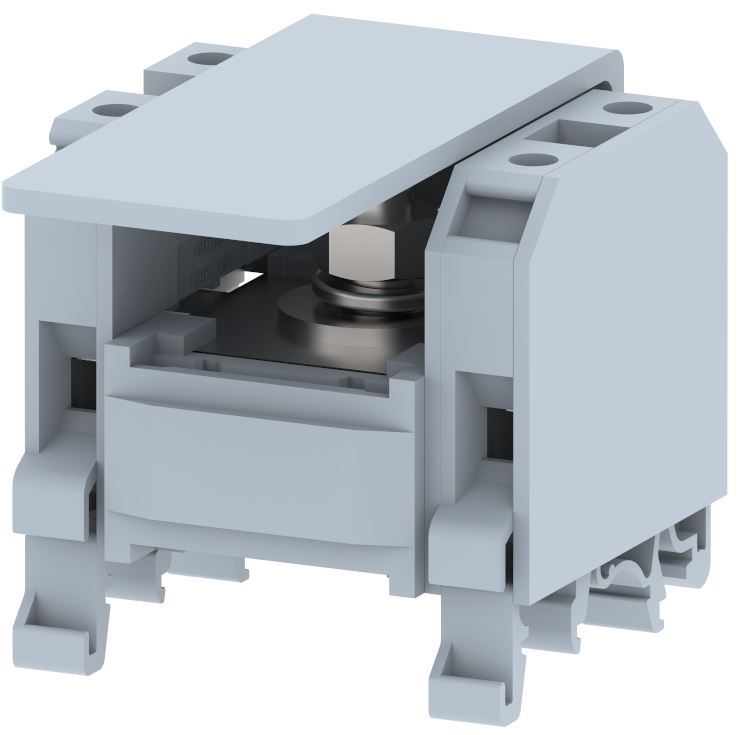

FDBK1X2

UL Recognition for USA

CE Mark Conforming to IEC Specification

UL mark for USA

FDBK1X2 Terminal Blocks 1 nut connection for IC & Screw clamp connection for OG Manufacturer and Supplier in India – Elmex

IEC : 800 V / IC-64 A, OG-32 A / IC-25 mm² , OG-4 sq.mm / IC-2.5 Nm , OG-0.5 Nm
Thickness : 47.1 mm / 1.85 inches
Width : 68 mm / 2.68 inches
Height : 48.6 mm / 1.91 inches

FDBK1X4

UL Recognition for USA

CE Mark Conforming to IEC Specification

c-UL Recognition for Canada

FDBK1X4 Terminal Blocks 1 nut connection for IC & Screw clamp connection for OG Manufacturer and Supplier in India – Elmex

IEC : 800 V / IC-64 A, OG-32 A / IC-25 mm² , OG-4 sq.mm / IC-2.5 Nm , OG-0.5 Nm
Thickness : 68 mm / 2.68 inches
Width : 60.7 mm / 2.39 inches
Height : 48.65 mm / 1.92 inches

FDBK1X6

UL Recognition for USA

CE Mark Conforming to IEC Specification

c-UL Recognition for Canada

FDBK1X6 Terminal Blocks 1 nut connection for IC & Screw clamp connection for OG Manufacturer and Supplier in India – Elmex

IEC : 800 V / IC-64 A, OG-32 A / IC-25 mm² , OG-4 sq.mm / IC-2.5 Nm , OG-0.5 Nm
Thickness : 61.5 mm / 2.42 inches
Width : 67.5 mm / 2.66 inches
Height : 49.9 mm / 1.96 inches

FDBK1X8

UL Recognition for USA

CE Mark Conforming to IEC Specification

c-UL Recognition for Canada

FDBK1X8 Terminal Blocks 1 nut connection for IC & Screw clamp connection for OG Manufacturer and Supplier in India – Elmex

IEC : 800 V / IC-64 A, OG-32 A / IC-25 mm² , OG-4 sq.mm / IC-2.5 Nm , OG-0.5 Nm
Thickness : 68 mm / 2.68 inches
Width : 87.97 mm / 3.46 inches
Height : 48.65 mm / 1.92 inches
