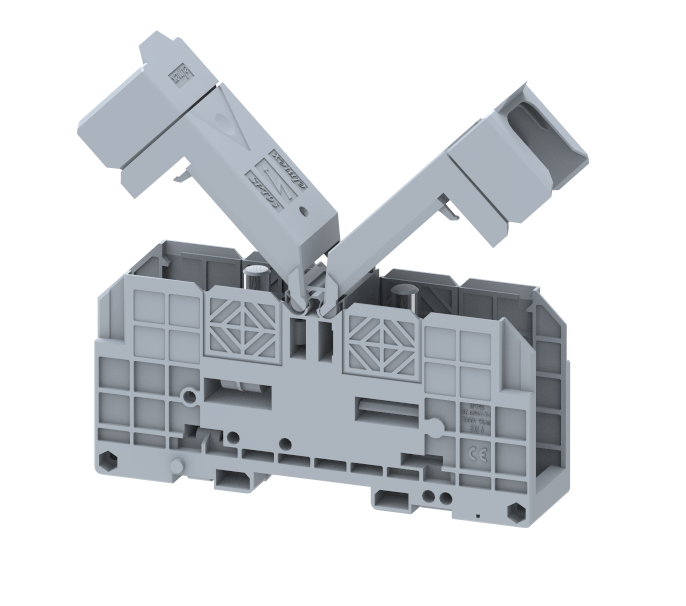

SPT95XL

Approvals

UL Recognition for USA CE Mark Conforming to IEC Specification IEC CB LR : Lloyd’s Register

Line Diagram


General Data

Type SPT95XL
Wire termination Technology Bolt Connection
Rating 1000 V / 232 A / 95 sq.mm / 6 Nm
GTIN / Harmonize Custom Code 85389000
Standard Packing Qty (in No) 10
Country of Origin India

Width (mm) 32
Width (inches) 1.26
Length (mm) 179.2
Length (inches) 7.06
Height (mm) 70.6
Height (inches) 2.78
Weight For Standard Packing Qty (kg) 2.08

Housing Polyamide 6,6
Clamping Material MS
Standard Colour Gray
Other Colour Variants Red, Yellow, Blue, Black, Green, Khakhi

Stranded Wire - Min (sq.mm) 16
Stranded Wire - Max (sq.mm) 95

Standard IEC 60947-7-1
Rated Voltage (V) 1000
Rated Current (A) 232
Rated Cross Section (sq.mm) 95
Short Time Withstand Current 11.4
Rated Impulse Withstand Voltage (kV) 8
Pollution Degree 3

Rated Voltage (V) 1000
Rated Current (A) 200
Wire Cross Section - min (AWG) 14
Wire Cross Section - max (AWG) 3/0

Rated Voltage (V) 1000
Rated Current (A) 200
Conductor Size - min (AWG) 14
Conductor Size - max (AWG) 3/0

DIN Rail Perforated
CHKDS
  • 35 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm - Perforated
  • Height : 15 mm
  • Width : 35 mm
  • Thickness : 1.5 mm
  • Length : 2000 mm
CHKS
  • 35 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm - Perforated
  • Height : 7.5 mm
  • Width : 35 mm
  • Thickness : 1 mm
DIN Rail, Unperforated
CHKD
  • 35 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm , Unperforated
  • Height : 15 mm
  • Width : 35 mm
  • Thickness : 1.5 mm
CHK
  • 35 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm , Unperforated
  • Height : 7.5 mm
  • Width : 35 mm
  • Thickness : 1 mm
End Cap
CHKENDCAP
  • END COVER/ CAP FOR CHK CHANNEL
  • Height : 14 mm
  • Width : 9 mm
  • Length : 41.5 mm
End Clamp
SCUP
  • TS32 , TS35 din rail mounted end clamp with fixing screws , Color - Grey
  • Height : 34 mm
  • Width : 9 mm
  • Length : 44.75 mm
SCUSL
  • Universal rail mounted end clamp with fixing screws , Color - Grey
  • Height : 41.1 mm
  • Width : 8 mm
  • Length : 47.5 mm
SCUDD
  • TS35 , TS32 DIN rail mounted end clamp with fixing screws , Color - Grey
  • Height : 50 mm
  • Width : 10 mm
  • Length : 55.6 mm
Fixed Bridge
CCLASPT70-2W
  • Fixed bridge , Type - CCLASPT70-2W , Available variant - 2W , 3W
  • Width : 15 mm
  • Thickness : 3 mm
  • Pitch : 32 mm
  • Length : 50 mm
CCLASPT70-3W
  • Fixed bridge , Type - CCLASPT70-3W , Available variant - 2W , 3W
  • Width : 15 mm
  • Thickness : 3 mm
  • Pitch : 32 mm
  • Length : 82 mm
Marker For Terminal Blocks
LABEL KN12
  • Snap on type PVC marking Label , Type - KN 12
  • Width : 12 mm
Marker carriers
SCUDDMLH
  • Universal rail-mounted end clamp with fixing screws & marking label holder, Type - SCUDDMLH
  • Height : 71.5 mm
  • Width : 11 mm
  • Length : 55.6 mm
GMH10
  • Group Marking Holder with 10 mm pitch
  • Height : 51 mm
  • Width : 10 mm
  • Length : 41.5 mm
GMH 20
  • Group Marking Holder with 20 mm pitch
  • Height : 51 mm
  • Width : 20 mm
  • Length : 41.5 mm
SCKNMLH
  • 35 mm rail mounted end clamp with marking lable holder
  • Height : 42 mm
  • Width : 16 mm
  • Length : 44.7 mm
