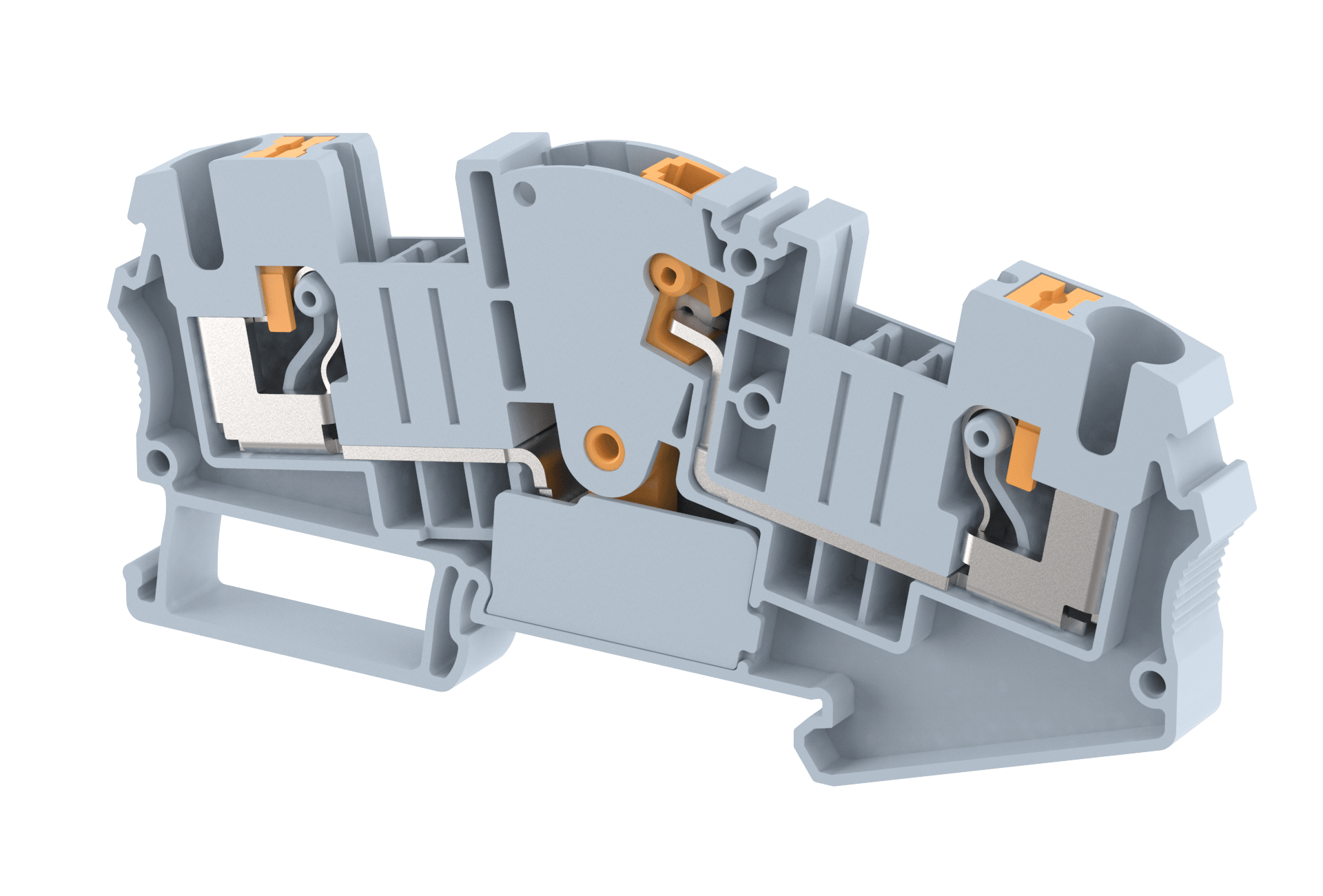

PQD6

Name: PQD6
Brand: Elmex
Rating: 5 (5 reviews)

Approvals

Line Diagram

General Data

Type	PQD6
Wire termination Technology	Push In Connection
Rating	1000 V / 30 A / 6 sq.mm
GTIN / Harmonize Custom Code	85389000
Standard Packing Qty (in No)	50
Country of Origin	India

Data Specification
Downloads

Thickness (mm)	8
Thickness (inches)	0.31
Width (mm)	104.2
Width (inches)	4.1
Height (mm)	47.6
Height (inches)	1.87
Weight For Standard Packing Qty (KG)	1.4

Housing	Polyamide 6,6
Clamping Material	SS
Standard Colour	Grey
Other Colour Variants	Red, Yellow, Blue, Black, Green, Khakhi
Standard Colour	Gray

Stranded Wire - Min (sq.mm)	0.2
Stranded Wire - Max (sq.mm)	6
Solid Wire - Max (sq.mm)	10

Standard	IEC 60947-7-1
Rated Voltage (V)	1000
Rated Current (A)	30
Rated Cross Section (sq.mm)	6
Short Time Withstand Current (kA)	0.48
Rated Impulse Withstand Voltage (kV)	8
Pollution Degree	3

Rated Voltage (V)	600
Rated Current (A)	35
Wire Cross Section - min (AWG)	24
Wire Cross Section - max (AWG)	8

Rated Voltage (V)	600
Rated Current (A)	35
Conductor Size - min (AWG)	24
Conductor Size - max (AWG)	8

Cover Profile

PCP120

Cover profile for Terminal type - DPBB50 , DPBB70 , DPBB120(Covers one terminal block)
Width : 41 mm
Thickness : 1.5 mm
Length : 126 mm

DIN Rail Perforated

CHKDS

35 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm - Perforated
Height : 15 mm
Width : 35 mm
Thickness : 1.5 mm
Length : 2000 mm

CHKS

35 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm - Perforated
Height : 7.5 mm
Width : 35 mm
Thickness : 1 mm

DIN Rail, Unperforated

CHKD

35 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm , Unperforated
Height : 15 mm
Width : 35 mm
Thickness : 1.5 mm

CHK

35 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm , Unperforated
Height : 7.5 mm
Width : 35 mm
Thickness : 1 mm

End Cap

CHKENDCAP

END COVER/ CAP FOR CHK CHANNEL
Height : 14 mm
Width : 9 mm
Length : 41.5 mm

End Clamp

SCUP

TS32 , TS35 din rail mounted end clamp with fixing screws , Type - SCUP
Height : 34 mm
Length : 44.75 mm

SCEC35

TS35 DIN rail mounted End clamp with fixing nut and screw of size M3, Width - 8 mm, Color - Grey
Height : 31.5 mm
Width : 8 mm
Length : 45.8 mm

SCUSL

Universal rail mounted end clamp with fixing screws , Type - SCUSL
Height : 41.1 mm
Width : 8 mm
Length : 47.5 mm

SCUDD

TS35 , TS32 DIN rail mounted end clamp with fixing screws , Width - 10 mm , Type - SCUDD
Height : 50 mm
Width : 10 mm
Length : 55.6 mm

DCKN

TS35 din rail mounted end clamp without fixing screws , Width - 6 mm , Color - Grey
Height : 33 mm
Width : 6 mm
Length : 43.5 mm

DCKN10

TS35 DIN rail mounted end clamp without fixing screws , Width- 10 mm , Color - Grey
Height : 35 mm
Width : 10 mm
Length : 43.5 mm

SCKN

TS35 DIN rail mounted end clamp with fixing screws , Width - 8 mm , Color - Grey
Height : 34.5 mm
Width : 8 mm
Length : 44.9 mm

SCUN

TS35 , TS32 DIN rail mounted end clamp with fixing screws , Width- 9.5 mm , Color - Grey
Height : 35.5 mm
Width : 9.5 mm
Length : 50.6 mm

End Cover

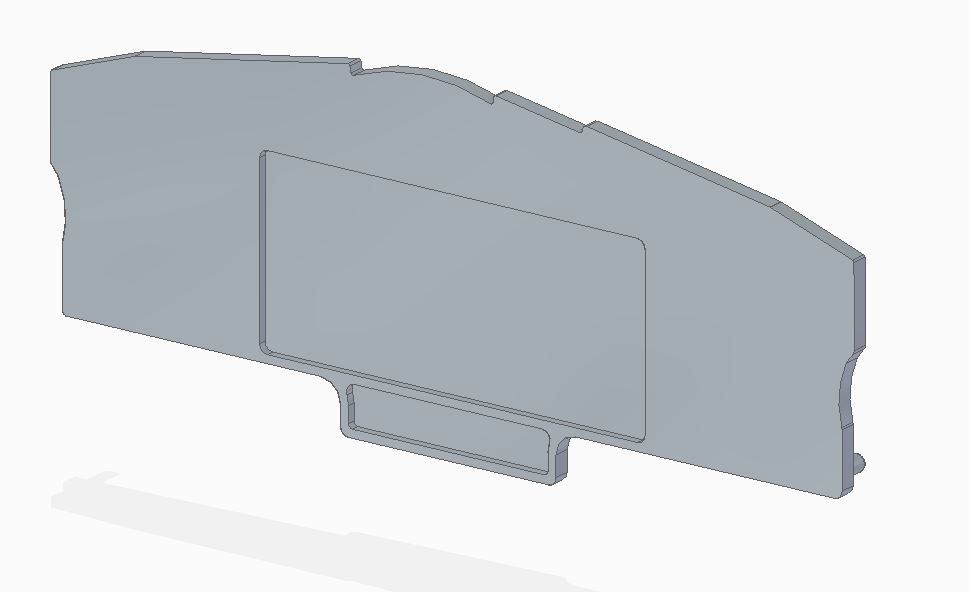

CSPD6

END PLATE FOR PQD6
Height : 42 mm
Thickness : 2 mm
Length : 105 mm

Marker For Terminal Blocks

LABEL KN8

Snap on type PVC marking Label , Type - KN 8
Width : 8 mm

Partition Plate

BPN70

Barrier Plate with Foot , Type : BPN70 , colour : GREY
Height : 67.5 mm
Width : 3 mm
Length : 125 mm

Plug-in Bridge/Jumper

SLPU8-2W

Plug In Bridge, Type – SLPU8-2W
Height : 33.3 mm
Width : 15.2 mm
Pitch : 8 mm

SLPU8-10W

Plug In Bridge, Type – SLPU8-10W
Height : 33.3 mm
Width : 79.2 mm
Pitch : 8 mm

SLPU8-3W

Plug In Bridge, Type – SLPU8-3W
Height : 33.3 mm
Width : 23.2 mm
Pitch : 8 mm

SLPU8-4W

Plug In Bridge, Type – SLPU8-4W
Height : 33.3 mm
Width : 31.2 mm
Pitch : 8 mm

SLPU8-5W

Plug In Bridge, Type – SLPU8-5W
Height : 33.3 mm
Width : 39.2 mm
Pitch : 8 mm

SLPU8-6W

PUSHIN TYPE SHORTING LINK FOR 8mm PITCH -6 WAY APPLICABLE FOR ARA & AURIGA SERIES TERMINAL BLOCKS WITH 8 MM PITCH ONLY.
Height : 33.3 mm
Width : 2.5 mm
Pitch : 8 mm
Length : 47.2 mm

SLPU8-3AW

PUSHIN TYPE SHORTING LINK FOR 8mm PITCH -3 ALTERNATIVE WAY; APPLICABLE FOR ARA & AURIGA SERIES TERMINAL BLOCKS WITH 8 MM PITCH ONLY.
Height : 33.3 mm
Width : 2.5 mm
Pitch : 16 mm
Length : 23.2 mm

SLPU8-7AW

PUSH IN TYPE SHORTING LINK FOR 16 mm PITCH -7 ALTERNATIVE WAY; APPLICABLE FOR ARA & AURIGA SERIES TERMINAL BLOCKS WITH 16 MM PITCH ONLY.
Height : 33.3 mm
Width : 2.5 mm
Pitch : 16 mm
Length : 55.2 mm

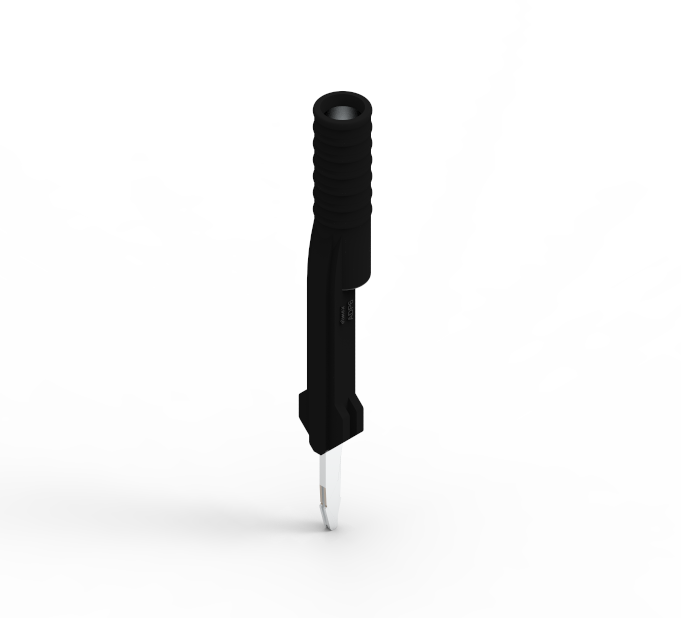

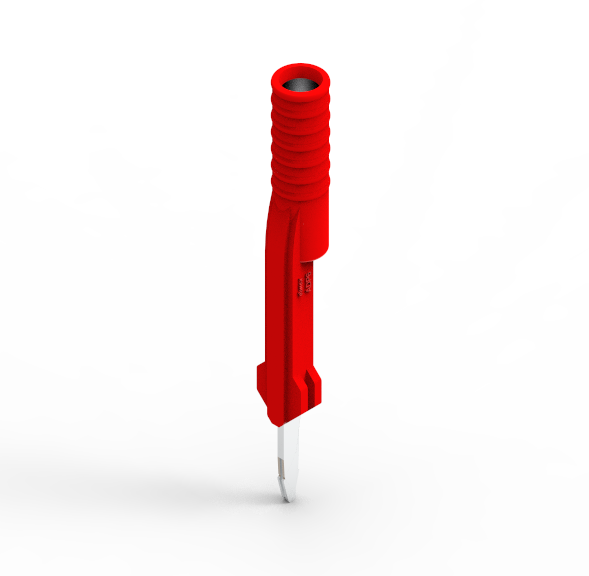

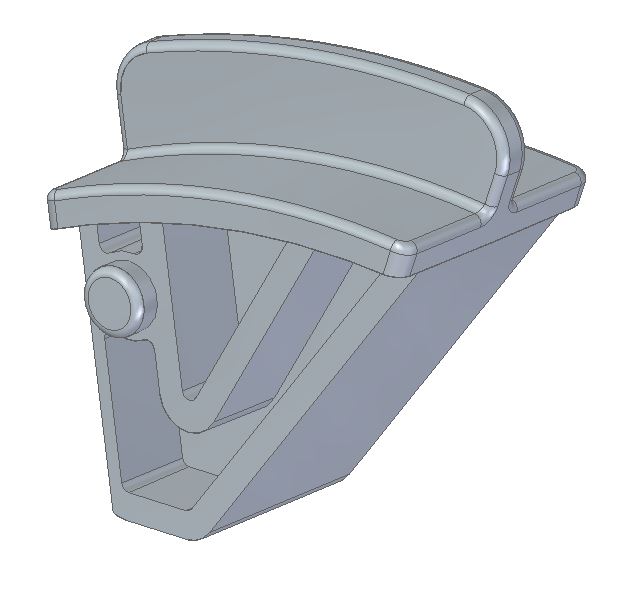

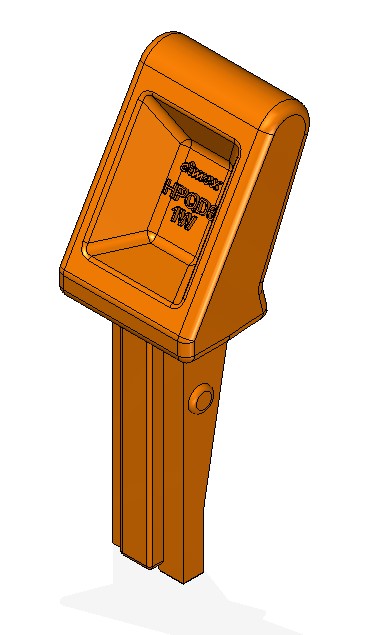

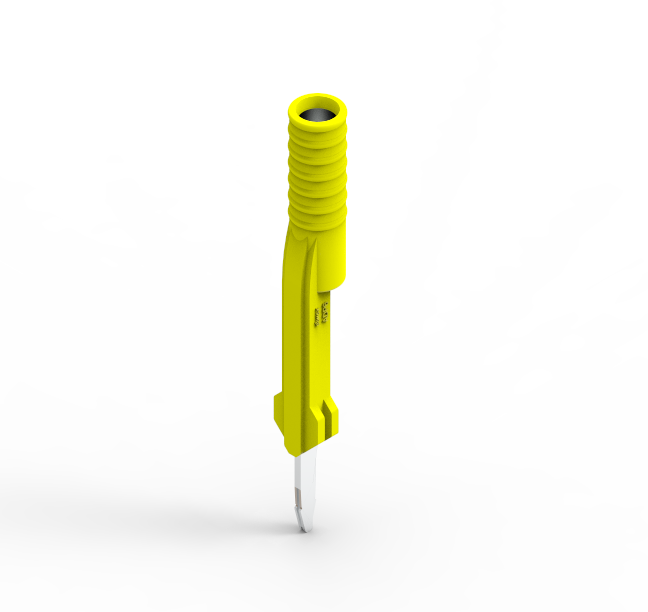

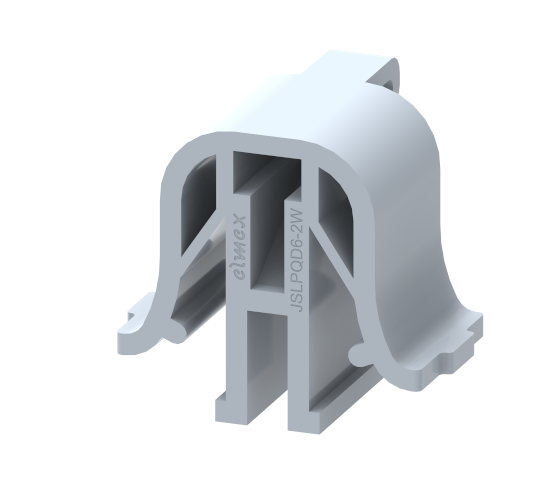

Switching Jumper
