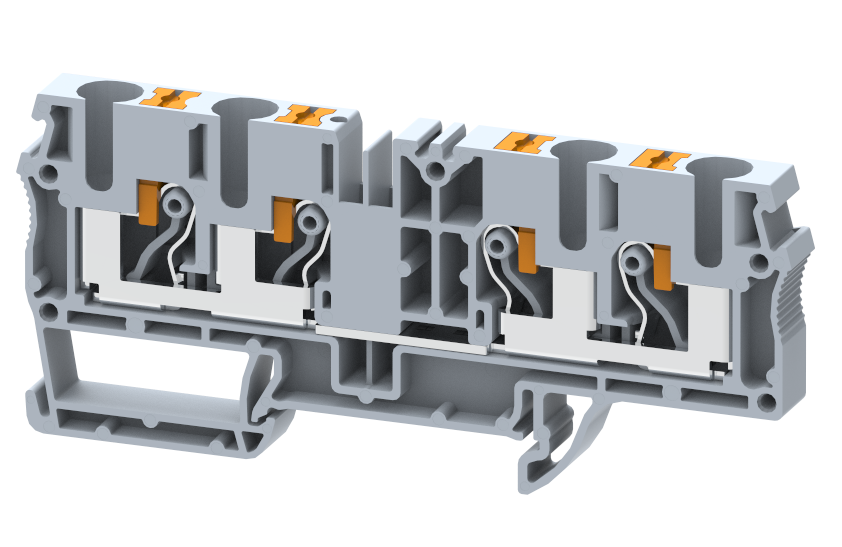

PQ6-2X2

Approvals

CE Mark Conforming to IEC Specification

Line Diagram


General Data

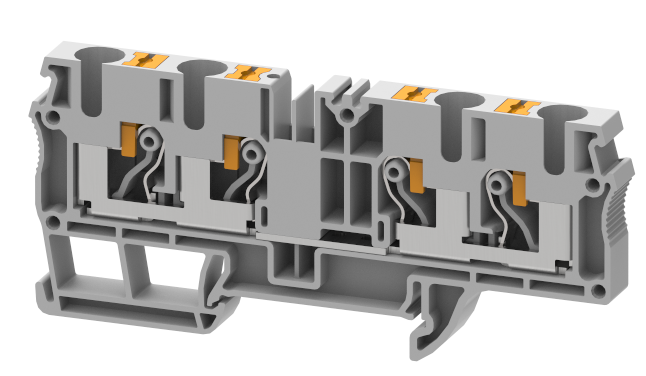

Type PQ6-2X2
Wire termination Technology Push In Connection
Rating 1000 V / 41 A / 6 sq.mm
GTIN / Harmonize Custom Code 85389000
Standard Packing Qty (in No) 0
Country of Origin India

Thickness (mm) 8
Thickness (inches) 0.31
Width (mm) 98.6
Width (inches) 3.88
Height (mm) 42.9
Height (inches) 1.69

Housing Polyamide 6,6
Clamping Material SS
Standard Colour Grey
Standard Colour Gray
Other Colour Variants Red, Yellow, Blue, Black, Green, Khakhi

Stranded Wire - Min (sq.mm) 0.2
Stranded Wire - Max (sq.mm) 6
Solid Wire - Max (sq.mm) 10

Standard IEC 60947-7-1
Rated Voltage (V) 1000
Rated Current (A) 41
Rated Cross Section (sq.mm) 6
Short Time Withstand Current (kA) 0.72
Rated Impulse Withstand Voltage (kV) 8
Pollution Degree 3

Cover Profile
PCPDBF-5
  • Cover Profile , Type -PCPDBF-5
  • Height : 14.1 mm
  • Thickness : 1.5 mm
  • Length : 113 mm
DIN Rail Perforated
CHKDS
  • 35 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm - Perforated
  • Height : 15 mm
  • Width : 35 mm
  • Thickness : 1.5 mm
  • Length : 2000 mm
CHKS
  • 35 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm - Perforated
  • Height : 7.5 mm
  • Width : 35 mm
  • Thickness : 1 mm
DIN Rail, Unperforated
CHKD
  • 35 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm , Unperforated
  • Height : 15 mm
  • Width : 35 mm
  • Thickness : 1.5 mm
CHK
  • 35 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm , Unperforated
  • Height : 7.5 mm
  • Width : 35 mm
  • Thickness : 1 mm
End Cap
CHKENDCAP
  • END COVER/ CAP FOR CHK CHANNEL
  • Height : 14 mm
  • Width : 9 mm
  • Length : 41.5 mm
End Clamp
SCUP
  • TS32 , TS35 din rail mounted end clamp with fixing screws , Type - SCUP
  • Height : 34 mm
  • Length : 44.75 mm
SCEC35
  • TS35 DIN rail mounted End clamp with fixing nut and screw of size M3, Width - 8 mm, Color - Grey
  • Height : 31.5 mm
  • Width : 8 mm
  • Length : 45.8 mm
SCUSL
  • Universal rail mounted end clamp with fixing screws , Type - SCUSL
  • Height : 41.1 mm
  • Width : 8 mm
  • Length : 47.5 mm
SCUDD
  • TS35 , TS32 DIN rail mounted end clamp with fixing screws , Width - 10 mm , Type - SCUDD
  • Height : 50 mm
  • Width : 10 mm
  • Length : 55.6 mm
DCKN
  • TS35 din rail mounted end clamp without fixing screws , Width - 6 mm , Color - Grey
  • Height : 33 mm
  • Width : 6 mm
  • Length : 43.5 mm
DCKN10
  • TS35 DIN rail mounted end clamp without fixing screws , Width- 10 mm , Color - Grey
  • Height : 35 mm
  • Width : 10 mm
  • Length : 43.5 mm
SCKN
  • TS35 DIN rail mounted end clamp with fixing screws , Width - 8 mm , Color - Grey
  • Height : 34.5 mm
  • Width : 8 mm
  • Length : 44.9 mm
SCUN
  • TS35 , TS32 DIN rail mounted end clamp with fixing screws , Width- 9.5 mm , Color - Grey
  • Height : 35.5 mm
  • Width : 9.5 mm
  • Length : 50.6 mm
End Cover
CP6-2X2

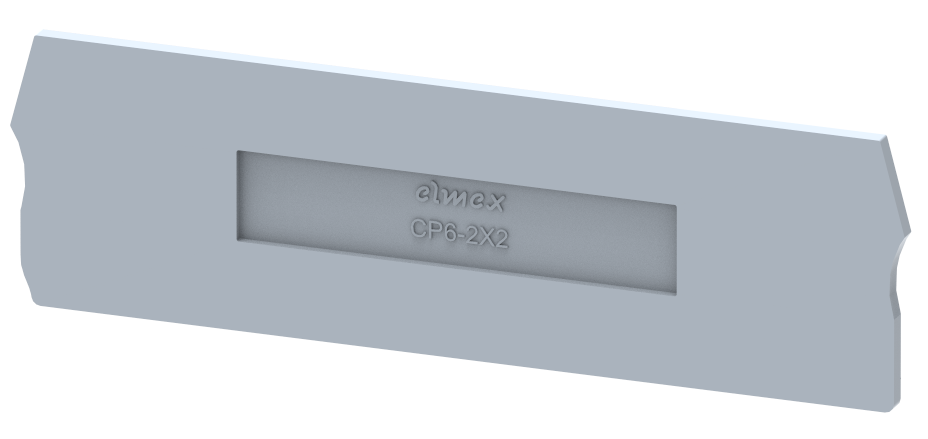

  • CP6-2X2, PQ6-2X2 COVER PLATE
  • Height : 29.6 mm
  • Thickness : 2 mm
  • Length : 98.6 mm
Marker For Terminal Blocks
LABEL KN8
  • Snap on type PVC marking Label , Type - KN 8
  • Width : 8 mm
Partition Plate
DBF-5
  • Partition Plate with foot used to support protection cover , Type - DBF-5
  • Height : 42.45 mm
  • Width : 3 mm
  • Length : 112 mm
Plug-in Bridge/Jumper

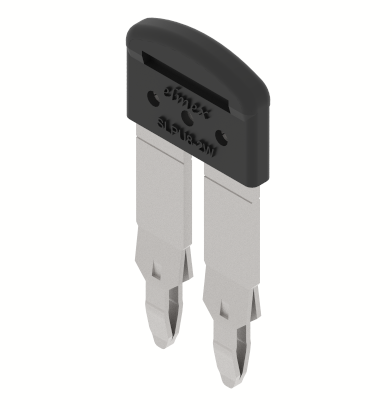

SLPU8-2W
  • Plug In Bridge, Type – SLPU8-2W
  • Height : 33.3 mm
  • Width : 15.2 mm
  • Pitch : 8 mm

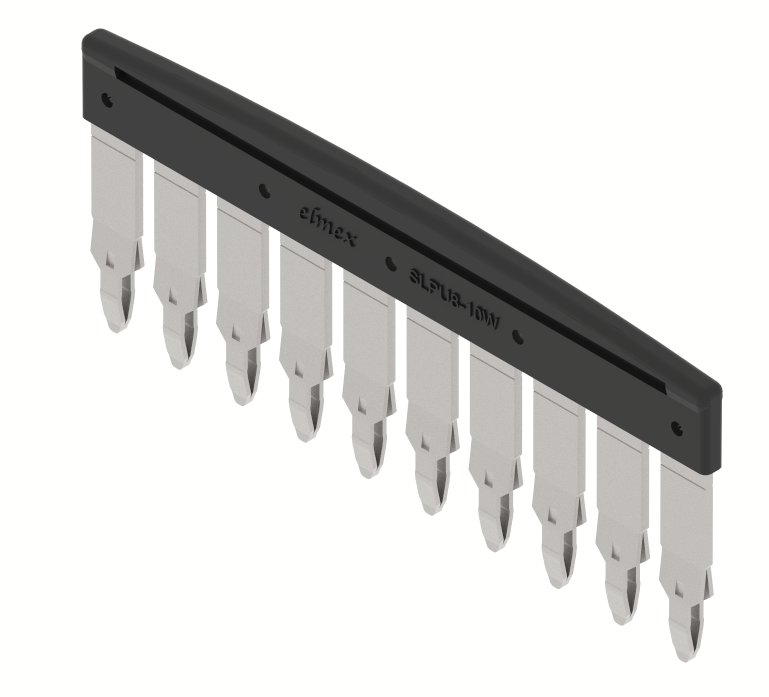

SLPU8-10W
  • Plug In Bridge, Type – SLPU8-10W
  • Height : 33.3 mm
  • Width : 79.2 mm
  • Pitch : 8 mm

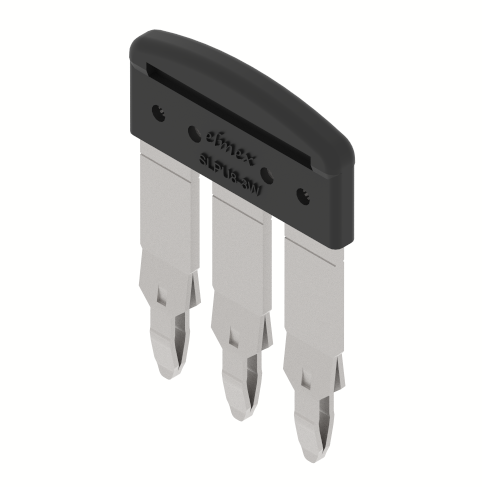

SLPU8-3W
  • Plug In Bridge, Type – SLPU8-3W
  • Height : 33.3 mm
  • Width : 23.2 mm
  • Pitch : 8 mm

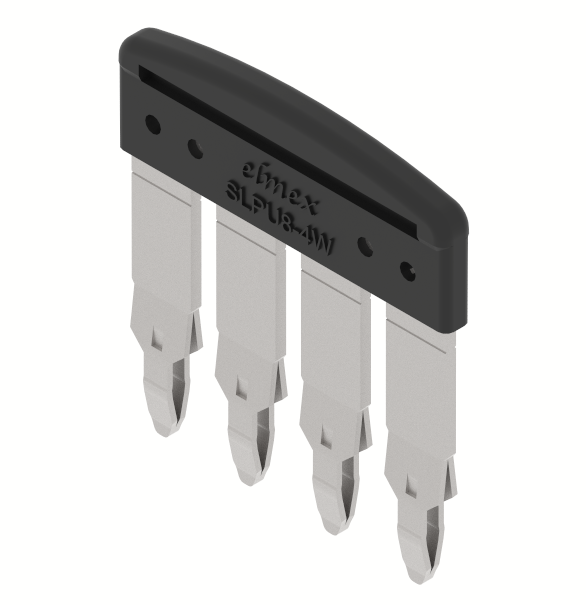

SLPU8-4W
  • Plug In Bridge, Type – SLPU8-4W
  • Height : 33.3 mm
  • Width : 31.2 mm
  • Pitch : 8 mm

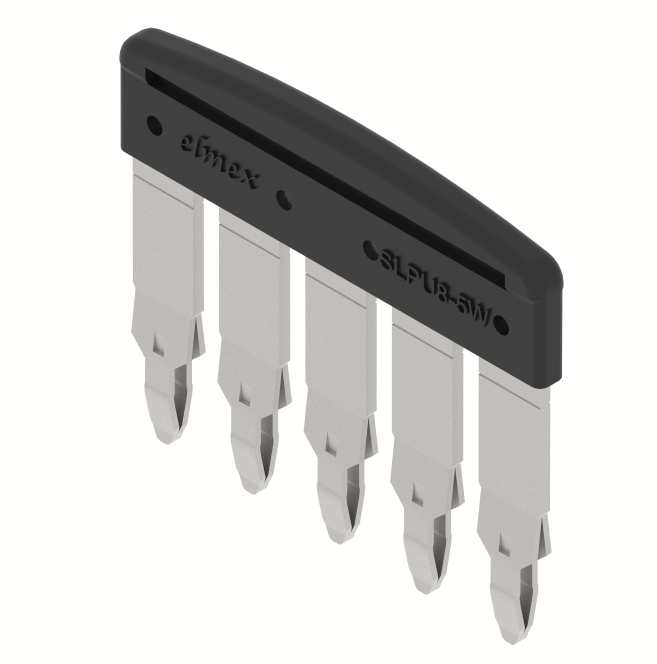

SLPU8-5W
  • Plug In Bridge, Type – SLPU8-5W
  • Height : 33.3 mm
  • Width : 39.2 mm
  • Pitch : 8 mm

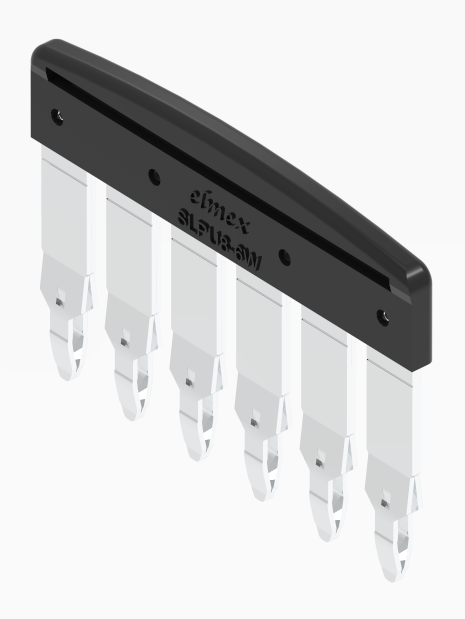

SLPU8-6W
  • PUSHIN TYPE SHORTING LINK FOR 8mm PITCH -6 WAY APPLICABLE FOR ARA & AURIGA SERIES TERMINAL BLOCKS WITH 8 MM PITCH ONLY.
  • Height : 33.3 mm
  • Width : 2.5 mm
  • Pitch : 8 mm
  • Length : 47.2 mm
SLPU8-3AW
  • PUSHIN TYPE SHORTING LINK FOR 8mm PITCH -3 ALTERNATIVE WAY; APPLICABLE FOR ARA & AURIGA SERIES TERMINAL BLOCKS WITH 8 MM PITCH ONLY.
  • Height : 33.3 mm
  • Width : 2.5 mm
  • Pitch : 16 mm
  • Length : 23.2 mm

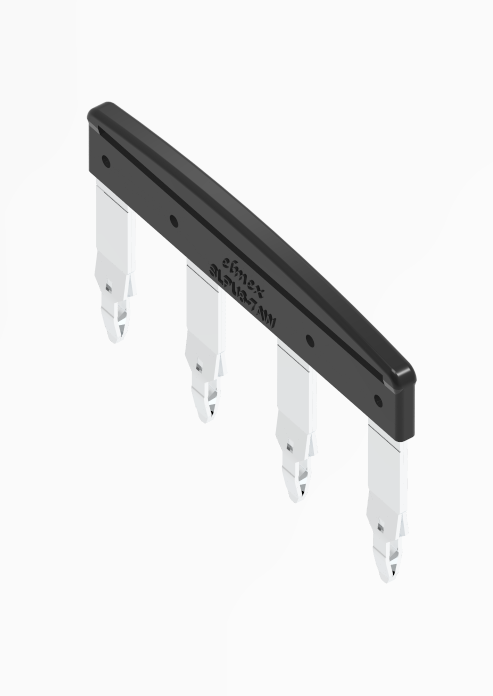

SLPU8-7AW
  • PUSH IN TYPE SHORTING LINK FOR 16 mm PITCH -7 ALTERNATIVE WAY; APPLICABLE FOR ARA & AURIGA SERIES TERMINAL BLOCKS WITH 16 MM PITCH ONLY.
  • Height : 33.3 mm
  • Width : 2.5 mm
  • Pitch : 16 mm
  • Length : 55.2 mm
Marker carriers
SCUDDMLH
  • Universal rail-mounted end clamp with fixing screws & marking label holder, Type - SCUDDMLH
  • Height : 71.5 mm
  • Width : 10 mm
  • Length : 55.6 mm
SCUNMLH
  • Universal rail mounted end clamp with fixing screws & marking lable holder , Type - SCUNMLH
  • Height : 53.5 mm
  • Width : 9.5 mm
  • Length : 50.6 mm
DCKNMLH
  • 35 mm rail mounted end clamp with marking lable holder
  • Height : 45.5 mm
  • Width : 6 mm
  • Length : 43.5 mm
SCKNMLH
  • 35 mm rail mounted end clamp with marking lable holder
  • Height : 45.5 mm
  • Width : 8 mm
  • Length : 44.9 mm
