Approvals
Line Diagram
General Data

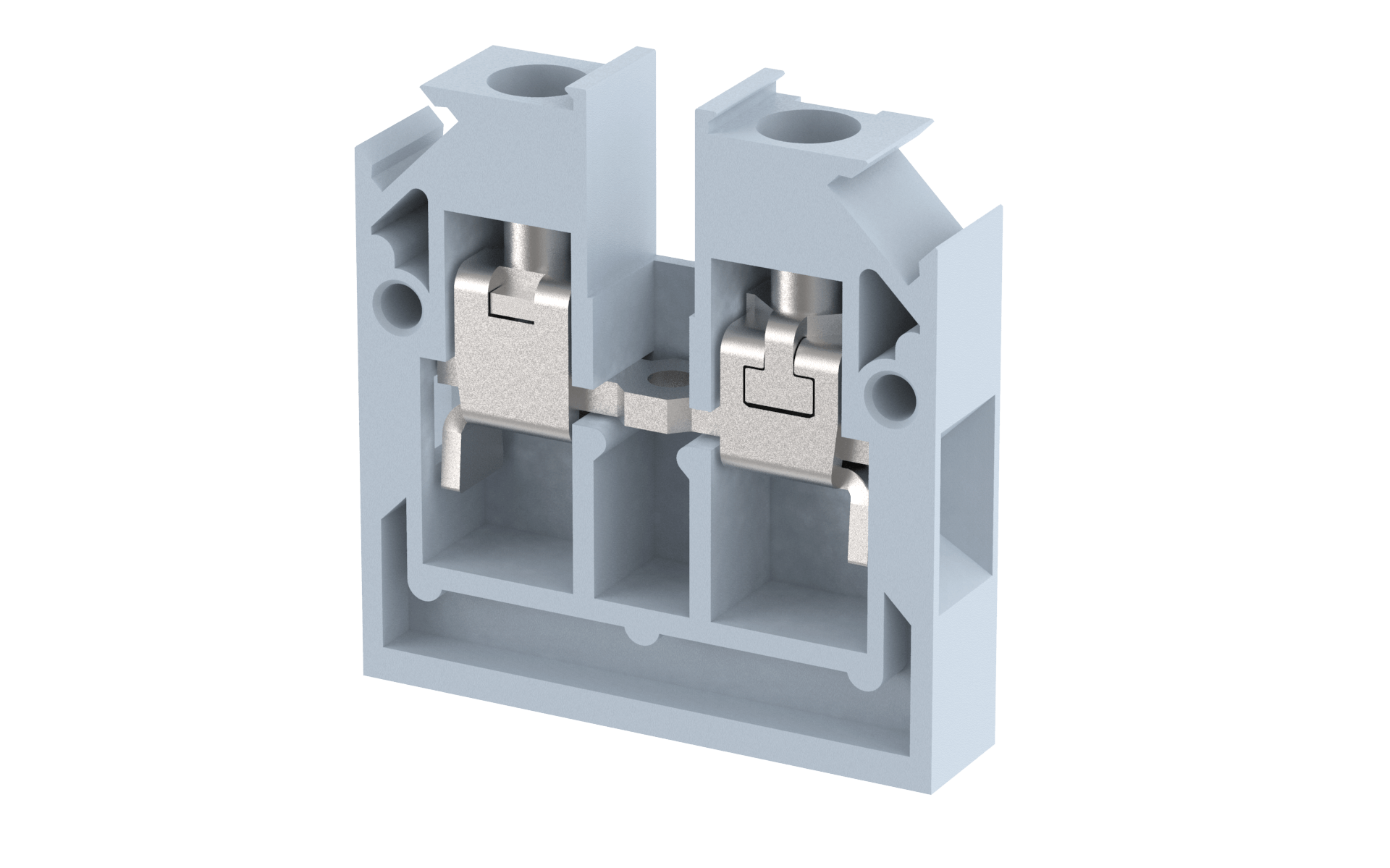

| Type | PET4 |
| Wire termination Technology | Screw Connection |
| Rating | 500 V / 32 A / 4 sq.mm / 0.5 Nm |
| GTIN / Harmonize Custom Code | 85389000 |
| Standard Packing Qty (in No) | 100 |
| Country of Origin | India |
| Thickness (mm) | 6 |
| Thickness (inches) | 0.24 |
| Width (mm) | 27 |
| Width (inches) | 1.06 |
| Weight For Standard Packing Qty (KG) | 0.66 |
| Housing | Polyamide 6,6 |
| Clamping Material | CRCA |
| Standard Colour | Grey |
| Other Colour Variants | Red, Yellow, Blue, Black, Green, Khakhi |
| Standard Colour | Gray |
| Stranded Wire - Min (sq.mm) | 0.2 |
| Stranded Wire - Max (sq.mm) | 4 |
| Standard | IEC 60947-7-1 |
| Rated Voltage (V) | 500 |
| Rated Current (A) | 32 |
| Rated Cross Section (sq.mm) | 4 |
| Short Time Withstand Current (kA) | 0.48 |
| Pollution Degree | 3 |
| Rated Voltage (V) | 400 |
| Rated Current (A) | 30 |
| Rated Cross Section (sq.mm) | 4 |
