Approvals
Line Diagram
General Data

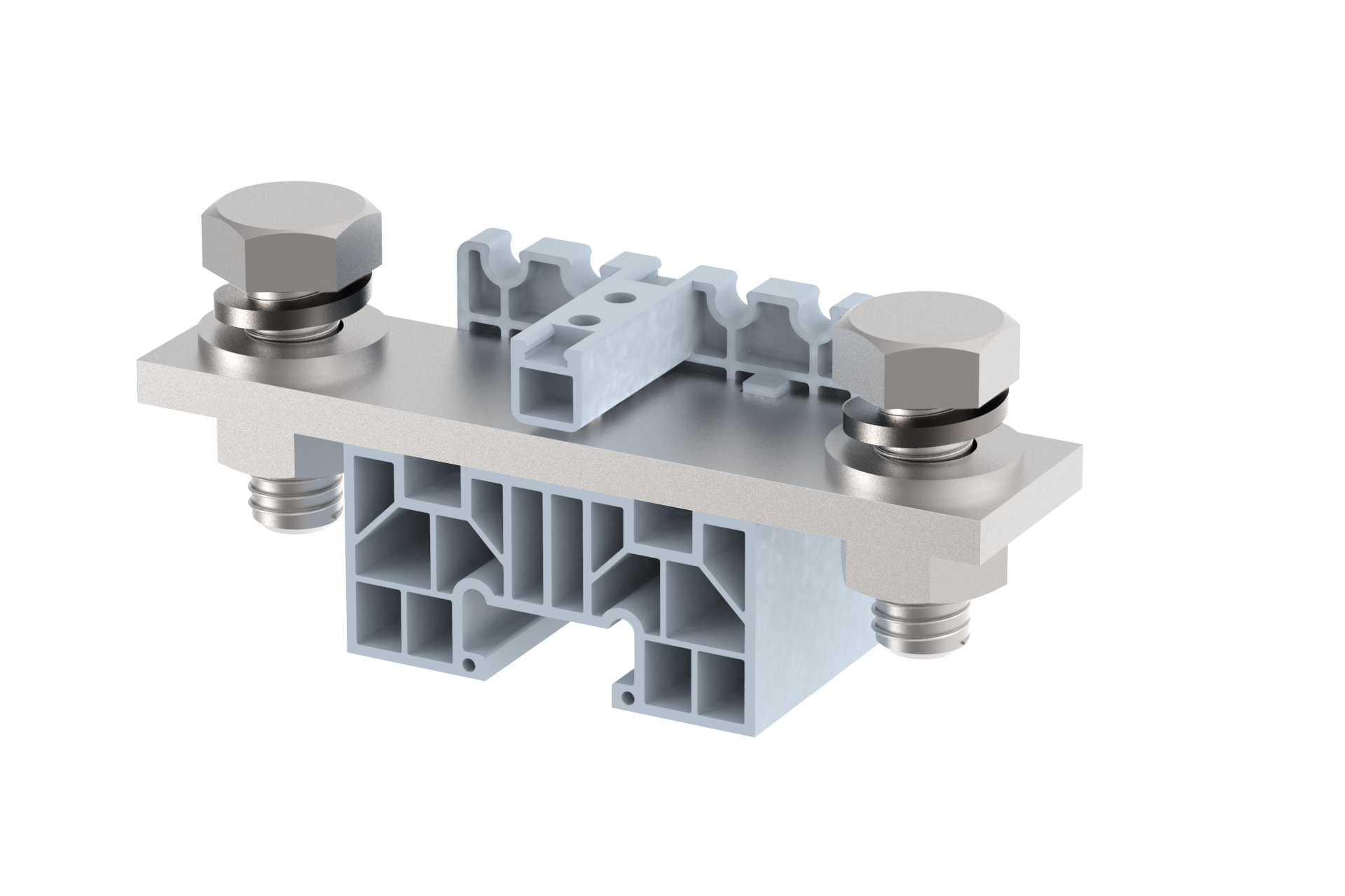

| Type | PAT250 |
| Wire termination Technology | Bolt Connection |
| Rating | 400 V / 250 A / 95 sq.mm / 10 Nm |
| GTIN / Harmonize Custom Code | 85389000 |
| Standard Packing Qty (in No) | 10 |
| Country of Origin | India |
| Thickness (mm) | 41 |
| Thickness (inches) | 1.61 |
| Width (mm) | 102 |
| Width (inches) | 4.02 |
| Height (mm) | 45.5 |
| Height (inches) | 1.79 |
| Weight For Standard Packing Qty (KG) | 2.3 |
| Housing | Polyamide 6,6 |
| Clamping Material | SS |
| Standard Colour | Gray |
| Other Colour Variants | Red, Yellow, Blue, Black, Green, Khakhi |
| Stranded Wire - Min (sq.mm) | 35 |
| Stranded Wire - Max (sq.mm) | 95 |
| Standard | IEC 60947-7-1 |
| Rated Voltage (V) | 400 |
| Rated Current (A) | 250 |
| Rated Cross Section (sq.mm) | 95 |
| Short Time Withstand Current (kA) | 11.4 |
| Rated Impulse Withstand Voltage (kV) | 4 |
| Pollution Degree | 3 |
