Approvals
Line Diagram
General Data

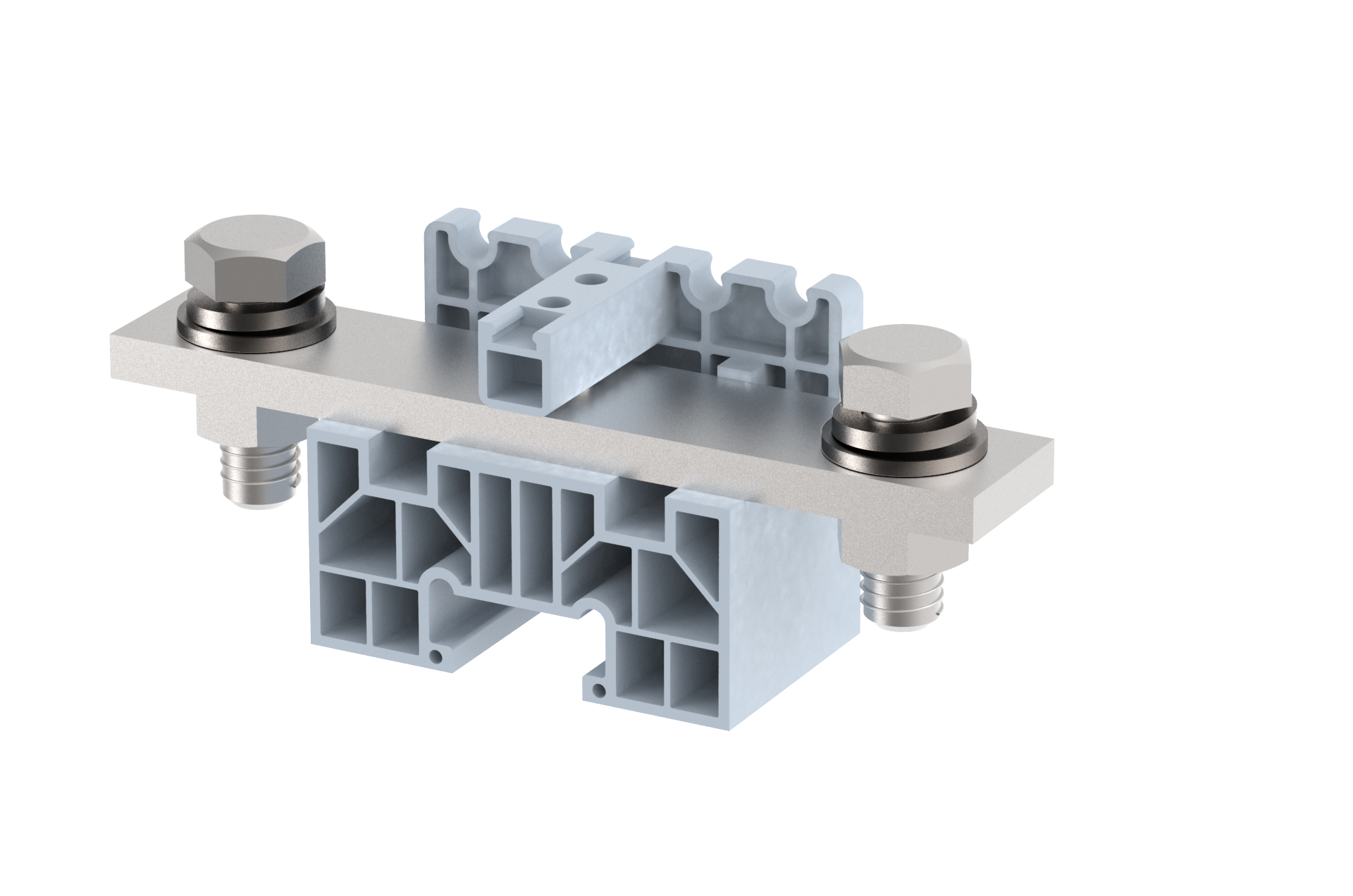

| Type | PAT150 |
| Wire termination Technology | Bolt Connection |
| Rating | 800 V / 150 A / 50 sq.mm / 6 Nm |
| GTIN / Harmonize Custom Code | 85389000 |
| Standard Packing Qty (in No) | 10 |
| Country of Origin | India |
| Thickness (mm) | 30 |
| Thickness (inches) | 1.18 |
| Width (mm) | 102 |
| Width (inches) | 4.02 |
| Height (mm) | 40.8 |
| Height (inches) | 1.61 |
| Weight For Standard Packing Qty (KG) | 1.52 |
| Housing | - |
| Clamping Material | SS |
| Standard Colour | Gray |
| Other Colour Variants | Red, Yellow, Blue, Black, Green, Khakhi |
| Stranded Wire - Min (sq.mm) | 16 |
| Stranded Wire - Max (sq.mm) | 50 |
| Standard | IEC 60947-7-1 |
| Rated Voltage (V) | 800 |
| Rated Current (A) | 150 |
| Rated Cross Section (sq.mm) | 50 |
| Short Time Withstand Current (kA) | - |
| Rated Impulse Withstand Voltage (kV) | 8 |
| Pollution Degree | 3 |
