Approvals
Line Diagram
General Data

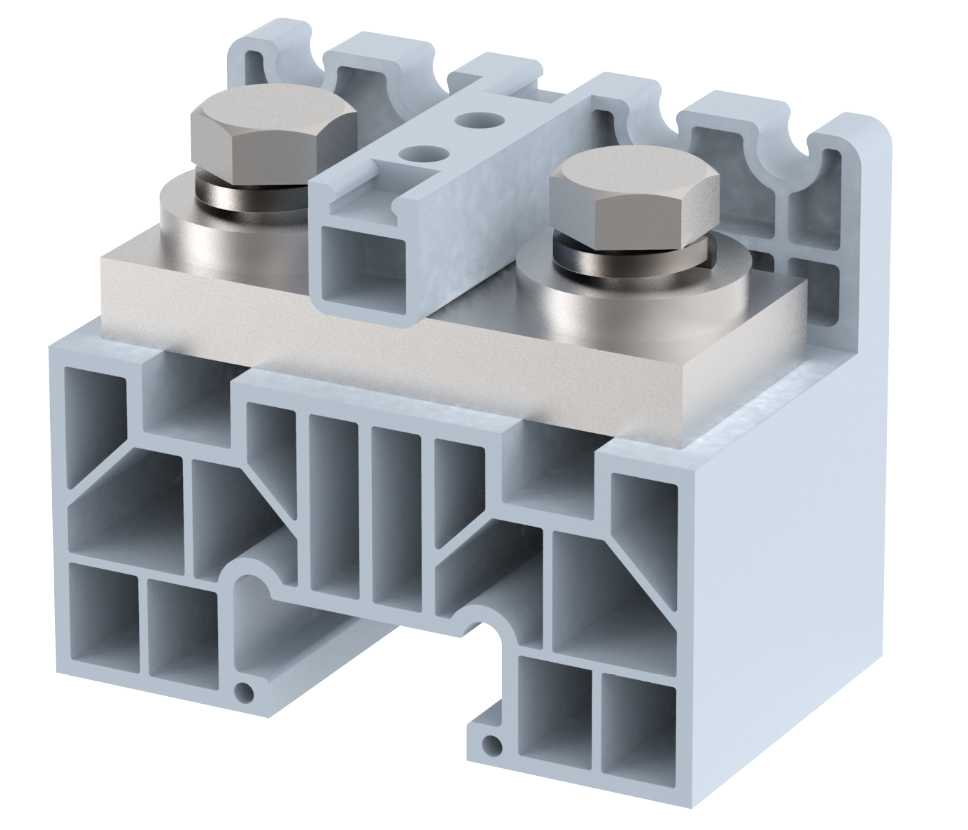

| Type | PAT100 |
| Wire termination Technology | Bolt Connection |
| Rating | 1000 V / 100 A / 25 sq.mm / 3 Nm |
| GTIN / Harmonize Custom Code | 85389000 |
| Standard Packing Qty (in No) | 25 |
| Country of Origin | India |
| Thickness (mm) | 41 |
| Thickness (inches) | 1.61 |
| Width (mm) | 50 |
| Width (inches) | 1.97 |
| Height (mm) | 40 |
| Height (inches) | 1.57 |
| Weight For Standard Packing Qty (KG) | 0.94 |
| Housing | Polyamide 6,6 |
| Clamping Material | SS |
| Standard Colour | Gray |
| Other Colour Variants | Red, Yellow, Blue, Black, Green, Khakhi |
| Stranded Wire - Min (sq.mm) | 10 |
| Stranded Wire - Max (sq.mm) | 25 |
| Standard | IEC 60947-7-1 |
| Rated Voltage (V) | 1000 |
| Rated Current (A) | 100 |
| Rated Cross Section (sq.mm) | 25 |
| Short Time Withstand Current (kA) | 3 |
| Rated Impulse Withstand Voltage (kV) | 8 |
