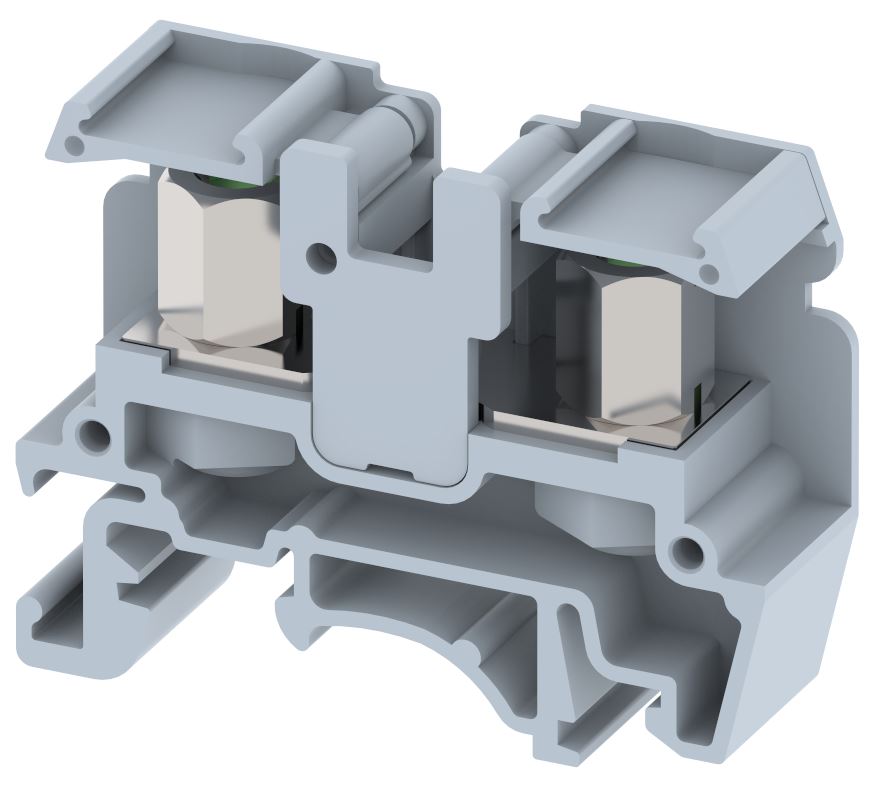

ONTM5-16C

Approvals

CE Mark Conforming to IEC Specification

Line Diagram


General Data

Type ONTM5-16C
Wire termination Technology Bolt Connection
Rating 1000 V / 76 A / 16 sq.mm / 2 Nm
GTIN / Harmonize Custom Code 85389000
Standard Packing Qty (in No) 50
Country of Origin India

Thickness (mm) 13
Thickness (inches) 0.51
Width (mm) 48
Width (inches) 1.89
Height (mm) 36.5
Height (inches) 1.44
Weight For Standard Packing Qty (KG) 1.35

Housing Polyamide 6,6
Clamping Material BRASS
Standard Colour Grey
Standard Colour Gray
Other Colour Variants Red, Yellow, Blue, Black, Green, Khakhi

Stranded Wire - Min (sq.mm) 1.5
Stranded Wire - Max (sq.mm) 16

Standard IEC 60947-7-1
Rated Voltage (V) 1000
Rated Current (A) 76
Rated Cross Section (sq.mm) 16
Short Time Withstand Current (kA) 1.92
Rated Impulse Withstand Voltage (kV) 8
Pollution Degree 3

DIN Rail Perforated
CHS
  • 32 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm - Unperforated
  • Height : 15 mm
  • Width : 32 mm
  • Thickness : 1.5 mm
CHKDS
  • 35 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm - Perforated
  • Height : 15 mm
  • Width : 35 mm
  • Thickness : 1.5 mm
  • Length : 2000 mm
CHKS
  • 35 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm - Perforated
  • Height : 7.5 mm
  • Width : 35 mm
  • Thickness : 1 mm
DIN Rail, Unperforated
CHKD
  • 35 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm , Unperforated
  • Height : 15 mm
  • Width : 35 mm
  • Thickness : 1.5 mm
CHK
  • 35 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm , Unperforated
  • Height : 7.5 mm
  • Width : 35 mm
  • Thickness : 1 mm
End Cap
CHKENDCAP
  • END COVER/ CAP FOR CHK CHANNEL
  • Height : 14 mm
  • Width : 9 mm
  • Length : 41.5 mm
End Clamp
SCUP
  • TS32 , TS35 din rail mounted end clamp with fixing screws , Type - SCUP
  • Height : 34 mm
  • Length : 44.75 mm
SCEC35
  • TS35 DIN rail mounted End clamp with fixing nut and screw of size M3, Width - 8 mm, Color - Grey
  • Height : 31.5 mm
  • Width : 8 mm
  • Length : 45.8 mm
SCUSL
  • Universal rail mounted end clamp with fixing screws , Type - SCUSL
  • Height : 41.1 mm
  • Width : 8 mm
  • Length : 47.5 mm
SCUDD
  • TS35 , TS32 DIN rail mounted end clamp with fixing screws , Width - 10 mm , Type - SCUDD
  • Height : 50 mm
  • Width : 10 mm
  • Length : 55.6 mm
DCKN
  • TS35 din rail mounted end clamp without fixing screws , Width - 6 mm , Color - Grey
  • Height : 33 mm
  • Width : 6 mm
  • Length : 43.5 mm
DCKN10
  • TS35 DIN rail mounted end clamp without fixing screws , Width- 10 mm , Color - Grey
  • Height : 35 mm
  • Width : 10 mm
  • Length : 43.5 mm
SCKN
  • TS35 DIN rail mounted end clamp with fixing screws , Width - 8 mm , Color - Grey
  • Height : 34.5 mm
  • Width : 8 mm
  • Length : 44.9 mm
SCUN
  • TS35 , TS32 DIN rail mounted end clamp with fixing screws , Width- 9.5 mm , Color - Grey
  • Height : 35.5 mm
  • Width : 9.5 mm
  • Length : 50.6 mm
End Cover
ONTEP
  • ONTEP End Cover for ONT Stud Series
  • Height : 22.8 mm
  • Width : 47.8 mm
  • Thickness : 2 mm
  • Length : 47.8 mm
Fixed Bridge

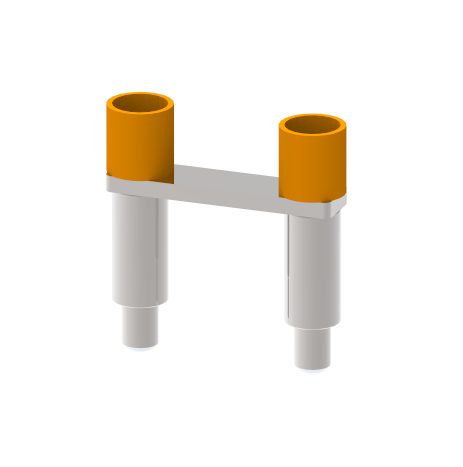

CCLAONT13-2W
  • Fixed Bridge for ONT Stud Series 13mm Pitch - 2 WAY
  • Pitch : 13 mm
CCLAONT13-10W
  • Fixed Bridge for ONT Stud Series 13mm Pitch - 10 WAY
  • Pitch : 13 mm
CCLAONT13-3W
  • Fixed Bridge for ONT Stud Series 13mm Pitch - 3 WAY
  • Pitch : 13 mm

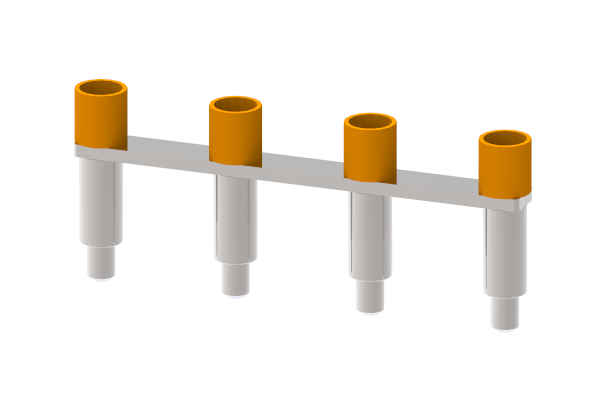

CCLAONT13-4W
  • Fixed Bridge for ONT Stud Series 13mm Pitch - 4 WAY
  • Pitch : 13 mm

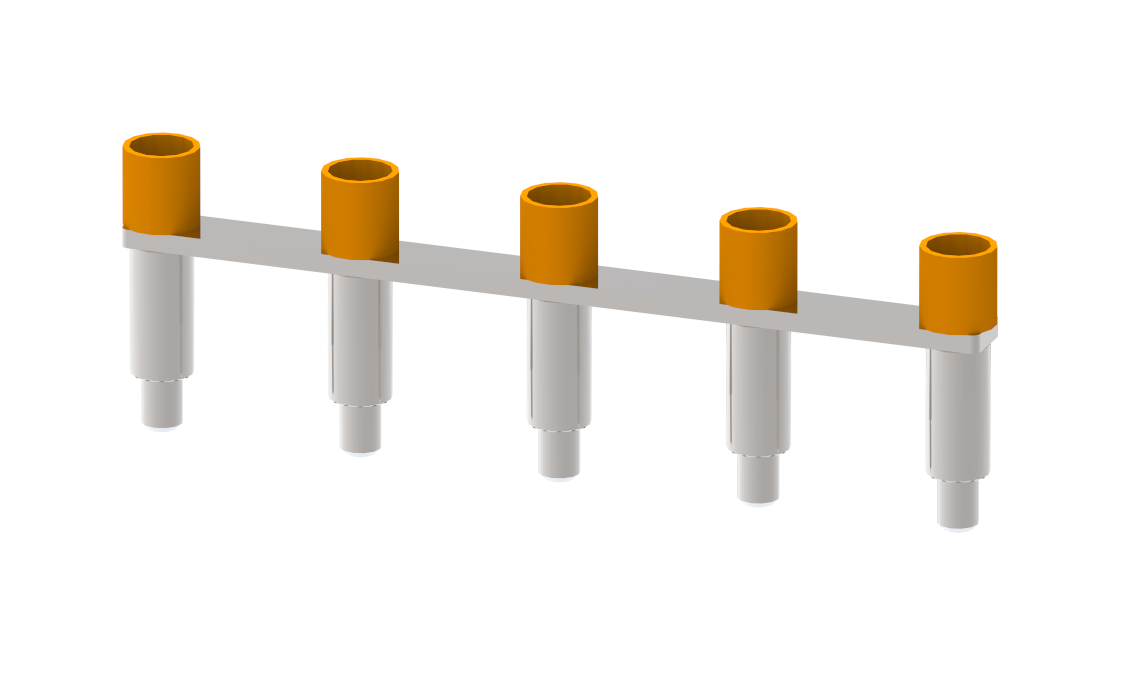

CCLAONT13-5W
  • Fixed Bridge for ONT Stud Series 13mm Pitch - 5 WAY
  • Pitch : 13 mm
Marker For Terminal Blocks

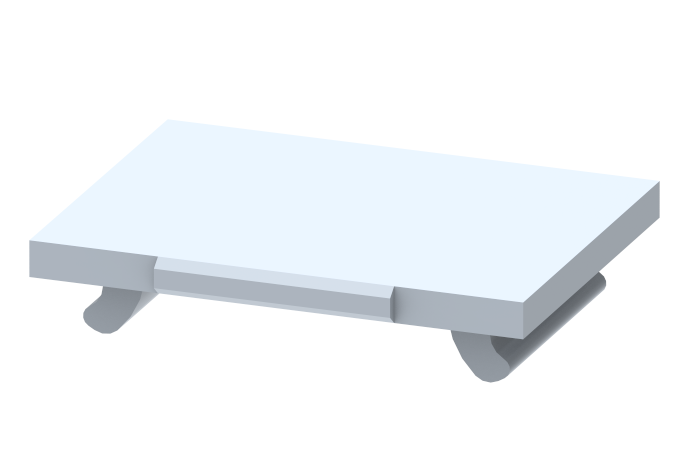

ONTML13
  • MARKING LABEL FOR ONT STUD SERIES FOR 13mm PITCH
  • Pitch : 13 mm
Partition Plate
KBXF
  • Patition Plate With Foot ,Type - KBXF
  • Height : 53.4 mm
  • Thickness : 1.5 mm
  • Length : 54 mm
Marker carriers
SCUNMLH
  • Universal rail mounted end clamp with fixing screws & marking lable holder , Type - SCUNMLH
  • Height : 53.5 mm
  • Width : 9.5 mm
  • Length : 50.6 mm
GMH10
  • Group Marking Holder with 10 mm pitch
  • Height : 51 mm
  • Width : 10 mm
  • Length : 41.5 mm
GMH 20
  • Group Marking Holder with 20 mm pitch
  • Height : 51 mm
  • Width : 20 mm
  • Length : 41.5 mm
SCKNMLH
  • 35 mm rail mounted end clamp with marking lable holder
  • Height : 45.5 mm
  • Width : 8 mm
  • Length : 44.9 mm
