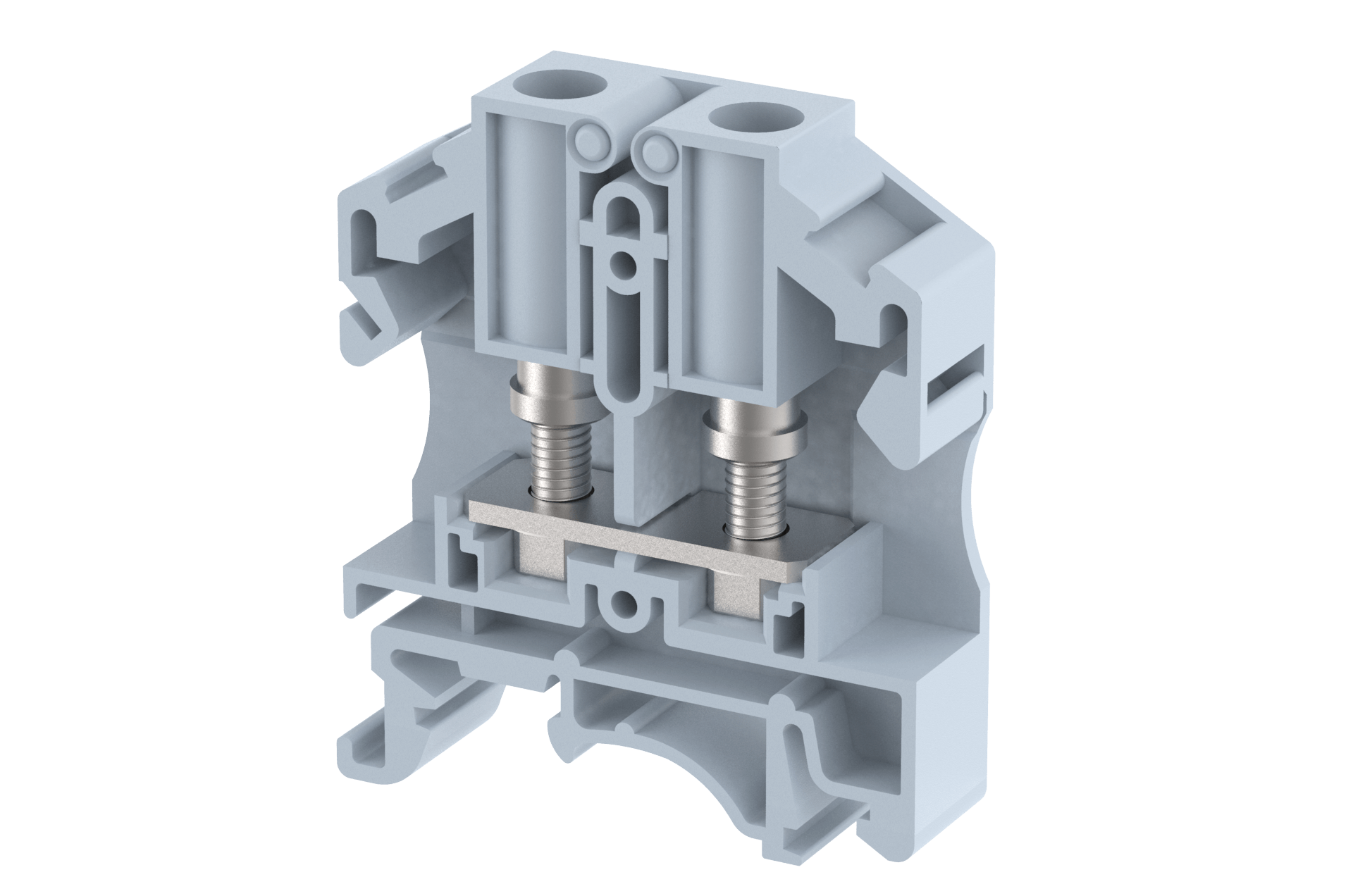

OAT6 Terminal Blocks Bolt Connection Feed Through Terminal Blocks Manufacturer and Supplier in India – Elmex

OAT6

Approvals

Line Diagram

General Data

Type	OAT6
Wire termination Technology	Bolt Connection
Rating	1000 V / 57 A / 10 sq.mm / 1.5 Nm
GTIN / Harmonize Custom Code	85389000
Standard Packing Qty (in No)	100
Country of Origin	India

Data Specification
Downloads

Thickness (mm)	11
Thickness (inches)	0.43
Width (mm)	44.5
Width (inches)	1.75
Height (mm)	51
Height (inches)	2.01
Weight For Standard Packing Qty (KG)	2.41

Housing	Polyamide 6,6
Clamping Material	BRASS
Standard Colour	Gray
Other Colour Variants	Red, Yellow, Blue, Black, Green, Khakhi

Stranded Wire - Min (sq.mm)	0.5
Stranded Wire - Max (sq.mm)	6

Standard	IEC 60947-7-1
Rated Voltage (V)	1000
Rated Current (A)	57
Rated Cross Section (sq.mm)	10
Short Time Withstand Current (kA)	1.2
Rated Impulse Withstand Voltage (kV)	8
Pollution Degree	3

Rated Voltage (V)	630
Rated Current (A)	28
Rated Cross Section (sq.mm)	6

Rated Voltage (V)	600
Rated Current (A)	30
Wire Cross Section - min (AWG)	20
Wire Cross Section - max (AWG)	10

Rated Voltage (V)	600
Rated Current (A)	30
Conductor Size - min (AWG)	20
Conductor Size - max (AWG)	10

Cover Profile

PCK3

Cover Profile , Type -PCK3
Height : 28 mm
Width : 58.35 mm
Thickness : 1 mm

Cover Profile Carrier

UHDD

Cover profile carrier , Type - UHDD
Height : 74.5 mm
Thickness : 2 mm
Length : 55.82 mm

DIN Rail Perforated

CHS

32 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm - Unperforated
Height : 15 mm
Width : 32 mm
Thickness : 1.5 mm

CHKDS

35 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm - Perforated
Height : 15 mm
Width : 35 mm
Thickness : 1.5 mm
Length : 2000 mm

CHKS

35 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm - Perforated
Height : 7.5 mm
Width : 35 mm
Thickness : 1 mm

DIN Rail, Unperforated

CHKD

35 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm , Unperforated
Height : 15 mm
Width : 35 mm
Thickness : 1.5 mm

CHK

35 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm , Unperforated
Height : 7.5 mm
Width : 35 mm
Thickness : 1 mm

End Cap

CHKENDCAP

END COVER/ CAP FOR CHK CHANNEL
Height : 14 mm
Width : 9 mm
Length : 41.5 mm

End Clamp

SCUP

TS32 , TS35 din rail mounted end clamp with fixing screws , Type - SCUP
Height : 34 mm
Length : 44.75 mm

SCEC35

TS35 DIN rail mounted End clamp with fixing nut and screw of size M3, Width - 8 mm, Color - Grey
Height : 31.5 mm
Width : 8 mm
Length : 45.8 mm

SCUSL

Universal rail mounted end clamp with fixing screws , Type - SCUSL
Height : 41.1 mm
Width : 8 mm
Length : 47.5 mm

SCUDD

TS35 , TS32 DIN rail mounted end clamp with fixing screws , Width - 10 mm , Type - SCUDD
Height : 50 mm
Width : 10 mm
Length : 55.6 mm

DCKN

TS35 din rail mounted end clamp without fixing screws , Width - 6 mm , Color - Grey
Height : 33 mm
Width : 6 mm
Length : 43.5 mm

DCKN10

TS35 DIN rail mounted end clamp without fixing screws , Width- 10 mm , Color - Grey
Height : 35 mm
Width : 10 mm
Length : 43.5 mm

SCKN

TS35 DIN rail mounted end clamp with fixing screws , Width - 8 mm , Color - Grey
Height : 34.5 mm
Width : 8 mm
Length : 44.9 mm

SCUN

TS35 , TS32 DIN rail mounted end clamp with fixing screws , Width- 9.5 mm , Color - Grey
Height : 35.5 mm
Width : 9.5 mm
Length : 50.6 mm

End Cover

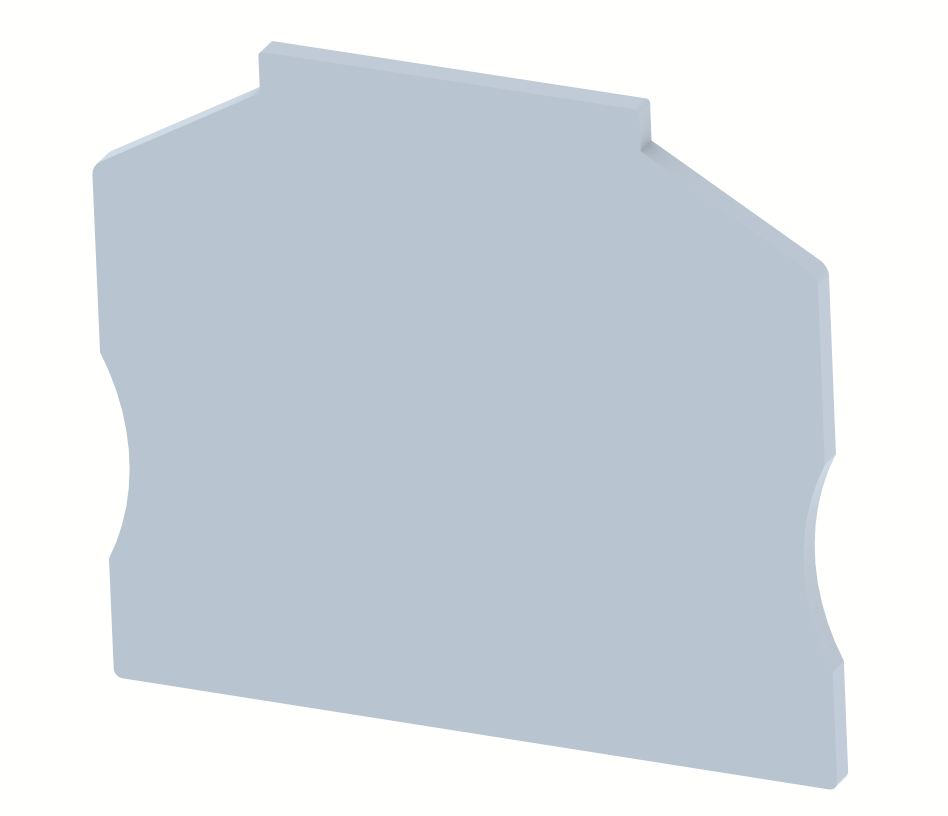

OEP 6

OEP6 End cover for Terminal type OAT6 , colour : GREY
Height : 39.5 mm
Width : 1.5 mm
Length : 43.5 mm

Insertion Bridge

OSL6-2W

Insertion Bridge , Type - OSL6-2W ,Available Variant -2W , 3W , 4W , 5W , 10W
Width : 17.5 mm
Pitch : 11 mm
Length : 25.5 mm

OSL6-10W

Insertion Bridge , Type - OSL6-10W ,Available Variant -2W , 3W , 4W , 5W , 10W
Width : 105.5 mm
Pitch : 11 mm
Length : 25.5 mm

OSL6-3W

Insertion Bridge , Type - OSL6-3W ,Available Variant -2W , 3W , 4W , 5W , 10W
Width : 28.5 mm
Pitch : 11 mm
Length : 25.5 mm

OSL6-4W

Insertion Bridge , Type - OSL6-4W ,Available Variant -2W , 3W , 4W , 5W , 10W
Width : 39.5 mm
Pitch : 11 mm
Length : 25.5 mm

OSL6-5W

Insertion Bridge , Type - OSL6-5W ,Available Variant -2W , 3W , 4W , 5W , 10W
Width : 50.5 mm
Pitch : 11 mm
Length : 25.5 mm

OSL6R-10W

Insertion bridge, Type :- OSL6R-10W, Available variants - 2W,3W,4W,5W,6W & 7W
Height : 25.3 mm
Width : 105.5 mm
Pitch : 11 mm

OSL6R-2W

Insertion bridge, Type :- OSL6R-2W, Available variants - 3W,4W,5W,6W,7W & 10W
Height : 25.3 mm
Width : 17.5 mm
Pitch : 11 mm

OSL6R-3W

Insertion bridge, Type :- OSL6R-3W, Available variants - 2W,4W,5W,6W,7W & 10W
Height : 25.3 mm
Width : 28.5 mm
Pitch : 11 mm

OSL6R-4W

INSULATED RING TYPE 4 WAY SHORTING LINK
Height : 25.3 mm
Width : 3.7 mm
Pitch : 11 mm
Length : 39.5 mm

OSL6R-5W

Insertion bridge, Type :- OSL6R-5W, Available variants - 2W,3W,5W,4W,7W & 10W
Height : 25.3 mm
Width : 50.5 mm
Pitch : 11 mm

Marker For Terminal Blocks

LABEL KN 9

Snap on type PVC marking Label , Type - KN 9
Width : 9 mm

Marker carriers

SCUDDMLH

Universal rail-mounted end clamp with fixing screws & marking label holder, Type - SCUDDMLH
Height : 71.5 mm
Width : 10 mm
Length : 55.6 mm

SCUNMLH

Universal rail mounted end clamp with fixing screws & marking lable holder , Type - SCUNMLH
Height : 53.5 mm
Width : 9.5 mm
Length : 50.6 mm

DCKNMLH

35 mm rail mounted end clamp with marking lable holder
Height : 45.5 mm
Width : 6 mm
Length : 43.5 mm

SCKNMLH

35 mm rail mounted end clamp with marking lable holder
Height : 45.5 mm
Width : 8 mm
Length : 44.9 mm
