General Data

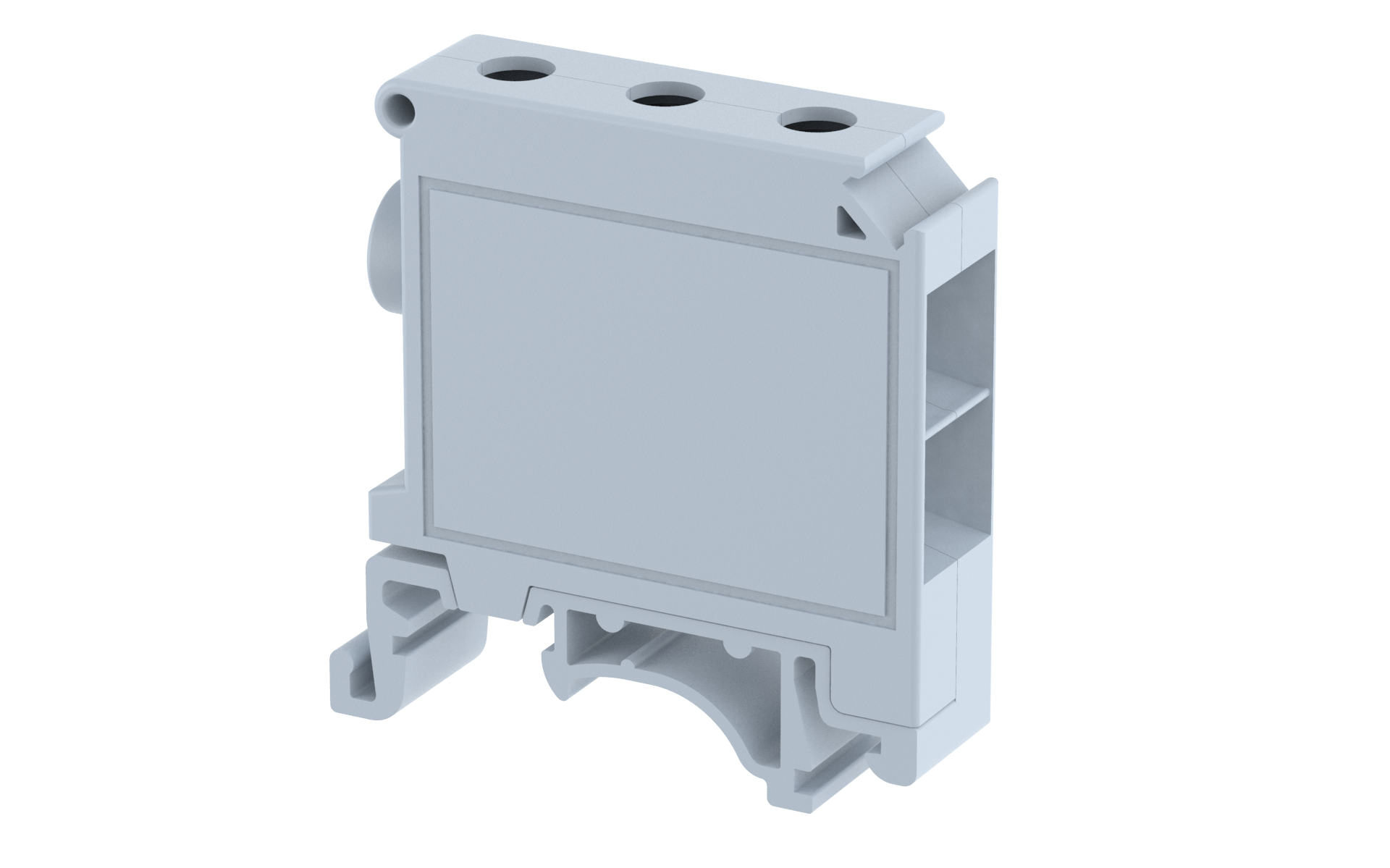

| Type | LPT225 |
| Wire termination Technology | Screw Connection |
| Rating | 400 V / 101 A / IC - 25 mm², OG - 4 sq.mm |
| GTIN / Harmonize Custom Code | 85389000 |
| Standard Packing Qty (in No) | 10 |
| Country of Origin | India |
| Thickness (mm) | 10.8 |
| Thickness (inches) | 0.43 |
| Width (mm) | 42 |
| Width (inches) | 1.65 |
| Height (mm) | 43.6 |
| Height (inches) | 1.72 |
| Weight For Standard Packing Qty (KG) | 0.48 |
| Housing | Polyamide 6,6 |
| Clamping Material | BRASS |
| Standard Colour | Gray |
| Stranded Wire - Min (sq.mm) | 4 |
| Stranded Wire - Max (sq.mm) | 25 |
| Standard | IEC 60947-7-1 |
| Rated Voltage (V) | 400 |
| Rated Current (A) | 101 |
| Rated Cross Section (sq.mm) | IC - 25 mm², OG - 4 |
| Short Time Withstand Current (kA) | 3 |
| Rated Impulse Withstand Voltage (kV) | 4 |
