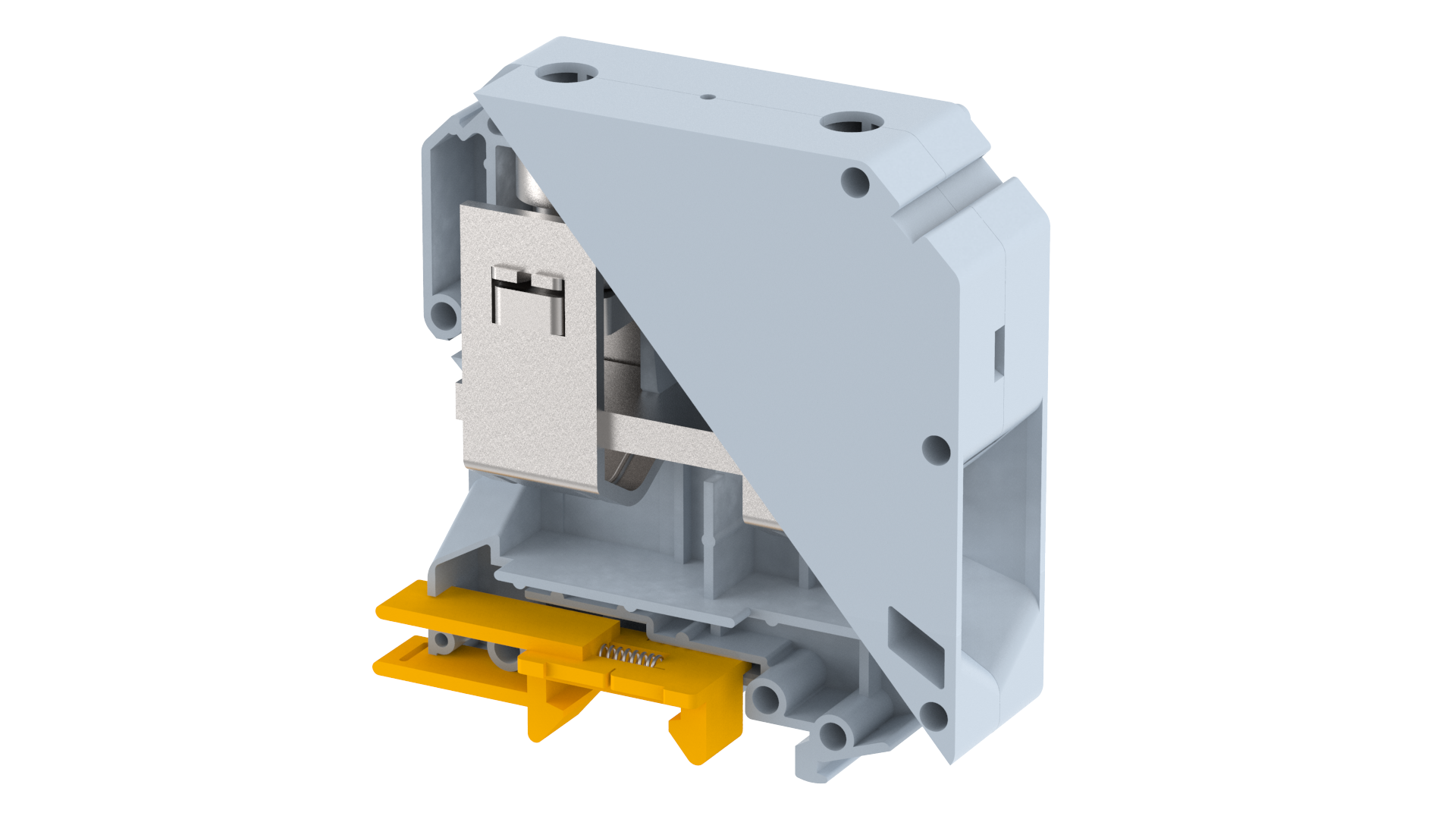

KUT95

Approvals

Line Diagram

General Data

Type	KUT95
Wire termination Technology	Screw Connection
Rating	1000 V / 232 A / 95 sq.mm / 6 Nm
GTIN / Harmonize Custom Code	85389000
Standard Packing Qty (in No)	10
Country of Origin	India

Data Specification
Downloads

Thickness (mm)	25
Thickness (inches)	0.98
Width (mm)	83
Width (inches)	3.27
Height (mm)	90
Height (inches)	3.54
Weight For Standard Packing Qty (KG)	2.29

Housing	Polyamide 6,6
Clamping Material	CRCA
Standard Colour	Grey
Other Colour Variants	Red, Yellow, Blue, Black, Green, Khakhi
Standard Colour	Gray

Stranded Wire - Min (sq.mm)	25
Stranded Wire - Max (sq.mm)	95
Solid Wire - Max (sq.mm)	120

Standard	IEC 60947-7-1
Rated Voltage (V)	1000
Rated Current (A)	232
Rated Cross Section (sq.mm)	95
Short Time Withstand Current (kA)	11.40
Rated Impulse Withstand Voltage (kV)	12
Pollution Degree	3

Rated Voltage (V)	1000
Rated Current (A)	232
Rated Cross Section (sq.mm)	95

Rated Voltage (V)	600
Rated Current (A)	230
Wire Cross Section - min (AWG)	2
Wire Cross Section - max (AWG)	4/0

Rated Voltage (V)	600
Rated Current (A)	230
Conductor Size - min (AWG)	2
Conductor Size - max (AWG)	4/0

DIN Rail Perforated

CHS

32 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm - Unperforated
Height : 15 mm
Width : 32 mm
Thickness : 1.5 mm

CHKDS

35 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm - Perforated
Height : 15 mm
Width : 35 mm
Thickness : 1.5 mm
Length : 2000 mm

CHKS

35 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm - Perforated
Height : 7.5 mm
Width : 35 mm
Thickness : 1 mm

DIN Rail, Unperforated

CHKD

35 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm , Unperforated
Height : 15 mm
Width : 35 mm
Thickness : 1.5 mm

CHK

35 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm , Unperforated
Height : 7.5 mm
Width : 35 mm
Thickness : 1 mm

End Cap

CHKENDCAP

END COVER/ CAP FOR CHK CHANNEL
Height : 14 mm
Width : 9 mm
Length : 41.5 mm

End Clamp

SCEC35

TS35 DIN rail mounted End clamp with fixing nut and screw of size M3, Width - 8 mm, Color - Grey
Height : 31.5 mm
Width : 8 mm
Length : 45.8 mm

SCUSL

Universal rail mounted end clamp with fixing screws , Type - SCUSL
Height : 41.1 mm
Width : 8 mm
Length : 47.5 mm

SCUDD

TS35 , TS32 DIN rail mounted end clamp with fixing screws , Width - 10 mm , Type - SCUDD
Height : 50 mm
Width : 10 mm
Length : 55.6 mm

SCUN

TS35 , TS32 DIN rail mounted end clamp with fixing screws , Width- 9.5 mm , Color - Grey
Height : 35.5 mm
Width : 9.5 mm
Length : 50.6 mm

Marker For Terminal Blocks

LABEL KN17

Snap on type PVC marking Label , Type - KN 17
Width : 17 mm

Marker carriers

SCUDDMLH

Universal rail-mounted end clamp with fixing screws & marking label holder, Type - SCUDDMLH
Height : 71.5 mm
Width : 10 mm
Length : 55.6 mm

SCUNMLH

Universal rail mounted end clamp with fixing screws & marking lable holder , Type - SCUNMLH
Height : 53.5 mm
Width : 9.5 mm
Length : 50.6 mm

Tap Terminal

KTT6

Tap terminal block for KUT50 & KUT50/70
Height : 31 mm
Width : 28 mm
Thickness : 9 mm

Complete Specification	View Download
Accessories	View Download
Technical	View Download
3D Model (.pdf)	View Download
3D Model (.stp)	Download
