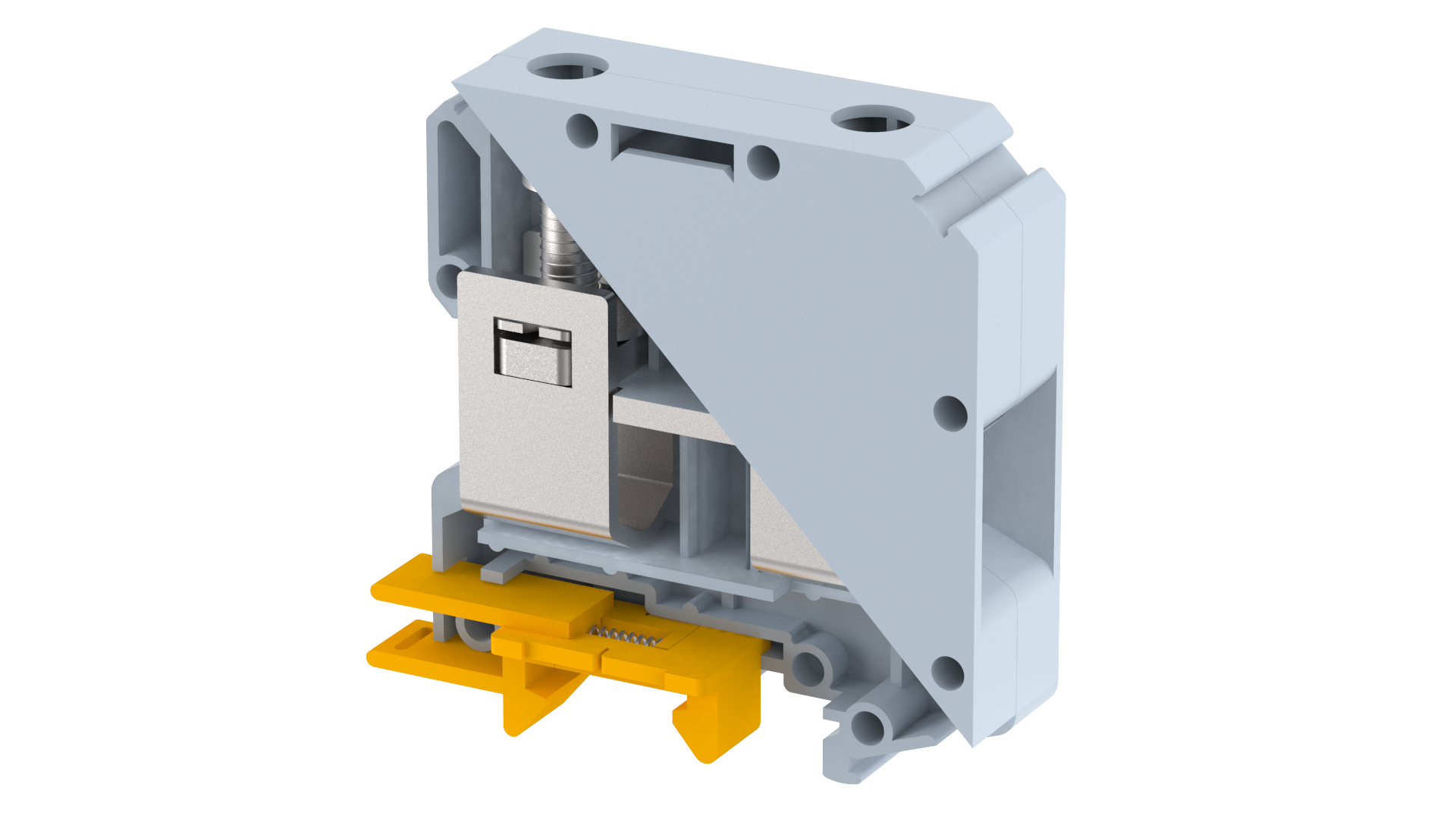

KUT50/70

Approvals

Line Diagram

General Data

Type	KUT50/70
Wire termination Technology	Screw Connection
Rating	1000 V / 192 A / 70 sq.mm / 3 Nm
GTIN / Harmonize Custom Code	85389000
Standard Packing Qty (in No)	10
Country of Origin	India

Data Specification
Downloads

Width (mm)	20.5
Width (inches)	0.81
Length (mm)	71
Length (inches)	2.8
Height (mm)	76
Height (inches)	2.99
Weight For Standard Packing Qty (kg)	1.27

Housing	Polyamide 6,6
Clamping Material	CRCA
Standard Colour	Gray
Other Colour Variants	Red, Yellow, Blue, Black, Green, Khakhi

Stranded Wire - Min (sq.mm)	16
Stranded Wire - Max (sq.mm)	70

Standard	IEC 60947-7-1
Rated Voltage (V)	1000
Rated Current (A)	192
Rated Cross Section (sq.mm)	70
Short Time Withstand Current	8.4
Rated Impulse Withstand Voltage (kV)	12
Pollution Degree	3

DIN Rail Perforated

CHS

32 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm - Unperforated
Height : 15 mm
Width : 32 mm
Thickness : 1.5 mm

CHKDS

35 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm - Perforated
Height : 15 mm
Width : 35 mm
Thickness : 1.5 mm
Length : 2000 mm

CHKS

35 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm - Perforated
Height : 7.5 mm
Width : 35 mm
Thickness : 1 mm

DIN Rail, Unperforated

CHKD

35 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm , Unperforated
Height : 15 mm
Width : 35 mm
Thickness : 1.5 mm

CHK

35 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm , Unperforated
Height : 7.5 mm
Width : 35 mm
Thickness : 1 mm

End Cap

CHKENDCAP

END COVER/ CAP FOR CHK CHANNEL
Height : 14 mm
Width : 9 mm
Length : 41.5 mm

End Clamp

SCUP

TS32 , TS35 din rail mounted end clamp with fixing screws , Color - Grey
Height : 34 mm
Width : 9 mm
Length : 44.75 mm

SCEC35

TS35 DIN rail mounted End clamp with fixing nut and screw, Color - Grey
Height : 31.5 mm
Width : 8 mm
Length : 45.8 mm

SCUSL

Universal rail mounted end clamp with fixing screws , Color - Grey
Height : 41.1 mm
Width : 8 mm
Length : 47.5 mm

SCUDD

TS35 , TS32 DIN rail mounted end clamp with fixing screws , Color - Grey
Height : 50 mm
Width : 10 mm
Length : 55.6 mm

DCKN

TS35 din rail mounted end clamp without fixing screws , Color - Grey
Height : 33 mm
Width : 6 mm
Length : 43.5 mm

DCKN10

TS35 DIN rail mounted end clamp without fixing screws , Color - Grey
Height : 35 mm
Width : 10 mm
Length : 43.5 mm

SCKN

TS35 DIN rail mounted end clamp with fixing screws , Color - Grey
Height : 34.5 mm
Width : 8 mm
Length : 44.9 mm

SCUN

TS35 , TS32 DIN rail mounted end clamp with fixing screws , Color - Grey
Height : 35.5 mm
Width : 9.5 mm
Length : 50.6 mm

Fixed Bridge

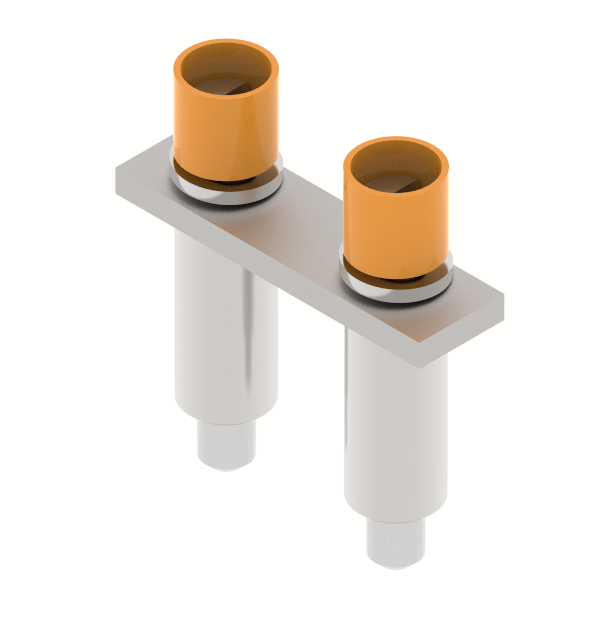

CCLA50-2W

Fixed Bridge , Type – CCLA50-2W
Height : 25 mm
Pitch : 20.5 mm
Length : 37 mm

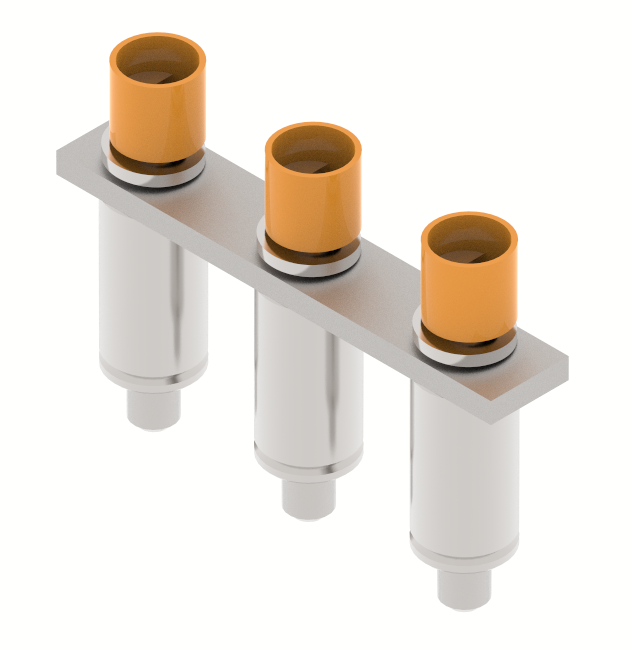

CCLA50-3W

Fixed Bridge , Type – CCLA50-3W
Height : 25 mm
Pitch : 20.5 mm
Length : 57.5 mm

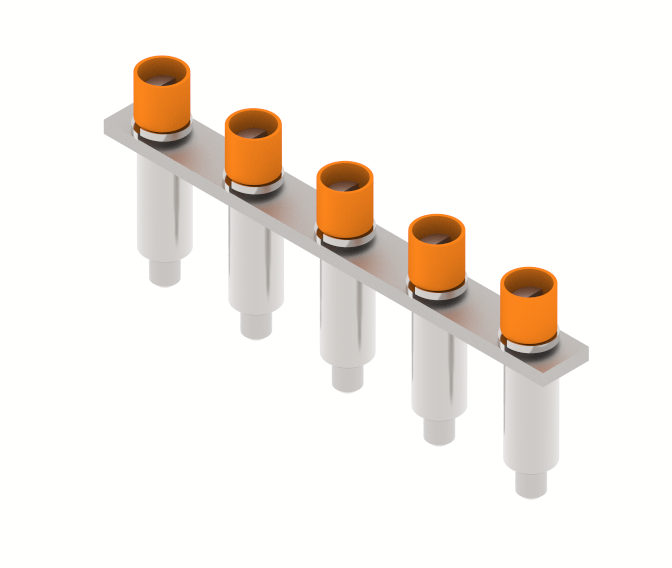

CCLA50-5W

Fixed Bridge , Type – CCLA50-5W
Height : 25 mm
Pitch : 20.5 mm
Length : 98.5 mm

Marker For Terminal Blocks

LABEL KN17

Snap on type PVC marking Label , Type - KN 17
Width : 17 mm

Marker carriers

SCUDDMLH

Universal rail-mounted end clamp with fixing screws & marking label holder, Type - SCUDDMLH
Height : 71.5 mm
Width : 11 mm
Length : 55.6 mm

SCUNMLH

Universal rail mounted end clamp with fixing screws & marking lable holder , Type - SCUNMLH
Height : 53.5 mm
Width : 11 mm
Length : 50.6 mm

DCKNMLH

35 mm rail mounted end clamp with marking lable holder
Height : 45 mm
Width : 10 mm
Length : 43.5 mm

SCKNMLH

35 mm rail mounted end clamp with marking lable holder
Height : 42 mm
Width : 16 mm
Length : 44.7 mm

Tap Terminal

KTT6

Tap terminal block for KUT50 & KUT50/70
Height : 31 mm
Width : 28 mm
Thickness : 9 mm

Complete Specification	View Download
Accessories	View Download
Technical	View Download
3D Model (.pdf)	View Download
3D Model (.stp)	Download
