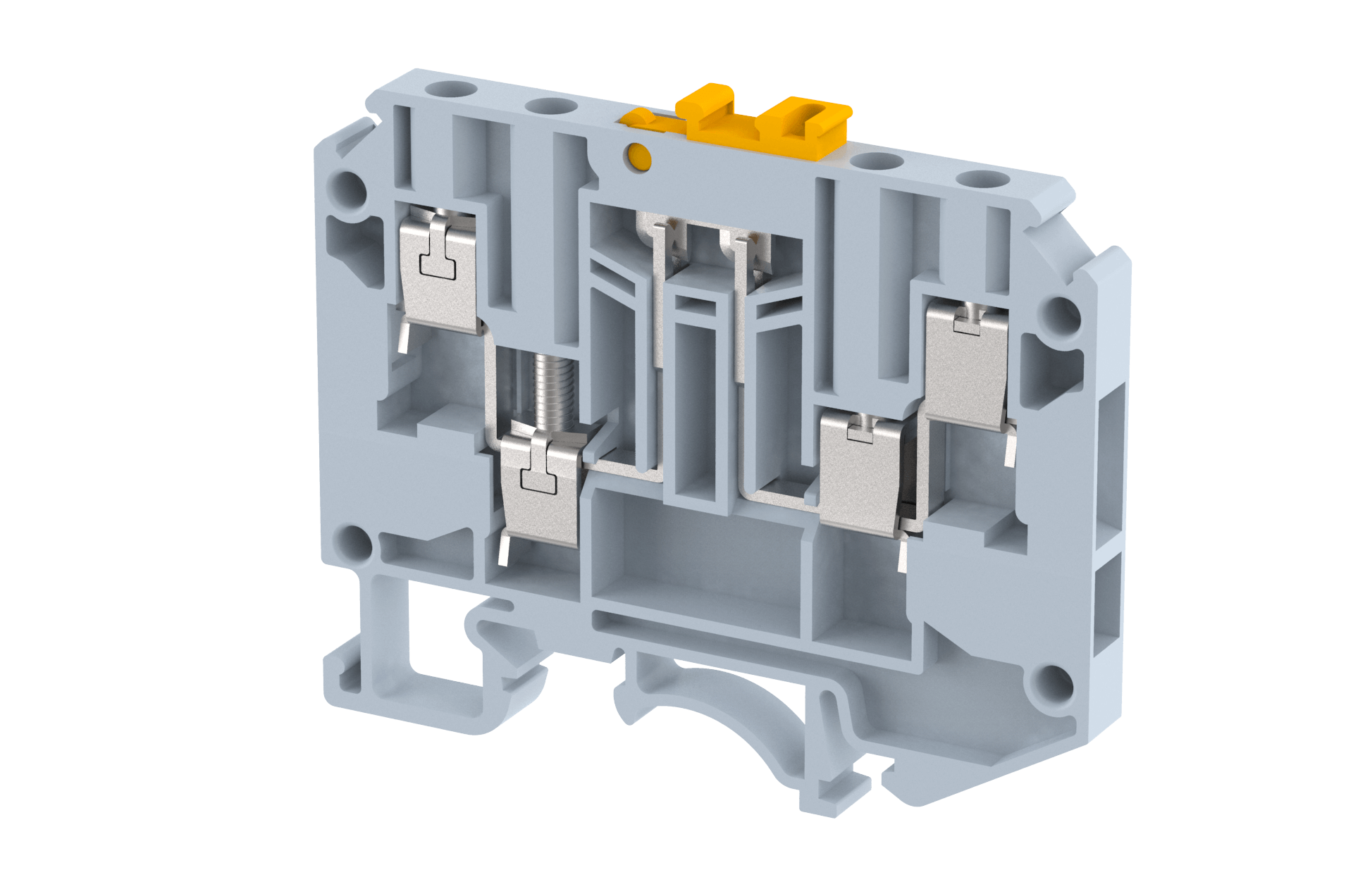

KUDT4-2X2

Approvals

Line Diagram

General Data

Type	KUDT4-2X2
Wire termination Technology	Screw Connection
Rating	800 V / 20 A / 4 sq.mm / 0.5 Nm
GTIN / Harmonize Custom Code	85389000
Standard Packing Qty (in No)	100
Country of Origin	India

Data Specification
Downloads

Thickness (mm)	6
Thickness (inches)	0.24
Width (mm)	67
Width (inches)	2.64
Height (mm)	56
Height (inches)	2.2
Weight For Standard Packing Qty (KG)	2.1

Housing	Polyamide 6,6
Clamping Material	CRCA
Standard Colour	Grey
Standard Colour	Gray
Other Colour Variants	Red, Yellow, Blue, Black, Green, Khakhi

Stranded Wire - Min (sq.mm)	0.5
Stranded Wire - Max (sq.mm)	4

Standard	IEC-60947-7-1
Rated Voltage (V)	800
Rated Current (A)	20
Rated Cross Section (sq.mm)	4
Short Time Withstand Current (kA)	0.48
Rated Impulse Withstand Voltage (kV)	8
Pollution Degree	3

DIN Rail Perforated

CHS

32 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm - Unperforated
Height : 15 mm
Width : 32 mm
Thickness : 1.5 mm

CHKDS

35 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm - Perforated
Height : 15 mm
Width : 35 mm
Thickness : 1.5 mm
Length : 2000 mm

CHKS

35 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm - Perforated
Height : 7.5 mm
Width : 35 mm
Thickness : 1 mm

DIN Rail, Unperforated

CHKD

35 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm , Unperforated
Height : 15 mm
Width : 35 mm
Thickness : 1.5 mm

CHK

35 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm , Unperforated
Height : 7.5 mm
Width : 35 mm
Thickness : 1 mm

End Cap

CHKENDCAP

END COVER/ CAP FOR CHK CHANNEL
Height : 14 mm
Width : 9 mm
Length : 41.5 mm

End Clamp

SCUP

TS32 , TS35 din rail mounted end clamp with fixing screws , Type - SCUP
Height : 34 mm
Length : 44.75 mm

SCUSL

Universal rail mounted end clamp with fixing screws , Type - SCUSL
Height : 41.1 mm
Width : 8 mm
Length : 47.5 mm

SCUDD

TS35 , TS32 DIN rail mounted end clamp with fixing screws , Width - 10 mm , Type - SCUDD
Height : 50 mm
Width : 10 mm
Length : 55.6 mm

DCKN

TS35 din rail mounted end clamp without fixing screws , Width - 6 mm , Color - Grey
Height : 33 mm
Width : 6 mm
Length : 43.5 mm

DCKN10

TS35 DIN rail mounted end clamp without fixing screws , Width- 10 mm , Color - Grey
Height : 35 mm
Width : 10 mm
Length : 43.5 mm

SCKN

TS35 DIN rail mounted end clamp with fixing screws , Width - 8 mm , Color - Grey
Height : 34.5 mm
Width : 8 mm
Length : 44.9 mm

SCUN

TS35 , TS32 DIN rail mounted end clamp with fixing screws , Width- 9.5 mm , Color - Grey
Height : 35.5 mm
Width : 9.5 mm
Length : 50.6 mm

End Cover

KPMD4

KPMD4 End cover for Terminal type KUT4-2X2 and KUDT4-2X2, colour : GREY
Height : 42.4 mm
Width : 1.5 mm
Length : 67 mm

Insertion Bridge

SLC4N-10W

Insertion Bridge - Type - SLC4N-10W , Available Variants : 2W, 3W , 4W , 5W , 6W , 10W
Width : 58.6 mm
Pitch : 6 mm
Length : 23 mm

SLC4N-3W

Insertion Bridge - Type - SLC4N-3W , Available Variants : 2W, 3W , 4W , 5W , 6W , 10W
Width : 16.65 mm
Pitch : 6 mm
Length : 23 mm

SLC4N-4W

Insertion Bridge - Type - SLC4N-4W , Available Variants : 2W, 3W , 4W , 5W , 6W , 10W
Width : 22.65 mm
Pitch : 6 mm
Length : 23 mm

SLC4N-5W

Insertion Bridge - Type - SLC4N-5W , Available Variants : 2W, 3W , 4W , 5W , 6W , 10W
Width : 28.65 mm
Pitch : 6 mm
Length : 23 mm

SLC4N-6W

Insertion Bridge - Type - SLC4N-6W , Available Variants : 2W, 3W , 4W , 5W , 6W , 10W
Width : 34.6 mm
Pitch : 6 mm
Length : 23 mm

SLC4N-2W

Insertion Bridge - Type - SLC4N-2W , Available Variants : 2W, 3W , 4W , 5W , 6W , 10W
Width : 10.91 mm
Pitch : 6 mm
Length : 23 mm

Marker For Terminal Blocks

LABEL KN5.5

Snap on type PVC marking Label , Type - KN 5.5
Width : 6 mm

Partition Plate

KNBF 2.5/10

Partition Plate With Foot(Type - KNBF 2.5/10) , colour : GREY
Height : 58 mm
Width : 1.5 mm
Length : 55.5 mm

Marker carriers

SCUDDMLH

Universal rail-mounted end clamp with fixing screws & marking label holder, Type - SCUDDMLH
Height : 71.5 mm
Width : 10 mm
Length : 55.6 mm

SCUNMLH

Universal rail mounted end clamp with fixing screws & marking lable holder , Type - SCUNMLH
Height : 53.5 mm
Width : 9.5 mm
Length : 50.6 mm

DCKNMLH

35 mm rail mounted end clamp with marking lable holder
Height : 45.5 mm
Width : 6 mm
Length : 43.5 mm

SCKNMLH

35 mm rail mounted end clamp with marking lable holder
Height : 45.5 mm
Width : 8 mm
Length : 44.9 mm

Complete Specification	View Download
Accessories	View Download
Technical	View Download
3D Model (.pdf)	View Download
3D Model (.stp)	Download
