Approvals
Line Diagram
General Data

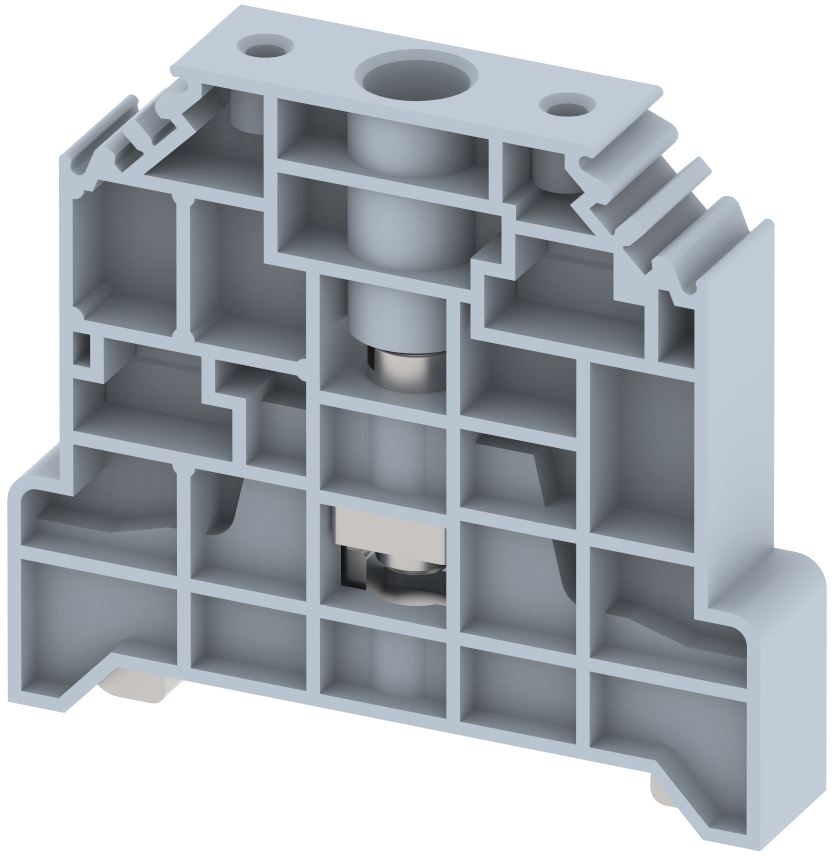

| Type | KNL35 |
| Wire termination Technology | Screw Connection |
| Rating | 800 V / 125 A / 35 sq.mm / 3.0 Nm |
| GTIN / Harmonize Custom Code | 85389000 |
| Standard Packing Qty (in No) | 50 |
| Country of Origin | India |
| Thickness (mm) | 14.3 |
| Thickness (inches) | 0.56 |
| Width (mm) | 27.3 |
| Width (inches) | 1.07 |
| Height (mm) | 35 |
| Height (inches) | 1.38 |
| Weight For Standard Packing Qty (KG) | 1.13 |
| Housing | Polyamide 6,6 |
| Clamping Material | CRCA |
| Standard Colour | Green |
| Other Colour Variants | Black, Green |
| Stranded Wire - Min (sq.mm) | 10 |
| Stranded Wire - Max (sq.mm) | 35 |
| Standard | IEC 60947-7-1 |
| Rated Voltage (V) | 800 |
| Rated Current (A) | 125 |
| Rated Cross Section (sq.mm) | 35 |
| Short Time Withstand Current (kA) | - |
| Pollution Degree | 3 |
