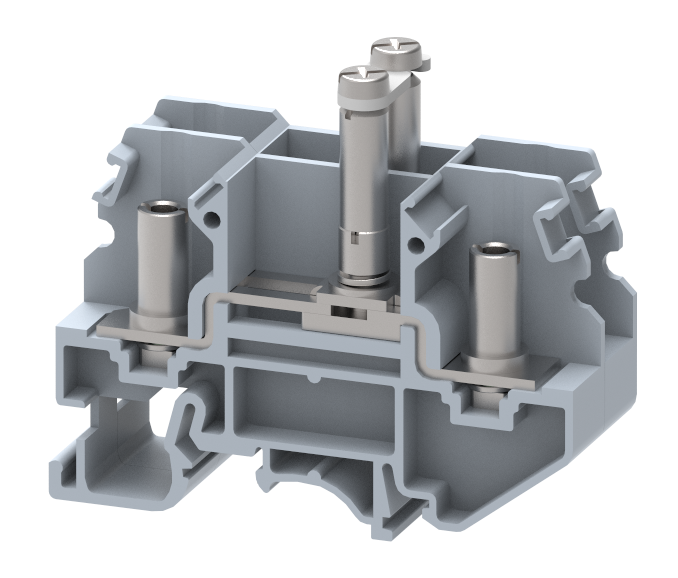

KLTDM4-2WAY

Approvals

CE Mark Conforming to IEC Specification

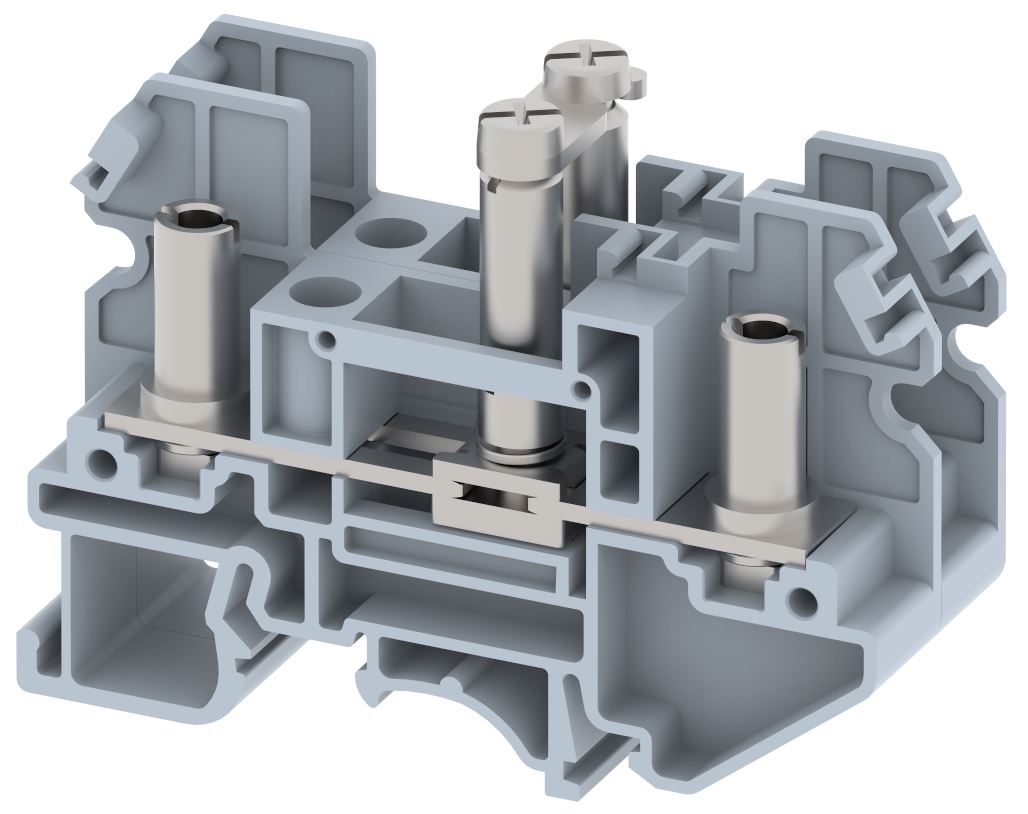

Line Diagram


General Data

Type KLTDM4-2WAY
Wire termination Technology Bolt Connection
Rating 800 V / 41 A / 2x6 sq.mm / 1.2 Nm
GTIN / Harmonize Custom Code 85389000
Standard Packing Qty (in No) 25
Country of Origin India

Thickness (mm) 24
Thickness (inches) 0.94
Width (mm) 74
Width (inches) 2.91
Height (mm) 49.5
Height (inches) 1.95
Weight For Standard Packing Qty (KG) 1.02

Housing Polyamide 6,6
Clamping Material BRASS
Standard Colour Grey
Standard Colour Gray
Other Colour Variants Red, Yellow, Blue, Black, Green, Khakhi

Stranded Wire - Min (sq.mm) 0.5
Stranded Wire - Max (sq.mm) 6

Standard IEC 60947-7-1
Rated Voltage (V) 800
Rated Current (A) 41
Rated Cross Section (sq.mm) 2x6
Short Time Withstand Current (kA) 0.72
Rated Impulse Withstand Voltage (kV) 6
Pollution Degree 3

DIN Rail Perforated
CHS
  • 32 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm - Unperforated
  • Height : 15 mm
  • Width : 32 mm
  • Thickness : 1.5 mm
CHKDS
  • 35 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm - Perforated
  • Height : 15 mm
  • Width : 35 mm
  • Thickness : 1.5 mm
  • Length : 2000 mm
CHKS
  • 35 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm - Perforated
  • Height : 7.5 mm
  • Width : 35 mm
  • Thickness : 1 mm
DIN Rail, Unperforated
CHKD
  • 35 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm , Unperforated
  • Height : 15 mm
  • Width : 35 mm
  • Thickness : 1.5 mm
CHK
  • 35 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm , Unperforated
  • Height : 7.5 mm
  • Width : 35 mm
  • Thickness : 1 mm
End Cap
CHKENDCAP
  • END COVER/ CAP FOR CHK CHANNEL
  • Height : 14 mm
  • Width : 9 mm
  • Length : 41.5 mm
End Clamp
SCUP
  • TS32 , TS35 din rail mounted end clamp with fixing screws , Type - SCUP
  • Height : 34 mm
  • Length : 44.75 mm
SCEC35
  • TS35 DIN rail mounted End clamp with fixing nut and screw of size M3, Width - 8 mm, Color - Grey
  • Height : 31.5 mm
  • Width : 8 mm
  • Length : 45.8 mm
SCUSL
  • Universal rail mounted end clamp with fixing screws , Type - SCUSL
  • Height : 41.1 mm
  • Width : 8 mm
  • Length : 47.5 mm
SCUDD
  • TS35 , TS32 DIN rail mounted end clamp with fixing screws , Width - 10 mm , Type - SCUDD
  • Height : 50 mm
  • Width : 10 mm
  • Length : 55.6 mm
DCKN
  • TS35 din rail mounted end clamp without fixing screws , Width - 6 mm , Color - Grey
  • Height : 33 mm
  • Width : 6 mm
  • Length : 43.5 mm
DCKN10
  • TS35 DIN rail mounted end clamp without fixing screws , Width- 10 mm , Color - Grey
  • Height : 35 mm
  • Width : 10 mm
  • Length : 43.5 mm
SCKN
  • TS35 DIN rail mounted end clamp with fixing screws , Width - 8 mm , Color - Grey
  • Height : 34.5 mm
  • Width : 8 mm
  • Length : 44.9 mm
SCUN
  • TS35 , TS32 DIN rail mounted end clamp with fixing screws , Width- 9.5 mm , Color - Grey
  • Height : 35.5 mm
  • Width : 9.5 mm
  • Length : 50.6 mm
End Cover

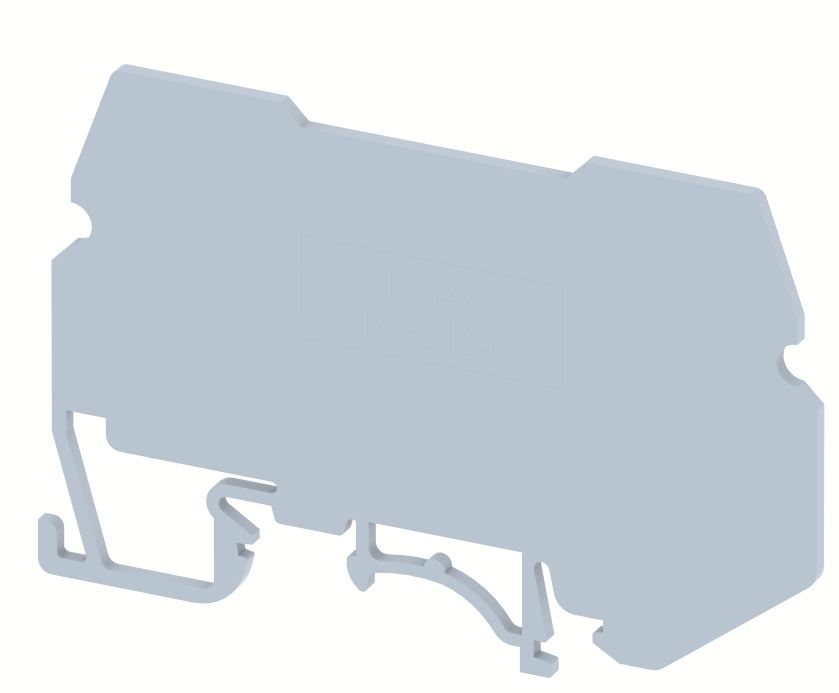

KPLD4
  • KPLD4 End cover for Terminal type KLTDM4NV and KLTDM4-2WAY, colour : GREY
  • Height : 49.7 mm
  • Width : 1.5 mm
  • Length : 72.75 mm
Marker For Terminal Blocks
LABEL KN5.5
  • Snap on type PVC marking Label , Type - KN 5.5
  • Width : 6 mm
Marker carriers
SCUDDMLH
  • Universal rail-mounted end clamp with fixing screws & marking label holder, Type - SCUDDMLH
  • Height : 71.5 mm
  • Width : 10 mm
  • Length : 55.6 mm
SCUNMLH
  • Universal rail mounted end clamp with fixing screws & marking lable holder , Type - SCUNMLH
  • Height : 53.5 mm
  • Width : 9.5 mm
  • Length : 50.6 mm
DCKNMLH
  • 35 mm rail mounted end clamp with marking lable holder
  • Height : 45.5 mm
  • Width : 6 mm
  • Length : 43.5 mm
SCKNMLH
  • 35 mm rail mounted end clamp with marking lable holder
  • Height : 45.5 mm
  • Width : 8 mm
  • Length : 44.9 mm
