KDPT35 Terminal Blocks Screw Connection Test Disconnect Terminal Blocks Manufacturer and Supplier in India – Elmex

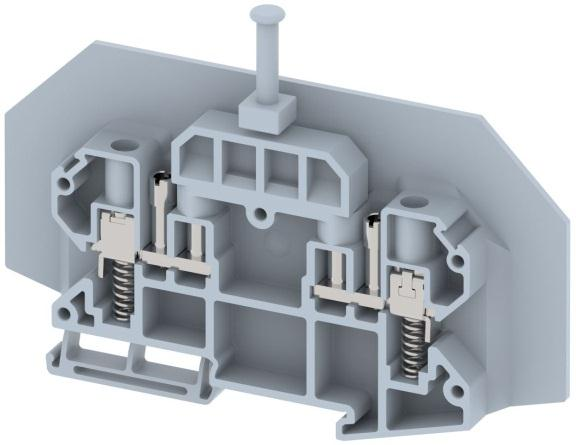

KDPT35

Approvals

CE Mark Conforming to IEC Specification

Line Diagram


General Data

Type KDPT35
Wire termination Technology Screw Connection
Rating 1500 V / 30 A / 6.00 sq.mm / 1.2 Nm
GTIN / Harmonize Custom Code 85389000
Standard Packing Qty (in No) 10
Country of Origin India

Thickness (mm) 15
Thickness (inches) 0.59
Width (mm) 138
Width (inches) 5.43
Height (mm) 79
Height (inches) 3.11
Weight For Standard Packing Qty (KG) 0.82

Housing Polyamide 6,6
Clamping Material CRCA
Standard Colour Gray
Other Colour Variants Red, Yellow, Blue, Black, Green, Khakhi

Stranded Wire - Min (sq.mm) 0.5
Stranded Wire - Max (sq.mm) 6
Solid Wire - Max (sq.mm) 10

Standard IEC 60947-7-1
Rated Voltage (V) 1500
Rated Current (A) 30
Rated Cross Section (sq.mm) 6.00
Short Time Withstand Current (kA) 0.72
Rated Impulse Withstand Voltage (kV) 15
Pollution Degree 3

DIN Rail Perforated
CHKDS
  • 35 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm - Perforated
  • Height : 15 mm
  • Width : 35 mm
  • Thickness : 1.5 mm
  • Length : 2000 mm
CHKS
  • 35 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm - Perforated
  • Height : 7.5 mm
  • Width : 35 mm
  • Thickness : 1 mm
DIN Rail, Unperforated
CHKD
  • 35 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm , Unperforated
  • Height : 15 mm
  • Width : 35 mm
  • Thickness : 1.5 mm
CHK
  • 35 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm , Unperforated
  • Height : 7.5 mm
  • Width : 35 mm
  • Thickness : 1 mm
End Cap
CHKENDCAP
  • END COVER/ CAP FOR CHK CHANNEL
  • Height : 14 mm
  • Width : 9 mm
  • Length : 41.5 mm

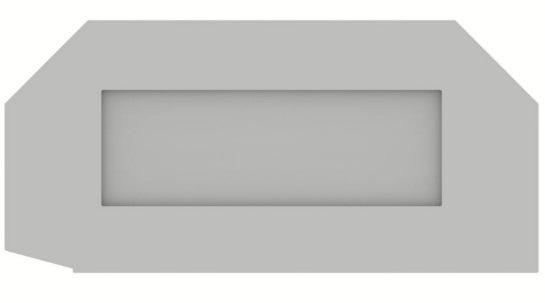

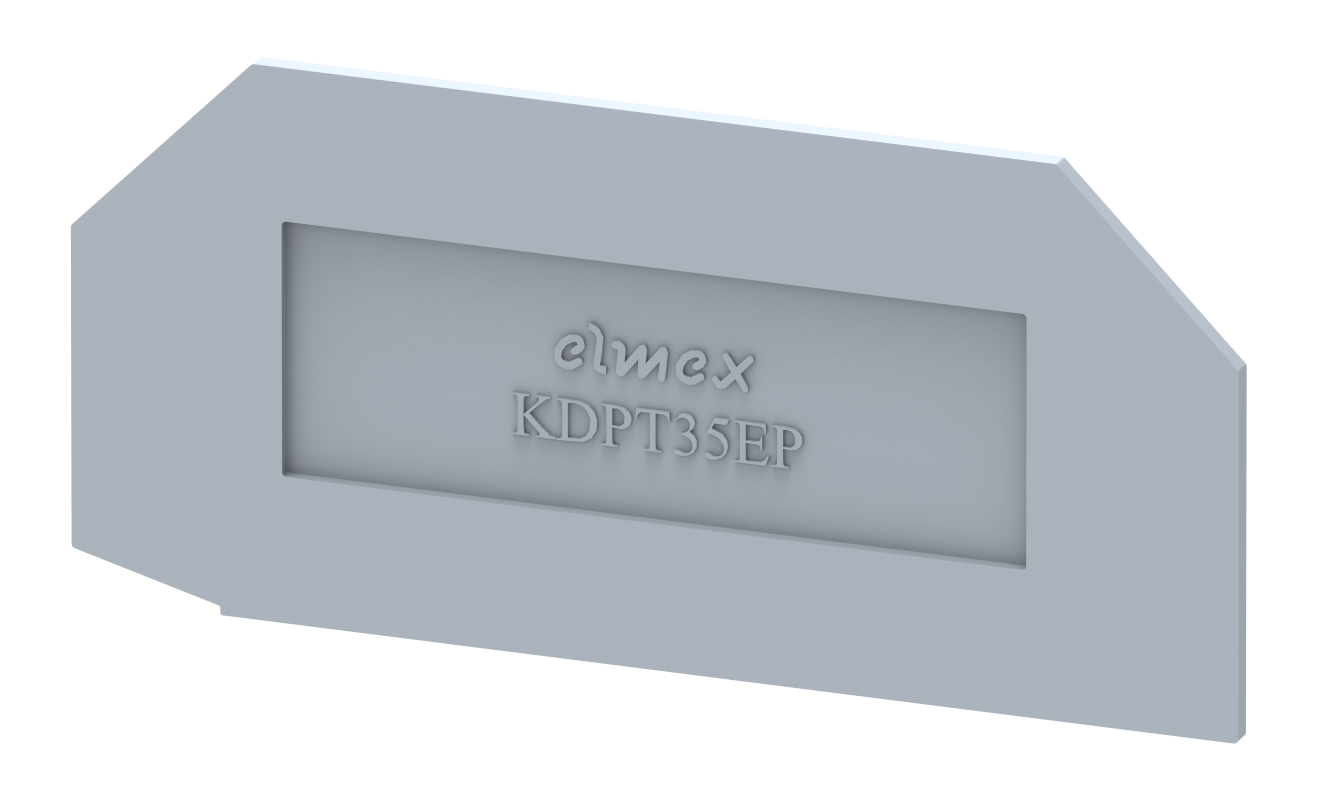

End Cover
KDPTEP
  • End plate for terminal type KDPT.
  • Height : 65 mm
  • Width : 2.5 mm
  • Length : 138 mm
Marker For Terminal Blocks
LABEL KN10
  • Snap on type PVC marking Label , Type - KN 10
  • Width : 10 mm

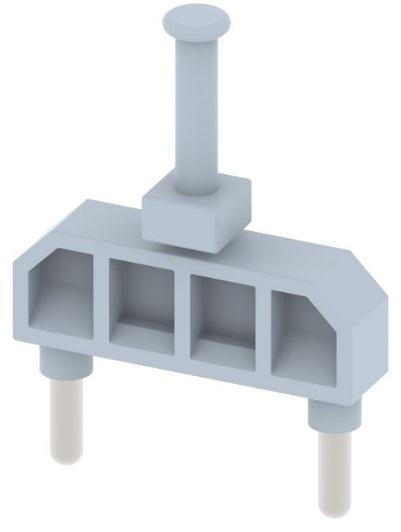

Isolating Plug
KDPTDP
  • Disconnecting Plug for Terminal type KDPT
  • Height : 46.1 mm
  • Thickness : 10 mm
  • Length : 43.45 mm
