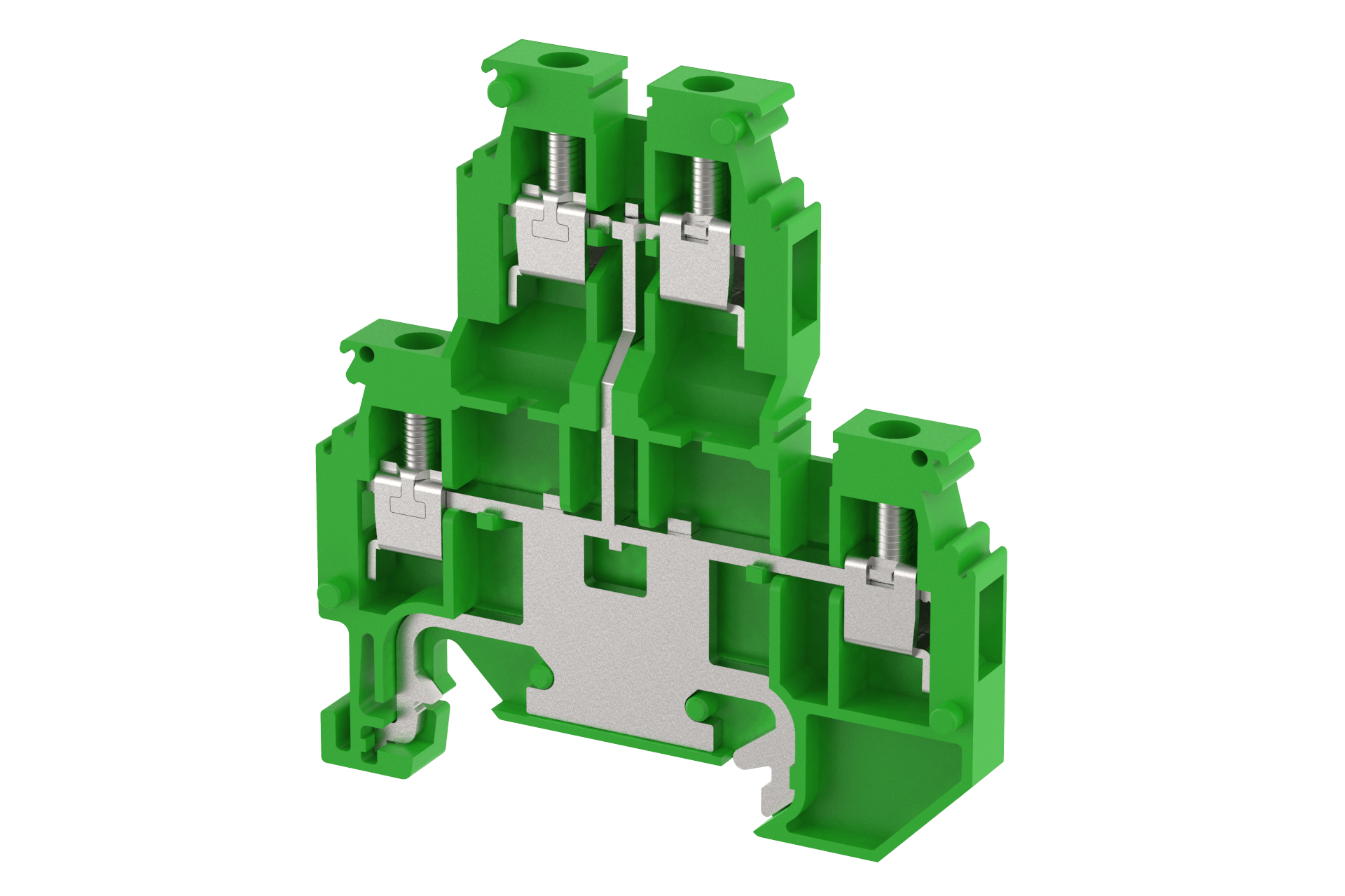

ETDD4N

Approvals

CE Mark Conforming to IEC Specification

Line Diagram


General Data

Type ETDD4N
Wire termination Technology Screw Connection
Rating 4 sq.mm / 0.5 Nm
GTIN / Harmonize Custom Code 85389000
Standard Packing Qty (in No) 100
Country of Origin India

Thickness (mm) 9
Thickness (inches) 0.35
Width (mm) 62.5
Width (inches) 2.46
Height (mm) 65.5
Height (inches) 2.58
Weight For Standard Packing Qty (KG) 2.3

Housing Polyamide 6,6
Clamping Material CRCA
Standard Colour Green-Yellow

Stranded Wire - Min (sq.mm) 0.5
Stranded Wire - Max (sq.mm) 4

Standard IEC 60947-7-2
Rated Voltage (V) -
Rated Cross Section (sq.mm) 4
Short Time Withstand Current (kA) 0.48
Pollution Degree 3

DIN Rail Perforated
CHKDS
  • 35 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm - Perforated
  • Height : 15 mm
  • Width : 35 mm
  • Thickness : 1.5 mm
  • Length : 2000 mm
CHKS
  • 35 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm - Perforated
  • Height : 7.5 mm
  • Width : 35 mm
  • Thickness : 1 mm
DIN Rail, Unperforated
CHKD
  • 35 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm , Unperforated
  • Height : 15 mm
  • Width : 35 mm
  • Thickness : 1.5 mm
CHK
  • 35 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm , Unperforated
  • Height : 7.5 mm
  • Width : 35 mm
  • Thickness : 1 mm
End Cap
CHKENDCAP
  • END COVER/ CAP FOR CHK CHANNEL
  • Height : 14 mm
  • Width : 9 mm
  • Length : 41.5 mm
End Clamp
SCUP
  • TS32 , TS35 din rail mounted end clamp with fixing screws , Type - SCUP
  • Height : 34 mm
  • Length : 44.75 mm
SCEC35
  • TS35 DIN rail mounted End clamp with fixing nut and screw of size M3, Width - 8 mm, Color - Grey
  • Height : 31.5 mm
  • Width : 8 mm
  • Length : 45.8 mm
SCUSL
  • Universal rail mounted end clamp with fixing screws , Type - SCUSL
  • Height : 41.1 mm
  • Width : 8 mm
  • Length : 47.5 mm
SCUDD
  • TS35 , TS32 DIN rail mounted end clamp with fixing screws , Width - 10 mm , Type - SCUDD
  • Height : 50 mm
  • Width : 10 mm
  • Length : 55.6 mm
DCKN
  • TS35 din rail mounted end clamp without fixing screws , Width - 6 mm , Color - Grey
  • Height : 33 mm
  • Width : 6 mm
  • Length : 43.5 mm
DCKN10
  • TS35 DIN rail mounted end clamp without fixing screws , Width- 10 mm , Color - Grey
  • Height : 35 mm
  • Width : 10 mm
  • Length : 43.5 mm
SCUN
  • TS35 , TS32 DIN rail mounted end clamp with fixing screws , Width- 9.5 mm , Color - Grey
  • Height : 35.5 mm
  • Width : 9.5 mm
  • Length : 50.6 mm
SCSN
  • 32 mm rail mounted end clamp with fixing screws (Type – SCSN) , colour : Grey
  • Height : 31 mm
  • Width : 8.4 mm
  • Length : 27 mm
End Cover

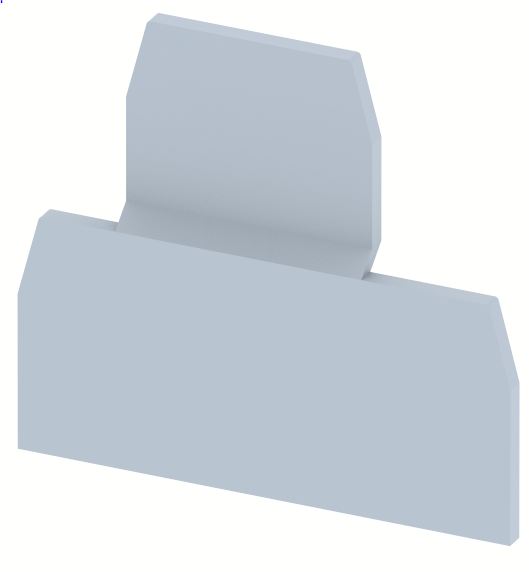

KPDDN
  • KPDDN End cover for Terminal type, KUDD4N and ETDD4N , colour : GREY
  • Height : 62.5 mm
  • Width : 1.5 mm
  • Length : 56 mm
Fixed Bridge

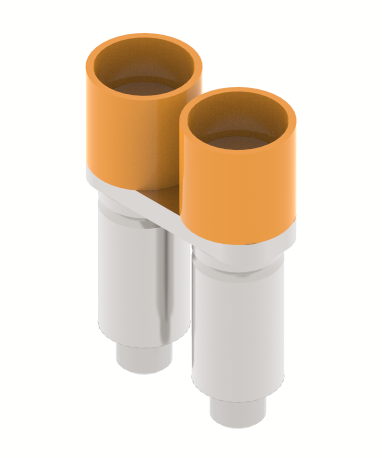

CCLADDN-2W
  • Fixed Bridge , Type – CCLADDN-2W
  • Height : 14 mm
  • Pitch : 6 mm
  • Length : 11 mm

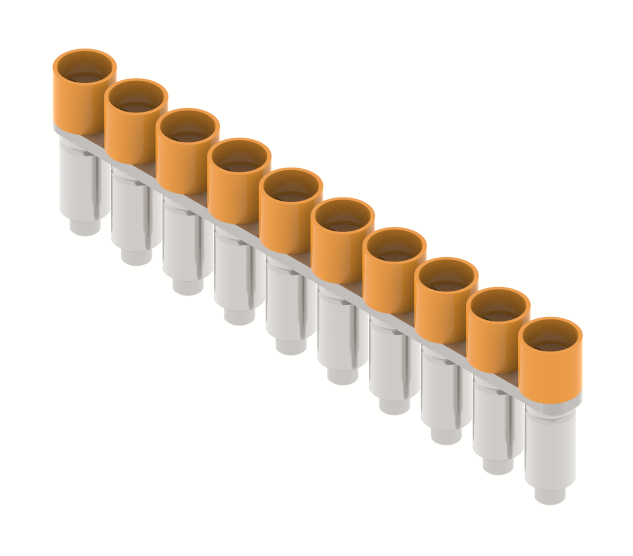

CCLADDN-10W
  • Fixed Bridge , Type – CCLADDN-10W
  • Height : 14 mm
  • Pitch : 6 mm
  • Length : 59 mm

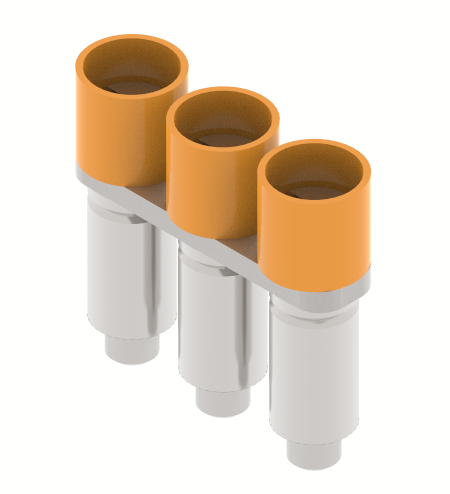

CCLADDN-3W
  • Fixed Bridge , Type – CCLADDN-3W
  • Height : 14 mm
  • Pitch : 6 mm
  • Length : 17 mm

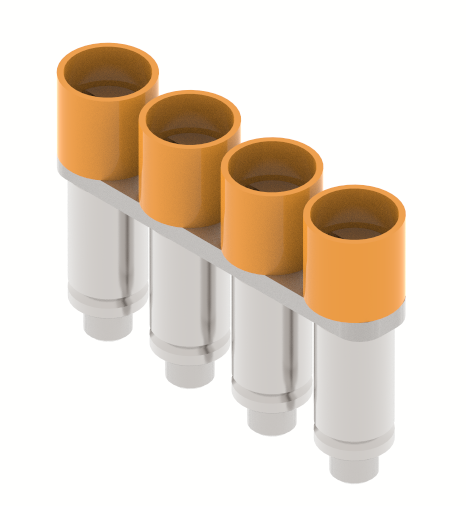

CCLADDN-4W
  • Fixed Bridge , Type – CCLADDN-4W
  • Height : 14 mm
  • Pitch : 6 mm
  • Length : 23 mm

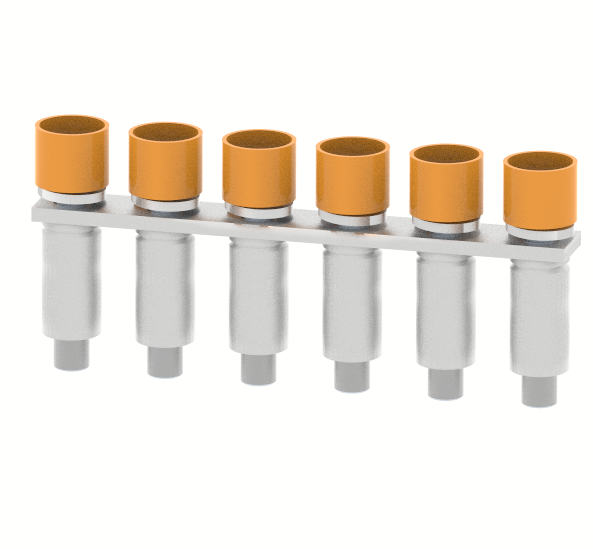

CCLADDN-6W
  • Fixed Bridge , Type – CCLADDN-6W
  • Height : 14 mm
  • Pitch : 6 mm
  • Length : 35 mm
Insertion Bridge
SLC4N-10W
  • Insertion Bridge - Type - SLC4N-10W , Available Variants : 2W, 3W , 4W , 5W , 6W , 10W
  • Width : 58.6 mm
  • Pitch : 6 mm
  • Length : 23 mm
SLC4N-3W
  • Insertion Bridge - Type - SLC4N-3W , Available Variants : 2W, 3W , 4W , 5W , 6W , 10W
  • Width : 16.65 mm
  • Pitch : 6 mm
  • Length : 23 mm
SLC4N-4W
  • Insertion Bridge - Type - SLC4N-4W , Available Variants : 2W, 3W , 4W , 5W , 6W , 10W
  • Width : 22.65 mm
  • Pitch : 6 mm
  • Length : 23 mm
SLC4N-5W
  • Insertion Bridge - Type - SLC4N-5W , Available Variants : 2W, 3W , 4W , 5W , 6W , 10W
  • Width : 28.65 mm
  • Pitch : 6 mm
  • Length : 23 mm
SLC4N-6W
  • Insertion Bridge - Type - SLC4N-6W , Available Variants : 2W, 3W , 4W , 5W , 6W , 10W
  • Width : 34.6 mm
  • Pitch : 6 mm
  • Length : 23 mm
SLC4N-2W
  • Insertion Bridge - Type - SLC4N-2W , Available Variants : 2W, 3W , 4W , 5W , 6W , 10W
  • Width : 10.91 mm
  • Pitch : 6 mm
  • Length : 23 mm
Marker For Terminal Blocks
LABEL KN5.5
  • Snap on type PVC marking Label , Type - KN 5.5
  • Width : 6 mm
Marker carriers
SCUDDMLH
  • Universal rail-mounted end clamp with fixing screws & marking label holder, Type - SCUDDMLH
  • Height : 71.5 mm
  • Width : 10 mm
  • Length : 55.6 mm
SCUNMLH
  • Universal rail mounted end clamp with fixing screws & marking lable holder , Type - SCUNMLH
  • Height : 53.5 mm
  • Width : 9.5 mm
  • Length : 50.6 mm
DCKNMLH
  • 35 mm rail mounted end clamp with marking lable holder
  • Height : 45.5 mm
  • Width : 6 mm
  • Length : 43.5 mm
SCKNMLH
  • 35 mm rail mounted end clamp with marking lable holder
  • Height : 45.5 mm
  • Width : 8 mm
  • Length : 44.9 mm
