Approvals
Line Diagram
General Data

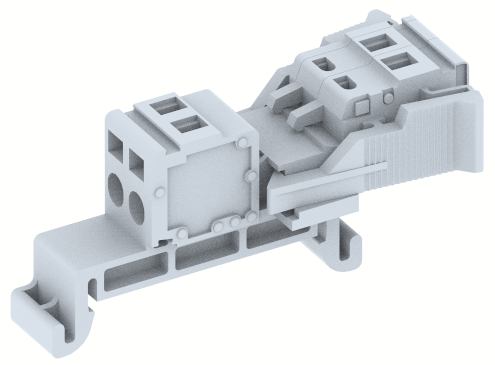

| Type | DPSC5.08WF-2W |
| Wire termination Technology | Spring Cage Connection |
| Rating | 250 V / 16 A / 2.5 sq.mm / Nm |
| GTIN / Harmonize Custom Code | 85389000 |
| Standard Packing Qty (in No) | 50 |
| Country of Origin | India |
| Thickness (mm) | 26.05 |
| Thickness (inches) | 1.03 |
| Width (mm) | 58.51 |
| Width (inches) | 2.3 |
| Height (mm) | 26.15 |
| Weight For Standard Packing Qty (KG) | 0.63 |
| Housing | Polyamide 6,6 |
| Clamping Material | Spring Steel |
| Standard Colour | Grey |
| Other Colour Variants | Red, Yellow, Blue, Black, Green, Khakhi |
| Standard Colour | Gray |
| Stranded Wire - Min (sq.mm) | 0.2 |
| Stranded Wire - Max (sq.mm) | 2.5 |
| Standard | IEC 60947-7-1 |
| Rated Voltage (V) | 250 |
| Rated Current (A) | 16 |
| Rated Cross Section (sq.mm) | 2.5 |
| Short Time Withstand Current (kA) | 0.18 |
| Rated Impulse Withstand Voltage (kV) | 4 |
| Pollution Degree | 3 |
| Rated Voltage (V) | 300 |
| Rated Current (A) | 16 |
| Conductor Size - min (AWG) | 24 |
| Conductor Size - max (AWG) | 12 |
