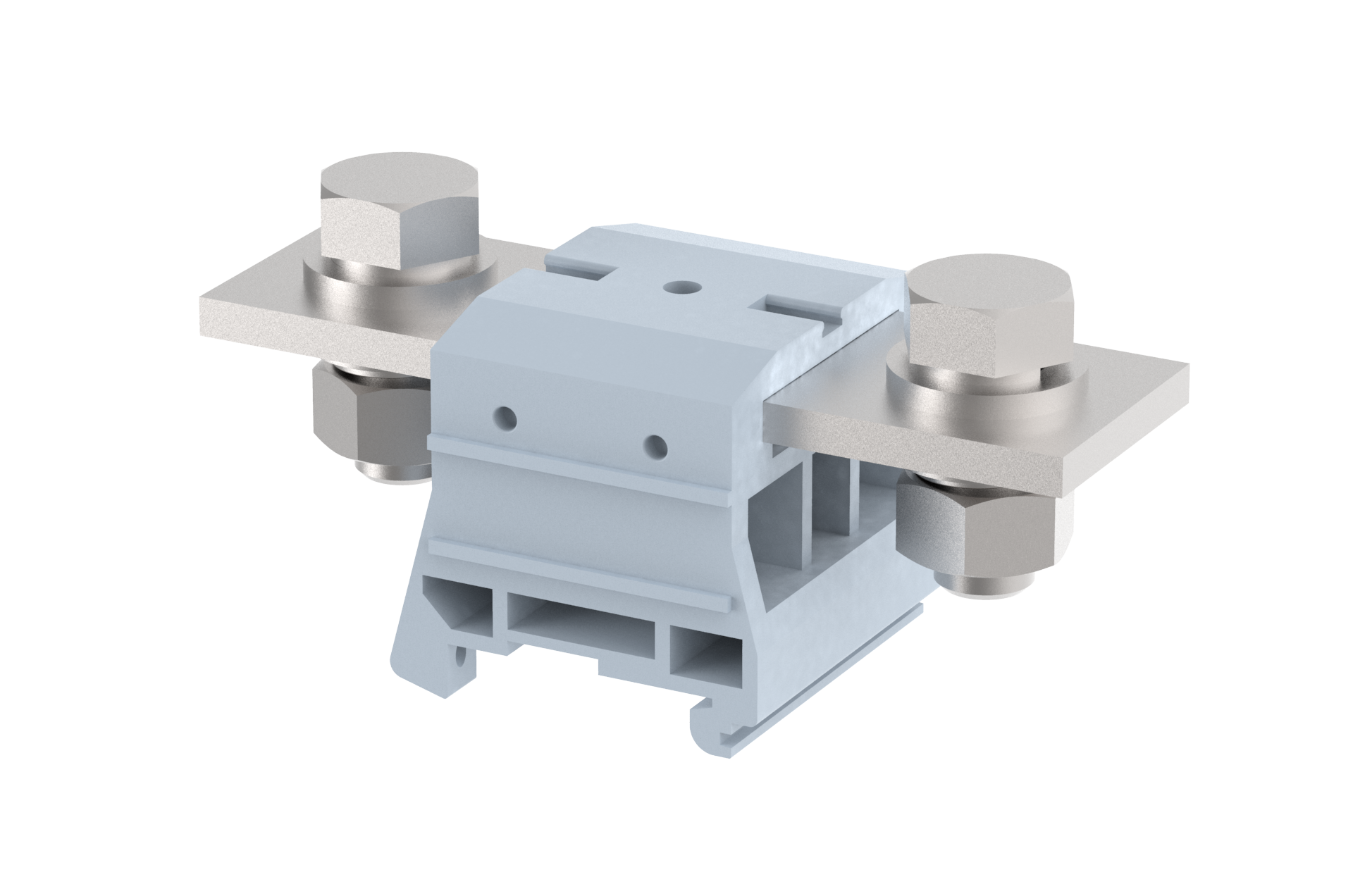

DPBB185N

Approvals

CE Mark Conforming to IEC Specification

Line Diagram


General Data

Type DPBB185N
Wire termination Technology Bolt Connection
Rating 1000 V / 353 A / 185 sq.mm / 14 Nm
GTIN / Harmonize Custom Code 85389000
Standard Packing Qty (in No) 4
Country of Origin India

Thickness (mm) 53
Thickness (inches) 2.09
Width (mm) 115
Width (inches) 4.53
Height (mm) 53.3
Height (inches) 2.1
Weight For Standard Packing Qty (KG) 1.49

Housing Polyamide 6,6
Clamping Material -
Standard Colour Grey
Standard Colour Gray
Other Colour Variants Red, Yellow, Blue, Black, Green, Khakhi

Stranded Wire - Min (sq.mm) 50
Stranded Wire - Max (sq.mm) 185

Standard IEC 60947-7-1
Rated Voltage (V) 1000
Rated Current (A) 353
Rated Cross Section (sq.mm) 185
Short Time Withstand Current (kA) 22.2
Rated Impulse Withstand Voltage (kV) 12
Pollution Degree 3

Cover Profile

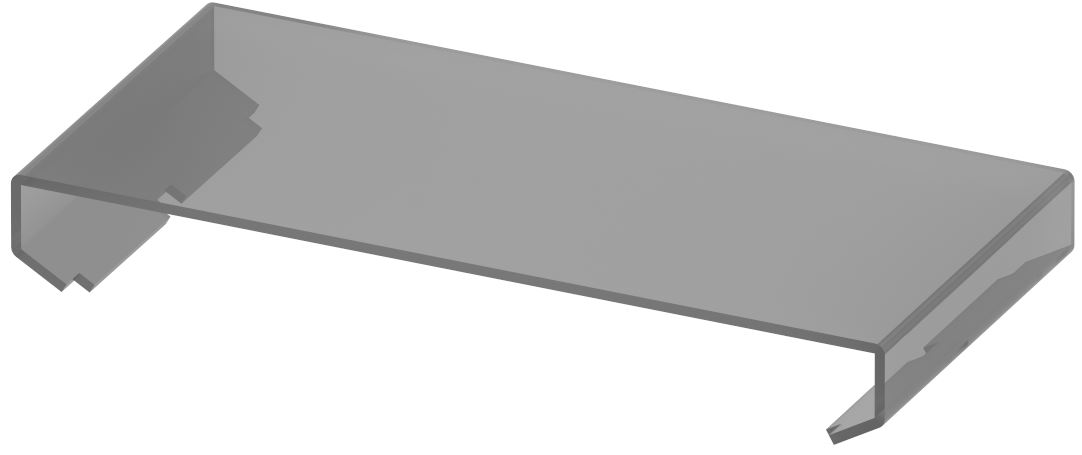

PCP240-2W
  • Cover profile for Terminal type - DPBB 185N , DPBB240 (Covers 1 terminal block)
  • Width : 111 mm
  • Thickness : 1.5 mm
  • Length : 186 mm
DIN Rail Perforated
CHS
  • 32 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm - Unperforated
  • Height : 15 mm
  • Width : 32 mm
  • Thickness : 1.5 mm
CHKDS
  • 35 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm - Perforated
  • Height : 15 mm
  • Width : 35 mm
  • Thickness : 1.5 mm
  • Length : 2000 mm
DIN Rail, Unperforated
CHKD
  • 35 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm , Unperforated
  • Height : 15 mm
  • Width : 35 mm
  • Thickness : 1.5 mm
End Cap
CHKENDCAP
  • END COVER/ CAP FOR CHK CHANNEL
  • Height : 14 mm
  • Width : 9 mm
  • Length : 41.5 mm
End Clamp
SCUP
  • TS32 , TS35 din rail mounted end clamp with fixing screws , Type - SCUP
  • Height : 34 mm
  • Length : 44.75 mm
SCEC35
  • TS35 DIN rail mounted End clamp with fixing nut and screw of size M3, Width - 8 mm, Color - Grey
  • Height : 31.5 mm
  • Width : 8 mm
  • Length : 45.8 mm
SCUSL
  • Universal rail mounted end clamp with fixing screws , Type - SCUSL
  • Height : 41.1 mm
  • Width : 8 mm
  • Length : 47.5 mm
SCUDD
  • TS35 , TS32 DIN rail mounted end clamp with fixing screws , Width - 10 mm , Type - SCUDD
  • Height : 50 mm
  • Width : 10 mm
  • Length : 55.6 mm
Marker For Terminal Blocks
LABEL KN10
  • Snap on type PVC marking Label , Type - KN 10
  • Width : 10 mm
Partition Plate

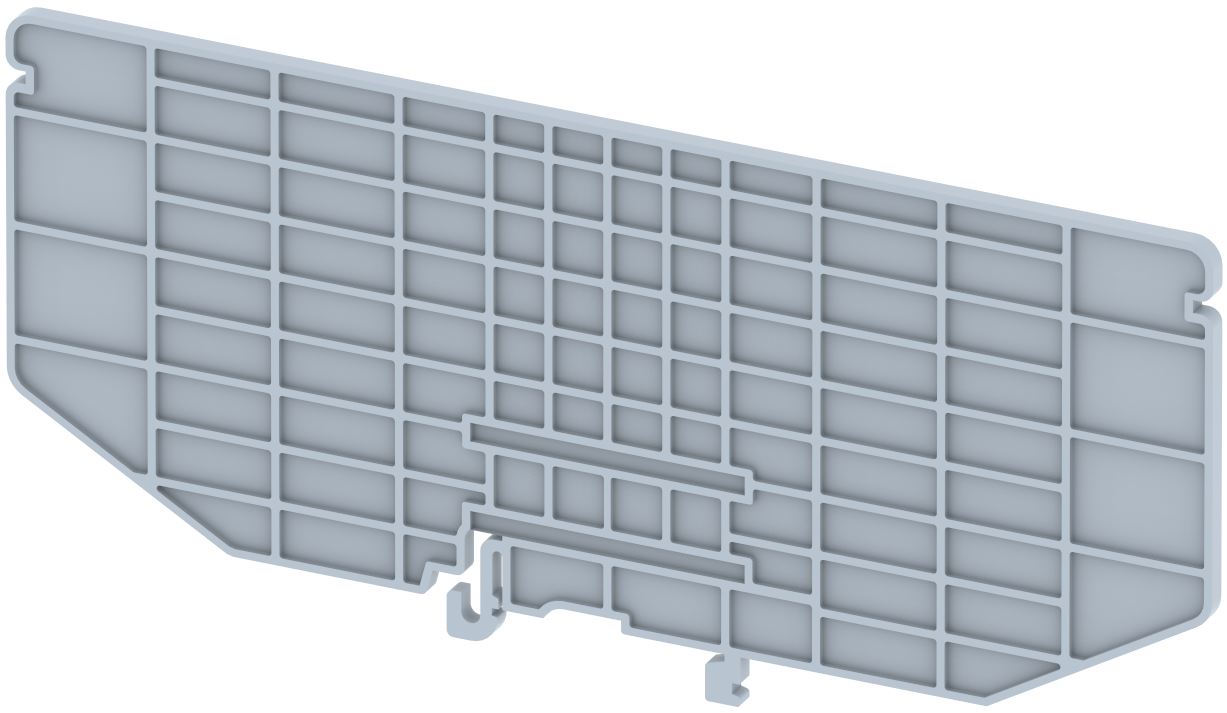

BPA 185/240
  • Barrier Plate with Foot , Type : BPA185/240 , colour : GREY
  • Height : 82.4 mm
  • Width : 3 mm
  • Length : 180 mm
Marker carriers
SCUDDMLH
  • Universal rail-mounted end clamp with fixing screws & marking label holder, Type - SCUDDMLH
  • Height : 71.5 mm
  • Width : 10 mm
  • Length : 55.6 mm
