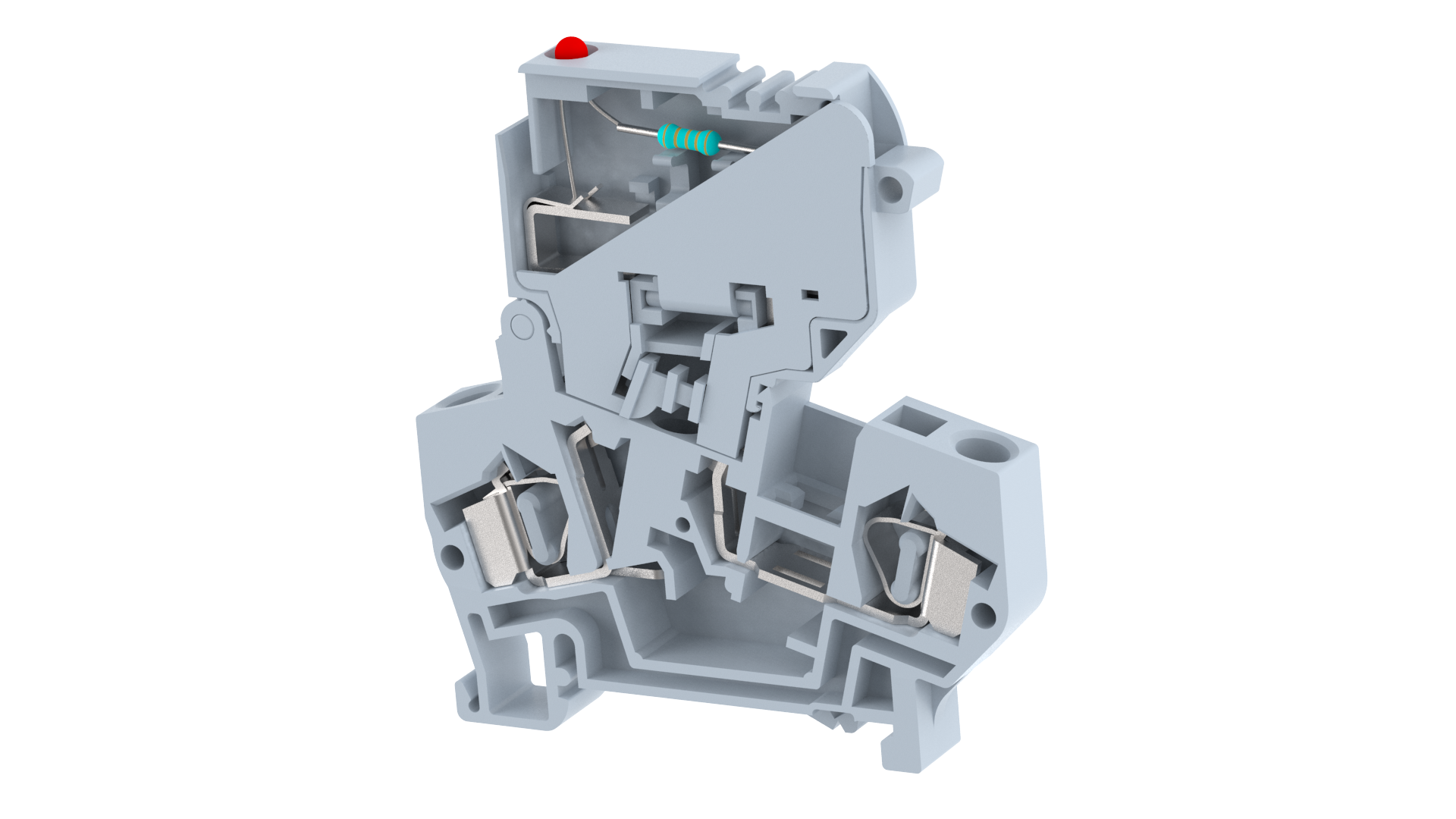

DCF4A2

Approvals

CE Mark Conforming to IEC Specification

Line Diagram


General Data

Type DCF4A2
Wire termination Technology Spring Cage Connection
Rating 800 V / 10 A / 4 sq.mm
GTIN / Harmonize Custom Code 85389000
Standard Packing Qty (in No) 50
Country of Origin India

Width (mm) 8
Width (inches) 0.31
Length (mm) 60
Length (inches) 2.36
Height (mm) 66.6
Height (inches) 2.62
Weight For Standard Packing Qty (kg) 1

Housing Polyamide 6,6
Clamping Material CRCA
Standard Colour Gray
Other Colour Variants Red, Yellow, Blue, Black, Green, Khakhi

Stranded Wire - Min (sq.mm) 0.5
Stranded Wire - Max (sq.mm) 4

Standard IEC-60947-7-3
Rated Voltage (V) 800
Rated Current (A) 10
Rated Cross Section (sq.mm) 4
Short Time Withstand Current -
Rated Impulse Withstand Voltage (kV) 8
Pollution Degree 3

DIN Rail Perforated
CHKDS
  • 35 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm - Perforated
  • Height : 15 mm
  • Width : 35 mm
  • Thickness : 1.5 mm
  • Length : 2000 mm
CHKS
  • 35 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm - Perforated
  • Height : 7.5 mm
  • Width : 35 mm
  • Thickness : 1 mm
DIN Rail, Unperforated
CHKD
  • 35 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm , Unperforated
  • Height : 15 mm
  • Width : 35 mm
  • Thickness : 1.5 mm
CHK
  • 35 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm , Unperforated
  • Height : 7.5 mm
  • Width : 35 mm
  • Thickness : 1 mm
End Cap
CHKENDCAP
  • END COVER/ CAP FOR CHK CHANNEL
  • Height : 14 mm
  • Width : 9 mm
  • Length : 41.5 mm
End Clamp
SCUP
  • TS32 , TS35 din rail mounted end clamp with fixing screws , Color - Grey
  • Height : 34 mm
  • Width : 9 mm
  • Length : 44.75 mm
SCEC35
  • TS35 DIN rail mounted End clamp with fixing nut and screw, Color - Grey
  • Height : 31.5 mm
  • Width : 8 mm
  • Length : 45.8 mm
SCUSL
  • Universal rail mounted end clamp with fixing screws , Color - Grey
  • Height : 41.1 mm
  • Width : 8 mm
  • Length : 47.5 mm
SCUDD
  • TS35 , TS32 DIN rail mounted end clamp with fixing screws , Color - Grey
  • Height : 50 mm
  • Width : 10 mm
  • Length : 55.6 mm
DCKN
  • TS35 din rail mounted end clamp without fixing screws , Color - Grey
  • Height : 33 mm
  • Width : 6 mm
  • Length : 43.5 mm
DCKN10
  • TS35 DIN rail mounted end clamp without fixing screws , Color - Grey
  • Height : 35 mm
  • Width : 10 mm
  • Length : 43.5 mm
SCKN
  • TS35 DIN rail mounted end clamp with fixing screws , Color - Grey
  • Height : 34.5 mm
  • Width : 8 mm
  • Length : 44.9 mm
SCUN
  • TS35 , TS32 DIN rail mounted end clamp with fixing screws , Color - Grey
  • Height : 35.5 mm
  • Width : 9.5 mm
  • Length : 50.6 mm
End Cover
DFEP
  • DFEP End cover for Terminal type DCF4 , DCF4D , DCF4A , colour : GREY
  • Height : 56.5 mm
  • Width : 2.5 mm
  • Length : 66 mm
Marker For Terminal Blocks
LABEL KN8
  • Snap on type PVC marking Label , Type - KN 8
  • Width : 8 mm
Plug-in Bridge/Jumper
SSL4
  • Plug In Bridge , Type - SSL4
  • Height : 23.8 mm
  • Width : 6 mm
  • Length : 7.5 mm
Marker carriers
SCUDDMLH
  • Universal rail-mounted end clamp with fixing screws & marking label holder, Type - SCUDDMLH
  • Height : 71.5 mm
  • Width : 11 mm
  • Length : 55.6 mm
SCUNMLH
  • Universal rail mounted end clamp with fixing screws & marking lable holder , Type - SCUNMLH
  • Height : 53.5 mm
  • Width : 11 mm
  • Length : 50.6 mm
DCKNMLH
  • 35 mm rail mounted end clamp with marking lable holder
  • Height : 45 mm
  • Width : 10 mm
  • Length : 43.5 mm
SCKNMLH
  • 35 mm rail mounted end clamp with marking lable holder
  • Height : 42 mm
  • Width : 16 mm
  • Length : 44.7 mm
