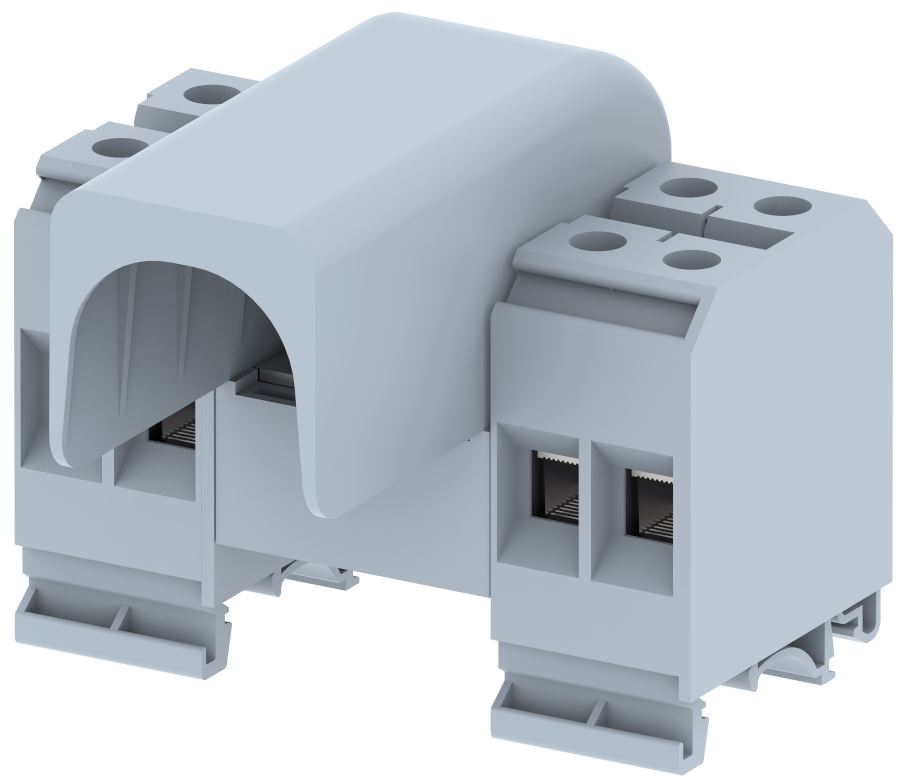

DBK150/25-1X4 Terminal Blocks 1 nut connection for IC & Screw clamp connection for OG Distribution Block Manufacturer and Supplier in India – Elmex

DBK150/25-1X4

Approvals

Line Diagram

General Data

Type	DBK150/25-1X4
Wire termination Technology	1 nut connection for IC & Screw clamp connection for OG
Rating	800 V / IC-309 A, OG-101 A / IC-150 mm² , OG-25 sq.mm / IC-14 Nm , OG-2 Nm
GTIN / Harmonize Custom Code	85389000
Standard Packing Qty (in No)	6
Country of Origin	India

Data Specification
Downloads

Thickness (mm)	81.72
Thickness (inches)	3.22
Width (mm)	86.51
Width (inches)	3.41
Height (mm)	70.7
Height (inches)	2.78
Weight For Standard Packing Qty (KG)	1.99

Housing	Polyamide 6,6
Clamping Material	CRCA
Standard Colour	Grey
Standard Colour	Gray
Other Colour Variants	Red, Yellow, Blue, Black, Green, Khakhi

Stranded Wire - Min (sq.mm)	IC-50 mm² , OG-6
Stranded Wire - Max (sq.mm)	IC-150 mm² , OG-25

Standard	IEC 60947-7-1
Rated Voltage (V)	800
Rated Current (A)	IC-309 A, OG-101
Rated Cross Section (sq.mm)	IC-150 mm² , OG-25
Short Time Withstand Current (kA)	18
Rated Impulse Withstand Voltage (kV)	8
Pollution Degree	3

Cover Profile

PCK3

Cover Profile , Type -PCK3
Height : 28 mm
Width : 58.35 mm
Thickness : 1 mm

Cover Profile Carrier

UHDD

Cover profile carrier , Type - UHDD
Height : 74.5 mm
Thickness : 2 mm
Length : 55.82 mm

DIN Rail Perforated

CHS

32 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm - Unperforated
Height : 15 mm
Width : 32 mm
Thickness : 1.5 mm

CHKDS

35 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm - Perforated
Height : 15 mm
Width : 35 mm
Thickness : 1.5 mm
Length : 2000 mm

CHKS

35 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm - Perforated
Height : 7.5 mm
Width : 35 mm
Thickness : 1 mm

DIN Rail, Unperforated

CHKD

35 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm , Unperforated
Height : 15 mm
Width : 35 mm
Thickness : 1.5 mm

CHK

35 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm , Unperforated
Height : 7.5 mm
Width : 35 mm
Thickness : 1 mm

End Cap

CHKENDCAP

END COVER/ CAP FOR CHK CHANNEL
Height : 14 mm
Width : 9 mm
Length : 41.5 mm

End Clamp

SCUP

TS32 , TS35 din rail mounted end clamp with fixing screws , Type - SCUP
Height : 34 mm
Length : 44.75 mm

SCEC35

TS35 DIN rail mounted End clamp with fixing nut and screw of size M3, Width - 8 mm, Color - Grey
Height : 31.5 mm
Width : 8 mm
Length : 45.8 mm

SCUSL

Universal rail mounted end clamp with fixing screws , Type - SCUSL
Height : 41.1 mm
Width : 8 mm
Length : 47.5 mm

SCUDD

TS35 , TS32 DIN rail mounted end clamp with fixing screws , Width - 10 mm , Type - SCUDD
Height : 50 mm
Width : 10 mm
Length : 55.6 mm

DCKN

TS35 din rail mounted end clamp without fixing screws , Width - 6 mm , Color - Grey
Height : 33 mm
Width : 6 mm
Length : 43.5 mm

DCKN10

TS35 DIN rail mounted end clamp without fixing screws , Width- 10 mm , Color - Grey
Height : 35 mm
Width : 10 mm
Length : 43.5 mm

SCKN

TS35 DIN rail mounted end clamp with fixing screws , Width - 8 mm , Color - Grey
Height : 34.5 mm
Width : 8 mm
Length : 44.9 mm

SCUN

TS35 , TS32 DIN rail mounted end clamp with fixing screws , Width- 9.5 mm , Color - Grey
Height : 35.5 mm
Width : 9.5 mm
Length : 50.6 mm

Marker For Terminal Blocks

LABEL KN12

Snap on type PVC marking Label , Type - KN 12
Width : 12 mm

Partition Plate

KBZF

END PLATE
Height : 65 mm
Width : 1.5 mm
Length : 65 mm

KBT

Partition plate without foot (Type - KBT), colour : GREY
Height : 53 mm
Width : 1.5 mm
Length : 59 mm

Marker carriers

SCUDDMLH

Universal rail-mounted end clamp with fixing screws & marking label holder, Type - SCUDDMLH
Height : 71.5 mm
Width : 10 mm
Length : 55.6 mm

SCUNMLH

Universal rail mounted end clamp with fixing screws & marking lable holder , Type - SCUNMLH
Height : 53.5 mm
Width : 9.5 mm
Length : 50.6 mm

DCKNMLH

35 mm rail mounted end clamp with marking lable holder
Height : 45.5 mm
Width : 6 mm
Length : 43.5 mm

SCKNMLH

35 mm rail mounted end clamp with marking lable holder
Height : 45.5 mm
Width : 8 mm
Length : 44.9 mm

Complete Specification	Not Available.
Accessories	Not Available.
Technical	Not Available.
3D Model (.pdf)	View Download
3D Model (.stp)	Download
