CST16 Terminal Blocks Screw Connection Feed Through Terminal Blocks Manufacturer and Supplier in India – Elmex

CST16

Approvals

CE Mark Conforming to IEC Specification

Line Diagram


General Data

Type CST16
Wire termination Technology Screw Connection
Rating 800 V / 76 A / 16 sq.mm / 1.2 Nm
GTIN / Harmonize Custom Code 85389000
Standard Packing Qty (in No) 50
Country of Origin India

Thickness (mm) 12
Thickness (inches) 0.47
Width (mm) 45
Width (inches) 1.77
Height (mm) 55
Height (inches) 2.17
Weight For Standard Packing Qty (KG) 2.54

Housing Melamine
Clamping Material CRCA
Standard Colour Khakhi
Other Colour Variants Red, Yellow, Blue, Black, Green

Stranded Wire - Min (sq.mm) 6
Stranded Wire - Max (sq.mm) 16
Solid Wire - Max (sq.mm) 25

Standard IEC 60947-7-1
Rated Voltage (V) 800
Rated Current (A) 76
Rated Cross Section (sq.mm) 16
Short Time Withstand Current (kA) 1.92
Rated Impulse Withstand Voltage (kV) 8
Pollution Degree 3

Cover Profile
PCK3
  • Cover Profile , Type -PCK3
  • Height : 28 mm
  • Width : 58.35 mm
  • Thickness : 1 mm
Cover Profile Carrier
UHDD
  • Cover profile carrier , Type - UHDD
  • Height : 74.5 mm
  • Thickness : 2 mm
  • Length : 55.82 mm
DIN Rail Perforated
CHS
  • 32 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm - Unperforated
  • Height : 15 mm
  • Width : 32 mm
  • Thickness : 1.5 mm
End Clamp
SCUP
  • TS32 , TS35 din rail mounted end clamp with fixing screws , Type - SCUP
  • Height : 34 mm
  • Length : 44.75 mm
SCUSL
  • Universal rail mounted end clamp with fixing screws , Type - SCUSL
  • Height : 41.1 mm
  • Width : 8 mm
  • Length : 47.5 mm
SCUDD
  • TS35 , TS32 DIN rail mounted end clamp with fixing screws , Width - 10 mm , Type - SCUDD
  • Height : 50 mm
  • Width : 10 mm
  • Length : 55.6 mm
SCUN
  • TS35 , TS32 DIN rail mounted end clamp with fixing screws , Width- 9.5 mm , Color - Grey
  • Height : 35.5 mm
  • Width : 9.5 mm
  • Length : 50.6 mm
SCSN
  • 32 mm rail mounted end clamp with fixing screws (Type – SCSN) , colour : Grey
  • Height : 31 mm
  • Width : 8.4 mm
  • Length : 27 mm
SCS
  • 32 mm rail mounted end clamp with fixing screws (Type – SCS)
  • Height : 26.9 mm
  • Length : 21 mm
End Cover
EPY
  • EPY End cover for Terminal type CST16 , colour : KHAKHI
  • Height : 41.9 mm
  • Width : 2.5 mm
  • Length : 44.9 mm
Fixed Bridge

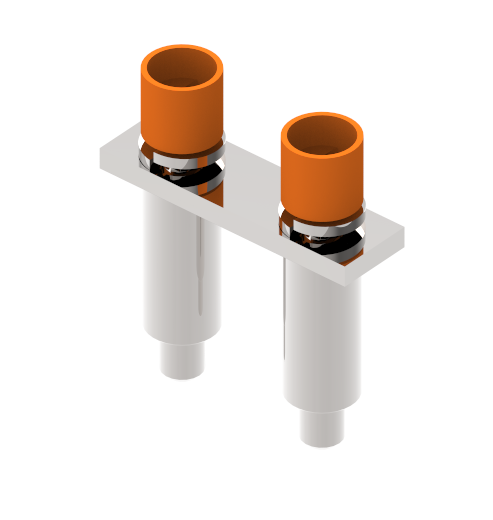

CCLA16-2W
  • Fixed Bridge , Type – CCLA16-2W
  • Height : 20 mm
  • Pitch : 12 mm
  • Length : 21 mm

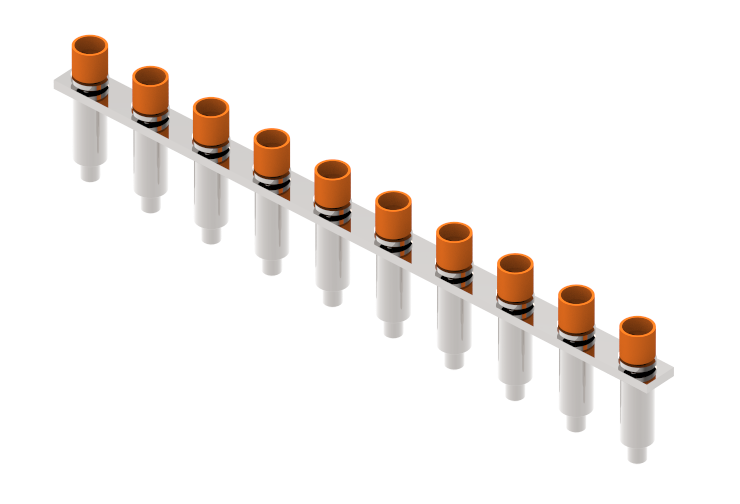

CCLA16-10W
  • Fixed Bridge , Type – CCLA16-10W
  • Height : 20 mm
  • Pitch : 12 mm
  • Length : 117 mm

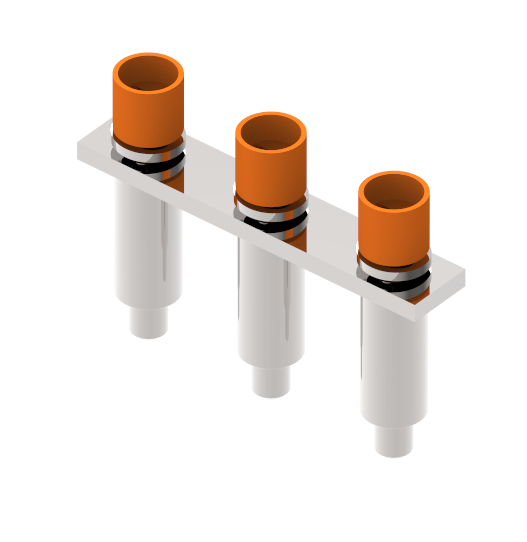

CCLA16-3W
  • Fixed Bridge , Type – CCLA16-3W
  • Height : 20 mm
  • Pitch : 12 mm
  • Length : 33 mm

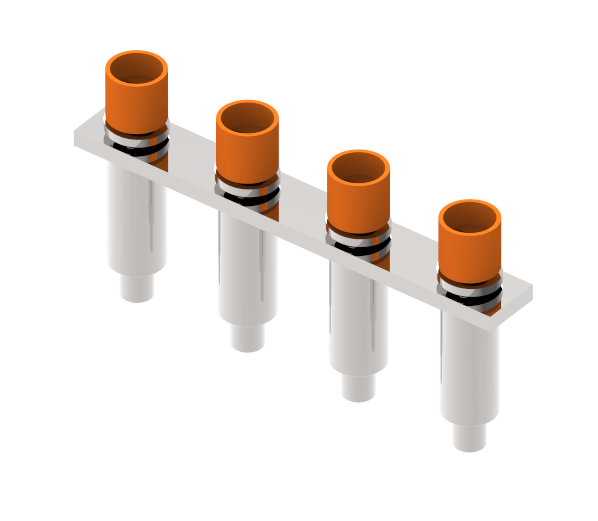

CCLA16-4W
  • Fixed Bridge , Type – CCLA16-4W
  • Height : 20 mm
  • Pitch : 12 mm
  • Length : 45 mm

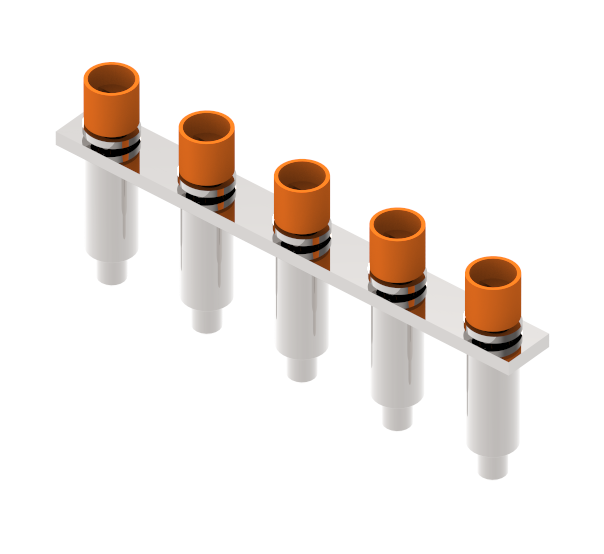

CCLA16-5W
  • Fixed Bridge , Type – CCLA16-5W
  • Height : 20 mm
  • Pitch : 12 mm
  • Length : 57 mm

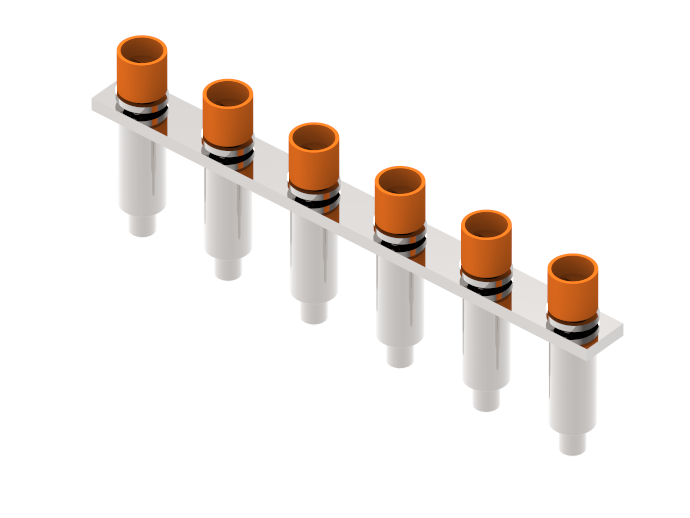

CCLA16-6W
  • Fixed Bridge , Type – CCLA16-6W
  • Height : 20 mm
  • Pitch : 12 mm
  • Length : 69 mm
Marker For Terminal Blocks

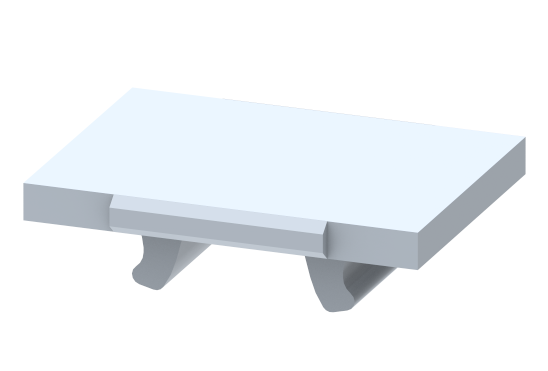

LABEL KN10
  • Snap on type PVC marking Label , Type - KN 10
  • Width : 10 mm
Partition Plate
KBZF
  • END PLATE
  • Height : 65 mm
  • Width : 1.5 mm
  • Length : 65 mm
BPY
  • Barrier plate without foot (Type - BPY), colour : KHAKHI
  • Height : 66 mm
  • Width : 3 mm
  • Length : 65 mm
Switching Jumper
LSR10-16
  • Switching Jumper , Type - LSR10-16
  • Width : 6 mm
RSL16
  • Switching Jumper , Type - RSL16
  • Thickness : 1.6 mm
  • Pitch : 12 mm
  • Length : 21 mm
Warning Label
WL16
  • Warning Label , Type - WL16
  • Width : 30 mm
  • Thickness : 1.5 mm
  • Length : 50 mm
Marker carriers
SCUDDMLH
  • Universal rail-mounted end clamp with fixing screws & marking label holder, Type - SCUDDMLH
  • Height : 71.5 mm
  • Width : 10 mm
  • Length : 55.6 mm
SCUNMLH
  • Universal rail mounted end clamp with fixing screws & marking lable holder , Type - SCUNMLH
  • Height : 53.5 mm
  • Width : 9.5 mm
  • Length : 50.6 mm
GMC
  • Marker Carriers For direct mounting on NS 32.
  • Height : 48 mm
  • Width : 39 mm
  • Thickness : 1 mm
  • Length : 38 mm
