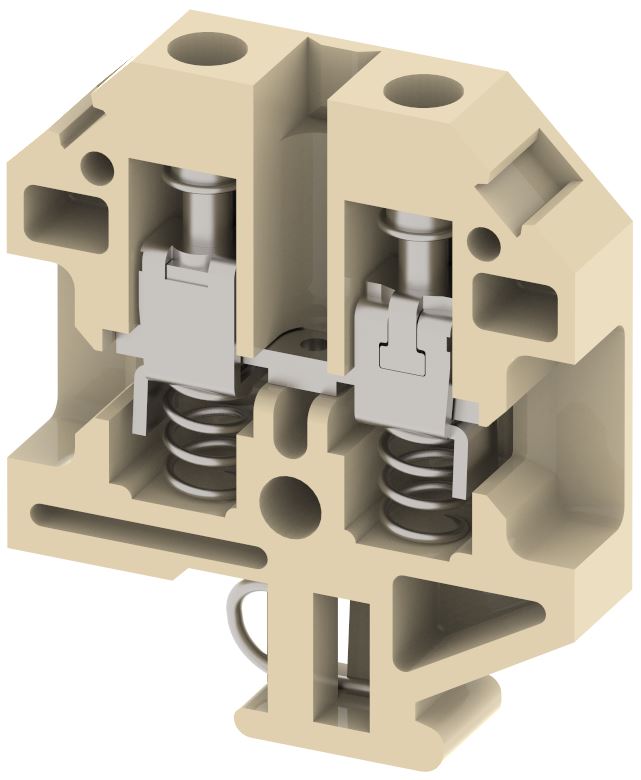

CSLT1

Approvals

CE Mark Conforming to IEC Specification

Line Diagram


General Data

Type CSLT1
Wire termination Technology Screw Connection with spring support
Rating 800 V / 57 A / 10 sq.mm / 1.2 Nm
GTIN / Harmonize Custom Code 85389000
Standard Packing Qty (in No) 50
Country of Origin India

Thickness (mm) 11
Thickness (inches) 0.43
Width (mm) 50
Width (inches) 1.97
Height (mm) 57.5
Height (inches) 2.26
Weight For Standard Packing Qty (KG) 1.79

Housing Melamine
Clamping Material CRCA
Standard Colour Khakhi
Other Colour Variants Red, Yellow, Blue, Black, Green

Stranded Wire - Min (sq.mm) 1.5
Stranded Wire - Max (sq.mm) 10

Standard IEC 60947-7-1
Rated Voltage (V) 800
Rated Current (A) 57
Rated Cross Section (sq.mm) 10
Short Time Withstand Current (kA) 1.2
Rated Impulse Withstand Voltage (kV) 8
Pollution Degree 3

Cover Profile
PCK3
  • Cover Profile , Type -PCK3
  • Height : 28 mm
  • Width : 58.35 mm
  • Thickness : 1 mm
Cover Profile Carrier
UHDD
  • Cover profile carrier , Type - UHDD
  • Height : 74.5 mm
  • Thickness : 2 mm
  • Length : 55.82 mm
DIN Rail Perforated
CHS
  • 32 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm - Unperforated
  • Height : 15 mm
  • Width : 32 mm
  • Thickness : 1.5 mm
End Clamp
SCUP
  • TS32 , TS35 din rail mounted end clamp with fixing screws , Type - SCUP
  • Height : 34 mm
  • Length : 44.75 mm
SCUSL
  • Universal rail mounted end clamp with fixing screws , Type - SCUSL
  • Height : 41.1 mm
  • Width : 8 mm
  • Length : 47.5 mm
SCUDD
  • TS35 , TS32 DIN rail mounted end clamp with fixing screws , Width - 10 mm , Type - SCUDD
  • Height : 50 mm
  • Width : 10 mm
  • Length : 55.6 mm
SCUN
  • TS35 , TS32 DIN rail mounted end clamp with fixing screws , Width- 9.5 mm , Color - Grey
  • Height : 35.5 mm
  • Width : 9.5 mm
  • Length : 50.6 mm
SCSN
  • 32 mm rail mounted end clamp with fixing screws (Type – SCSN) , colour : Grey
  • Height : 31 mm
  • Width : 8.4 mm
  • Length : 27 mm
SCS
  • 32 mm rail mounted end clamp with fixing screws (Type – SCS)
  • Height : 26.9 mm
  • Length : 21 mm
End Cover

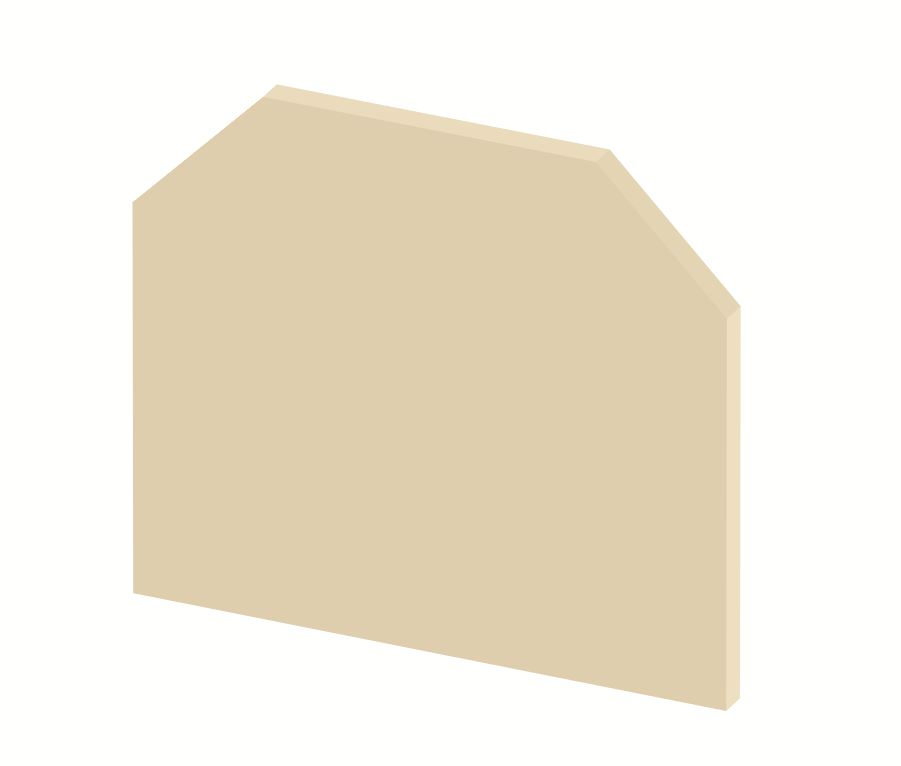

EPSL
  • EPSL End cover for Terminal type CSLT1 , colour : KHAKHI
  • Height : 44 mm
  • Width : 2.5 mm
  • Length : 50 mm
Fixed Bridge

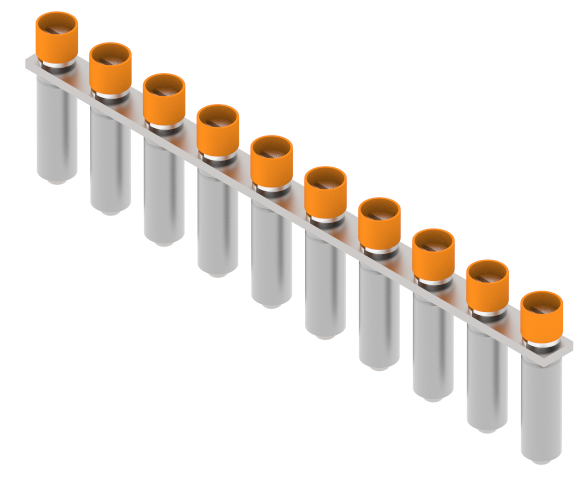

CCLA1L-10W
  • Fixed Bridge , Type – CCLA1L-10W
  • Height : 28 mm
  • Pitch : 11 mm
  • Length : 106.6 mm

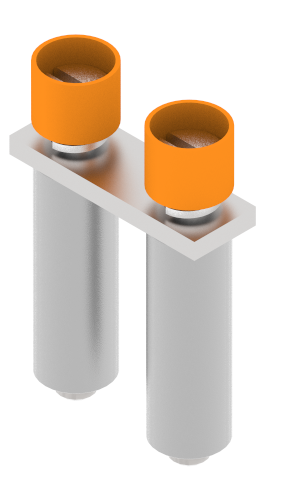

CCLA1L-2W
  • Fixed Bridge , Type – CCLA1L-2W
  • Height : 28 mm
  • Pitch : 11 mm
  • Length : 20.2 mm

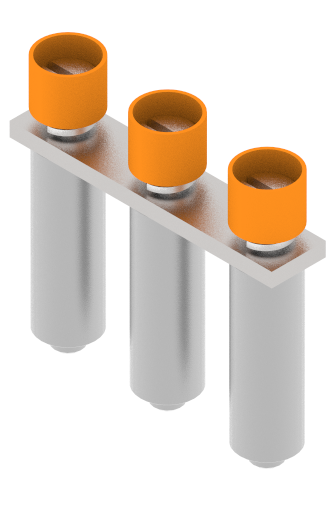

CCLA1L-3W
  • Fixed Bridge , Type – CCLA1L-3W
  • Height : 28 mm
  • Pitch : 11 mm
  • Length : 30.2 mm

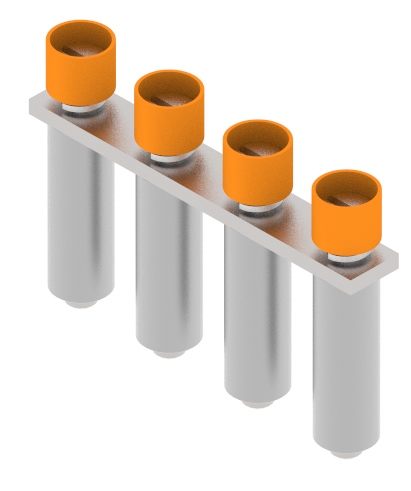

CCLA1L-4W
  • Fixed Bridge , Type – CCLA1L-4W
  • Height : 28 mm
  • Pitch : 11 mm
  • Length : 40.2 mm

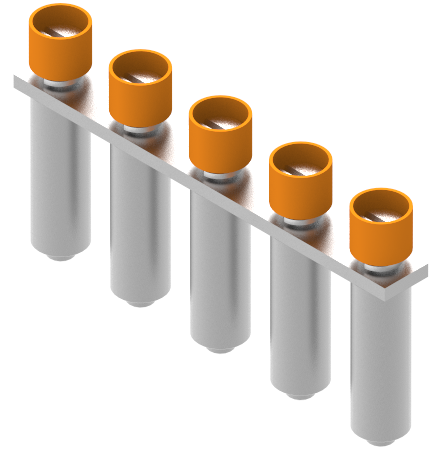

CCLA1L-5W
  • Fixed Bridge , Type – CCLA1L-5W
  • Height : 28 mm
  • Pitch : 11 mm
  • Length : 51.2 mm
Marker For Terminal Blocks
LABEL KN10
  • Snap on type PVC marking Label , Type - KN 10
  • Width : 10 mm
Partition Plate
KBZF
  • END PLATE
  • Height : 65 mm
  • Width : 1.5 mm
  • Length : 65 mm
Switching Jumper
LSR1L
  • Switching Jumper , Type - LSR1L
  • Height : 30 mm
  • Width : 6 mm
RSL1L
  • Switching Jumper , Type - RSL1L
  • Width : 7 mm
  • Thickness : 1.6 mm
  • Length : 18 mm
Marker carriers
SCUDDMLH
  • Universal rail-mounted end clamp with fixing screws & marking label holder, Type - SCUDDMLH
  • Height : 71.5 mm
  • Width : 10 mm
  • Length : 55.6 mm
SCUNMLH
  • Universal rail mounted end clamp with fixing screws & marking lable holder , Type - SCUNMLH
  • Height : 53.5 mm
  • Width : 9.5 mm
  • Length : 50.6 mm
GMC
  • Marker Carriers For direct mounting on NS 32.
  • Height : 48 mm
  • Width : 39 mm
  • Thickness : 1 mm
  • Length : 38 mm
