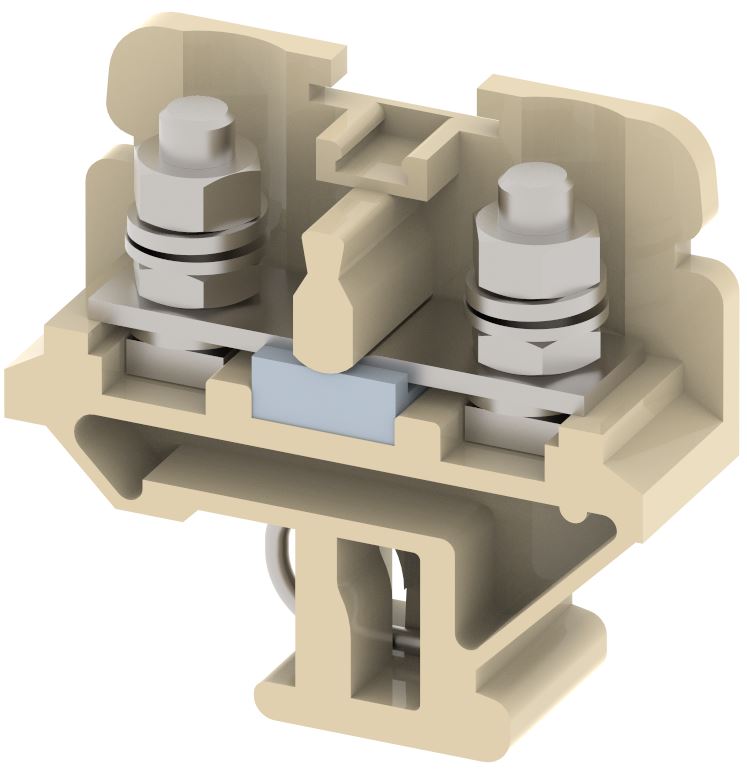

CBTM5

Approvals

CE Mark Conforming to IEC Specification

Line Diagram


General Data

Type CBTM5
Wire termination Technology Bolt Connection
Rating 800 V / 76 A / 16 sq.mm / 2 Nm
GTIN / Harmonize Custom Code 85389000
Standard Packing Qty (in No) 50
Country of Origin India

Thickness (mm) 15
Thickness (inches) 0.59
Width (mm) 46
Width (inches) 1.81
Height (mm) 42
Height (inches) 1.65
Weight For Standard Packing Qty (KG) 1.66

Housing Melamine
Clamping Material CRCA
Standard Colour Khakhi
Other Colour Variants Red, Yellow, Blue, Black, Green

Stranded Wire - Min (sq.mm) 2.5
Stranded Wire - Max (sq.mm) 16

Standard IEC 60974-7-1
Rated Voltage (V) 800
Rated Current (A) 76
Rated Cross Section (sq.mm) 16
Short Time Withstand Current (kA) 1.9
Rated Impulse Withstand Voltage (kV) 8
Pollution Degree 3

Cover Profile
PCCM45K
  • Cover profile for terminal type - CBTM4 , CBTM5 , KBTM5-15 (covers 3 terminal blocks)
  • Height : 13.15 mm
  • Width : 45 mm
  • Thickness : 1.3 mm
PCCM30NV
  • Cover profile for terminal type - CATM3 (covers 3 terminal blocks) , CBTM4 , CBTM5 (covers 2 terminal block)
  • Width : 30 mm
  • Thickness : 1 mm
  • Length : 45.5 mm
PCC3NV
  • Cover Profile , Type -PCC3NV for terminal type - CATM3NV , CATM4NV , CATM5NV , CBTM4NV , CBTM5NV , CBTM6NV
  • Width : 300 mm
  • Thickness : 1.5 mm
  • Length : 48.5 mm
DIN Rail Perforated
CHS
  • 32 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm - Unperforated
  • Height : 15 mm
  • Width : 32 mm
  • Thickness : 1.5 mm
End Clamp
SCUP
  • TS32 , TS35 din rail mounted end clamp with fixing screws , Type - SCUP
  • Height : 34 mm
  • Length : 44.75 mm
SCUSL
  • Universal rail mounted end clamp with fixing screws , Type - SCUSL
  • Height : 41.1 mm
  • Width : 8 mm
  • Length : 47.5 mm
SCUDD
  • TS35 , TS32 DIN rail mounted end clamp with fixing screws , Width - 10 mm , Type - SCUDD
  • Height : 50 mm
  • Width : 10 mm
  • Length : 55.6 mm
SCUN
  • TS35 , TS32 DIN rail mounted end clamp with fixing screws , Width- 9.5 mm , Color - Grey
  • Height : 35.5 mm
  • Width : 9.5 mm
  • Length : 50.6 mm
SCSN
  • 32 mm rail mounted end clamp with fixing screws (Type – SCSN) , colour : Grey
  • Height : 31 mm
  • Width : 8.4 mm
  • Length : 27 mm
SCS
  • 32 mm rail mounted end clamp with fixing screws (Type – SCS)
  • Height : 26.9 mm
  • Length : 21 mm
End Cover
EPS4NV
  • EPS4NV End cover for Terminal series CAT and CBT , colour : KHAKHI
  • Height : 28.5 mm
  • Width : 2.5 mm
  • Length : 46 mm
Insertion Bridge
KSL5-2W
  • Insertion Bridge , Type – KSL5-2W , Available Variants - 2W , 3W , 4W , 5W , 10W
  • Width : 37.5 mm
  • Pitch : 15 mm
  • Length : 26 mm
KSL5-10W
  • Insertion Bridge , Type – KSL5-10W
  • Width : 142.5 mm
  • Pitch : 15 mm
  • Length : 26.5 mm
KSL5-3W
  • Insertion Bridge , Type – KSL5-3W
  • Width : 22.5 mm
  • Pitch : 15 mm
  • Length : 26 mm
KSL5-4W
  • Insertion Bridge , Type – KSL5-4W
  • Width : 52.5 mm
  • Pitch : 15 mm
  • Length : 26 mm
KSL5-5W
  • Insertion Bridge , Type – KSL5-5W
  • Width : 67.5 mm
  • Pitch : 15 mm
  • Length : 26 mm
Marker For Terminal Blocks
LABEL KN6.5
  • Snap on type PVC marking Label , Type - KN 6.5
  • Width : 6.7 mm
Partition Plate
KBZF
  • END PLATE
  • Height : 65 mm
  • Width : 1.5 mm
  • Length : 65 mm
Marker carriers
SCUDDMLH
  • Universal rail-mounted end clamp with fixing screws & marking label holder, Type - SCUDDMLH
  • Height : 71.5 mm
  • Width : 10 mm
  • Length : 55.6 mm
SCUNMLH
  • Universal rail mounted end clamp with fixing screws & marking lable holder , Type - SCUNMLH
  • Height : 53.5 mm
  • Width : 9.5 mm
  • Length : 50.6 mm
GMC
  • Marker Carriers For direct mounting on NS 32.
  • Height : 48 mm
  • Width : 39 mm
  • Thickness : 1 mm
  • Length : 38 mm
