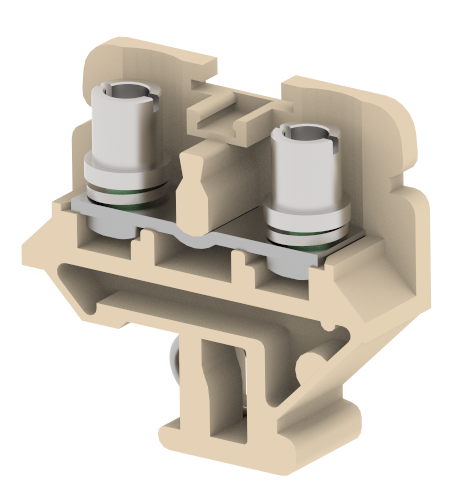

CATM5 Terminal Blocks Bolt Connection Feed Through Terminal Blocks Manufacturer and Supplier in India – Elmex

CATM5

Approvals

CE Mark Conforming to IEC Specification

Line Diagram


General Data

Type CATM5
Wire termination Technology Bolt Connection
Rating 1100 V / 76 A / 16 sq.mm / 2 Nm
GTIN / Harmonize Custom Code 85389000
Standard Packing Qty (in No) 50
Country of Origin India

Thickness (mm) 13
Thickness (inches) 0.51
Width (mm) 46
Width (inches) 1.81
Height (mm) 42
Height (inches) 1.65
Weight For Standard Packing Qty (kg) 1.42

Housing Melamine
Clamping Material CRCA
Standard Colour Khakhi
Other Colour Variants Red, Yellow, Blue, Black

Stranded Wire - Min (sq.mm) 2.5
Stranded Wire - Max (sq.mm) 16

Standard IEC 60947-7-1
Rated Voltage (V) 1100
Rated Current (A) 76
Rated Cross Section (sq.mm) 16
Short Time Withstand Current -
Pollution Degree 3

Cover Profile
PCC3NV
  • Cover Profile , Type -PCC3NV for terminal type - CATM3NV , CATM4NV , CATM5NV , CBTM4NV , CBTM5NV , CBTM6NV
  • Width : 300 mm
  • Thickness : 1.5 mm
  • Length : 48.5 mm
PCCM26NV
  • Cover profile for terminal type - CATM4 , CATM5 , CABTM4 (covers 2 terminal blocks)
  • Width : 26 mm
  • Thickness : 1 mm
  • Length : 45.5 mm
PCCM39
  • Cover profile for terminal type - CATM4 , CATM5 (covers 3 terminal blocks) , CATM4NV , CATM5NV
  • Width : 39 mm
  • Thickness : 1 mm
  • Length : 45.5 mm
DIN Rail Perforated
CHS
  • 32 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm - Unperforated
  • Height : 15 mm
  • Width : 32 mm
  • Thickness : 1.5 mm
End Clamp
SCUP
  • TS32 , TS35 din rail mounted end clamp with fixing screws , Type - SCUP
  • Height : 34 mm
  • Length : 44.75 mm
SCUSL
  • Universal rail mounted end clamp with fixing screws , Type - SCUSL
  • Height : 41.1 mm
  • Width : 8 mm
  • Length : 47.5 mm
SCUDD
  • TS35 , TS32 DIN rail mounted end clamp with fixing screws , Width - 10 mm , Type - SCUDD
  • Height : 50 mm
  • Width : 10 mm
  • Length : 55.6 mm
SCUN
  • TS35 , TS32 DIN rail mounted end clamp with fixing screws , Width- 9.5 mm , Color - Grey
  • Height : 35.5 mm
  • Width : 9.5 mm
  • Length : 50.6 mm
SCSN
  • 32 mm rail mounted end clamp with fixing screws (Type – SCSN) , colour : Grey
  • Height : 31 mm
  • Width : 8.4 mm
  • Length : 27 mm
SCS
  • 32 mm rail mounted end clamp with fixing screws (Type – SCS)
  • Height : 26.9 mm
  • Length : 21 mm
End Cover
EPS4NV
  • EPS4NV End cover for Terminal series CAT and CBT , colour : KHAKHI
  • Height : 28.5 mm
  • Width : 2.5 mm
  • Length : 46 mm
Insertion Bridge
ADSL-10W
  • Insertion Bridge , Type – ADSL-10W
  • Width : 124.5 mm
  • Pitch : 13 mm
  • Length : 24 mm
ADSL-2W
  • Insertion Bridge , Type – ADSL-2W, Available Variants - 2W , 3W , 4W , 7W , 10W
  • Width : 20.5 mm
  • Pitch : 13 mm
  • Length : 24 mm
ADSL-3W
  • Insertion Bridge , Type – ADSL-3W
  • Width : 33.5 mm
  • Pitch : 13 mm
  • Length : 24 mm
ADSL-4W
  • Insertion Bridge , Type – ADSL-4W
  • Width : 46.5 mm
  • Pitch : 13 mm
  • Length : 24 mm
ADSL-7W
  • Insertion Bridge , Type – ADSL-7W
  • Width : 85.5 mm
  • Pitch : 13 mm
  • Length : 24 mm
Marker For Terminal Blocks
LABEL KN8
  • Snap on type PVC marking Label , Type - KN 8
  • Width : 8 mm
Partition Plate
KBZF
  • END PLATE
  • Height : 65 mm
  • Width : 1.5 mm
  • Length : 65 mm
Marker carriers
SCUDDMLH
  • Universal rail-mounted end clamp with fixing screws & marking label holder, Type - SCUDDMLH
  • Height : 71.5 mm
  • Width : 10 mm
  • Length : 55.6 mm
SCUNMLH
  • Universal rail mounted end clamp with fixing screws & marking lable holder , Type - SCUNMLH
  • Height : 53.5 mm
  • Width : 9.5 mm
  • Length : 50.6 mm
GMC
  • Marker Carriers For direct mounting on NS 32.
  • Height : 48 mm
  • Width : 39 mm
  • Thickness : 1 mm
  • Length : 38 mm
