TQ2.5-2T+E Terminal Blocks Screw Connection Multi Level Terminal Blocks Manufacturer and Supplier in India – Elmex

TQ2.5-2T+E

Approvals

Line Diagram

General Data

Type	TQ2.5-2T+E
Wire termination Technology	Screw Connection
Rating	400 V / 24 A / 2.5 sq.mm / 0.4 Nm
GTIN / Harmonize Custom Code	85389000
Standard Packing Qty (in No)	100
Country of Origin	India

Data Specification
Downloads

Thickness (mm)	6
Thickness (inches)	0.24
Width (mm)	76.1
Width (inches)	3
Height (mm)	56
Height (inches)	2.2
Weight For Standard Packing Qty (KG)	1.06

Housing	Polyamide 6,6
Clamping Material	CRCA
Standard Colour	Gray-Green

Stranded Wire - Min (sq.mm)	0.14
Stranded Wire - Max (sq.mm)	2.5
Solid Wire - Max (sq.mm)	4

Standard	IEC 60947-7-1,IEC 60947-7-1-2
Rated Voltage (V)	400
Rated Current (A)	24
Rated Cross Section (sq.mm)	2.5
Short Time Withstand Current (kA)	0.3
Rated Impulse Withstand Voltage (kV)	8
Pollution Degree	3

Rated Voltage (V)	600
Rated Current (A)	20
Wire Cross Section - min (AWG)	24
Wire Cross Section - max (AWG)	12

Rated Voltage (V)	600
Rated Current (A)	20
Conductor Size - min (AWG)	24
Conductor Size - max (AWG)	12

Cover Profile

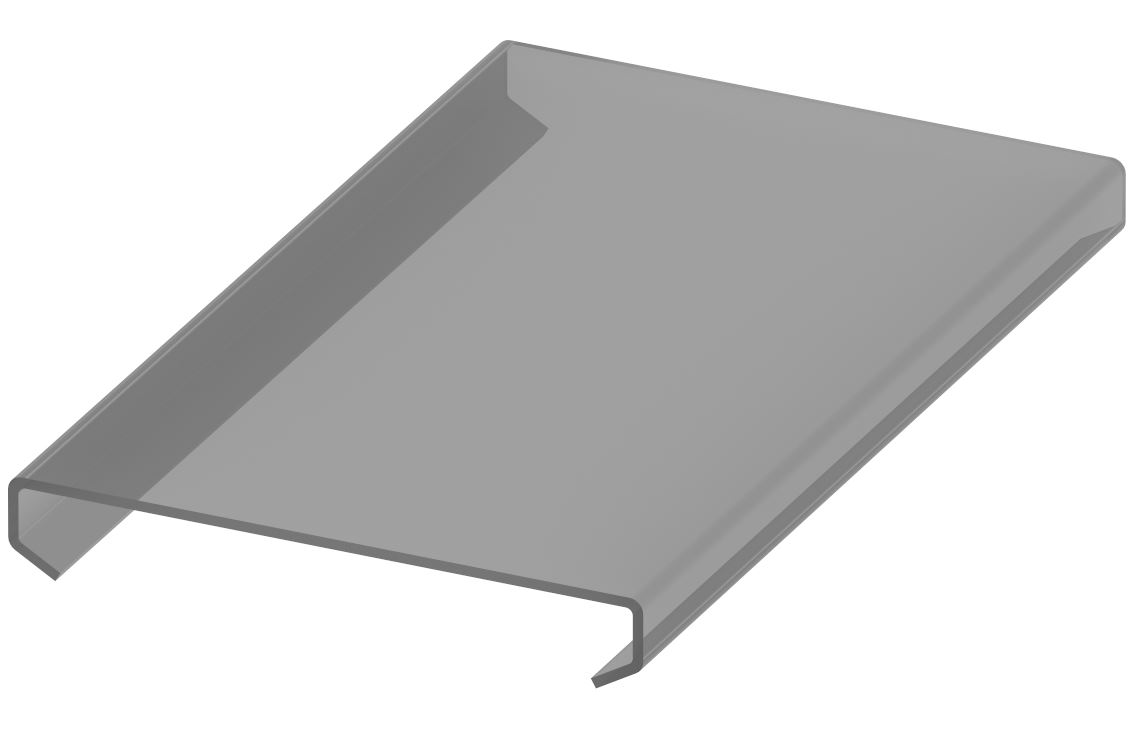

PCPDBF-6

Cover Profile , Type -PCPDBF-6
Height : 14.1 mm
Thickness : 1.5 mm
Length : 85.5 mm

DIN Rail Perforated

CHKDS

35 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm - Perforated
Height : 15 mm
Width : 35 mm
Thickness : 1.5 mm
Length : 2000 mm

CHKS

35 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm - Perforated
Height : 7.5 mm
Width : 35 mm
Thickness : 1 mm

DIN Rail, Unperforated

CHKD

35 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm , Unperforated
Height : 15 mm
Width : 35 mm
Thickness : 1.5 mm

CHK

35 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm , Unperforated
Height : 7.5 mm
Width : 35 mm
Thickness : 1 mm

End Cap

CHKENDCAP

END COVER/ CAP FOR CHK CHANNEL
Height : 14 mm
Width : 9 mm
Length : 41.5 mm

End Clamp

SCUP

TS32 , TS35 din rail mounted end clamp with fixing screws , Type - SCUP
Height : 34 mm
Length : 44.75 mm

SCEC35

TS35 DIN rail mounted End clamp with fixing nut and screw of size M3, Width - 8 mm, Color - Grey
Height : 31.5 mm
Width : 8 mm
Length : 45.8 mm

SCUSL

Universal rail mounted end clamp with fixing screws , Type - SCUSL
Height : 41.1 mm
Width : 8 mm
Length : 47.5 mm

SCUDD

TS35 , TS32 DIN rail mounted end clamp with fixing screws , Width - 10 mm , Type - SCUDD
Height : 50 mm
Width : 10 mm
Length : 55.6 mm

DCKN

TS35 din rail mounted end clamp without fixing screws , Width - 6 mm , Color - Grey
Height : 33 mm
Width : 6 mm
Length : 43.5 mm

DCKN10

TS35 DIN rail mounted end clamp without fixing screws , Width- 10 mm , Color - Grey
Height : 35 mm
Width : 10 mm
Length : 43.5 mm

SCKN

TS35 DIN rail mounted end clamp with fixing screws , Width - 8 mm , Color - Grey
Height : 34.5 mm
Width : 8 mm
Length : 44.9 mm

SCUN

TS35 , TS32 DIN rail mounted end clamp with fixing screws , Width- 9.5 mm , Color - Grey
Height : 35.5 mm
Width : 9.5 mm
Length : 50.6 mm

End Cover

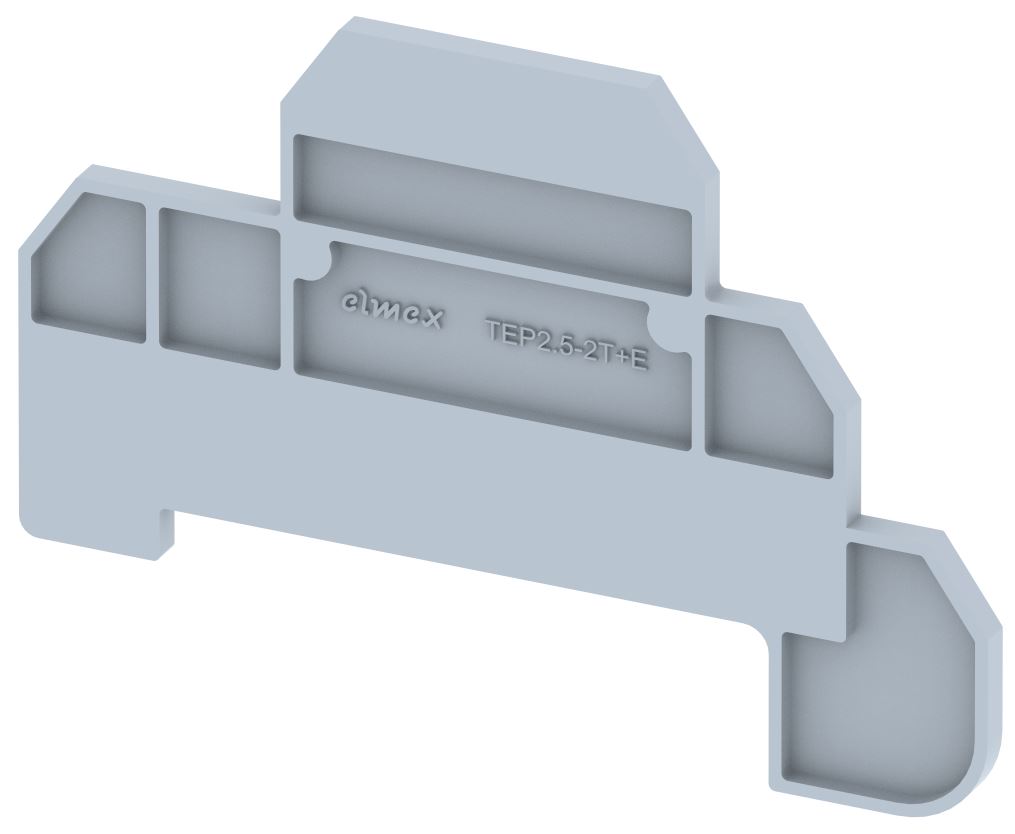

TEP2.5-2T+E

End Cover for terminal type - TQ2.5-2T+E
Height : 52.6 mm
Width : 2.5 mm

Marker For Terminal Blocks

LABEL KN5.5

Snap on type PVC marking Label , Type - KN 5.5
Width : 6 mm

Partition Plate

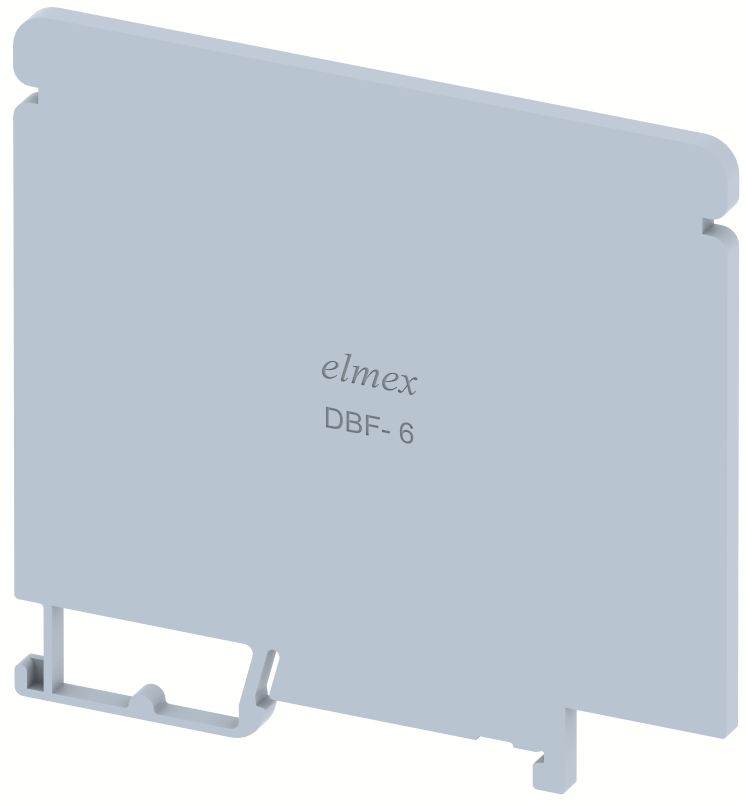

DBF-6

Partition Plate with foot used to support protection cover , Type - DBF-6
Height : 81.5 mm
Width : 3 mm
Length : 85 mm

Plug-in Bridge/Jumper

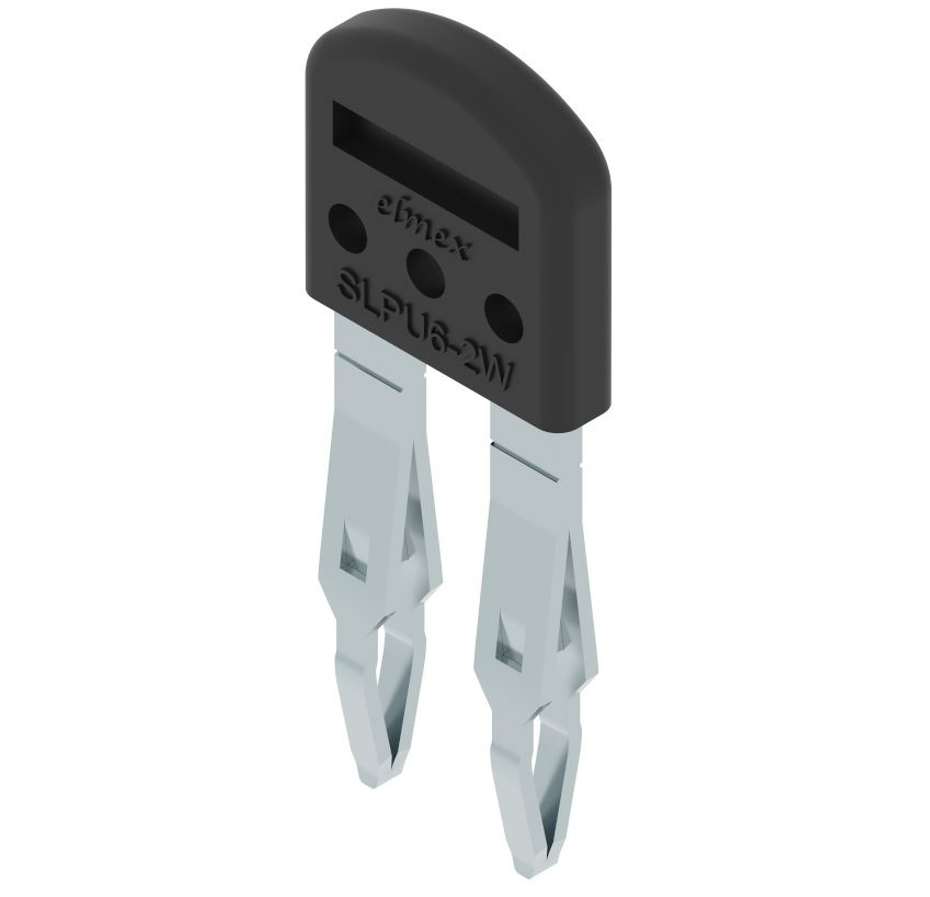

SLPU6-2W

Plug In Bridge, Type – SLPU6-2W
Height : 26 mm
Width : 10.15 mm
Pitch : 6 mm

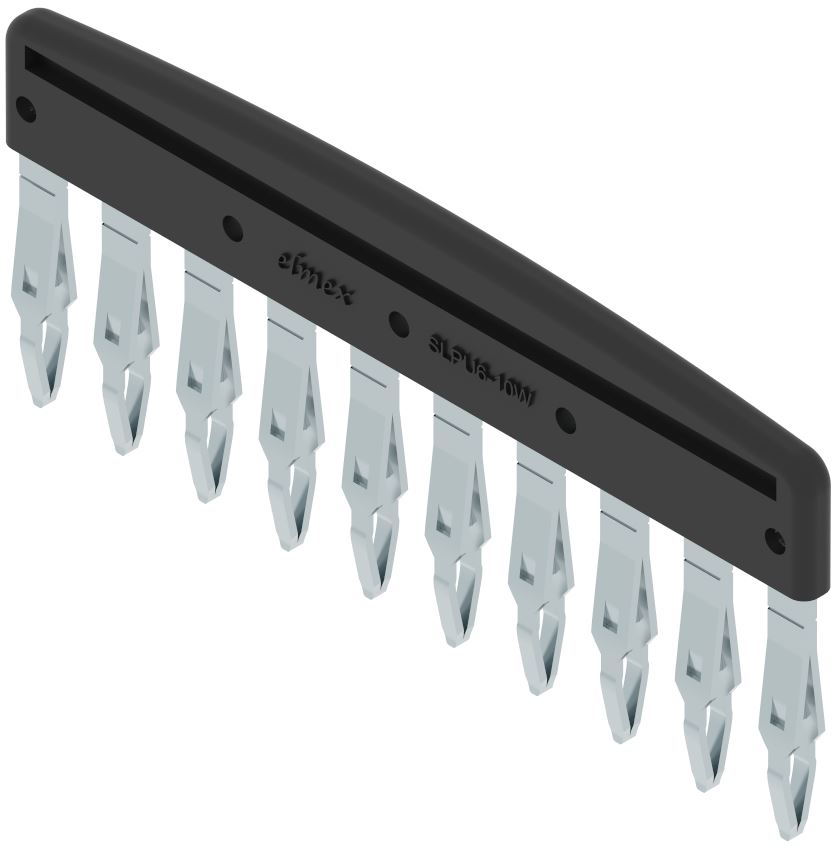

SLPU6-10W

Plug In Bridge, Type – SLPU6-10W
Height : 26 mm
Width : 58.15 mm
Pitch : 6 mm

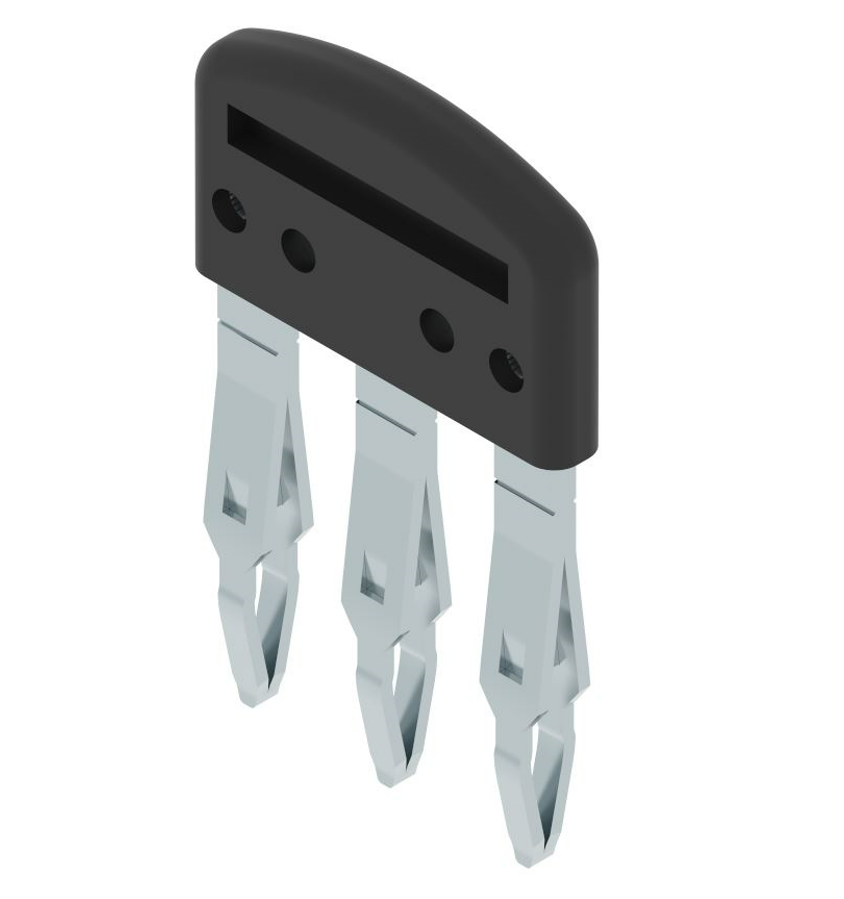

SLPU6-3W

Plug In Bridge, Type – SLPU6-3W
Height : 26 mm
Width : 16.15 mm
Pitch : 6 mm

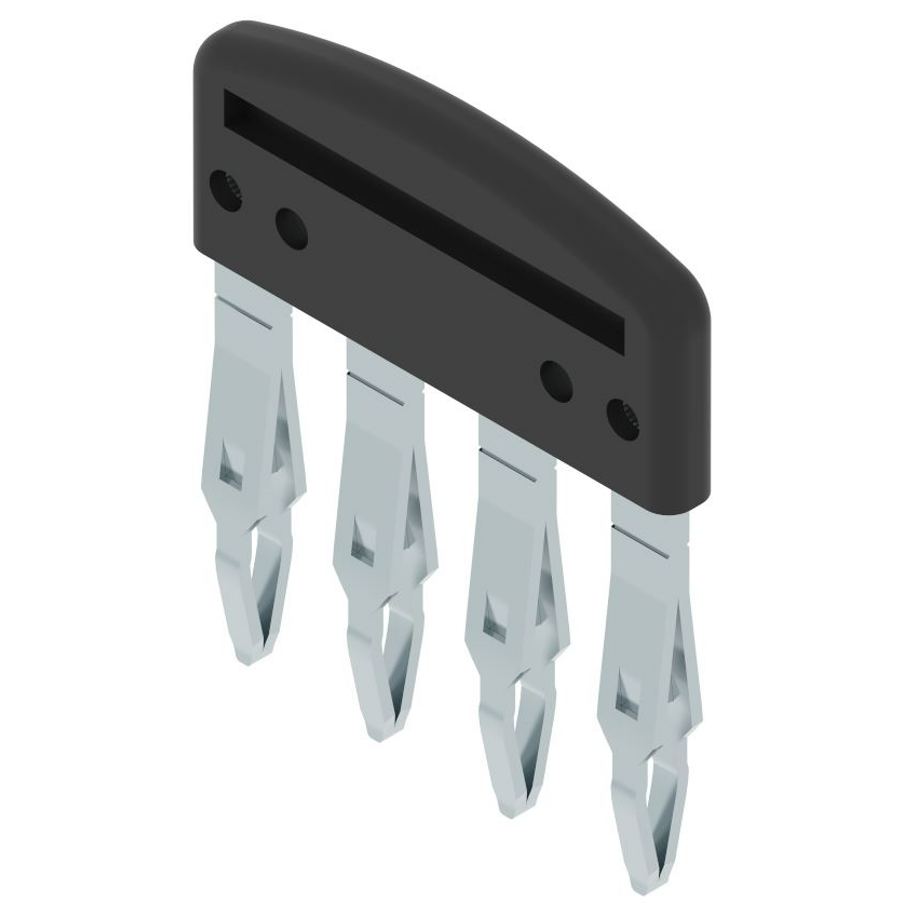

SLPU6-4W

Plug In Bridge, Type – SLPU6-4W
Height : 26 mm
Width : 22.15 mm
Thickness : 2.5 mm
Pitch : 6.25 mm

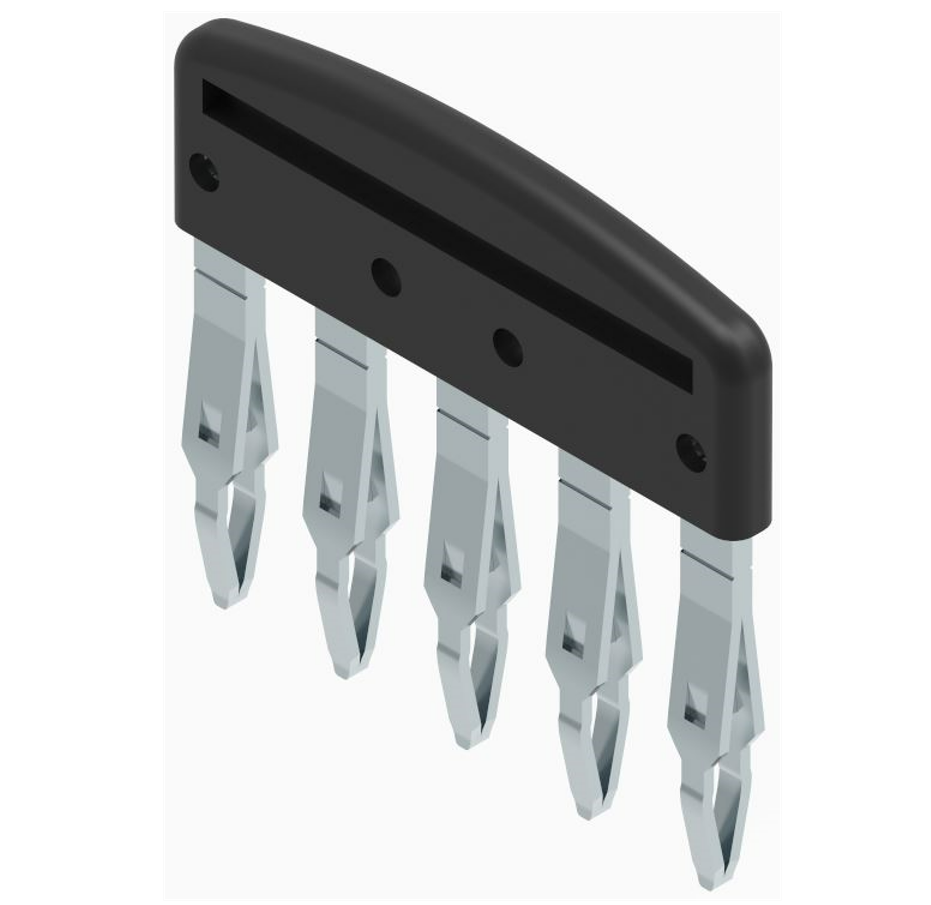

SLPU6-5W

Plug In Bridge, Type – SLPU6-5W
Height : 26 mm
Width : 28.15 mm
Pitch : 6 mm

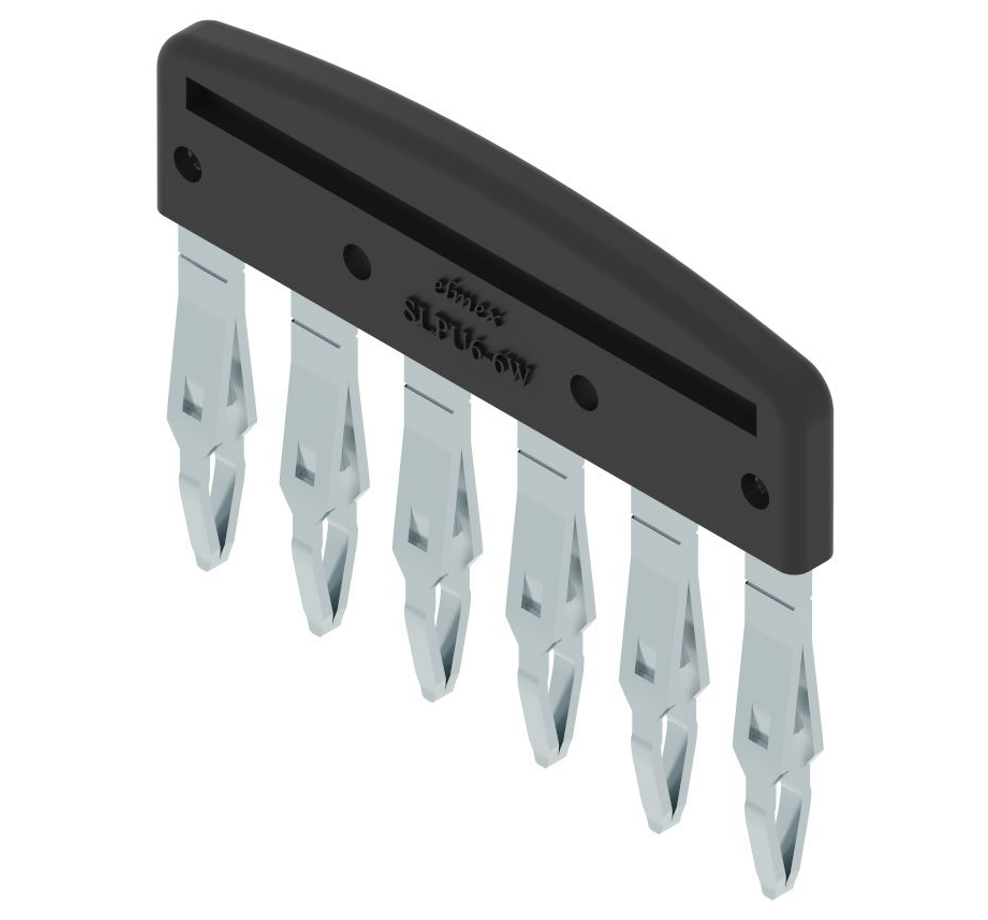

SLPU6-6W

Plug In Bridge, Type – SLPU6-6W
Height : 26 mm
Width : 34.15 mm
Pitch : 6 mm

Marker carriers

SCUDDMLH

Universal rail-mounted end clamp with fixing screws & marking label holder, Type - SCUDDMLH
Height : 71.5 mm
Width : 10 mm
Length : 55.6 mm

SCUNMLH

Universal rail mounted end clamp with fixing screws & marking lable holder , Type - SCUNMLH
Height : 53.5 mm
Width : 9.5 mm
Length : 50.6 mm

DCKNMLH

35 mm rail mounted end clamp with marking lable holder
Height : 45.5 mm
Width : 6 mm
Length : 43.5 mm

SCKNMLH

35 mm rail mounted end clamp with marking lable holder
Height : 45.5 mm
Width : 8 mm
Length : 44.9 mm
