Approvals
Line Diagram
General Data

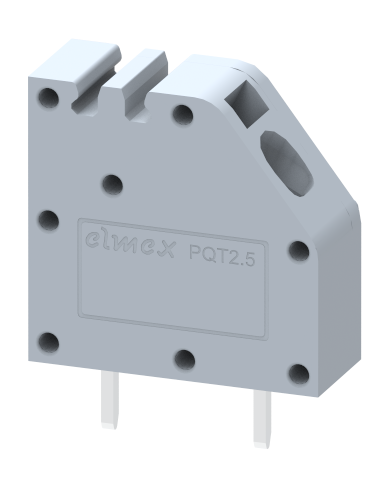

| Type | PQT2.5 |
| Wire termination Technology | Push In Connection |
| Rating | 500 V / 15 A / 2.5 sq.mm |
| GTIN / Harmonize Custom Code | 85389000 |
| Standard Packing Qty (in No) | 250 |
| Country of Origin | India |
| Thickness (mm) | 7.5 |
| Thickness (inches) | 0.3 |
| Width (mm) | 19 |
| Width (inches) | 0.75 |
| Height (mm) | 23.7 |
| Height (inches) | 0.93 |
| Weight For Standard Packing Qty (KG) | 1.08 |
| Housing | Polyamide 6,6 |
| Clamping Material | Spring steel |
| Standard Colour | Gray |
| Stranded Wire - Min (sq.mm) | 0.5 |
| Stranded Wire - Max (sq.mm) | 2.5 |
| Standard | IEC 60947-7-1 |
| Rated Voltage (V) | 500 |
| Rated Current (A) | 15 |
| Rated Cross Section (sq.mm) | 2.5 |
| Short Time Withstand Current (kA) | - |
| Rated Impulse Withstand Voltage (kV) | 2 |
| Pollution Degree | 3 |
