OAT2.5

Approvals

Line Diagram

General Data

Type	OAT2.5
Wire termination Technology	Bolt Connection
Rating	1000 V / 41 A / 6 sq.mm / 0.5 Nm
GTIN / Harmonize Custom Code	85389000
Standard Packing Qty (in No)	50
Country of Origin	India

Data Specification
Downloads

Thickness (mm)	9
Thickness (inches)	0.35
Width (mm)	44.2
Width (inches)	1.74
Height (mm)	45.2
Height (inches)	1.78
Weight For Standard Packing Qty (KG)	0.74

Housing	Polyamide 6,6
Clamping Material	-
Standard Colour	Gray
Other Colour Variants	Red, Yellow, Blue, Black, Green, Khakhi

Stranded Wire - Min (sq.mm)	1.5
Stranded Wire - Max (sq.mm)	6

Standard	IEC 60947-7-1
Rated Voltage (V)	1000
Rated Current (A)	41
Rated Cross Section (sq.mm)	6
Short Time Withstand Current (kA)	0.3
Rated Impulse Withstand Voltage (kV)	8
Pollution Degree	3

Rated Voltage (V)	800
Rated Current (A)	20
Rated Cross Section (sq.mm)	2.5

Rated Voltage (V)	600
Rated Current (A)	15
Wire Cross Section - min (AWG)	20
Wire Cross Section - max (AWG)	14

Rated Voltage (V)	600
Rated Current (A)	15
Conductor Size - min (AWG)	20
Conductor Size - max (AWG)	14

Cover Profile

PCK3

Cover Profile , Type -PCK3
Height : 28 mm
Width : 58.35 mm
Thickness : 1 mm

Cover Profile Carrier

UHDD

Cover profile carrier , Type - UHDD
Height : 74.5 mm
Thickness : 2 mm
Length : 55.82 mm

DIN Rail Perforated

CHS

32 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm - Unperforated
Height : 15 mm
Width : 32 mm
Thickness : 1.5 mm

CHKDS

35 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm - Perforated
Height : 15 mm
Width : 35 mm
Thickness : 1.5 mm
Length : 2000 mm

CHKS

35 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm - Perforated
Height : 7.5 mm
Width : 35 mm
Thickness : 1 mm

DIN Rail, Unperforated

CHKD

35 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm , Unperforated
Height : 15 mm
Width : 35 mm
Thickness : 1.5 mm

CHK

35 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm , Unperforated
Height : 7.5 mm
Width : 35 mm
Thickness : 1 mm

End Cap

CHKENDCAP

END COVER/ CAP FOR CHK CHANNEL
Height : 14 mm
Width : 9 mm
Length : 41.5 mm

End Clamp

SCUP

TS32 , TS35 din rail mounted end clamp with fixing screws , Type - SCUP
Height : 34 mm
Length : 44.75 mm

SCEC35

TS35 DIN rail mounted End clamp with fixing nut and screw of size M3, Width - 8 mm, Color - Grey
Height : 31.5 mm
Width : 8 mm
Length : 45.8 mm

SCUSL

Universal rail mounted end clamp with fixing screws , Type - SCUSL
Height : 41.1 mm
Width : 8 mm
Length : 47.5 mm

DCKN

TS35 din rail mounted end clamp without fixing screws , Width - 6 mm , Color - Grey
Height : 33 mm
Width : 6 mm
Length : 43.5 mm

DCKN10

TS35 DIN rail mounted end clamp without fixing screws , Width- 10 mm , Color - Grey
Height : 35 mm
Width : 10 mm
Length : 43.5 mm

SCKN

TS35 DIN rail mounted end clamp with fixing screws , Width - 8 mm , Color - Grey
Height : 34.5 mm
Width : 8 mm
Length : 44.9 mm

SCUN

TS35 , TS32 DIN rail mounted end clamp with fixing screws , Width- 9.5 mm , Color - Grey
Height : 35.5 mm
Width : 9.5 mm
Length : 50.6 mm

End Cover

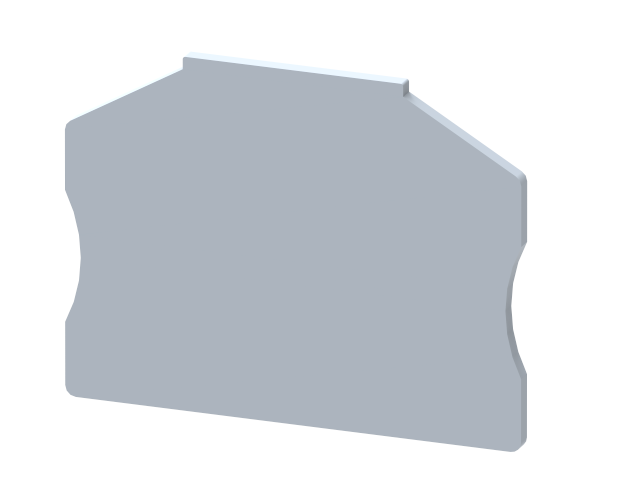

OEP 2.5

OEP2.5 End cover for Terminal type OAT2.5 , colour : GREY
Height : 33.5 mm
Width : 1.5 mm
Length : 43.5 mm

Insertion Bridge

OSL2.5-2W

Insertion Bridge , Type - OSL2.5-2W , Availabel Varient -2W , 4W , 5W , 10W
Width : 15 mm
Pitch : 9 mm
Length : 25.5 mm

OSL2.5-10W

Insertion Bridge , Type - OSL2.5-10W , Availabel Varient -2W , 4W , 5W , 10W
Width : 87 mm
Pitch : 9 mm
Length : 25.5 mm

OSL2.5-4W

Insertion Bridge , Type - OSL2.5-4W , Availabel Varient -2W , 4W , 5W , 10W
Width : 33 mm
Pitch : 9 mm
Length : 25.5 mm

OSL2.5-5W

Insertion Bridge , Type - OSL2.5-5W , Availabel Varient -2W , 4W , 5W , 10W
Width : 48 mm
Pitch : 9 mm
Length : 25.5 mm

Marker For Terminal Blocks

LABEL KN6.5

Snap on type PVC marking Label , Type - KN 6.5
Width : 6.7 mm

Marker carriers

SCUDDMLH

Universal rail-mounted end clamp with fixing screws & marking label holder, Type - SCUDDMLH
Height : 71.5 mm
Width : 10 mm
Length : 55.6 mm

SCUNMLH

Universal rail mounted end clamp with fixing screws & marking lable holder , Type - SCUNMLH
Height : 53.5 mm
Width : 9.5 mm
Length : 50.6 mm

DCKNMLH

35 mm rail mounted end clamp with marking lable holder
Height : 45.5 mm
Width : 6 mm
Length : 43.5 mm

SCKNMLH

35 mm rail mounted end clamp with marking lable holder
Height : 45.5 mm
Width : 8 mm
Length : 44.9 mm

Complete Specification	View Download
Accessories	View Download
Technical	View Download
3D Model (.pdf)	View Download
3D Model (.stp)	Download
