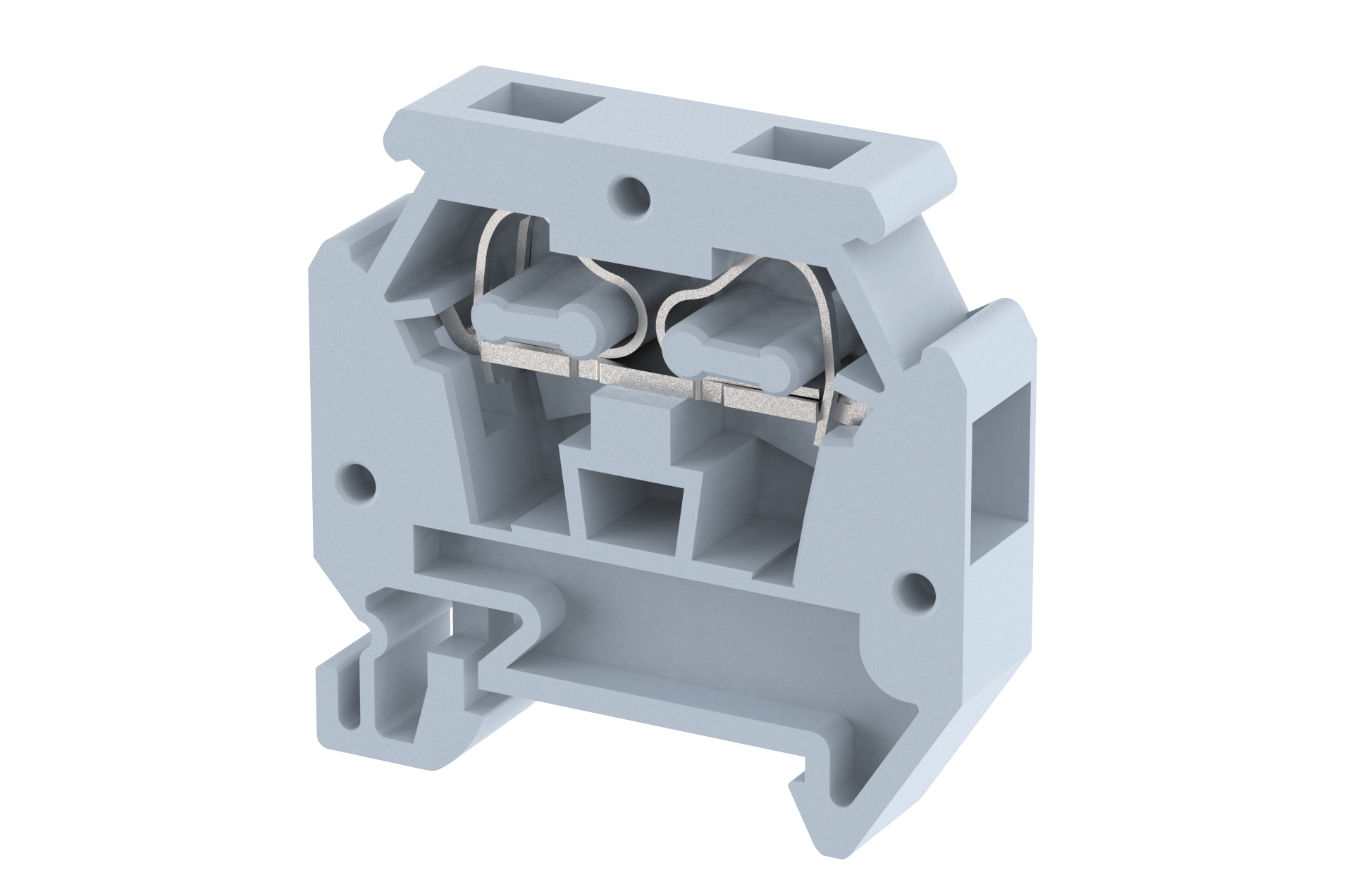

MCT2.5MC

Approvals

CE Mark Conforming to IEC Specification

Line Diagram


General Data

Type MCT2.5MC
Wire termination Technology Spring Cage Connection
Rating 500 V / 24 A / 2.5 sq.mm
GTIN / Harmonize Custom Code 85389000
Standard Packing Qty (in No) 100
Country of Origin India

Thickness (mm) 6
Thickness (inches) 0.24
Width (mm) 28
Width (inches) 1.1
Height (mm) 27
Height (inches) 1.06
Weight For Standard Packing Qty (KG) 0.59

Housing Polyamide 6,6
Clamping Material Spring Steel
Standard Colour Grey
Standard Colour Gray
Other Colour Variants Red, Yellow, Blue, Black, Green, Khakhi

Stranded Wire - Min (sq.mm) 0.5
Stranded Wire - Max (sq.mm) 2.5

Standard IEC 60947-7-1
Rated Voltage (V) 500
Rated Current (A) 24
Rated Cross Section (sq.mm) 2.5
Short Time Withstand Current (kA) 0.3
Rated Impulse Withstand Voltage (kV) 6
Pollution Degree 3

DIN Rail Perforated
CHM
  • 15 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm , Perforated
  • Height : 5 mm
  • Width : 15 mm
  • Thickness : 1 mm
End Clamp
SCMN
  • 15 mm rail mounted end clamp with fixing screws(Type – SCMN) , colour : GREY
  • Height : 18 mm
  • Width : 6.1 mm
  • Length : 23.5 mm

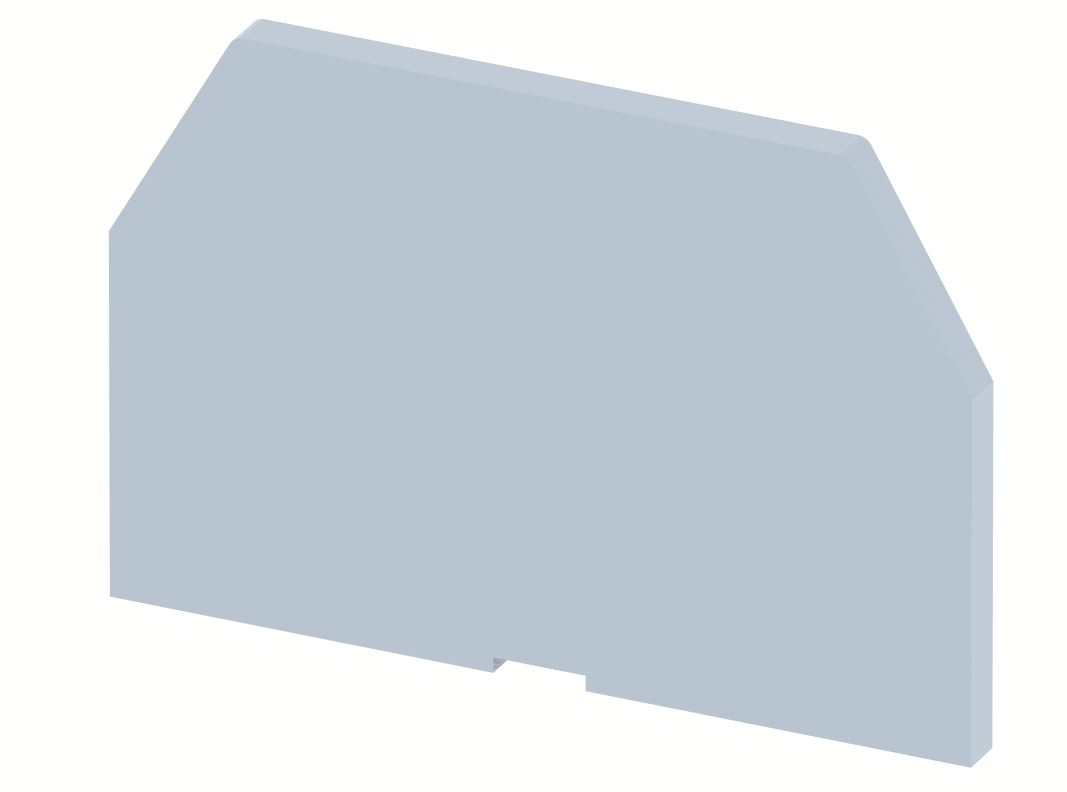

End Cover
MEP2.5MC
  • MEP2.5MC End cover for Terminal type MCT2.5MC , colour : GREY
  • Height : 19 mm
  • Width : 1.2 mm
  • Length : 28 mm

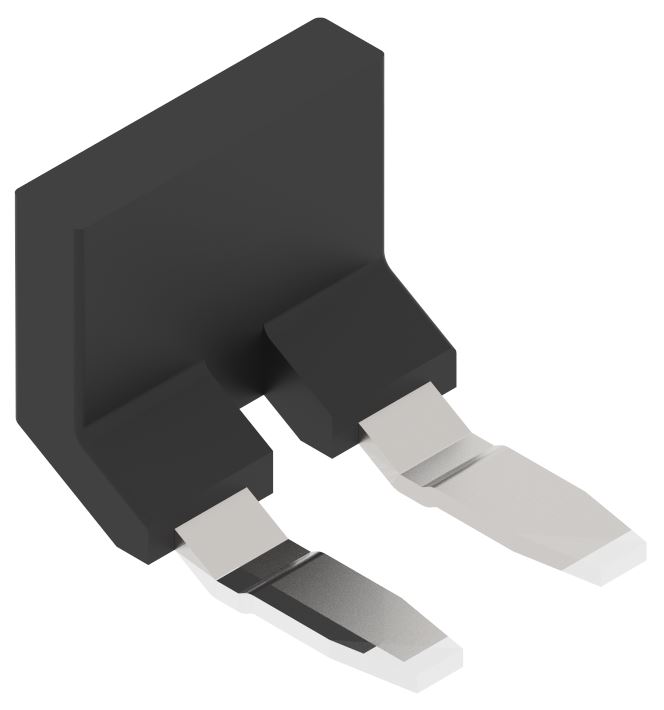

Insertion Bridge
MSL2.5
  • Insertion Bridge , Type – MSL2.5
  • Width : 10.3 mm
  • Pitch : 5.95 mm
  • Length : 15.14 mm
Marker For Terminal Blocks
LABEL KN5.5
  • Snap on type PVC marking Label , Type - KN 5.5
  • Width : 6 mm
Partition Plate
MBX
  • Partition plate with foot , type - MBX
  • Height : 36.7 mm
  • Width : 1.5 mm
  • Length : 42.7 mm
Marker carriers
SCUDDMLH
  • Universal rail-mounted end clamp with fixing screws & marking label holder, Type - SCUDDMLH
  • Height : 71.5 mm
  • Width : 10 mm
  • Length : 55.6 mm
SCUNMLH
  • Universal rail mounted end clamp with fixing screws & marking lable holder , Type - SCUNMLH
  • Height : 53.5 mm
  • Width : 9.5 mm
  • Length : 50.6 mm
DCKNMLH
  • 35 mm rail mounted end clamp with marking lable holder
  • Height : 45.5 mm
  • Width : 6 mm
  • Length : 43.5 mm
SCKNMLH
  • 35 mm rail mounted end clamp with marking lable holder
  • Height : 45.5 mm
  • Width : 8 mm
  • Length : 44.9 mm
