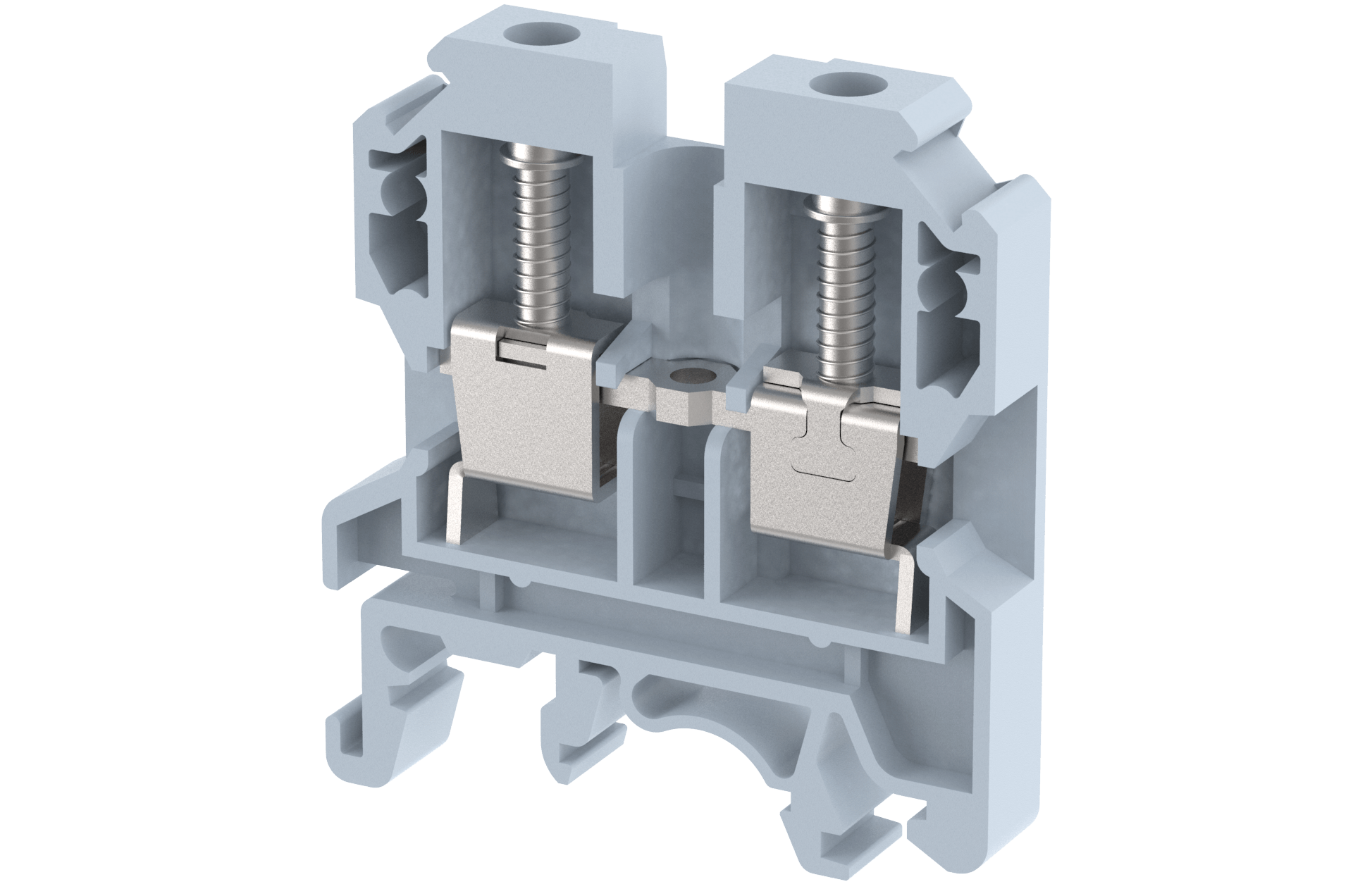

KUT4

Approvals

Line Diagram

General Data

Type	KUT4
Wire termination Technology	Screw Connection
Rating	800 V / 32 A / 4 sq.mm / 0.5 Nm
GTIN / Harmonize Custom Code	85389000
Standard Packing Qty (in No)	100
Country of Origin	India

Data Specification
Downloads

Thickness (mm)	6.7
Thickness (inches)	0.26
Width (mm)	42.5
Width (inches)	1.67
Height (mm)	46.4
Height (inches)	1.83
Weight For Standard Packing Qty (KG)	1.19

Housing	Polyamide 6,6
Clamping Material	CRCA
Standard Colour	Grey
Other Colour Variants	Red, Yellow, Blue, Black, Green, Khakhi
Standard Colour	Gray

Stranded Wire - Min (sq.mm)	0.5
Stranded Wire - Max (sq.mm)	4
Solid Wire - Max (sq.mm)	6

Standard	IEC 60947-7-1
Rated Voltage (V)	800
Rated Current (A)	32
Rated Cross Section (sq.mm)	4
Short Time Withstand Current (kA)	0.48
Rated Impulse Withstand Voltage (kV)	8
Pollution Degree	3

Rated Voltage (V)	500
Rated Current (A)	32
Rated Cross Section (sq.mm)	4

Rated Voltage (V)	600
Rated Current (A)	35
Wire Cross Section - min (AWG)	20
Wire Cross Section - max (AWG)	10

Rated Voltage (V)	600
Rated Current (A)	35
Conductor Size - min (AWG)	20
Conductor Size - max (AWG)	10

Cover Profile

PCK3

Cover Profile , Type -PCK3
Height : 28 mm
Width : 58.35 mm
Thickness : 1 mm

PCPDBF-4

Cover Profile , Type -PCPDBF-4
Height : 13.1 mm
Thickness : 1 mm
Length : 95 mm

Cover Profile Carrier

UHDD

Cover profile carrier , Type - UHDD
Height : 74.5 mm
Thickness : 2 mm
Length : 55.82 mm

DIN Rail Perforated

CHM

15 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm , Perforated
Height : 5 mm
Width : 15 mm
Thickness : 1 mm

CHS

32 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm - Unperforated
Height : 15 mm
Width : 32 mm
Thickness : 1.5 mm

CHKDS

35 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm - Perforated
Height : 15 mm
Width : 35 mm
Thickness : 1.5 mm
Length : 2000 mm

CHKS

35 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm - Perforated
Height : 7.5 mm
Width : 35 mm
Thickness : 1 mm

DIN Rail, Unperforated

CHKD

35 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm , Unperforated
Height : 15 mm
Width : 35 mm
Thickness : 1.5 mm

CHK

35 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm , Unperforated
Height : 7.5 mm
Width : 35 mm
Thickness : 1 mm

End Cap

CHKENDCAP

END COVER/ CAP FOR CHK CHANNEL
Height : 14 mm
Width : 9 mm
Length : 41.5 mm

End Clamp

SCUP

TS32 , TS35 din rail mounted end clamp with fixing screws , Type - SCUP
Height : 34 mm
Length : 44.75 mm

SCEC35

TS35 DIN rail mounted End clamp with fixing nut and screw of size M3, Width - 8 mm, Color - Grey
Height : 31.5 mm
Width : 8 mm
Length : 45.8 mm

SCUSL

Universal rail mounted end clamp with fixing screws , Type - SCUSL
Height : 41.1 mm
Width : 8 mm
Length : 47.5 mm

SCUDD

TS35 , TS32 DIN rail mounted end clamp with fixing screws , Width - 10 mm , Type - SCUDD
Height : 50 mm
Width : 10 mm
Length : 55.6 mm

DCKN

TS35 din rail mounted end clamp without fixing screws , Width - 6 mm , Color - Grey
Height : 33 mm
Width : 6 mm
Length : 43.5 mm

DCKN10

TS35 DIN rail mounted end clamp without fixing screws , Width- 10 mm , Color - Grey
Height : 35 mm
Width : 10 mm
Length : 43.5 mm

SCKN

TS35 DIN rail mounted end clamp with fixing screws , Width - 8 mm , Color - Grey
Height : 34.5 mm
Width : 8 mm
Length : 44.9 mm

SCUN

TS35 , TS32 DIN rail mounted end clamp with fixing screws , Width- 9.5 mm , Color - Grey
Height : 35.5 mm
Width : 9.5 mm
Length : 50.6 mm

End Cover

KPX

KPX End cover for Terminal type KUT 4 , KST4UWS , KUT 6 ,KUT 10.
Height : 36 mm
Thickness : 1.5 mm
Length : 40 mm

Fixed Bridge

CCLA2.5-10W

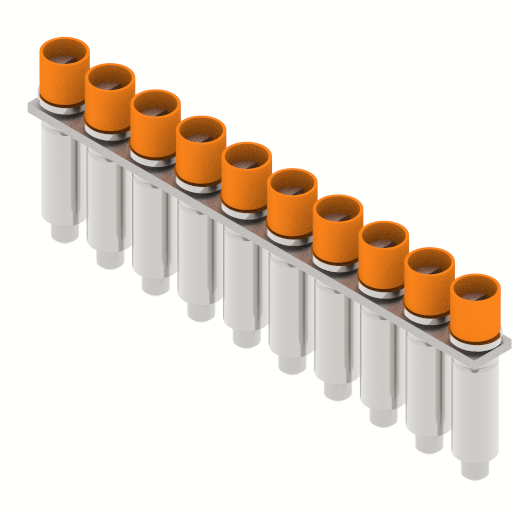

Fixed bridge , type - CCLA2.5-10W
Height : 20 mm
Pitch : 6.75 mm
Length : 66.1 mm

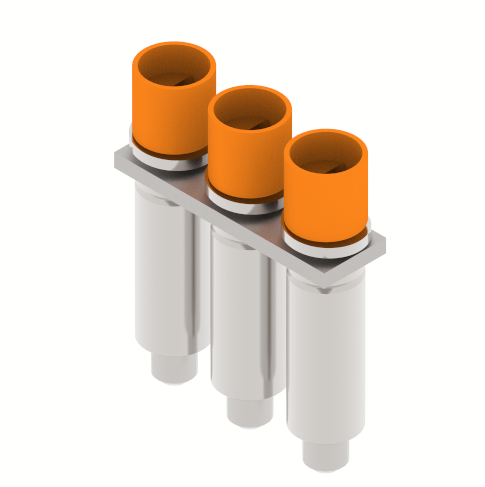

CCLA2.5-3W

Fixed bridge , type - CCLA2.5-3W
Height : 20 mm
Pitch : 6.75 mm
Length : 18.7 mm

CCLA2.5-4W

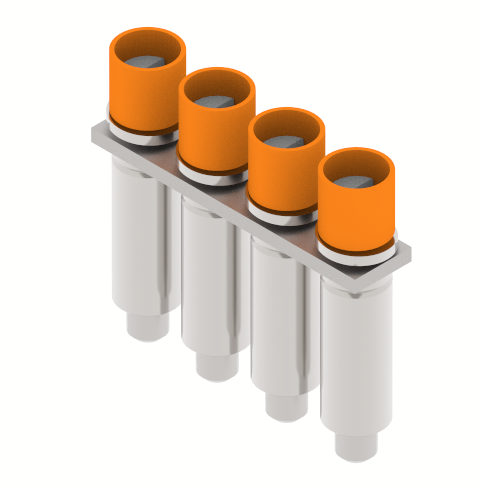

Fixed bridge , type - CCLA2.5-4W
Height : 20 mm
Pitch : 6.75 mm
Length : 25.6 mm

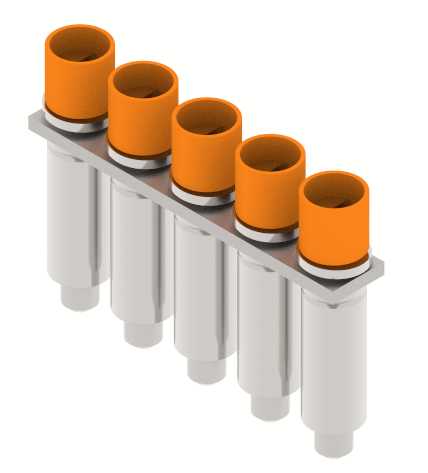

CCLA2.5-5W

Fixed bridge , type - CCLA2.5-5W
Height : 20 mm
Pitch : 6.75 mm
Length : 32.35 mm

CCLA2.5-6W

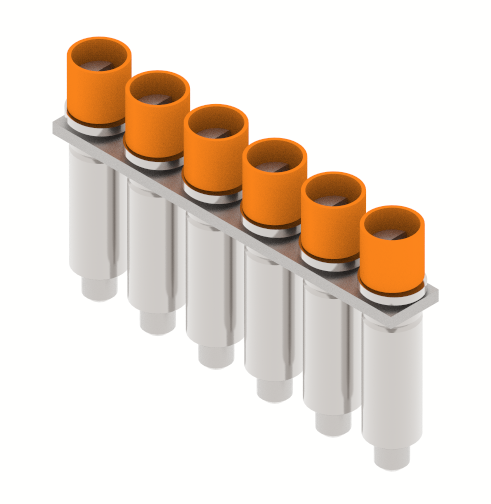

Fixed bridge , type - CCLA2.5-6W
Height : 20 mm
Pitch : 6.75 mm
Length : 39 mm

CCLA2.5-8W

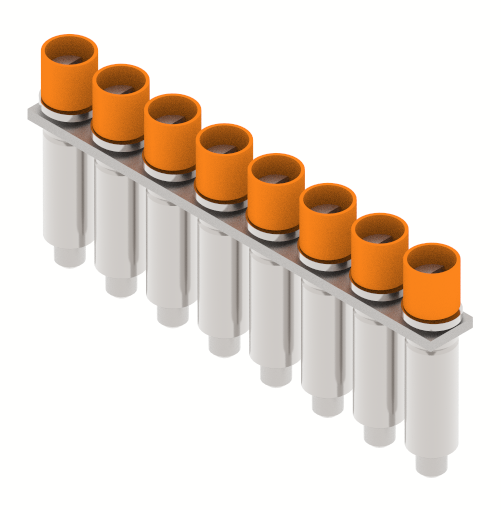

Fixed bridge , type - CCLA2.5-8W
Height : 20 mm
Pitch : 6.75 mm
Length : 52.6 mm

CCLA2.5-2W

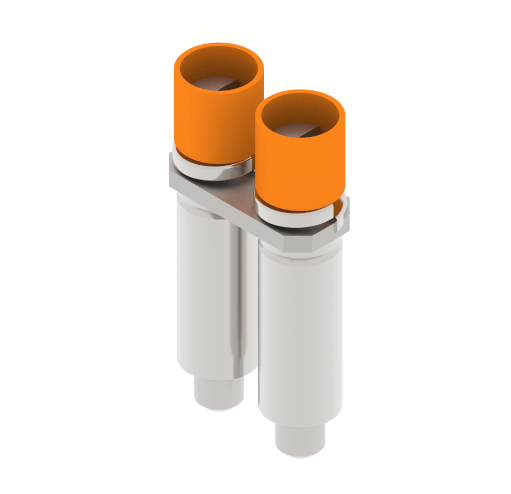

Fixed bridge , type - CCLA2.5-2W
Height : 20 mm
Pitch : 6.75 mm
Length : 11.9 mm

Insertion Bridge

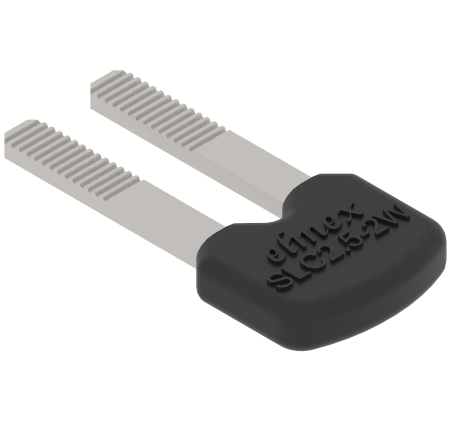

SLC2.5-2W

Insertion Bridge - Type - SLC2.5-2W , Available Variants : 2W, 4W , 5W , 10W
Width : 12.5 mm
Pitch : 6.7 mm
Length : 26 mm

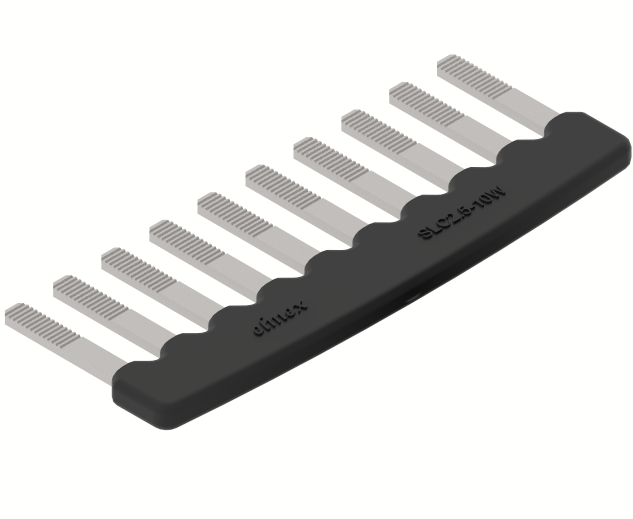

SLC2.5-10W

Insertion Bridge - Type - SLC2.5-2W , Available Variants : 2W, 4W , 5W , 10W
Width : 65.1 mm
Pitch : 6.7 mm
Length : 25 mm

SLC2.5-4W

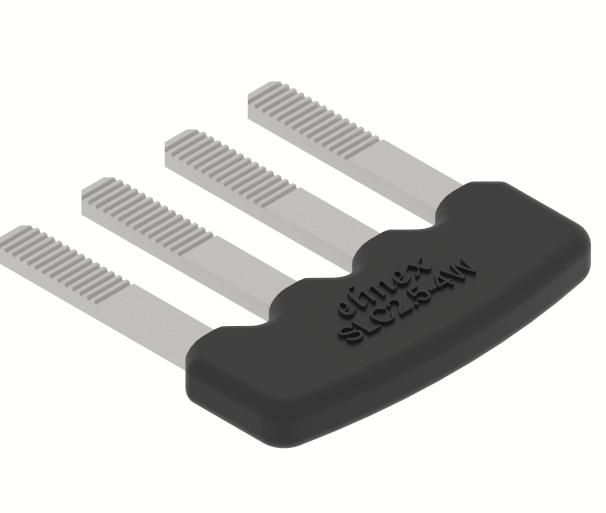

Insertion bridge - SLC2.5-4W
Width : 24.9 mm
Pitch : 6.7 mm
Length : 25 mm

SLC2.5-5W

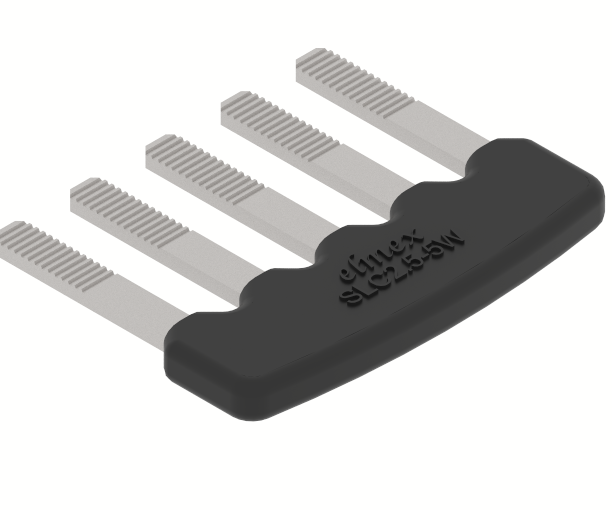

Insertion Bridge - Type - SLC2.5-5W , Available Variants : 2W, 4W , 5W , 10W
Width : 31.6 mm
Pitch : 6.7 mm
Length : 25 mm

Marker For Terminal Blocks

LABEL KN6.5

Snap on type PVC marking Label , Type - KN 6.5
Width : 6.7 mm

Partition Plate

KBXF

Patition Plate With Foot ,Type - KBXF
Height : 53.4 mm
Thickness : 1.5 mm
Length : 54 mm

KBX

Partition Plate without foot
Height : 43 mm
Thickness : 1.5 mm
Length : 54 mm

Spacer Plate

SBN1

Circuit separator for KUT2.5 ,KUT2.5N , KUT4 and KUT4N
Height : 12.1 mm
Width : 1.37 mm
Length : 13.2 mm

Switching Jumper

LSR2.5-6

Switching Jumper , Type - LSR2.5-6
Height : 23 mm
Width : 5 mm

RSL2.5

Switching Jumper , Type - RSL2.5
Thickness : 1.2 mm
Pitch : 6.6 mm
Length : 12.6 mm

Warning Label

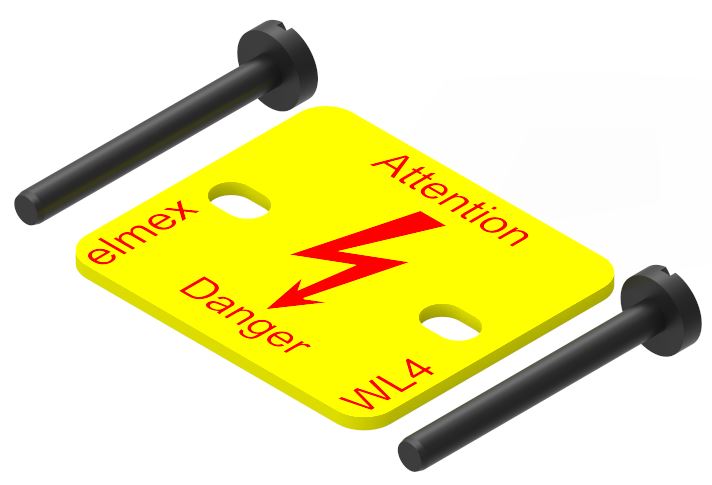

WL4

Warning Label , Type - WL4
Height : 25.2 mm
Thickness : 1.1 mm
Length : 28.8 mm

Marker carriers

SCUDDMLH

Universal rail-mounted end clamp with fixing screws & marking label holder, Type - SCUDDMLH
Height : 71.5 mm
Width : 10 mm
Length : 55.6 mm

SCUNMLH

Universal rail mounted end clamp with fixing screws & marking lable holder , Type - SCUNMLH
Height : 53.5 mm
Width : 9.5 mm
Length : 50.6 mm

GMH10

Group Marking Holder with 10 mm pitch
Height : 51 mm
Width : 10 mm
Length : 41.5 mm

GMH 20

Group Marking Holder with 20 mm pitch
Height : 51 mm
Width : 20 mm
Length : 41.5 mm

DCKNMLH

35 mm rail mounted end clamp with marking lable holder
Height : 45.5 mm
Width : 6 mm
Length : 43.5 mm

SCKNMLH

35 mm rail mounted end clamp with marking lable holder
Height : 45.5 mm
Width : 8 mm
Length : 44.9 mm

Complete Specification	View Download
Accessories	View Download
Technical	View Download
3D Model (.pdf)	View Download
3D Model (.stp)	Download
