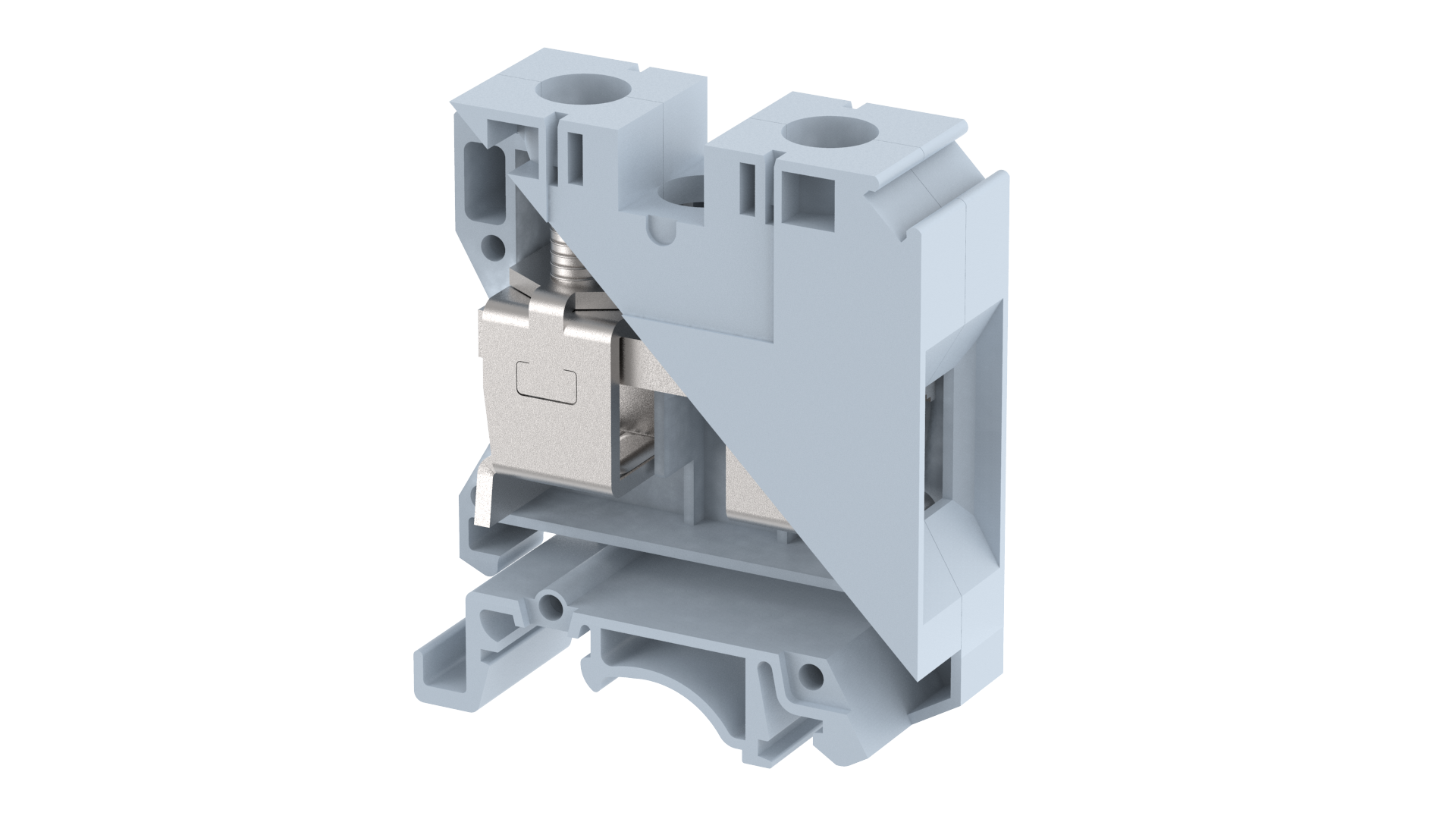

KUT35

Approvals

Line Diagram

General Data

Type	KUT35
Wire termination Technology	Screw Connection
Rating	1000 V / 125 A / 35 sq.mm / 3 Nm
GTIN / Harmonize Custom Code	85389000
Standard Packing Qty (in No)	50
Country of Origin	India

Data Specification
Downloads

Thickness (mm)	17
Thickness (inches)	0.67
Width (mm)	51
Width (inches)	2.01
Height (mm)	58
Height (inches)	2.28
Weight For Standard Packing Qty (kg)	2.9

Housing	Polyamide 6,6
Clamping Material	CRCA
Standard Colour	Grey
Other Colour Variants	Red, Yellow, Blue, Black, Green, Khakhi
Standard Colour	Gray

Stranded Wire - Min (sq.mm)	10
Stranded Wire - Max (sq.mm)	35
Solid Wire - Max (sq.mm)	50

Standard	IEC-60947-7-1
Rated Voltage (V)	1000
Rated Current (A)	125
Rated Cross Section (sq.mm)	35
Short Time Withstand Current (kA)	4.2
Rated Impulse Withstand Voltage (kV)	8
Pollution Degree	3

Rated Voltage (V)	630
Rated Current (A)	125
Rated Cross Section (sq.mm)	35

Rated Voltage (V)	600
Rated Current (A)	140
Wire Cross Section - min (AWG)	14
Wire Cross Section - max (AWG)	1

Rated Voltage (V)	600
Rated Current (A)	140
Conductor Size - min (AWG)	14
Conductor Size - max (AWG)	1

Cover Profile

PCK3

Cover Profile , Type -PCK3
Height : 28 mm
Width : 58.35 mm
Thickness : 1 mm

Cover Profile Carrier

UHDD

Cover profile carrier , Type - UHDD
Height : 74.5 mm
Thickness : 2 mm
Length : 55.82 mm

DIN Rail Perforated

CHS

32 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm - Unperforated
Height : 15 mm
Width : 32 mm
Thickness : 1.5 mm

CHKDS

35 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm - Perforated
Height : 15 mm
Width : 35 mm
Thickness : 1.5 mm
Length : 2000 mm

CHKS

35 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm - Perforated
Height : 7.5 mm
Width : 35 mm
Thickness : 1 mm

DIN Rail, Unperforated

CHKD

35 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm , Unperforated
Height : 15 mm
Width : 35 mm
Thickness : 1.5 mm

CHK

35 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm , Unperforated
Height : 7.5 mm
Width : 35 mm
Thickness : 1 mm

End Cap

CHKENDCAP

END COVER/ CAP FOR CHK CHANNEL
Height : 14 mm
Width : 9 mm
Length : 41.5 mm

End Clamp

SCUP

TS32 , TS35 din rail mounted end clamp with fixing screws , Type - SCUP
Height : 34 mm
Length : 44.75 mm

SCEC35

TS35 DIN rail mounted End clamp with fixing nut and screw of size M3, Width - 8 mm, Color - Grey
Height : 31.5 mm
Width : 8 mm
Length : 45.8 mm

SCUSL

Universal rail mounted end clamp with fixing screws , Type - SCUSL
Height : 41.1 mm
Width : 8 mm
Length : 47.5 mm

SCUDD

TS35 , TS32 DIN rail mounted end clamp with fixing screws , Width - 10 mm , Type - SCUDD
Height : 50 mm
Width : 10 mm
Length : 55.6 mm

DCKN

TS35 din rail mounted end clamp without fixing screws , Width - 6 mm , Color - Grey
Height : 33 mm
Width : 6 mm
Length : 43.5 mm

DCKN10

TS35 DIN rail mounted end clamp without fixing screws , Width- 10 mm , Color - Grey
Height : 35 mm
Width : 10 mm
Length : 43.5 mm

SCKN

TS35 DIN rail mounted end clamp with fixing screws , Width - 8 mm , Color - Grey
Height : 34.5 mm
Width : 8 mm
Length : 44.9 mm

SCUN

TS35 , TS32 DIN rail mounted end clamp with fixing screws , Width- 9.5 mm , Color - Grey
Height : 35.5 mm
Width : 9.5 mm
Length : 50.6 mm

Fixed Bridge

CCLA35K-2W

Fixed Bridge , Type – CCLA35K-2W
Height : 27 mm
Pitch : 17 mm
Length : 25.5 mm

CCLA35K-10W

Fixed Bridge , Type – CCLA35K-10W
Height : 27 mm
Pitch : 17 mm
Length : 165 mm

CCLA35K-3W

Fixed Bridge , Type – CCLA35K-3W
Height : 27 mm
Pitch : 17 mm
Length : 42.5 mm

CCLA35K-4W

Fixed Bridge , Type – CCLA35K-4W
Height : 27 mm
Pitch : 17 mm
Length : 60 mm

CCLA35K-5W

Fixed Bridge , Type – CCLA35K-5W
Height : 27 mm
Pitch : 17 mm
Length : 77.5 mm

Marker For Terminal Blocks

LABEL KN17

Snap on type PVC marking Label , Type - KN 17
Width : 17 mm

Partition Plate

KBZF

END PLATE
Height : 65 mm
Width : 1.5 mm
Length : 65 mm

Switching Jumper

LSR35K

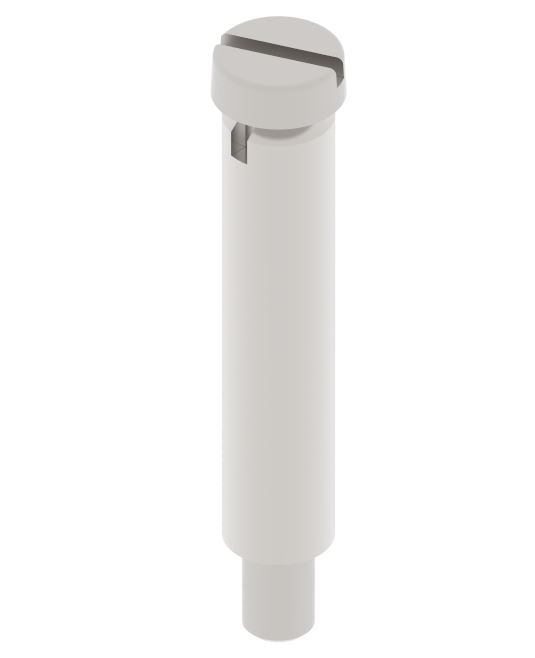

Switching Jumper , Type - LSR35K
Height : 29.5 mm
Width : 6.5 mm

RSL35K

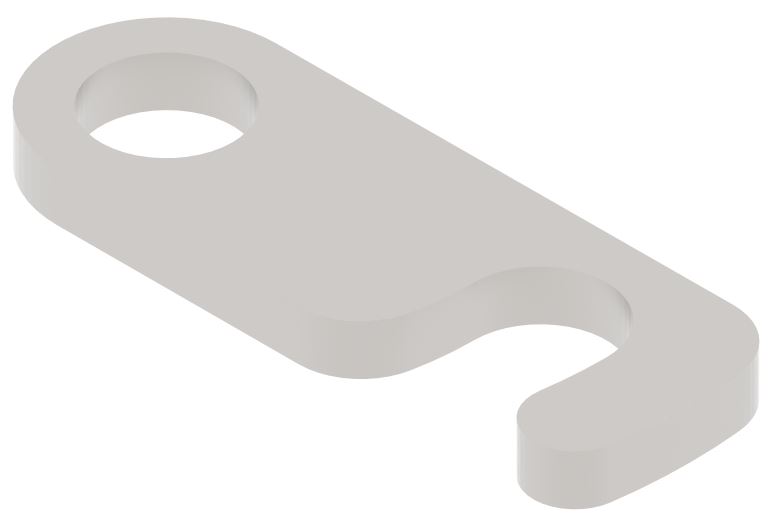

Switching Jumper , Type - RSL35K
Thickness : 1.6 mm
Pitch : 17 mm
Length : 26.7 mm

Warning Label

WL35

Warning Label , Type - WL35
Width : 35 mm
Thickness : 1.5 mm
Length : 74 mm

Marker carriers

SCUDDMLH

Universal rail-mounted end clamp with fixing screws & marking label holder, Type - SCUDDMLH
Height : 71.5 mm
Width : 10 mm
Length : 55.6 mm

SCUNMLH

Universal rail mounted end clamp with fixing screws & marking lable holder , Type - SCUNMLH
Height : 53.5 mm
Width : 9.5 mm
Length : 50.6 mm

DCKNMLH

35 mm rail mounted end clamp with marking lable holder
Height : 45.5 mm
Width : 6 mm
Length : 43.5 mm

SCKNMLH

35 mm rail mounted end clamp with marking lable holder
Height : 45.5 mm
Width : 8 mm
Length : 44.9 mm

Complete Specification	View Download
Accessories	View Download
Technical	View Download
3D Model (.pdf)	Not Available.
3D Model (.stp)	Download
