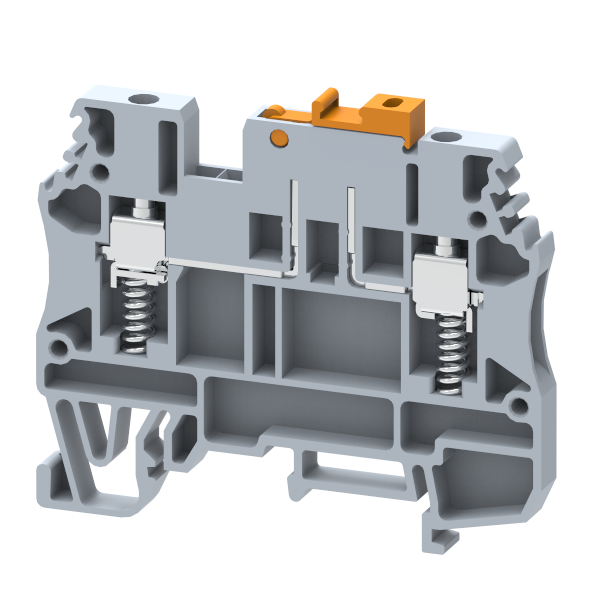

DUTKD2.5TSWS

Approvals

Line Diagram

General Data

Type	DUTKD2.5TSWS
Wire termination Technology	Screw Connection with spring support
Rating	1000 V / 24 A / 2.5 sq.mm / 0.4 Nm
GTIN / Harmonize Custom Code	85389000
Standard Packing Qty (in No)	0
Country of Origin	India

Data Specification
Downloads

Housing	Polyamide 6,6
Clamping Material	CRCA
Standard Colour	Gray
Other Colour Variants	Red, Yellow, Blue, Black, Green, Khakhi

Stranded Wire - Min (sq.mm)	0.5
Stranded Wire - Max (sq.mm)	2.5
Solid Wire - Max (sq.mm)	4

Standard	IEC 60947-7-1
Rated Voltage (V)	1000
Rated Current (A)	24
Rated Cross Section (sq.mm)	2.5
Short Time Withstand Current (kA)	0.3
Rated Impulse Withstand Voltage (kV)	8
Pollution Degree	3

Cover Profile

PCK3

Cover Profile , Type -PCK3
Height : 28 mm
Width : 58.35 mm
Thickness : 1 mm

Cover Profile Carrier

UHDD

Cover profile carrier , Type - UHDD
Height : 74.5 mm
Thickness : 2 mm
Length : 55.82 mm

DIN Rail Perforated

CHS

32 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm - Unperforated
Height : 15 mm
Width : 32 mm
Thickness : 1.5 mm

CHKDS

35 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm - Perforated
Height : 15 mm
Width : 35 mm
Thickness : 1.5 mm
Length : 2000 mm

CHKS

35 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm - Perforated
Height : 7.5 mm
Width : 35 mm
Thickness : 1 mm

DIN Rail, Unperforated

CHKD

35 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm , Unperforated
Height : 15 mm
Width : 35 mm
Thickness : 1.5 mm

CHK

35 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm , Unperforated
Height : 7.5 mm
Width : 35 mm
Thickness : 1 mm

End Cap

CHKENDCAP

END COVER/ CAP FOR CHK CHANNEL
Height : 14 mm
Width : 9 mm
Length : 41.5 mm

End Clamp

SCUP

TS32 , TS35 din rail mounted end clamp with fixing screws , Type - SCUP
Height : 34 mm
Length : 44.75 mm

SCUSL

Universal rail mounted end clamp with fixing screws , Type - SCUSL
Height : 41.1 mm
Width : 8 mm
Length : 47.5 mm

SCUDD

TS35 , TS32 DIN rail mounted end clamp with fixing screws , Width - 10 mm , Type - SCUDD
Height : 50 mm
Width : 10 mm
Length : 55.6 mm

DCKN

TS35 din rail mounted end clamp without fixing screws , Width - 6 mm , Color - Grey
Height : 33 mm
Width : 6 mm
Length : 43.5 mm

DCKN10

TS35 DIN rail mounted end clamp without fixing screws , Width- 10 mm , Color - Grey
Height : 35 mm
Width : 10 mm
Length : 43.5 mm

SCUN

TS35 , TS32 DIN rail mounted end clamp with fixing screws , Width- 9.5 mm , Color - Grey
Height : 35.5 mm
Width : 9.5 mm
Length : 50.6 mm

End Cover

DUTKD4EP

DUTKD4EP End cover for Terminal type DUTKD4 and DUTKD2.5.
Height : 38.2 mm
Width : 1.5 mm
Length : 62 mm

Marker For Terminal Blocks

LABEL KN5

Snap on type PVC marking Label , Type - KN 5
Width : 5 mm

Partition Plate

KBZF

END PLATE
Height : 65 mm
Width : 1.5 mm
Length : 65 mm

Plug-in Bridge/Jumper

SLPU5-2W

Plug In Bridge, Type – SLPU5-2W
Height : 26 mm
Width : 9.15 mm
Pitch : 5 mm

SLPU5-3W

Plug In Bridge, Type – SLPU5-3W
Height : 26 mm
Width : 14.15 mm
Pitch : 5 mm

SLPU5-10W

Plug In Bridge, Type – SLPU5-10W
Height : 26 mm
Width : 49.15 mm
Pitch : 5 mm

SLPU5-4W

Plug In Bridge, Type – SLPU5-4W
Height : 26 mm
Width : 19.15 mm
Pitch : 5 mm

SLPU5-5W

Plug In Bridge, Type – SLPU5-5W
Height : 26 mm
Width : 24.15 mm
Pitch : 5 mm

SLPU5-6W

Plug In Bridge, Type – SLPU5-6W
Height : 26 mm
Width : 29.15 mm
Pitch : 5 mm

SLPU5-7W

Plug In Bridge, Type – SLPU5-7W
Height : 26 mm
Width : 34.15 mm
Pitch : 5 mm

Marker carriers

SCUDDMLH

Universal rail-mounted end clamp with fixing screws & marking label holder, Type - SCUDDMLH
Height : 71.5 mm
Width : 10 mm
Length : 55.6 mm

SCUNMLH

Universal rail mounted end clamp with fixing screws & marking lable holder , Type - SCUNMLH
Height : 53.5 mm
Width : 9.5 mm
Length : 50.6 mm

GMH10

Group Marking Holder with 10 mm pitch
Height : 51 mm
Width : 10 mm
Length : 41.5 mm

GMH 20

Group Marking Holder with 20 mm pitch
Height : 51 mm
Width : 20 mm
Length : 41.5 mm

DCKNMLH

35 mm rail mounted end clamp with marking lable holder
Height : 45.5 mm
Width : 6 mm
Length : 43.5 mm

SCKNMLH

35 mm rail mounted end clamp with marking lable holder
Height : 45.5 mm
Width : 8 mm
Length : 44.9 mm

Complete Specification	View Download
Accessories	View Download
Technical	View Download
3D Model (.pdf)	Not Available.
3D Model (.stp)	Not Available.
