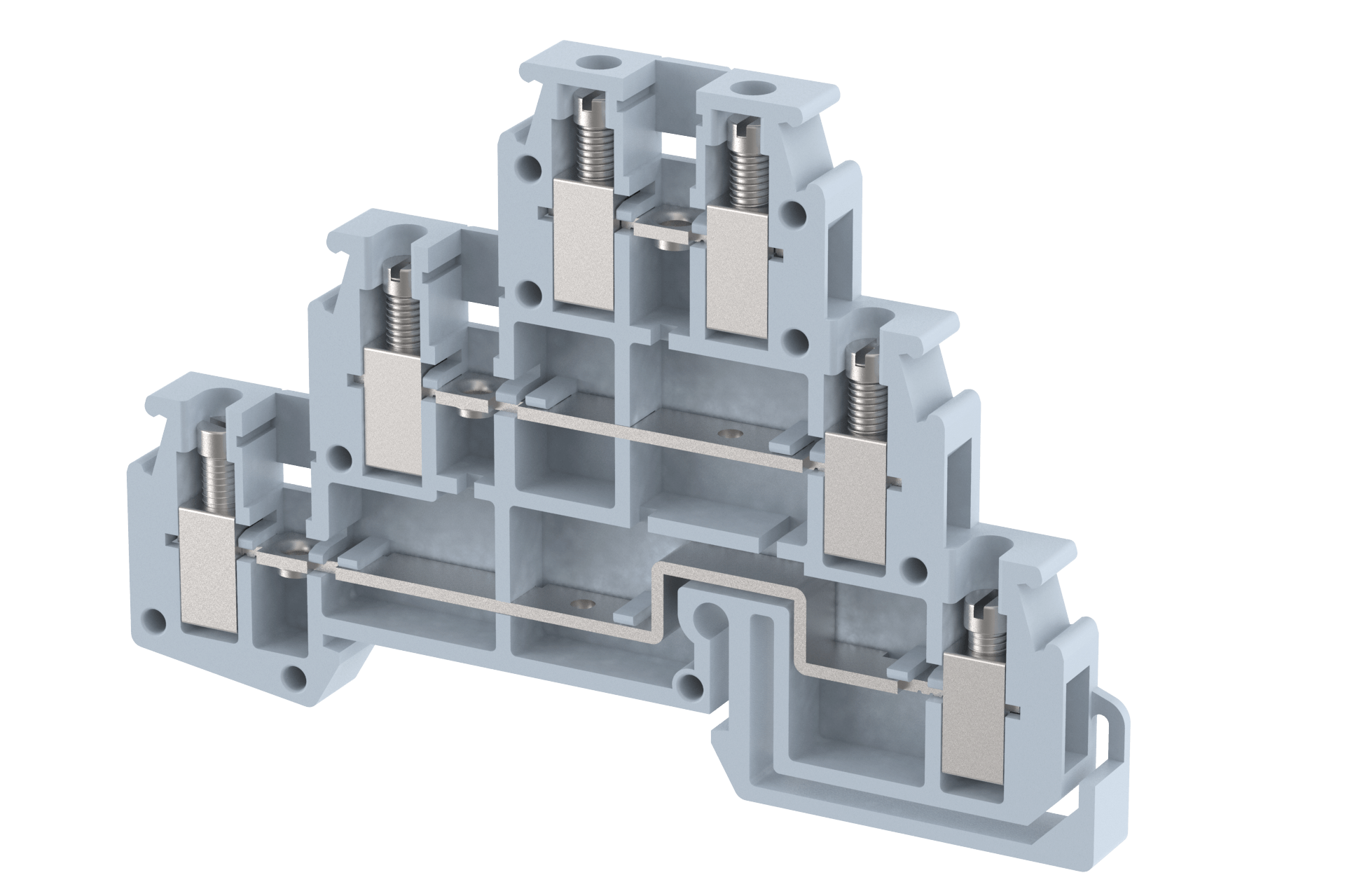

DU3D4

Approvals

CE mark for explosion-proof Approval as per ATEX directive UL Recognition for USA CE Mark Conforming to IEC Specification CSA Recognition for Canada & USA D mark Certification for Denmark c-UL Recognition for Canada S Mark Certification for Sweden FI Mark Certification for Finland N Mark Certification for Norway

Line Diagram


General Data

Type DU3D4
Wire termination Technology Screw Connection
Rating 500 V / 20 A / 2.5 sq.mm / 0.5 Nm
GTIN / Harmonize Custom Code 85389000
Standard Packing Qty (in No) 50
Country of Origin India

Thickness (mm) 6
Thickness (inches) 0.24
Width (mm) 82.3
Width (inches) 3.24
Height (mm) 55
Height (inches) 2.17
Weight For Standard Packing Qty (KG) 0.95

Housing Polyamide 6,6
Clamping Material Brass
Standard Colour Grey
Other Colour Variants Red, Yellow, Blue, Black, Green, Khakhi
Standard Colour Gray

Stranded Wire - Min (sq.mm) 0.2
Stranded Wire - Max (sq.mm) 2.5
Solid Wire - Max (sq.mm) 4

Standard IEC 60947-7-1
Rated Voltage (V) 500
Rated Current (A) 20
Rated Cross Section (sq.mm) 2.5
Short Time Withstand Current (kA) 0.3
Rated Impulse Withstand Voltage (kV) 6
Pollution Degree 3

Rated Voltage (V) 200
Rated Current (A) 18
Rated Cross Section (sq.mm) 2.5

Rated Voltage (V) 600
Rated Current (A) 20
Wire Cross Section - min (AWG) 24
Wire Cross Section - max (AWG) 12

Rated Voltage (V) 600
Rated Current (A) 20
Conductor Size - min (AWG) 24
Conductor Size - max (AWG) 12

DIN Rail Perforated
CHKDS
  • 35 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm - Perforated
  • Height : 15 mm
  • Width : 35 mm
  • Thickness : 1.5 mm
  • Length : 2000 mm
CHKS
  • 35 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm - Perforated
  • Height : 7.5 mm
  • Width : 35 mm
  • Thickness : 1 mm
DIN Rail, Unperforated
CHKD
  • 35 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm , Unperforated
  • Height : 15 mm
  • Width : 35 mm
  • Thickness : 1.5 mm
CHK
  • 35 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm , Unperforated
  • Height : 7.5 mm
  • Width : 35 mm
  • Thickness : 1 mm
End Cap
CHKENDCAP
  • END COVER/ CAP FOR CHK CHANNEL
  • Height : 14 mm
  • Width : 9 mm
  • Length : 41.5 mm
End Clamp
SCUP
  • TS32 , TS35 din rail mounted end clamp with fixing screws , Type - SCUP
  • Height : 34 mm
  • Length : 44.75 mm
SCUSL
  • Universal rail mounted end clamp with fixing screws , Type - SCUSL
  • Height : 41.1 mm
  • Width : 8 mm
  • Length : 47.5 mm
SCUDD
  • TS35 , TS32 DIN rail mounted end clamp with fixing screws , Width - 10 mm , Type - SCUDD
  • Height : 50 mm
  • Width : 10 mm
  • Length : 55.6 mm
DCKN
  • TS35 din rail mounted end clamp without fixing screws , Width - 6 mm , Color - Grey
  • Height : 33 mm
  • Width : 6 mm
  • Length : 43.5 mm
DCKN10
  • TS35 DIN rail mounted end clamp without fixing screws , Width- 10 mm , Color - Grey
  • Height : 35 mm
  • Width : 10 mm
  • Length : 43.5 mm
SCKN
  • TS35 DIN rail mounted end clamp with fixing screws , Width - 8 mm , Color - Grey
  • Height : 34.5 mm
  • Width : 8 mm
  • Length : 44.9 mm
SCUN
  • TS35 , TS32 DIN rail mounted end clamp with fixing screws , Width- 9.5 mm , Color - Grey
  • Height : 35.5 mm
  • Width : 9.5 mm
  • Length : 50.6 mm
End Cover

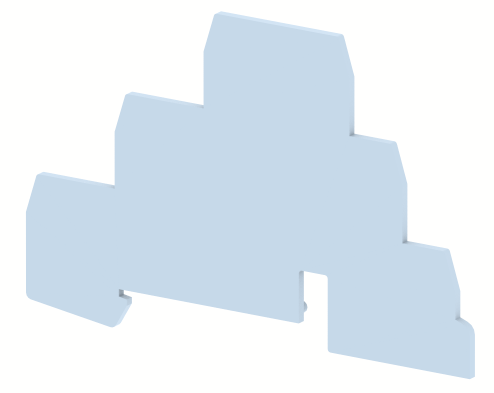

DP3D
  • End Cover for Terminal Type - DU3D4
  • Height : 55 mm
  • Thickness : 1.5 mm
  • Length : 82.3 mm
Fixed Bridge

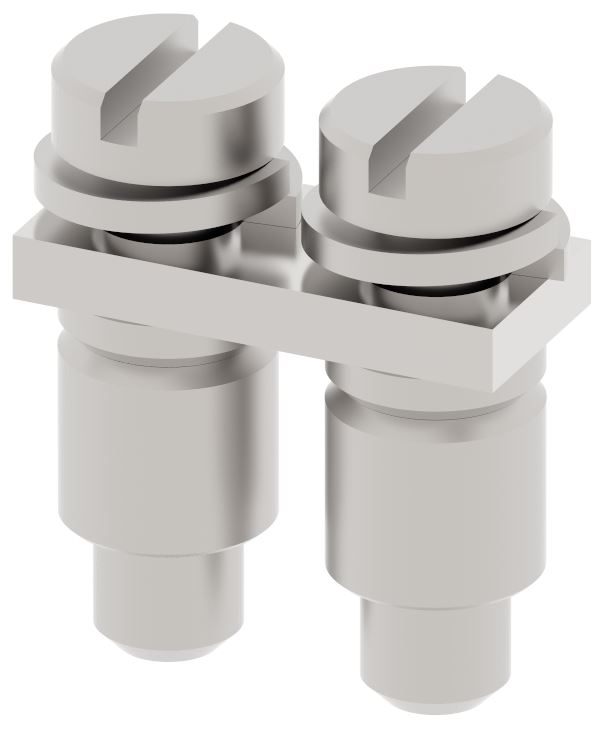

CCLATD-2W
  • Fixed bridge , type - CCLATD-2W
  • Height : 11 mm
  • Pitch : 6 mm
  • Length : 11 mm

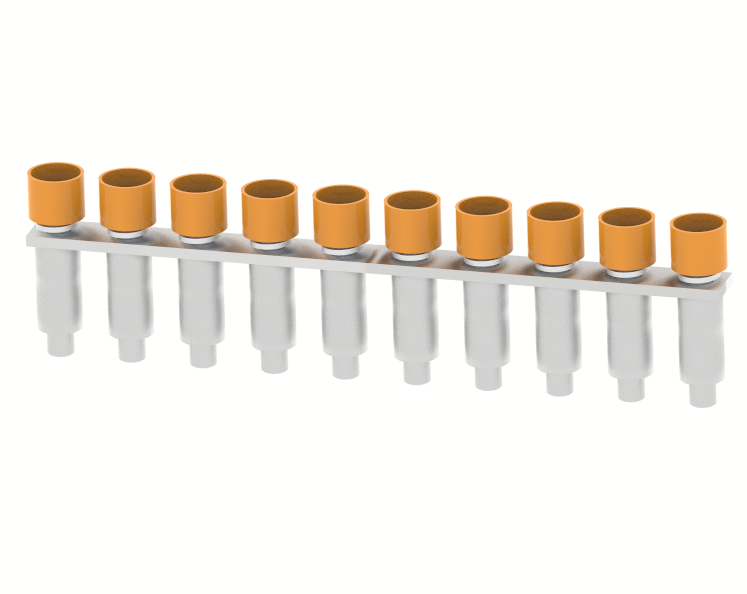

CCLATD-10W
  • Fixed bridge , type - CCLATD-10W
  • Height : 11 mm
  • Pitch : 6 mm
  • Length : 59 mm
CCLATD-3W
  • Fixed bridge , type - CCLATD-3W
  • Height : 11 mm
  • Pitch : 6 mm
  • Length : 17 mm

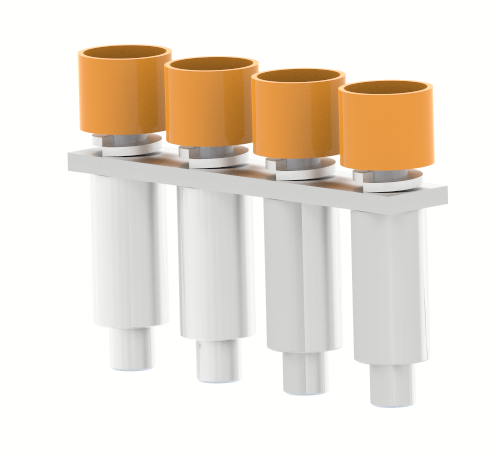

CCLATD-4W
  • Fixed bridge , type - CCLATD-4W
  • Height : 11 mm
  • Pitch : 6 mm
  • Length : 23 mm

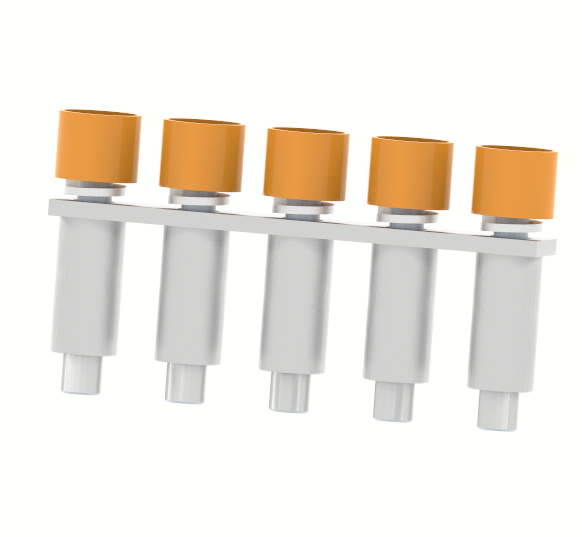

CCLATD-5W
  • Fixed bridge , type - CCLATD-5W
  • Height : 11 mm
  • Pitch : 6 mm
  • Length : 29 mm
Insertion Bridge
SLC4N-10W
  • Insertion Bridge - Type - SLC4N-10W , Available Variants : 2W, 3W , 4W , 5W , 6W , 10W
  • Width : 58.6 mm
  • Pitch : 6 mm
  • Length : 23 mm
SLC4N-3W
  • Insertion Bridge - Type - SLC4N-3W , Available Variants : 2W, 3W , 4W , 5W , 6W , 10W
  • Width : 16.65 mm
  • Pitch : 6 mm
  • Length : 23 mm
SLC4N-4W
  • Insertion Bridge - Type - SLC4N-4W , Available Variants : 2W, 3W , 4W , 5W , 6W , 10W
  • Width : 22.65 mm
  • Pitch : 6 mm
  • Length : 23 mm
SLC4N-5W
  • Insertion Bridge - Type - SLC4N-5W , Available Variants : 2W, 3W , 4W , 5W , 6W , 10W
  • Width : 28.65 mm
  • Pitch : 6 mm
  • Length : 23 mm
SLC4N-6W
  • Insertion Bridge - Type - SLC4N-6W , Available Variants : 2W, 3W , 4W , 5W , 6W , 10W
  • Width : 34.6 mm
  • Pitch : 6 mm
  • Length : 23 mm
SLC4N-2W
  • Insertion Bridge - Type - SLC4N-2W , Available Variants : 2W, 3W , 4W , 5W , 6W , 10W
  • Width : 10.91 mm
  • Pitch : 6 mm
  • Length : 23 mm
Marker For Terminal Blocks
LABEL KN5.5
  • Snap on type PVC marking Label , Type - KN 5.5
  • Width : 6 mm
Marker carriers
SCUDDMLH
  • Universal rail-mounted end clamp with fixing screws & marking label holder, Type - SCUDDMLH
  • Height : 71.5 mm
  • Width : 10 mm
  • Length : 55.6 mm
SCUNMLH
  • Universal rail mounted end clamp with fixing screws & marking lable holder , Type - SCUNMLH
  • Height : 53.5 mm
  • Width : 9.5 mm
  • Length : 50.6 mm
DCKNMLH
  • 35 mm rail mounted end clamp with marking lable holder
  • Height : 45.5 mm
  • Width : 6 mm
  • Length : 43.5 mm
SCKNMLH
  • 35 mm rail mounted end clamp with marking lable holder
  • Height : 45.5 mm
  • Width : 8 mm
  • Length : 44.9 mm
