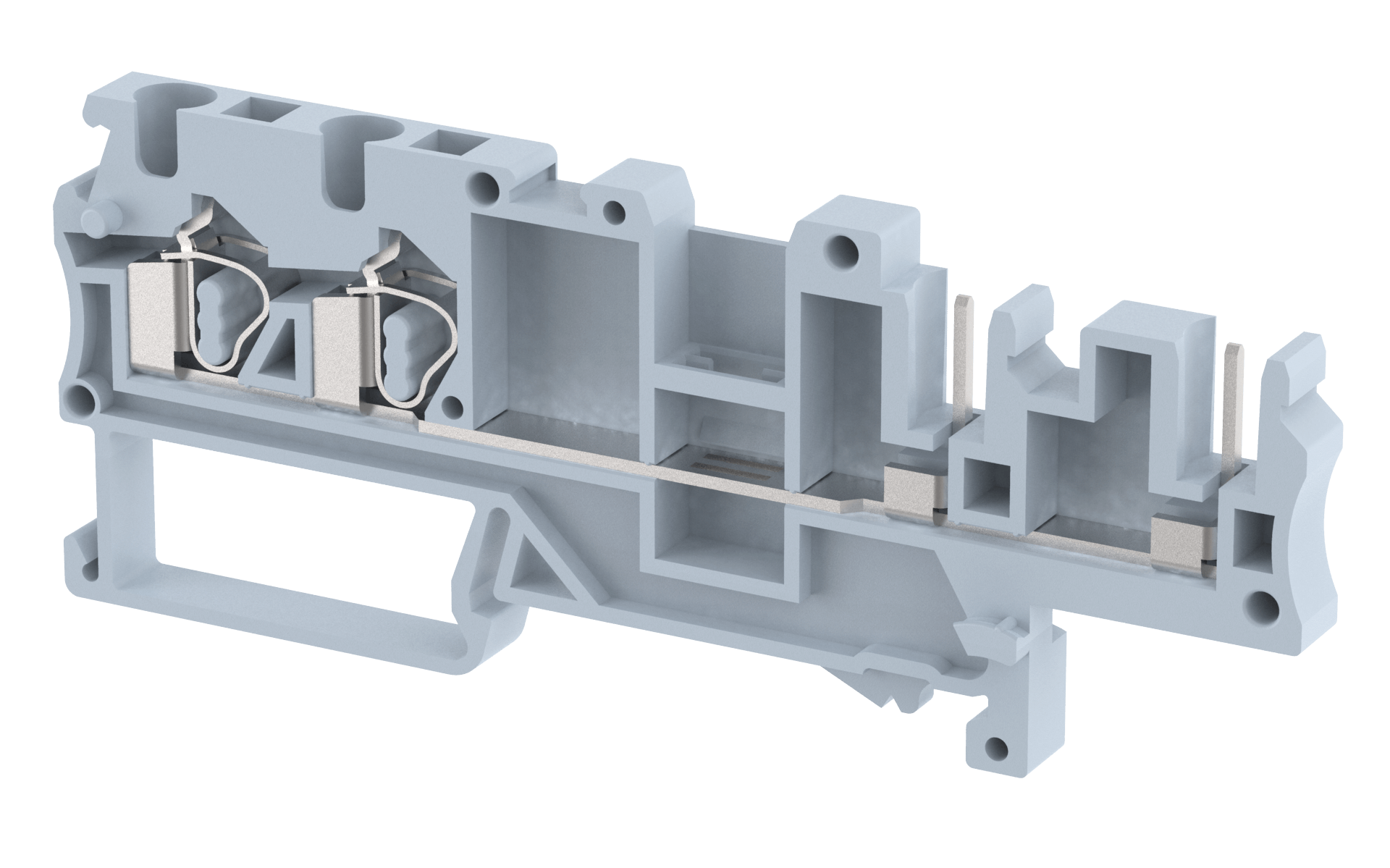

DST2.5-2C2P

Approvals

Line Diagram

General Data

Type	DST2.5-2C2P
Wire termination Technology	Spring Cage Connection
Rating	500 V / 16 A / 2.5 sq.mm
GTIN / Harmonize Custom Code	85389000
Standard Packing Qty (in No)	100
Country of Origin	India

Data Specification
Downloads

Thickness (mm)	5.08
Thickness (inches)	0.2
Width (mm)	83
Width (inches)	3.27
Height (mm)	33
Height (inches)	1.3
Weight For Standard Packing Qty (KG)	1.1

Housing	Polyamide 6,6
Clamping Material	Spring steel
Standard Colour	Grey
Standard Colour	Gray
Other Colour Variants	Red, Yellow, Blue, Black, Green, Khakhi

Stranded Wire - Min (sq.mm)	0.5
Stranded Wire - Max (sq.mm)	2.5

Standard	IEC 60947-7-1
Rated Voltage (V)	500
Rated Current (A)	16
Rated Cross Section (sq.mm)	2.5
Short Time Withstand Current (kA)	0.3
Rated Impulse Withstand Voltage (kV)	4
Pollution Degree	3

DIN Rail Perforated

CHKDS

35 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm - Perforated
Height : 15 mm
Width : 35 mm
Thickness : 1.5 mm
Length : 2000 mm

CHKS

35 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm - Perforated
Height : 7.5 mm
Width : 35 mm
Thickness : 1 mm

DIN Rail, Unperforated

CHKD

35 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm , Unperforated
Height : 15 mm
Width : 35 mm
Thickness : 1.5 mm

CHK

35 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm , Unperforated
Height : 7.5 mm
Width : 35 mm
Thickness : 1 mm

End Clamp

SCUP

TS32 , TS35 din rail mounted end clamp with fixing screws , Type - SCUP
Height : 34 mm
Length : 44.75 mm

SCEC35

TS35 DIN rail mounted End clamp with fixing nut and screw of size M3, Width - 8 mm, Color - Grey
Height : 31.5 mm
Width : 8 mm
Length : 45.8 mm

SCUSL

Universal rail mounted end clamp with fixing screws , Type - SCUSL
Height : 41.1 mm
Width : 8 mm
Length : 47.5 mm

SCUDD

TS35 , TS32 DIN rail mounted end clamp with fixing screws , Width - 10 mm , Type - SCUDD
Height : 50 mm
Width : 10 mm
Length : 55.6 mm

DCKN

TS35 din rail mounted end clamp without fixing screws , Width - 6 mm , Color - Grey
Height : 33 mm
Width : 6 mm
Length : 43.5 mm

DCKN10

TS35 DIN rail mounted end clamp without fixing screws , Width- 10 mm , Color - Grey
Height : 35 mm
Width : 10 mm
Length : 43.5 mm

SCKN

TS35 DIN rail mounted end clamp with fixing screws , Width - 8 mm , Color - Grey
Height : 34.5 mm
Width : 8 mm
Length : 44.9 mm

SCUN

TS35 , TS32 DIN rail mounted end clamp with fixing screws , Width- 9.5 mm , Color - Grey
Height : 35.5 mm
Width : 9.5 mm
Length : 50.6 mm

End Cover

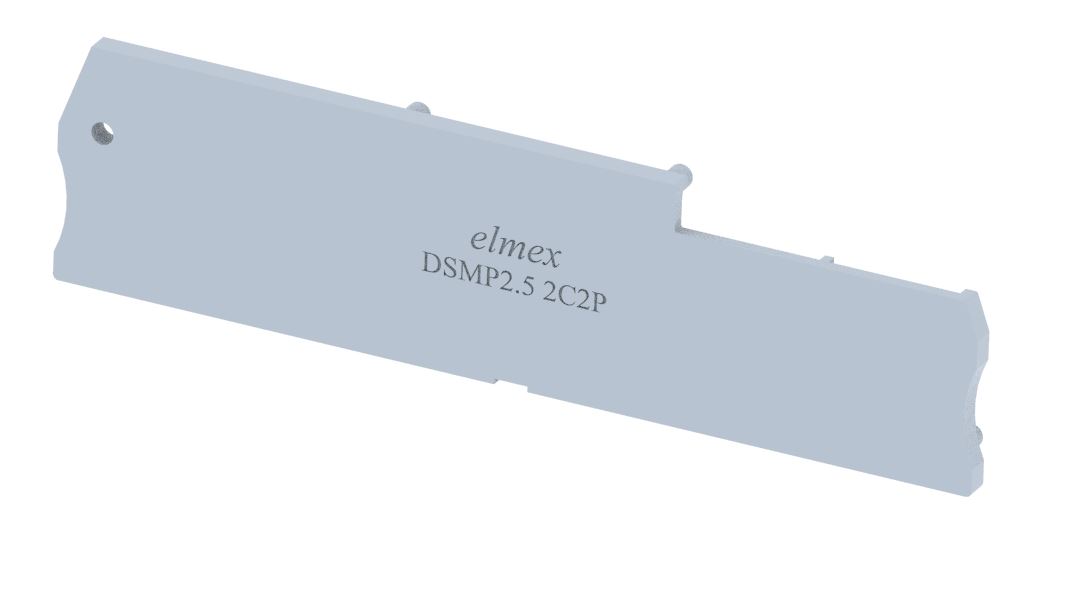

DSMP2.5-2C2P

DSMP2.5-2C2P End cover for Terminal type DST2.5-2C2P , colour : GREY
Height : 21.5 mm
Width : 2.2 mm
Length : 83 mm

Marker For Terminal Blocks

LABEL KN5

Snap on type PVC marking Label , Type - KN 5
Width : 5 mm

Plug-in Bridge/Jumper

SSL2.5

Plug In Bridge , Type - SSL2.5
Height : 22.8 mm
Width : 4.85 mm
Length : 8.4 mm

Marker carriers

SCUDDMLH

Universal rail-mounted end clamp with fixing screws & marking label holder, Type - SCUDDMLH
Height : 71.5 mm
Width : 10 mm
Length : 55.6 mm

SCUNMLH

Universal rail mounted end clamp with fixing screws & marking lable holder , Type - SCUNMLH
Height : 53.5 mm
Width : 9.5 mm
Length : 50.6 mm

DCKNMLH

35 mm rail mounted end clamp with marking lable holder
Height : 45.5 mm
Width : 6 mm
Length : 43.5 mm

SCKNMLH

35 mm rail mounted end clamp with marking lable holder
Height : 45.5 mm
Width : 8 mm
Length : 44.9 mm

PLUG

DST2.5-2C1PP-1W

1W Plug for Terminal type - DST2.5-2C2P and DST2.5-2C1P
Height : 26.15 mm
Width : 5.08 mm
Pitch : 14.45 mm

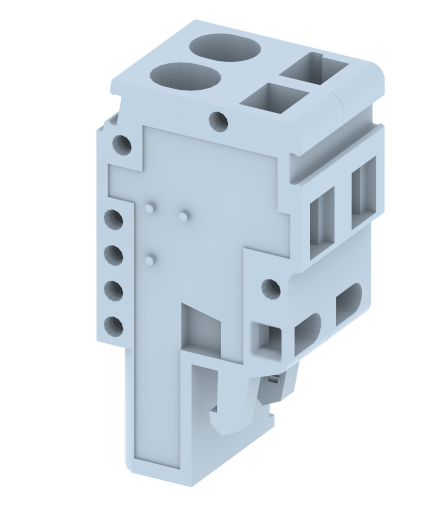

DST2.5-2C1PP-2W

2W Plug for Terminal type - DST2.5-2C2P and DST2.5-2C1P
Height : 26.15 mm
Width : 10.16 mm
Length : 14.45 mm

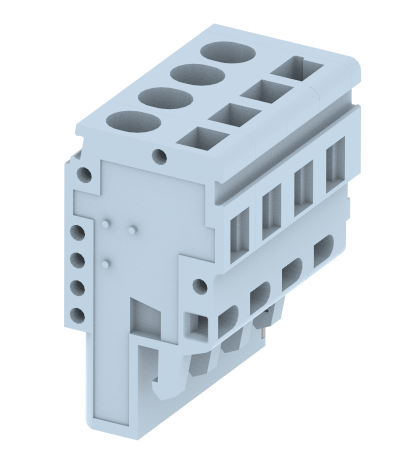

DST2.5-2C1PP-4W

4W Plug for Terminal type - DST2.5-2C2P and DST2.5-2C1P
Height : 26.15 mm
Width : 20.32 mm
Length : 14.45 mm

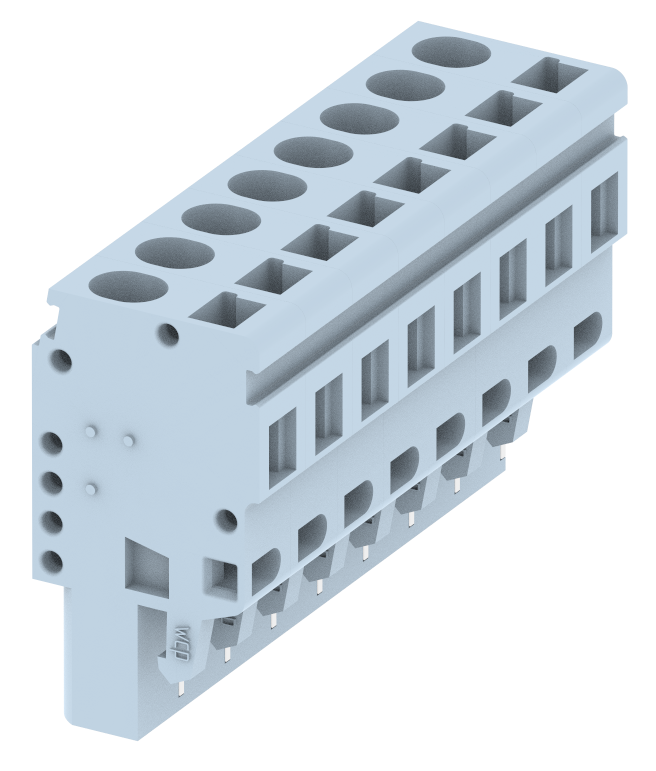

DST2.5-2C1PP-8W

8W Plug for Terminal type - DST2.5-2C2P and DST2.5-2C1P
Height : 26.15 mm
Width : 40.64 mm
Length : 14.45 mm

Complete Specification	View Download
Accessories	View Download
Technical	View Download
3D Model (.pdf)	Not Available.
3D Model (.stp)	Download
