DSET2.5-1x2 Terminal Blocks Spring Cage Connection Ground Terminal Blocks Manufacturer and Supplier in India – Elmex

DSET2.5-1x2

Approvals

CE Mark Conforming to IEC Specification

Line Diagram


General Data

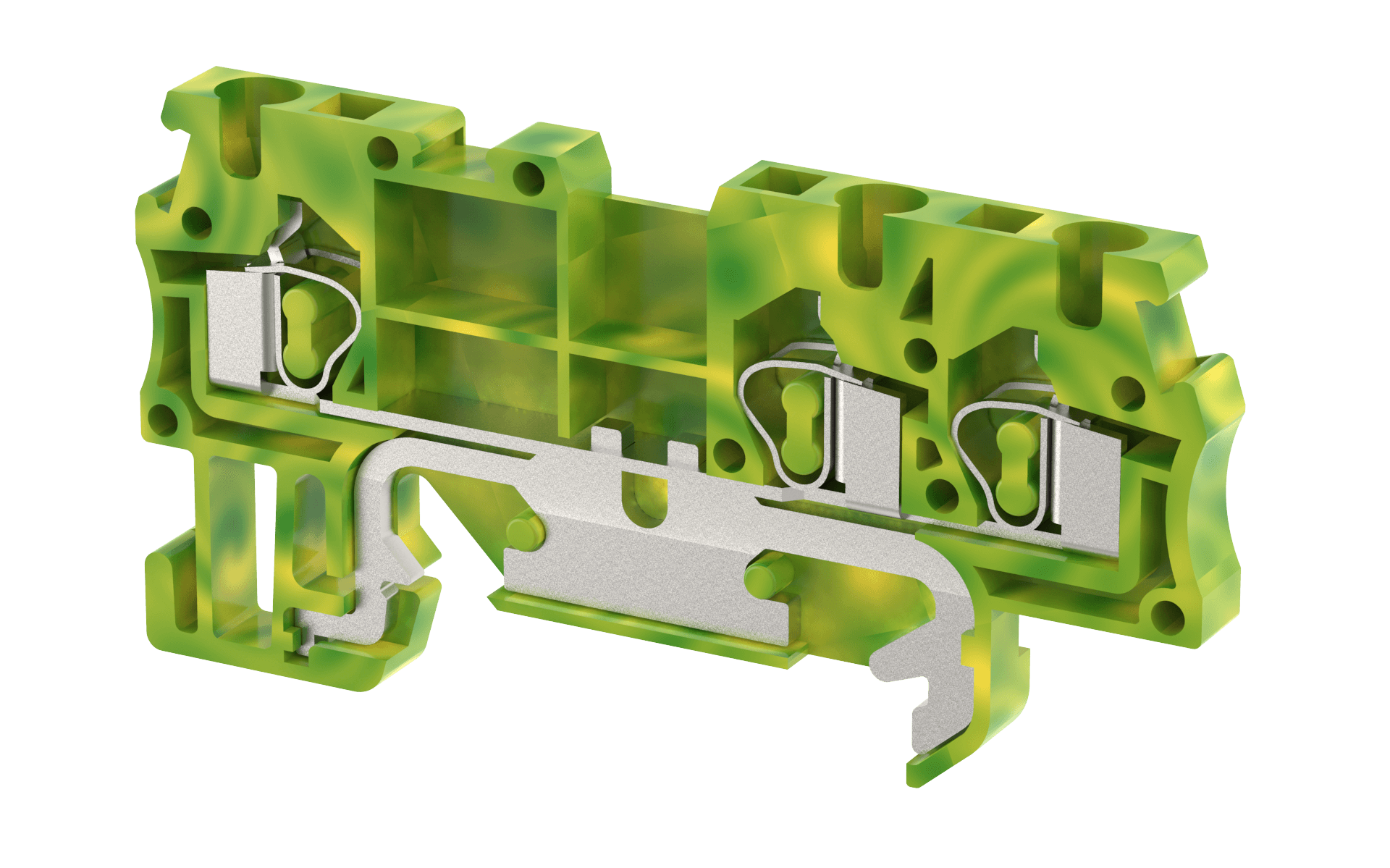

Type DSET2.5-1x2
Wire termination Technology Spring Cage Connection
Rating 2.5 sq.mm
GTIN / Harmonize Custom Code 85389000
Standard Packing Qty (in No) 100
Country of Origin India

Thickness (mm) 5
Thickness (inches) 0.2
Width (mm) 66.5
Width (inches) 2.62
Height (mm) 34.3
Height (inches) 1.35
Weight For Standard Packing Qty (KG) 1.25

Housing Polyamide 6,6
Clamping Material Spring Steel
Standard Colour Green-Yellow

Stranded Wire - Min (sq.mm) 0.5
Stranded Wire - Max (sq.mm) 2.5

Standard IEC 60947-7-2
Rated Voltage (V) -
Rated Cross Section (sq.mm) 2.5
Short Time Withstand Current (kA) 0.3
Pollution Degree 3

Cover Profile
PCPDBF-3
  • Cover Profile , Type -PCPDBF-3
  • Height : 14.1 mm
  • Thickness : 1.5 mm
  • Length : 79 mm
DIN Rail Perforated
CHKDS
  • 35 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm - Perforated
  • Height : 15 mm
  • Width : 35 mm
  • Thickness : 1.5 mm
  • Length : 2000 mm
CHKS
  • 35 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm - Perforated
  • Height : 7.5 mm
  • Width : 35 mm
  • Thickness : 1 mm
DIN Rail, Unperforated
CHKD
  • 35 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm , Unperforated
  • Height : 15 mm
  • Width : 35 mm
  • Thickness : 1.5 mm
CHK
  • 35 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm , Unperforated
  • Height : 7.5 mm
  • Width : 35 mm
  • Thickness : 1 mm
End Cap
CHKENDCAP
  • END COVER/ CAP FOR CHK CHANNEL
  • Height : 14 mm
  • Width : 9 mm
  • Length : 41.5 mm
End Clamp
SCUP
  • TS32 , TS35 din rail mounted end clamp with fixing screws , Type - SCUP
  • Height : 34 mm
  • Length : 44.75 mm
SCEC35
  • TS35 DIN rail mounted End clamp with fixing nut and screw of size M3, Width - 8 mm, Color - Grey
  • Height : 31.5 mm
  • Width : 8 mm
  • Length : 45.8 mm
SCUSL
  • Universal rail mounted end clamp with fixing screws , Type - SCUSL
  • Height : 41.1 mm
  • Width : 8 mm
  • Length : 47.5 mm
SCUDD
  • TS35 , TS32 DIN rail mounted end clamp with fixing screws , Width - 10 mm , Type - SCUDD
  • Height : 50 mm
  • Width : 10 mm
  • Length : 55.6 mm
DCKN
  • TS35 din rail mounted end clamp without fixing screws , Width - 6 mm , Color - Grey
  • Height : 33 mm
  • Width : 6 mm
  • Length : 43.5 mm
DCKN10
  • TS35 DIN rail mounted end clamp without fixing screws , Width- 10 mm , Color - Grey
  • Height : 35 mm
  • Width : 10 mm
  • Length : 43.5 mm
SCKN
  • TS35 DIN rail mounted end clamp with fixing screws , Width - 8 mm , Color - Grey
  • Height : 34.5 mm
  • Width : 8 mm
  • Length : 44.9 mm
SCUN
  • TS35 , TS32 DIN rail mounted end clamp with fixing screws , Width- 9.5 mm , Color - Grey
  • Height : 35.5 mm
  • Width : 9.5 mm
  • Length : 50.6 mm
End Cover
DSMP2.5-1x2

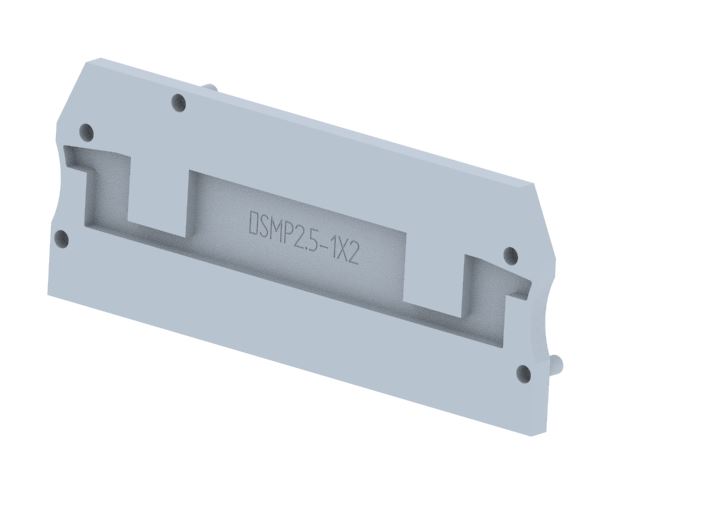

  • DSMP2.5-1X2 End cover for Terminal type DST2.5-1X2 and DSET2.5-1X2 , colour : GREY
  • Height : 26.5 mm
  • Width : 2.5 mm
  • Length : 66 mm
Marker For Terminal Blocks
LABEL KN5
  • Snap on type PVC marking Label , Type - KN 5
  • Width : 5 mm
Partition Plate
DBF-3
  • Partition Plate with foot used to support protection cover , Type - DBF-3
  • Height : 38.4 mm
  • Width : 3 mm
  • Length : 78 mm
Marker carriers
SCUDDMLH
  • Universal rail-mounted end clamp with fixing screws & marking label holder, Type - SCUDDMLH
  • Height : 71.5 mm
  • Width : 10 mm
  • Length : 55.6 mm
SCUNMLH
  • Universal rail mounted end clamp with fixing screws & marking lable holder , Type - SCUNMLH
  • Height : 53.5 mm
  • Width : 9.5 mm
  • Length : 50.6 mm
DCKNMLH
  • 35 mm rail mounted end clamp with marking lable holder
  • Height : 45.5 mm
  • Width : 6 mm
  • Length : 43.5 mm
SCKNMLH
  • 35 mm rail mounted end clamp with marking lable holder
  • Height : 45.5 mm
  • Width : 8 mm
  • Length : 44.9 mm
