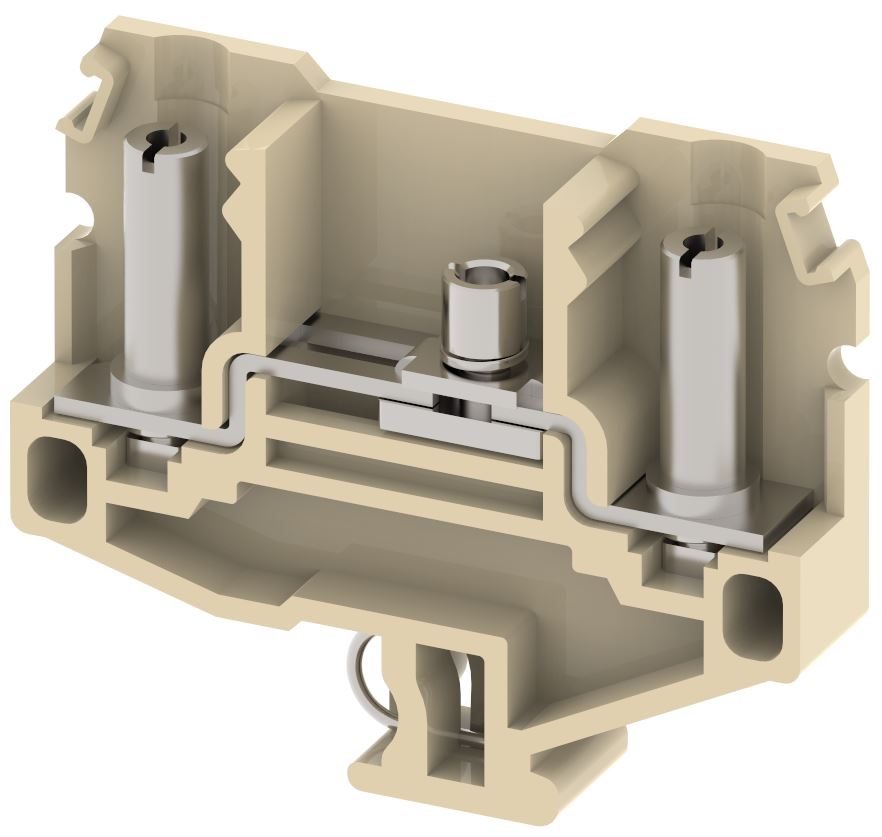

CATDM4

Approvals

CE Mark Conforming to IEC Specification

Line Diagram


General Data

Type CATDM4
Wire termination Technology Bolt Connection
Rating 1100 V / 41 A / 6 sq.mm / 1.2 Nm
GTIN / Harmonize Custom Code 85389000
Standard Packing Qty (in No) 50
Country of Origin India

Thickness (mm) 13
Thickness (inches) 0.51
Width (mm) 69
Width (inches) 2.72
Height (mm) 57
Height (inches) 2.24
Weight For Standard Packing Qty (KG) 2.56

Housing Melamine
Clamping Material Brass
Standard Colour Khakhi
Other Colour Variants Red, Yellow, Blue, Black, Green

Stranded Wire - Min (sq.mm) 2.5
Stranded Wire - Max (sq.mm) 6

Standard IEC 60947-7-1
Rated Voltage (V) 1100
Rated Current (A) 41
Rated Cross Section (sq.mm) 6
Short Time Withstand Current (kA) 0.72
Rated Impulse Withstand Voltage (kV) 8
Pollution Degree 3

Cover Profile

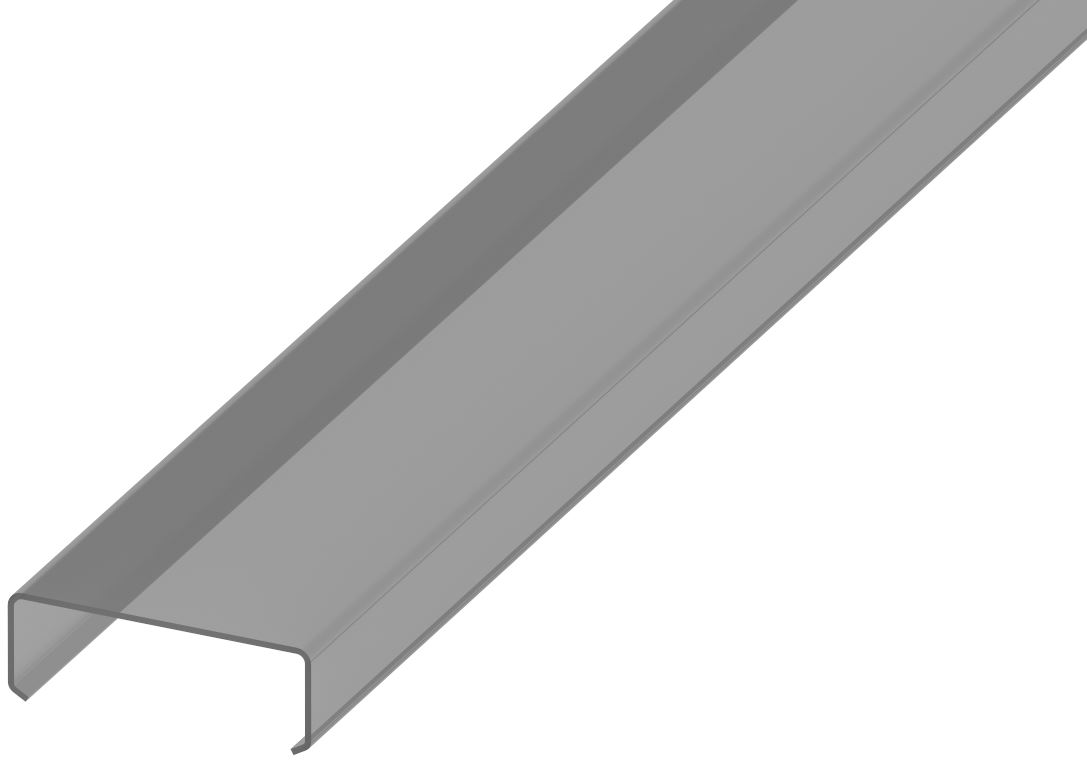

PCD3
  • Cover profile - type - PCD3
  • Height : 26.2 mm
  • Width : 73 mm
  • Thickness : 1.5 mm
PCD 39
  • Cover profile for terminal type - CATDM4 , CLTDM4NV (covers 3 terminal blocks)
  • Height : 26 mm
  • Thickness : 1.5 mm
  • Length : 70 mm

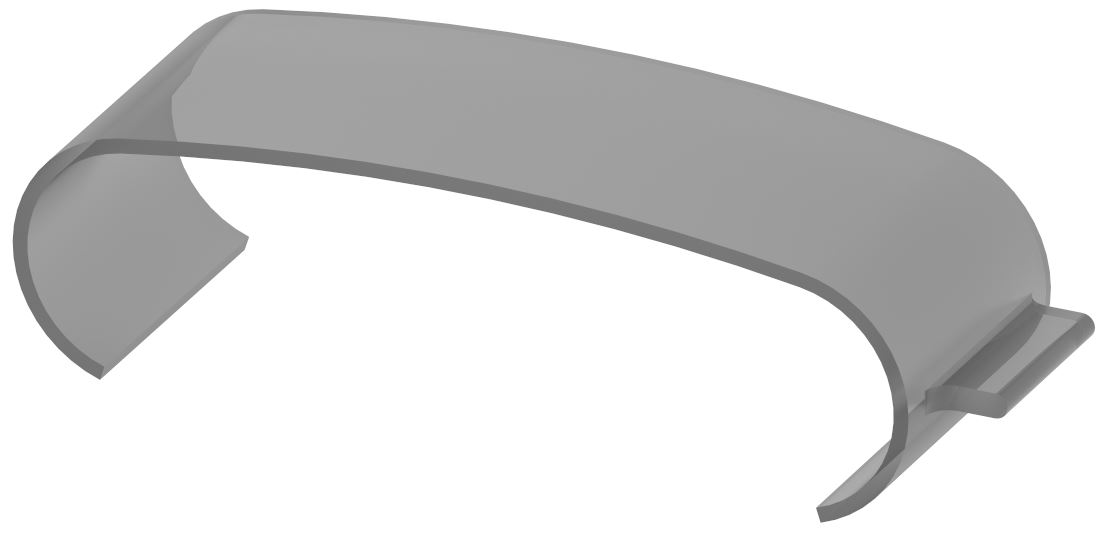

PCD26
  • Cover profile for terminal type - CATDM4 , CLTDM4NV (covers 2 terminal blocks)
  • Height : 26 mm
  • Thickness : 1.5 mm
  • Length : 70 mm
DIN Rail Perforated
CHS
  • 32 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm - Unperforated
  • Height : 15 mm
  • Width : 32 mm
  • Thickness : 1.5 mm
End Clamp
SCUP
  • TS32 , TS35 din rail mounted end clamp with fixing screws , Type - SCUP
  • Height : 34 mm
  • Length : 44.75 mm
SCUSL
  • Universal rail mounted end clamp with fixing screws , Type - SCUSL
  • Height : 41.1 mm
  • Width : 8 mm
  • Length : 47.5 mm
SCUDD
  • TS35 , TS32 DIN rail mounted end clamp with fixing screws , Width - 10 mm , Type - SCUDD
  • Height : 50 mm
  • Width : 10 mm
  • Length : 55.6 mm
SCUN
  • TS35 , TS32 DIN rail mounted end clamp with fixing screws , Width- 9.5 mm , Color - Grey
  • Height : 35.5 mm
  • Width : 9.5 mm
  • Length : 50.6 mm

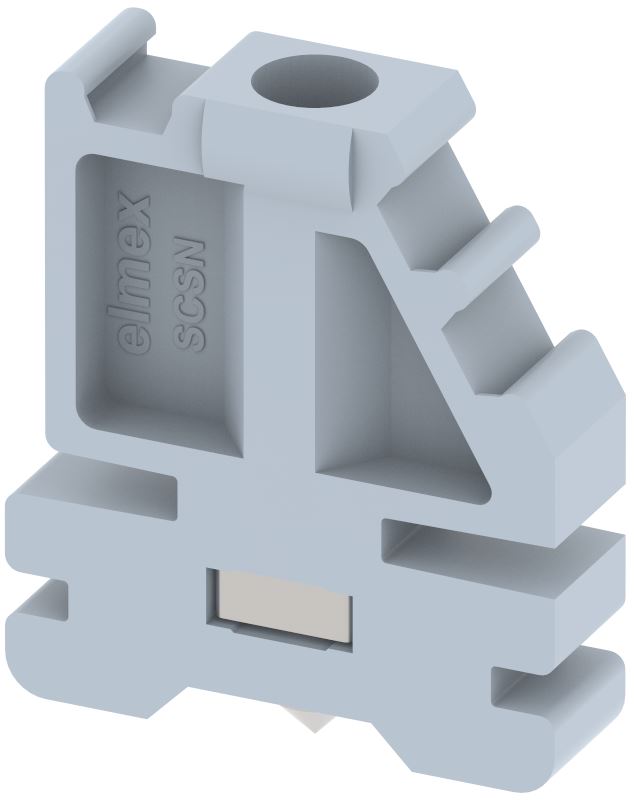

SCSN
  • 32 mm rail mounted end clamp with fixing screws (Type – SCSN) , colour : Grey
  • Height : 31 mm
  • Width : 8.4 mm
  • Length : 27 mm

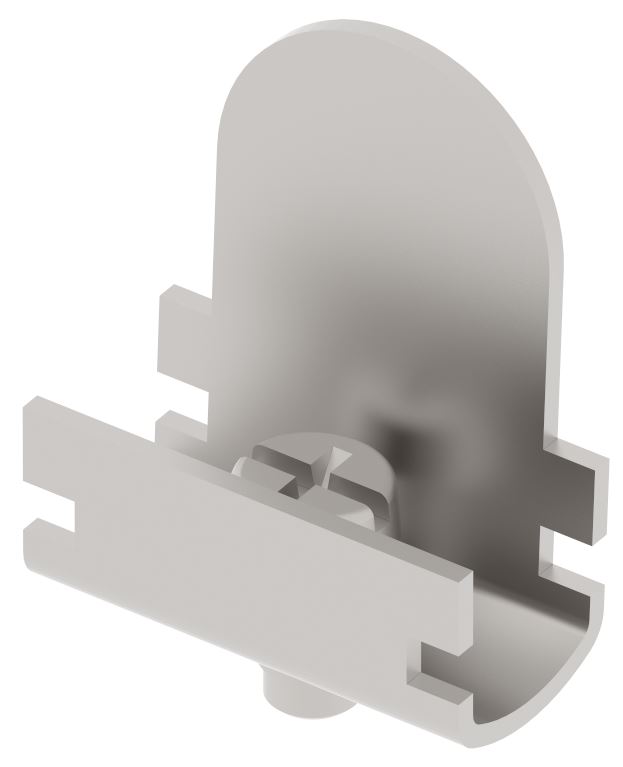

SCS
  • 32 mm rail mounted end clamp with fixing screws (Type – SCS)
  • Height : 26.9 mm
  • Length : 21 mm
End Cover

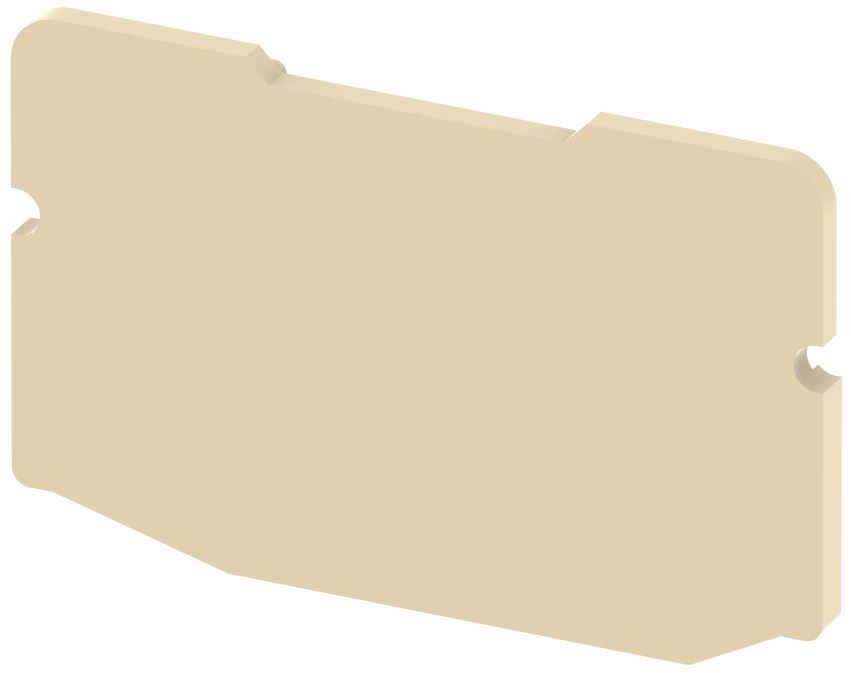

EPD4
  • EPD4 End cover for Terminal type CATDM4NV , colour : KHAKHI
  • Height : 44.2 mm
  • Width : 2.5 mm
  • Length : 69 mm
Insertion Bridge
ADSL-10W
  • Insertion Bridge , Type – ADSL-10W
  • Width : 124.5 mm
  • Pitch : 13 mm
  • Length : 24 mm

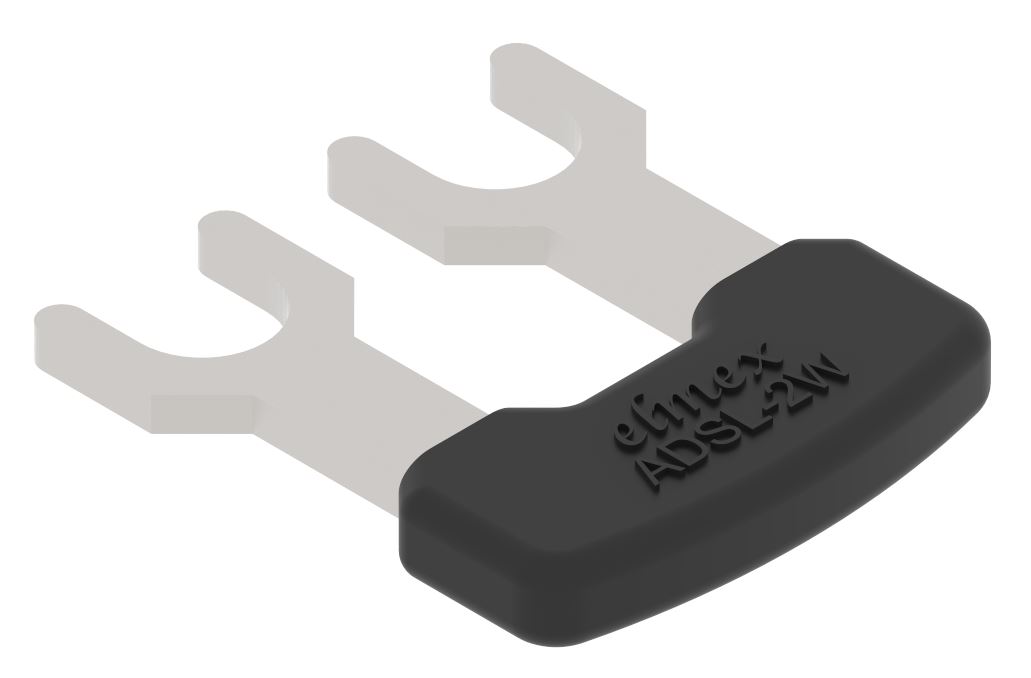

ADSL-2W
  • Insertion Bridge , Type – ADSL-2W, Available Variants - 2W , 3W , 4W , 7W , 10W
  • Width : 20.5 mm
  • Pitch : 13 mm
  • Length : 24 mm

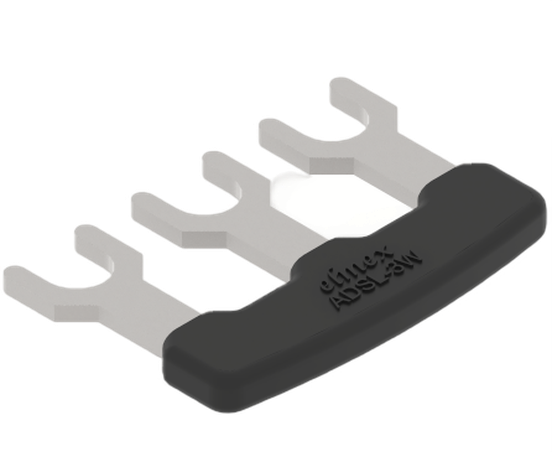

ADSL-3W
  • Insertion Bridge , Type – ADSL-3W
  • Width : 33.5 mm
  • Pitch : 13 mm
  • Length : 24 mm

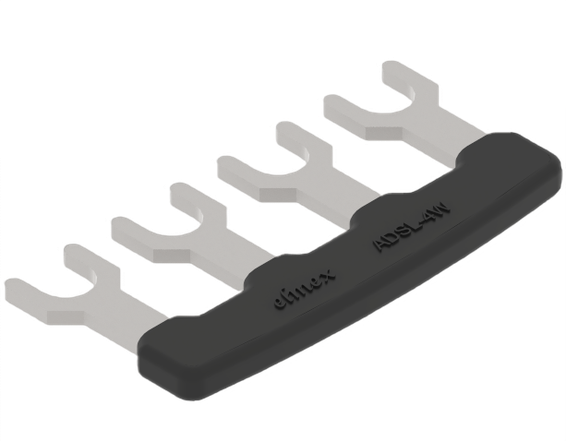

ADSL-4W
  • Insertion Bridge , Type – ADSL-4W
  • Width : 46.5 mm
  • Pitch : 13 mm
  • Length : 24 mm

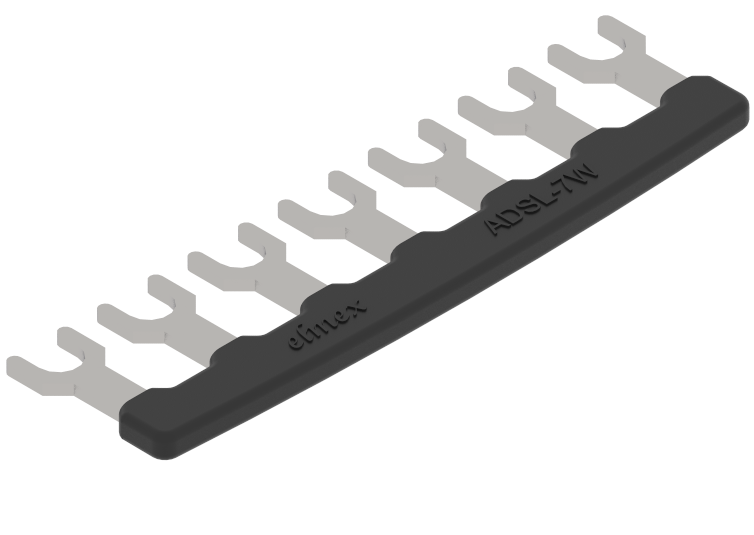

ADSL-7W
  • Insertion Bridge , Type – ADSL-7W
  • Width : 85.5 mm
  • Pitch : 13 mm
  • Length : 24 mm
Marker For Terminal Blocks
LABEL KN5.5
  • Snap on type PVC marking Label , Type - KN 5.5
  • Width : 6 mm
Marker carriers
SCUDDMLH
  • Universal rail-mounted end clamp with fixing screws & marking label holder, Type - SCUDDMLH
  • Height : 71.5 mm
  • Width : 10 mm
  • Length : 55.6 mm
SCUNMLH
  • Universal rail mounted end clamp with fixing screws & marking lable holder , Type - SCUNMLH
  • Height : 53.5 mm
  • Width : 9.5 mm
  • Length : 50.6 mm

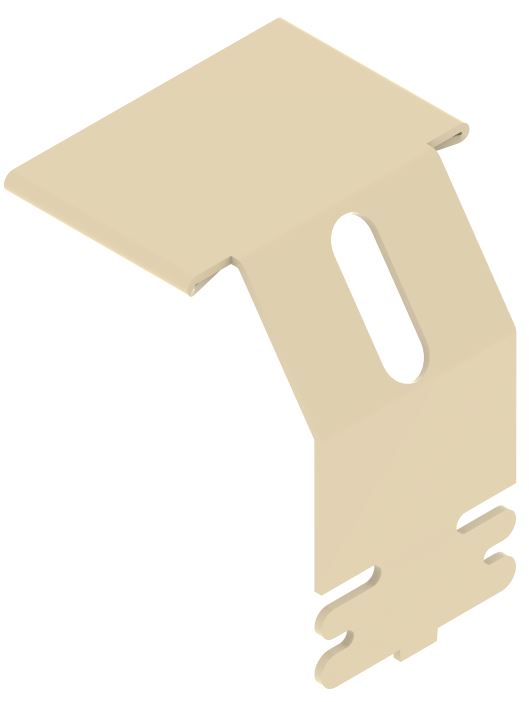

GMC
  • Marker Carriers For direct mounting on NS 32.
  • Height : 48 mm
  • Width : 39 mm
  • Thickness : 1 mm
  • Length : 38 mm
